| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_088T01_9000002320_15702cztM0_level2.evt | modeM0/AS1T02_088T01_9000002320_15702cztM0_level2_quad_clean.evt |
| Size (bytes) | 435,798,720 | 87,563,520 |
| Size | 415.6 MB | 83.5 MB |
| Events in quadrant A | 3,064,503 | 560,551 |
| Events in quadrant B | 3,336,898 | 575,945 |
| Events in quadrant C | 3,100,721 | 544,633 |
| Events in quadrant D | 3,261,093 | 524,319 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13159 | 3 |
| B | 0 | 13943 | 2 |
| C | 0 | 13134 | 2 |
| D | 0 | 14007 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6396 | 29 | 0.453408% |
| B | 6396 | 48 | 0.750469% |
| C | 6396 | 53 | 0.828643% |
| D | 6396 | 75 | 1.172608% |

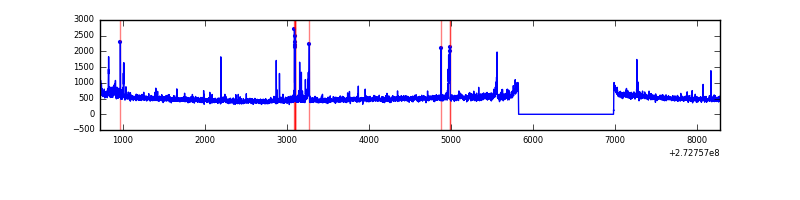

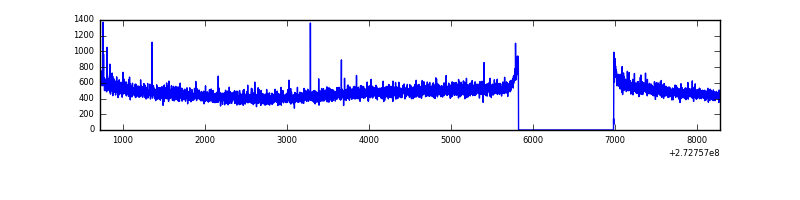

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7557 | 6398 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7557 | 6398 | 10 | 10 | 0.13% | 0.16% |  |
| C | 7557 | 6398 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7557 | 6398 | 53 | 53 | 0.70% | 0.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 8894 | 50.7 | 793 | 778 | 160.1 |
| A | 0 | 226 | 7087 | 39.41 | 793 | 778 | 160.1 |
| A | 4 | 2 | 5927 | 32.17 | 793 | 778 | 160.1 |
| B | 5 | 236 | 91517 | 594.86 | 801 | 783 | 152.5 |
| B | 4 | 216 | 30814 | 196.89 | 801 | 783 | 152.5 |
| B | 0 | 189 | 26071 | 165.79 | 801 | 783 | 152.5 |
| C | 14 | 238 | 119567 | 668.45 | 759 | 765 | 177.7 |
| C | 3 | 233 | 18441 | 99.45 | 759 | 765 | 177.7 |
| C | 13 | 61 | 5385 | 25.99 | 759 | 765 | 177.7 |
| D | 1 | 52 | 281303 | 1508.81 | 757 | 736 | 186.0 |
| D | 10 | 70 | 42610 | 225.19 | 757 | 736 | 186.0 |
| D | 12 | 221 | 31198 | 163.82 | 757 | 736 | 186.0 |

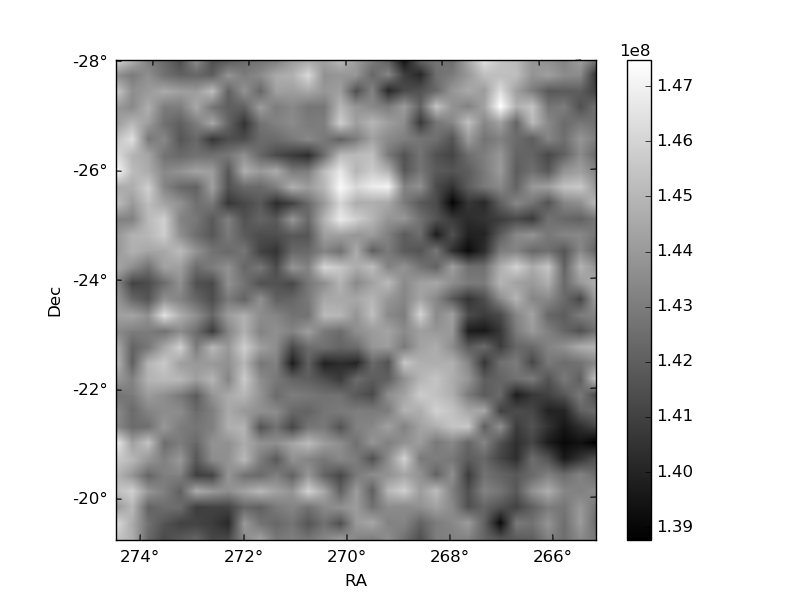

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

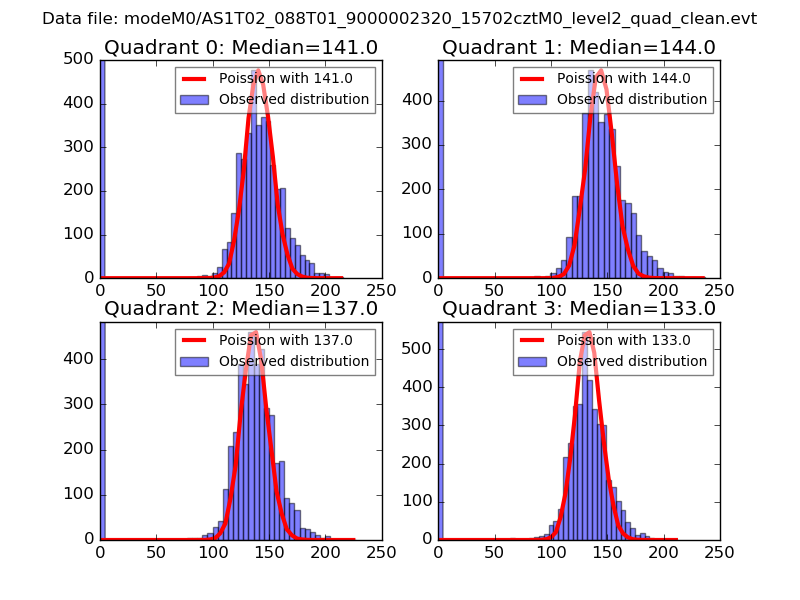

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

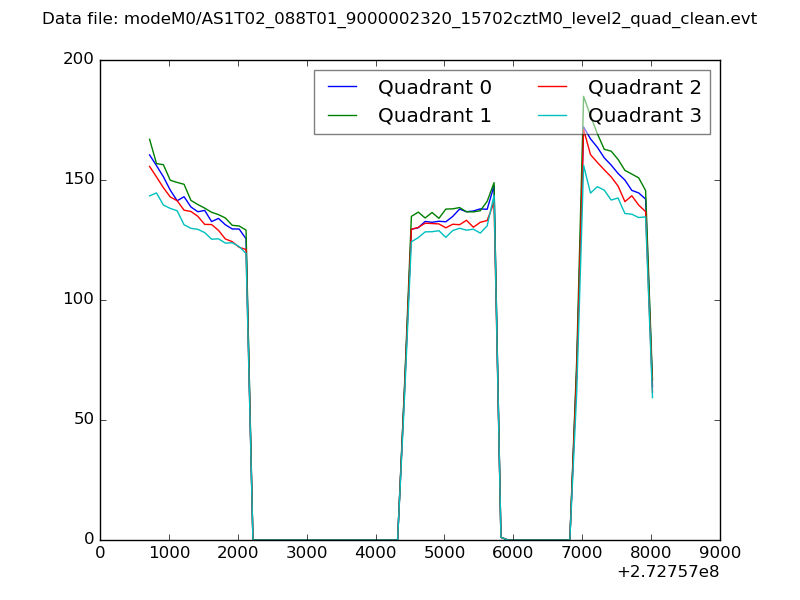

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

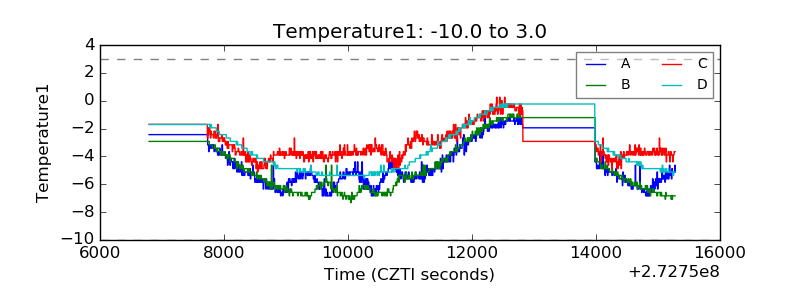

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

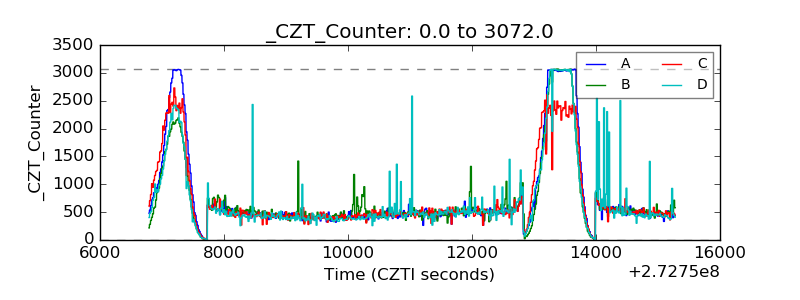

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

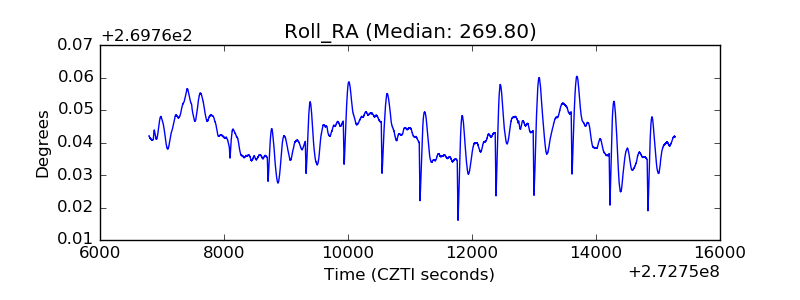

| _Roll_RA |  |
| Veto Counter |  |
