| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_088T01_9000002320_15703cztM0_level2.evt | modeM0/AS1T02_088T01_9000002320_15703cztM0_level2_quad_clean.evt |
| Size (bytes) | 197,187,840 | 28,805,760 |
| Size | 188.1 MB | 27.5 MB |
| Events in quadrant A | 1,363,267 | 169,070 |
| Events in quadrant B | 1,453,293 | 176,309 |
| Events in quadrant C | 1,410,260 | 163,490 |
| Events in quadrant D | 1,544,120 | 154,170 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5971 | 1 |
| B | 0 | 6151 | 1 |
| C | 0 | 5998 | 1 |
| D | 0 | 6643 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 60 | 0 |
| B | 0 | 60 | 0 |
| C | 0 | 60 | 0 |
| D | 0 | 60 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2918 | 2 | 0.068540% |
| B | 2918 | 6 | 0.205620% |
| C | 2918 | 17 | 0.582591% |
| D | 2918 | 44 | 1.507882% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2919 | 2919 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2919 | 2919 | 0 | 0 | 0.00% | 0.00% |  |
| C | 2919 | 2919 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2919 | 2919 | 39 | 39 | 1.34% | 1.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 3144 | 38.05 | 354 | 347 | 73.5 |
| A | 12 | 194 | 2533 | 29.74 | 354 | 347 | 73.5 |
| A | 3 | 137 | 2343 | 27.16 | 354 | 347 | 73.5 |
| B | 0 | 189 | 9475 | 132.26 | 362 | 354 | 69.0 |
| B | 5 | 236 | 7978 | 110.55 | 362 | 354 | 69.0 |
| B | 12 | 111 | 7862 | 108.87 | 362 | 354 | 69.0 |
| C | 14 | 238 | 54411 | 663.52 | 345 | 348 | 81.5 |
| C | 3 | 233 | 7502 | 87.8 | 345 | 348 | 81.5 |
| C | 10 | 187 | 3073 | 33.44 | 345 | 348 | 81.5 |
| D | 1 | 52 | 245623 | 2923.71 | 336 | 327 | 83.9 |
| D | 2 | 234 | 11025 | 127.51 | 336 | 327 | 83.9 |
| D | 10 | 70 | 8425 | 96.52 | 336 | 327 | 83.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

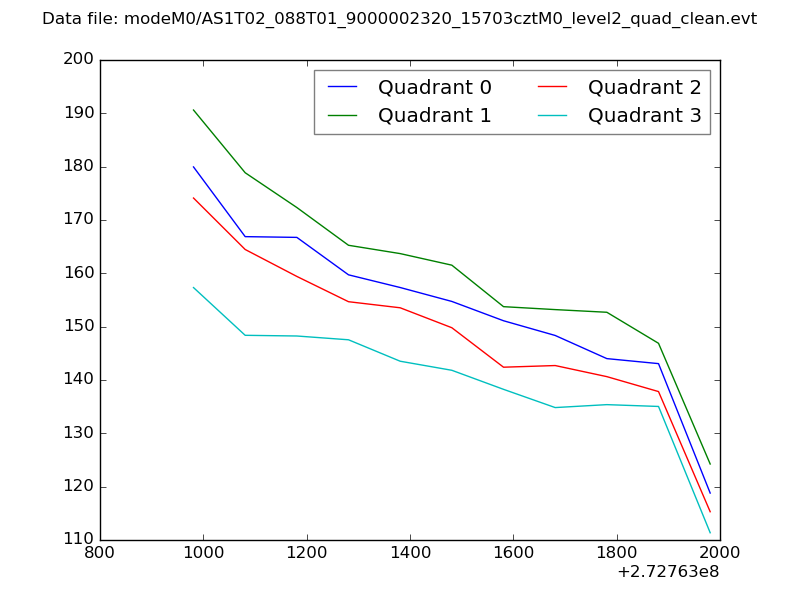

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

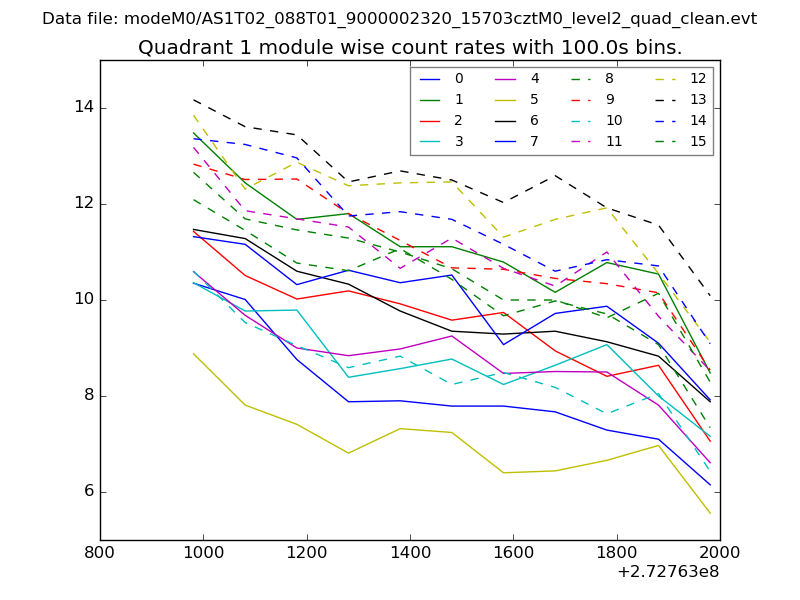

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

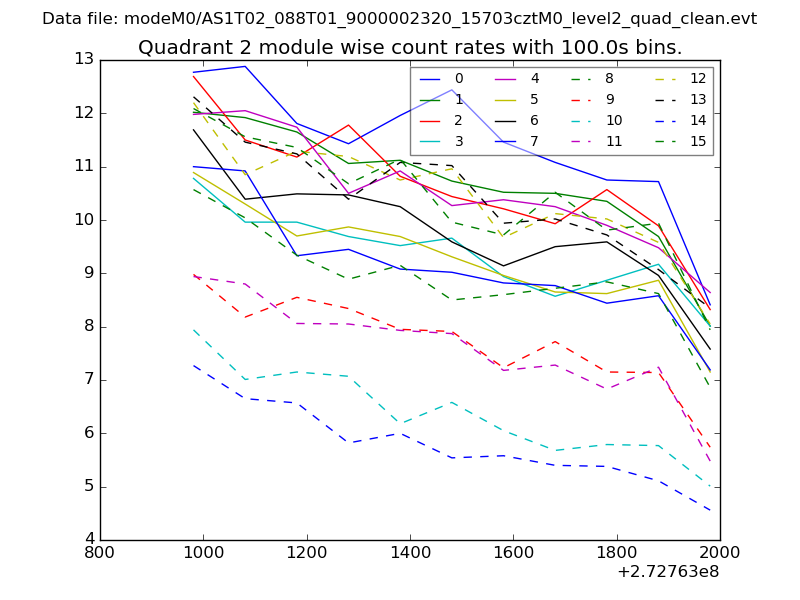

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

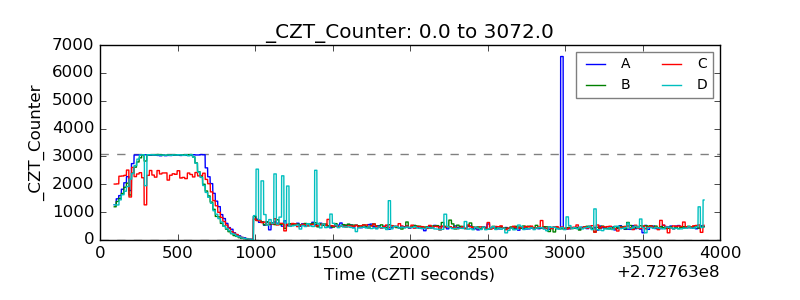

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
