| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_198T01_9000002322_15704cztM0_level2.evt | modeM0/AS1A04_198T01_9000002322_15704cztM0_level2_quad_clean.evt |
| Size (bytes) | 466,064,640 | 99,515,520 |
| Size | 444.5 MB | 94.9 MB |
| Events in quadrant A | 3,282,920 | 642,033 |
| Events in quadrant B | 3,155,937 | 667,489 |
| Events in quadrant C | 3,643,693 | 649,817 |
| Events in quadrant D | 3,611,922 | 622,504 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13625 | 3 |
| B | 0 | 13141 | 2 |
| C | 0 | 14860 | 2 |
| D | 0 | 14673 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6190 | 125 | 2.019386% |
| B | 6190 | 25 | 0.403877% |
| C | 6190 | 60 | 0.969305% |
| D | 6190 | 134 | 2.164782% |

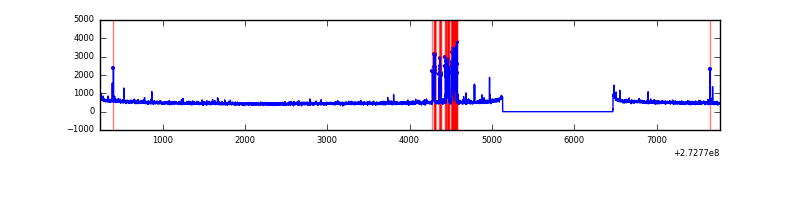

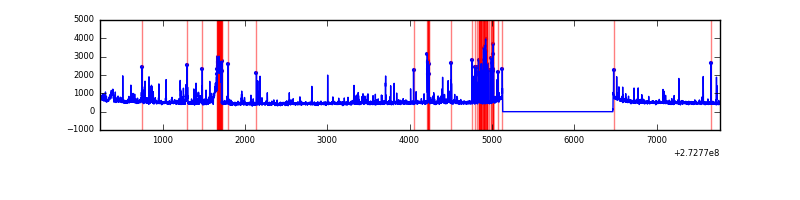

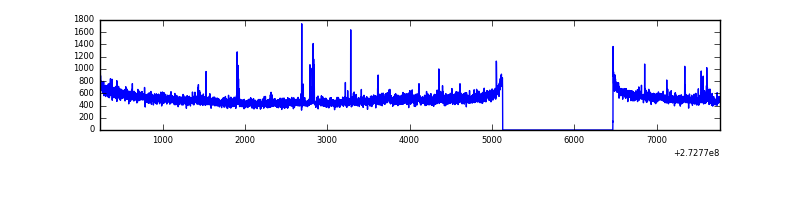

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7531 | 6192 | 71 | 71 | 0.94% | 1.15% |  |
| B | 7531 | 6192 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7531 | 6192 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7531 | 6192 | 114 | 114 | 1.51% | 1.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 262589 | 1694.05 | 776 | 762 | 154.6 |
| A | 9 | 143 | 32993 | 208.54 | 776 | 762 | 154.6 |
| A | 0 | 226 | 6737 | 38.66 | 776 | 762 | 154.6 |
| B | 4 | 173 | 38767 | 257.64 | 792 | 773 | 147.5 |
| B | 5 | 236 | 16823 | 108.84 | 792 | 773 | 147.5 |
| B | 12 | 111 | 16393 | 105.92 | 792 | 773 | 147.5 |
| C | 3 | 233 | 485258 | 2661.81 | 779 | 784 | 182.0 |
| C | 14 | 238 | 119083 | 649.96 | 779 | 784 | 182.0 |
| C | 13 | 61 | 5519 | 26.01 | 779 | 784 | 182.0 |
| D | 1 | 52 | 472503 | 2563.29 | 772 | 752 | 184.0 |
| D | 9 | 68 | 149679 | 809.2 | 772 | 752 | 184.0 |
| D | 10 | 70 | 43923 | 234.57 | 772 | 752 | 184.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

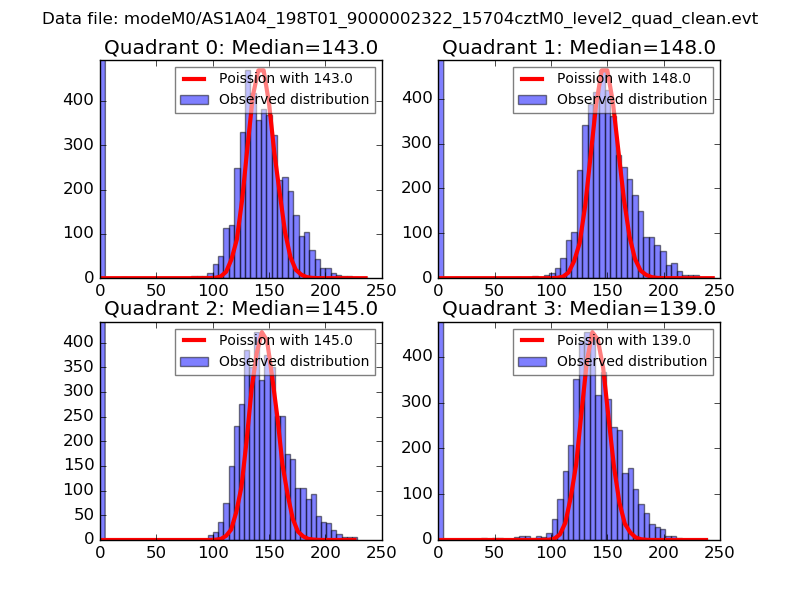

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

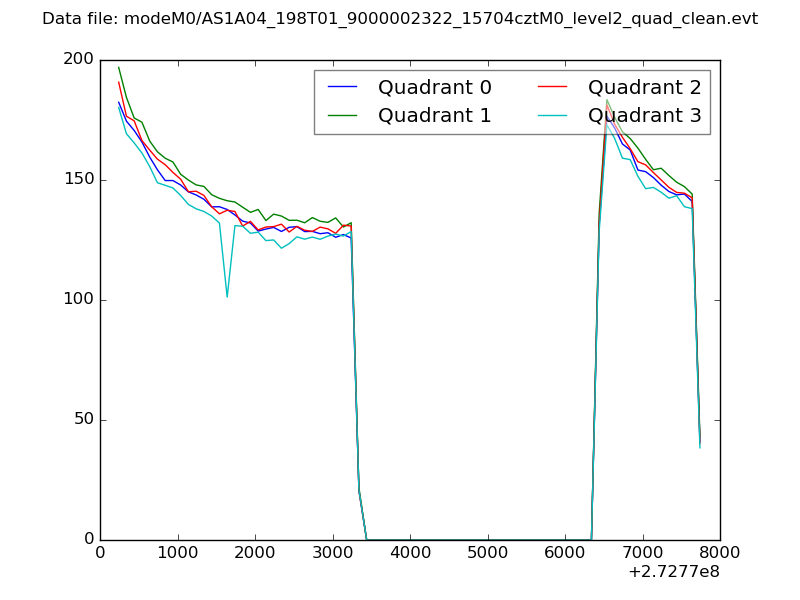

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

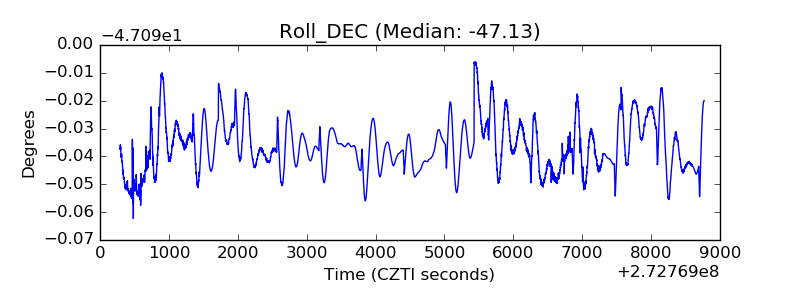

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

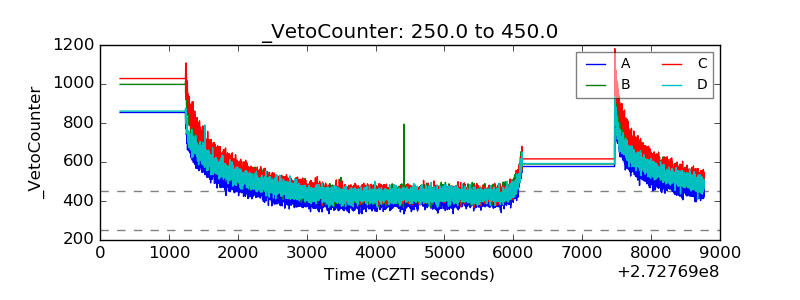

| Veto Counter |  |
