| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_198T01_9000002322_15706cztM0_level2.evt | modeM0/AS1A04_198T01_9000002322_15706cztM0_level2_quad_clean.evt |
| Size (bytes) | 465,053,760 | 98,190,720 |
| Size | 443.5 MB | 93.6 MB |
| Events in quadrant A | 3,470,595 | 631,458 |
| Events in quadrant B | 3,256,774 | 646,407 |
| Events in quadrant C | 3,245,084 | 629,098 |
| Events in quadrant D | 3,671,865 | 615,446 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14356 | 3 |
| B | 0 | 13717 | 2 |
| C | 0 | 13524 | 2 |
| D | 0 | 15037 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6468 | 196 | 3.030303% |
| B | 6468 | 116 | 1.793445% |
| C | 6468 | 132 | 2.040816% |
| D | 6468 | 181 | 2.798392% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7609 | 6470 | 86 | 86 | 1.13% | 1.33% |  |
| B | 7609 | 6470 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7609 | 6470 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7609 | 6470 | 85 | 85 | 1.12% | 1.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 293900 | 1823.21 | 802 | 787 | 160.8 |
| A | 9 | 143 | 70311 | 432.45 | 802 | 787 | 160.8 |
| A | 13 | 210 | 23329 | 140.21 | 802 | 787 | 160.8 |
| B | 4 | 173 | 39300 | 253.68 | 806 | 785 | 151.8 |
| B | 5 | 236 | 31415 | 201.74 | 806 | 785 | 151.8 |
| B | 4 | 48 | 19556 | 123.63 | 806 | 785 | 151.8 |
| C | 14 | 238 | 121105 | 650.37 | 793 | 798 | 185.0 |
| C | 3 | 233 | 9155 | 45.18 | 793 | 798 | 185.0 |
| C | 10 | 22 | 5959 | 27.9 | 793 | 798 | 185.0 |
| D | 1 | 52 | 556956 | 2868.42 | 799 | 777 | 193.9 |
| D | 9 | 68 | 58659 | 298.52 | 799 | 777 | 193.9 |
| D | 2 | 14 | 25573 | 127.88 | 799 | 777 | 193.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

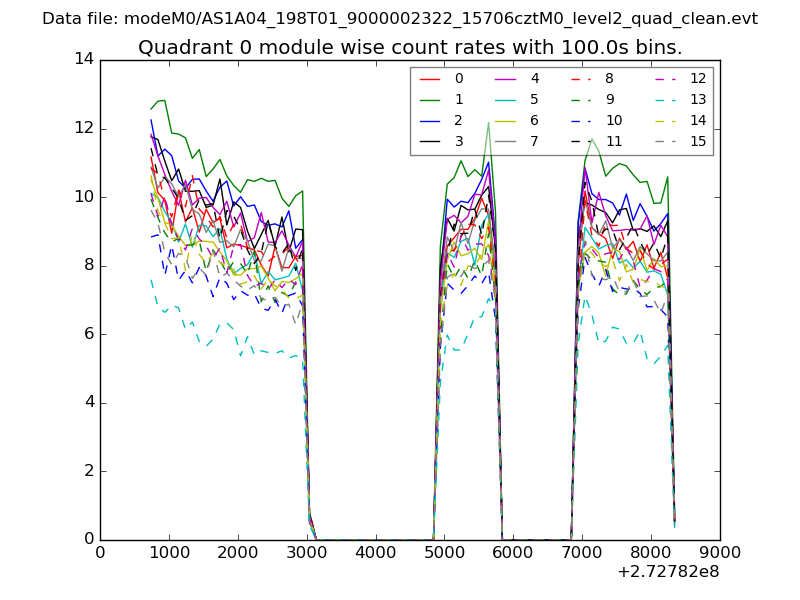

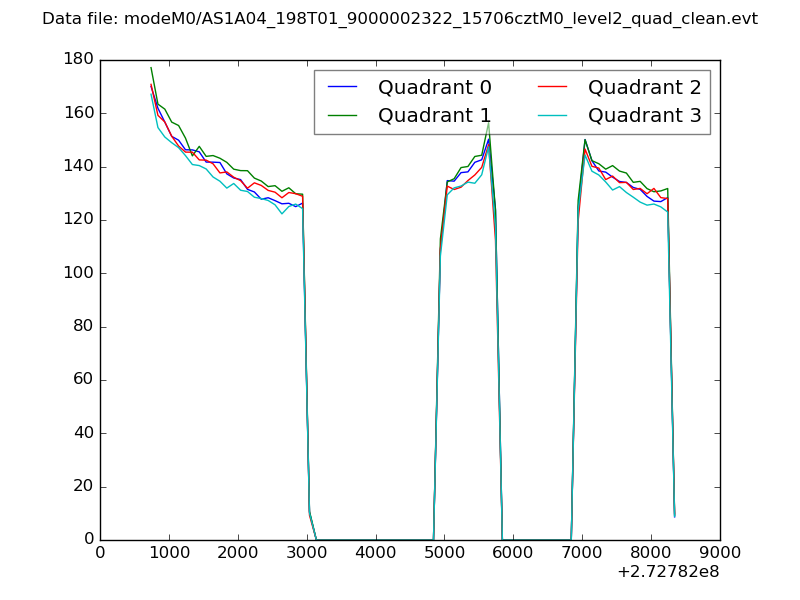

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

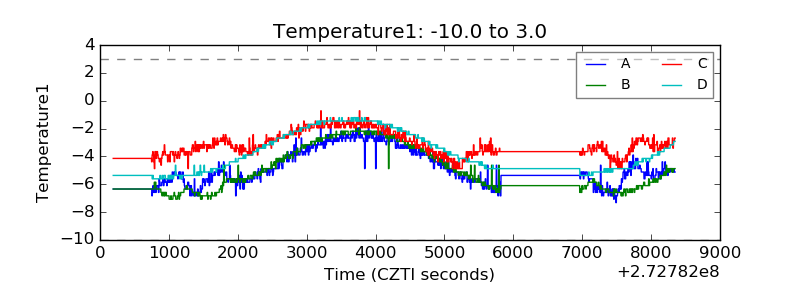

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

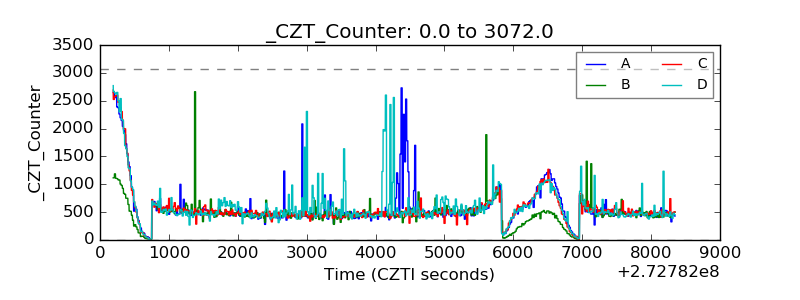

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

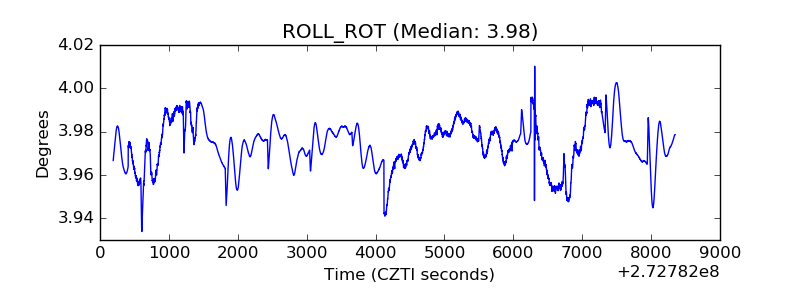

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
