| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_198T01_9000002322_15707cztM0_level2.evt | modeM0/AS1A04_198T01_9000002322_15707cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,910,400 | 96,871,680 |
| Size | 459.6 MB | 92.4 MB |
| Events in quadrant A | 4,146,123 | 617,623 |
| Events in quadrant B | 3,260,174 | 631,378 |
| Events in quadrant C | 3,528,001 | 612,769 |
| Events in quadrant D | 3,206,824 | 606,565 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16611 | 1 |
| B | 0 | 13939 | 0 |
| C | 0 | 14573 | 0 |
| D | 0 | 13922 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6674 | 373 | 5.588852% |
| B | 6674 | 78 | 1.168714% |
| C | 6674 | 135 | 2.022775% |
| D | 6674 | 75 | 1.123764% |

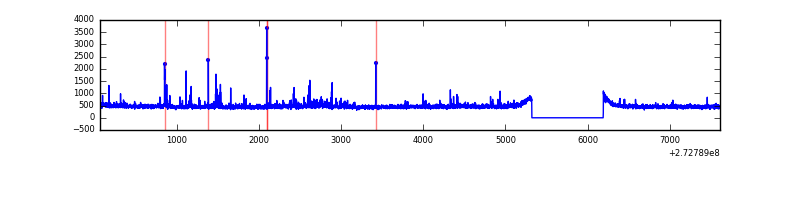

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7545 | 6676 | 223 | 223 | 2.96% | 3.34% |  |
| B | 7545 | 6676 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7545 | 6676 | 5 | 5 | 0.07% | 0.07% |  |
| D | 7545 | 6676 | 5 | 5 | 0.07% | 0.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 804119 | 5049.24 | 790 | 774 | 159.1 |
| A | 13 | 210 | 243044 | 1522.73 | 790 | 774 | 159.1 |
| A | 9 | 143 | 58404 | 362.22 | 790 | 774 | 159.1 |
| B | 5 | 236 | 61009 | 396.42 | 798 | 777 | 151.9 |
| B | 4 | 173 | 49708 | 322.05 | 798 | 777 | 151.9 |
| B | 12 | 111 | 17683 | 111.27 | 798 | 777 | 151.9 |
| C | 7 | 221 | 124129 | 684.53 | 781 | 787 | 180.2 |
| C | 14 | 238 | 120378 | 663.71 | 781 | 787 | 180.2 |
| C | 9 | 54 | 102980 | 567.16 | 781 | 787 | 180.2 |
| D | 1 | 52 | 132613 | 626.21 | 788 | 771 | 210.5 |
| D | 2 | 14 | 40550 | 188.94 | 788 | 771 | 210.5 |
| D | 2 | 234 | 26387 | 121.67 | 788 | 771 | 210.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

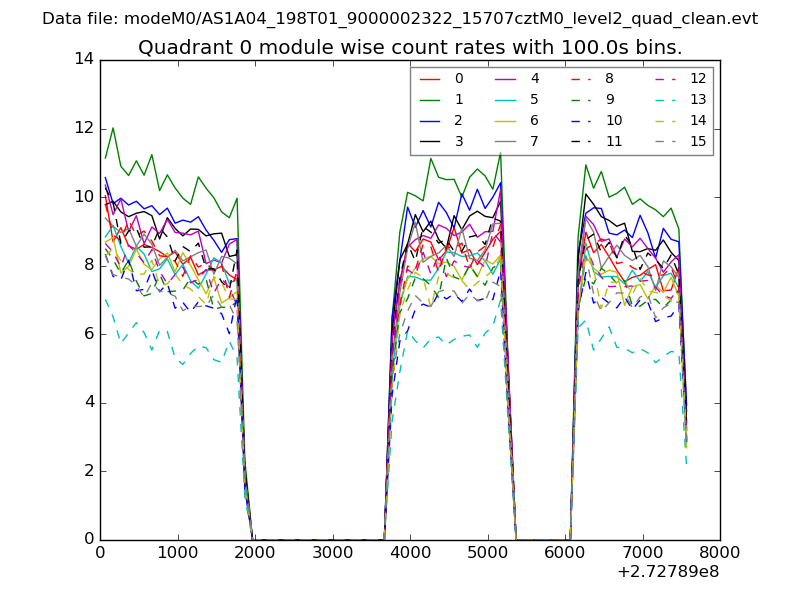

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

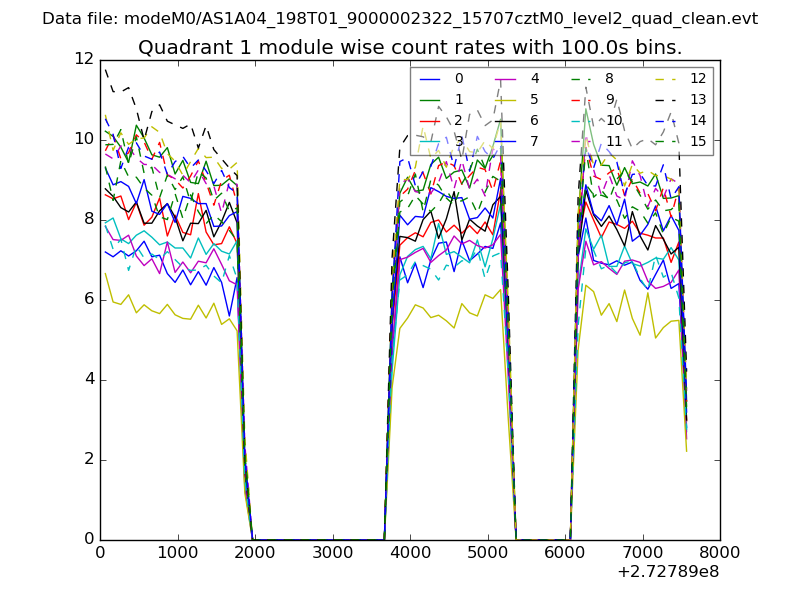

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

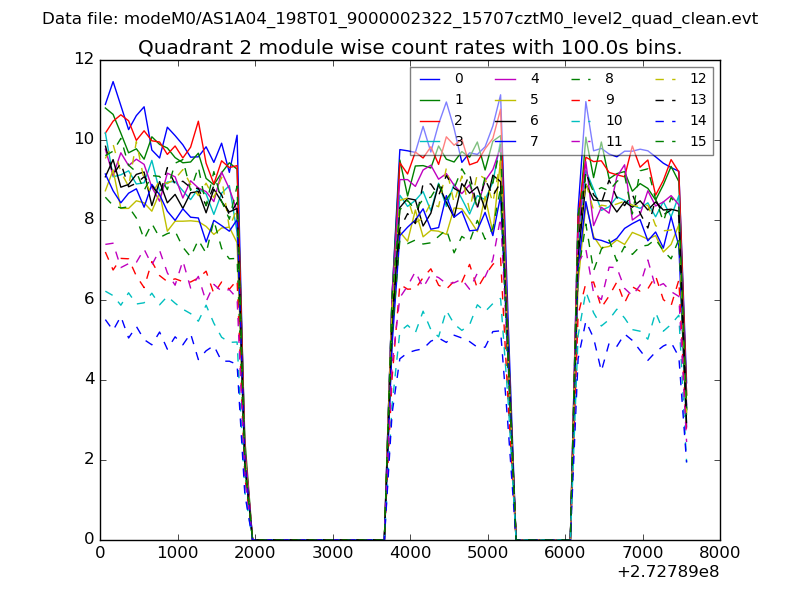

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

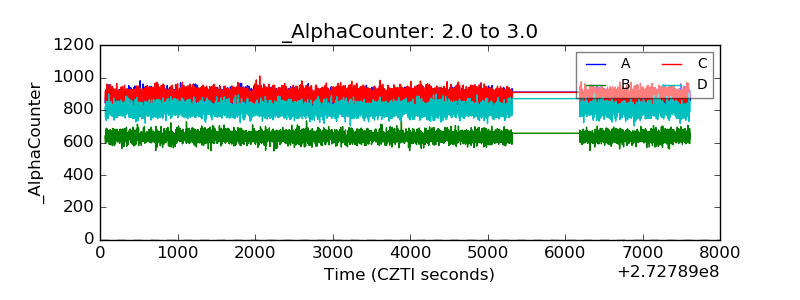

| Alpha Counter |  |

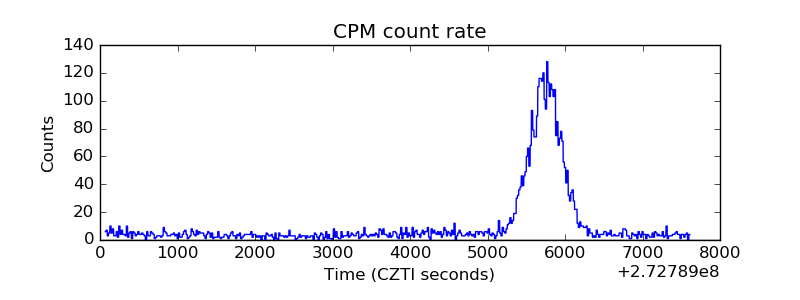

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

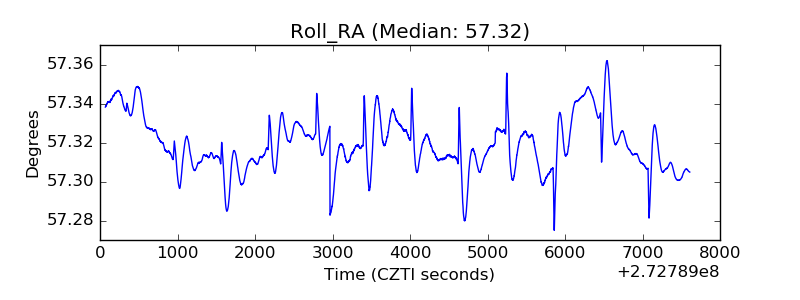

| _Roll_RA |  |
| Veto Counter |  |
