| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_198T01_9000002322_15708cztM0_level2.evt | modeM0/AS1A04_198T01_9000002322_15708cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,002,560 | 90,624,960 |
| Size | 476.8 MB | 86.4 MB |
| Events in quadrant A | 3,712,111 | 567,235 |
| Events in quadrant B | 3,365,365 | 578,806 |
| Events in quadrant C | 3,697,993 | 562,509 |
| Events in quadrant D | 3,893,316 | 549,734 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15739 | 2 |
| B | 0 | 14579 | 1 |
| C | 0 | 15003 | 1 |
| D | 0 | 16371 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6977 | 333 | 4.772825% |
| B | 6977 | 237 | 3.396875% |
| C | 6977 | 276 | 3.955855% |
| D | 6977 | 326 | 4.672495% |

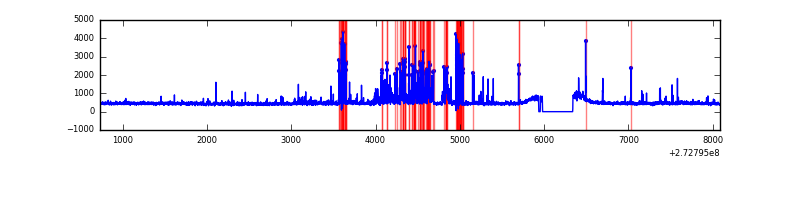

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7358 | 6980 | 86 | 86 | 1.17% | 1.23% |  |
| B | 7358 | 6980 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7358 | 6980 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7358 | 6980 | 118 | 118 | 1.60% | 1.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 360592 | 2153.47 | 826 | 807 | 167.1 |
| A | 15 | 157 | 130891 | 778.61 | 826 | 807 | 167.1 |
| A | 9 | 143 | 42206 | 247.79 | 826 | 807 | 167.1 |
| B | 4 | 173 | 30099 | 183.4 | 829 | 808 | 159.7 |
| B | 3 | 209 | 28992 | 176.47 | 829 | 808 | 159.7 |
| B | 4 | 216 | 23680 | 143.21 | 829 | 808 | 159.7 |
| C | 3 | 233 | 399649 | 2120.23 | 805 | 811 | 188.1 |
| C | 14 | 238 | 128510 | 678.85 | 805 | 811 | 188.1 |
| C | 7 | 221 | 16283 | 82.25 | 805 | 811 | 188.1 |
| D | 1 | 52 | 683820 | 3336.37 | 812 | 790 | 204.7 |
| D | 12 | 110 | 32395 | 154.38 | 812 | 790 | 204.7 |
| D | 2 | 234 | 28316 | 134.46 | 812 | 790 | 204.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

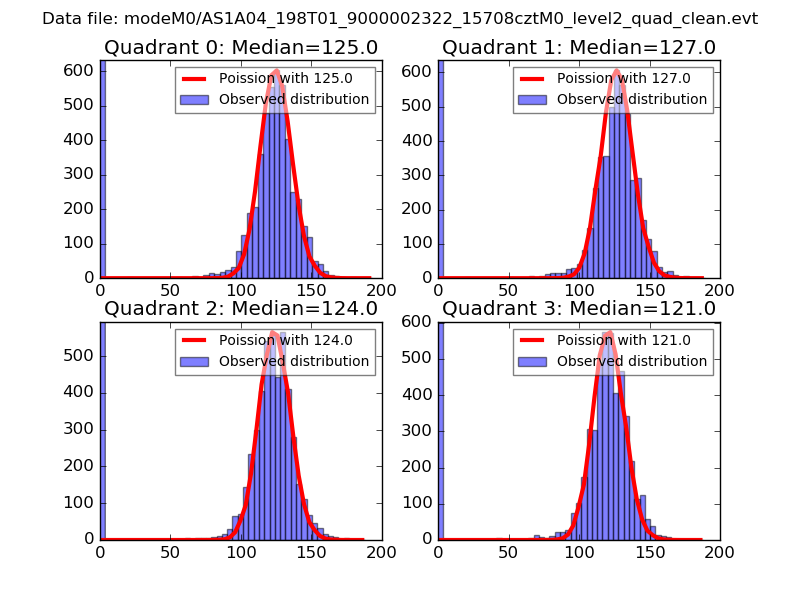

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

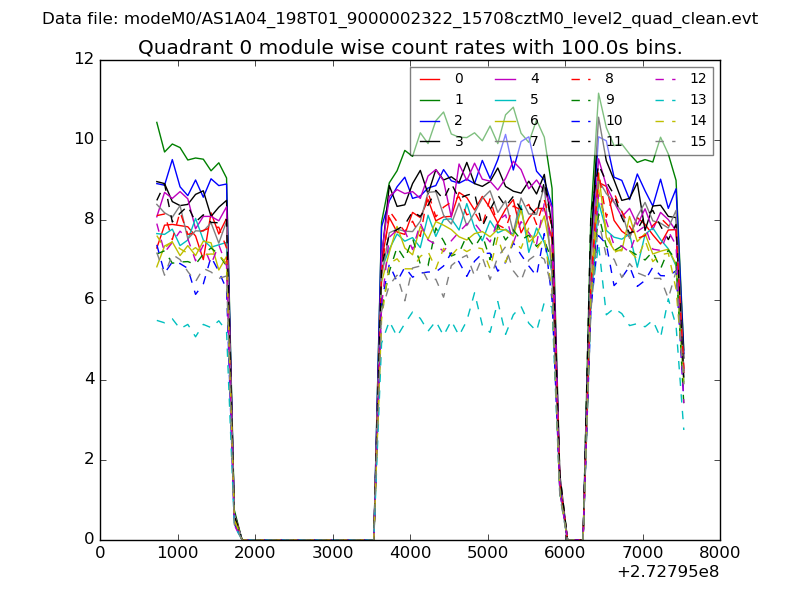

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

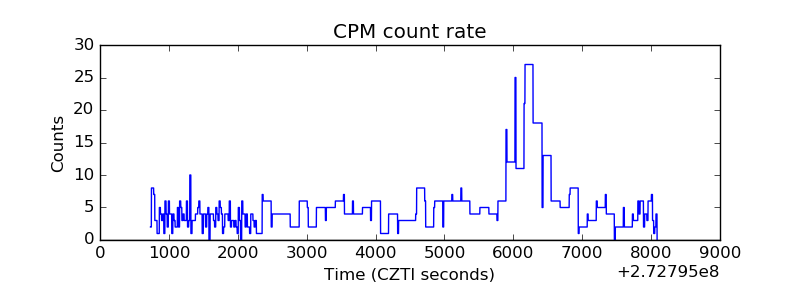

| _CPM_Rate |  |

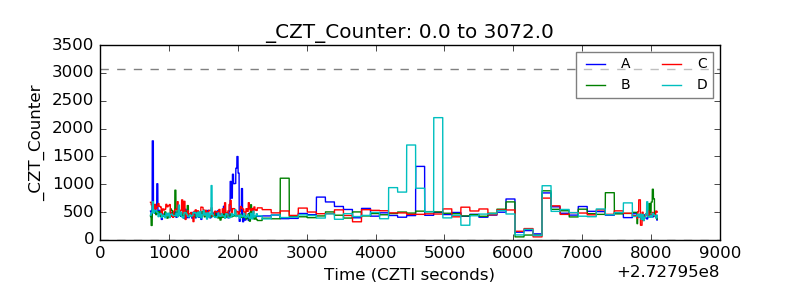

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

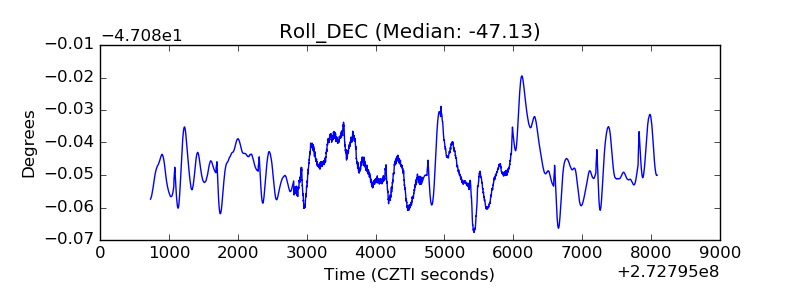

| _Roll_DEC |  |
| _Roll_RA |  |

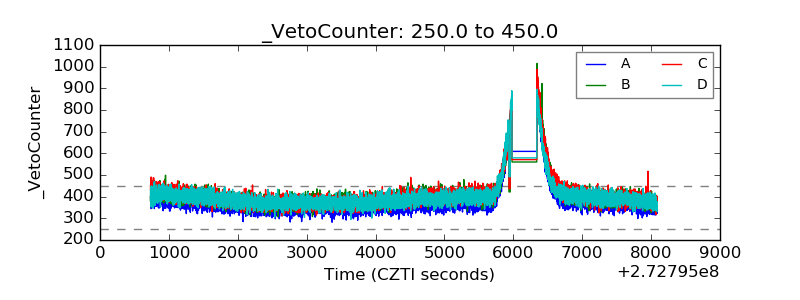

| Veto Counter |  |
