| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_198T01_9000002322_15714cztM0_level2.evt | modeM0/AS1A04_198T01_9000002322_15714cztM0_level2_quad_clean.evt |
| Size (bytes) | 423,048,960 | 91,978,560 |
| Size | 403.5 MB | 87.7 MB |
| Events in quadrant A | 2,948,329 | 592,350 |
| Events in quadrant B | 3,221,606 | 598,698 |
| Events in quadrant C | 2,961,208 | 579,915 |
| Events in quadrant D | 3,250,368 | 572,749 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13025 | 2 |
| B | 0 | 13770 | 1 |
| C | 0 | 12872 | 1 |
| D | 0 | 14075 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6332 | 26 | 0.410613% |
| B | 6332 | 49 | 0.773847% |
| C | 6332 | 42 | 0.663298% |
| D | 6332 | 81 | 1.279217% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7348 | 6334 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7348 | 6334 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7348 | 6334 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7348 | 6334 | 68 | 68 | 0.93% | 1.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 34704 | 225.2 | 747 | 729 | 150.9 |
| A | 9 | 143 | 29093 | 188.01 | 747 | 729 | 150.9 |
| A | 15 | 157 | 7357 | 43.93 | 747 | 729 | 150.9 |
| B | 4 | 216 | 105067 | 723.38 | 752 | 732 | 144.2 |
| B | 4 | 173 | 67420 | 462.37 | 752 | 732 | 144.2 |
| B | 0 | 189 | 19960 | 133.31 | 752 | 732 | 144.2 |
| C | 14 | 238 | 111911 | 662.24 | 720 | 725 | 167.9 |
| C | 3 | 233 | 22301 | 128.51 | 720 | 725 | 167.9 |
| C | 9 | 54 | 8545 | 46.58 | 720 | 725 | 167.9 |
| D | 12 | 110 | 229246 | 1171.67 | 721 | 705 | 195.1 |
| D | 1 | 52 | 164782 | 841.18 | 721 | 705 | 195.1 |
| D | 2 | 33 | 71593 | 363.42 | 721 | 705 | 195.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

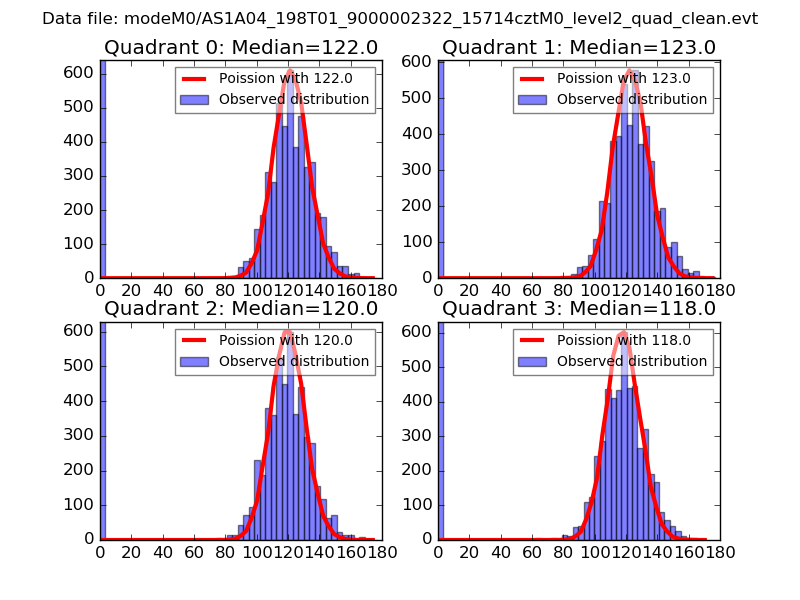

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

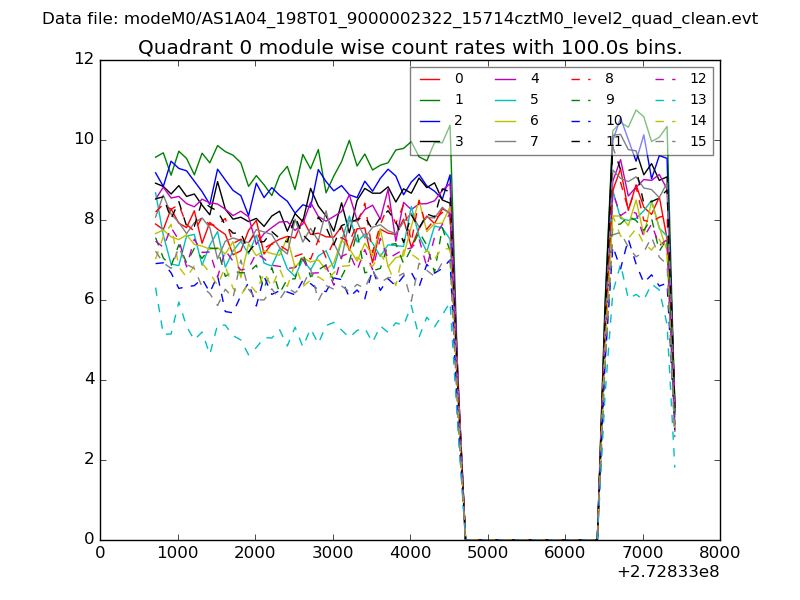

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

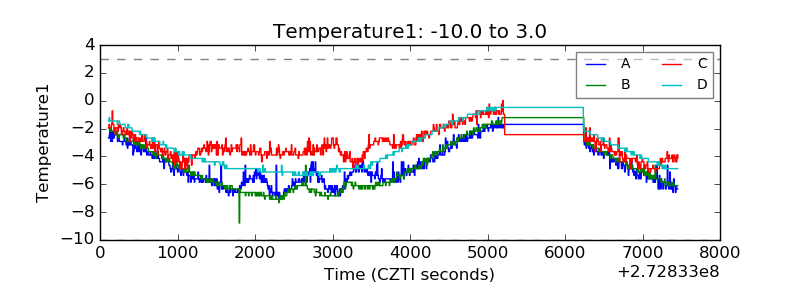

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

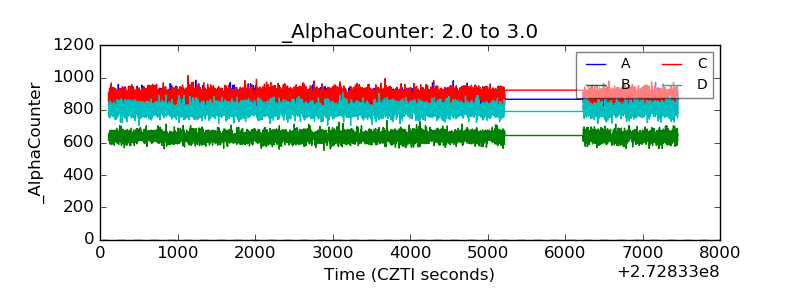

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

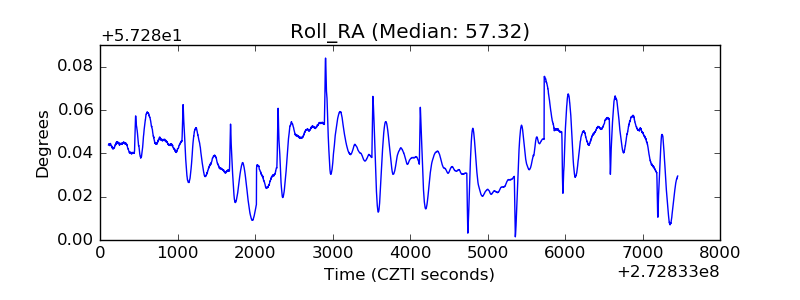

| _Roll_RA |  |
| Veto Counter |  |
