| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_198T01_9000002322_15716cztM0_level2.evt | modeM0/AS1A04_198T01_9000002322_15716cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,100,160 | 103,253,760 |
| Size | 447.4 MB | 98.5 MB |
| Events in quadrant A | 3,053,687 | 676,480 |
| Events in quadrant B | 3,241,173 | 692,443 |
| Events in quadrant C | 3,339,792 | 668,428 |
| Events in quadrant D | 4,134,591 | 640,340 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13365 | 3 |
| B | 0 | 13842 | 2 |
| C | 0 | 13948 | 2 |
| D | 0 | 16750 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6442 | 31 | 0.481217% |
| B | 6442 | 46 | 0.714064% |
| C | 6442 | 52 | 0.807203% |
| D | 6442 | 240 | 3.725551% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

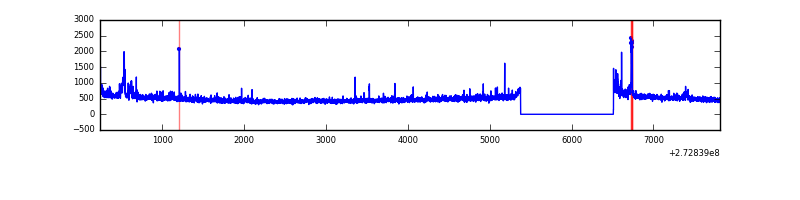

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7578 | 6444 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7578 | 6444 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7578 | 6444 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7578 | 6444 | 223 | 223 | 2.94% | 3.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 55462 | 348.99 | 777 | 761 | 156.7 |
| A | 15 | 157 | 7211 | 41.15 | 777 | 761 | 156.7 |
| A | 0 | 226 | 6651 | 37.58 | 777 | 761 | 156.7 |
| B | 4 | 173 | 45393 | 299.22 | 783 | 763 | 149.2 |
| B | 4 | 216 | 38608 | 253.73 | 783 | 763 | 149.2 |
| B | 5 | 236 | 37756 | 248.02 | 783 | 763 | 149.2 |
| C | 3 | 233 | 240613 | 1361.47 | 755 | 762 | 176.2 |
| C | 14 | 238 | 118589 | 668.82 | 755 | 762 | 176.2 |
| C | 9 | 54 | 21065 | 115.25 | 755 | 762 | 176.2 |
| D | 12 | 144 | 767164 | 4084.51 | 743 | 725 | 187.6 |
| D | 1 | 52 | 446869 | 2377.59 | 743 | 725 | 187.6 |
| D | 10 | 70 | 68710 | 362.31 | 743 | 725 | 187.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

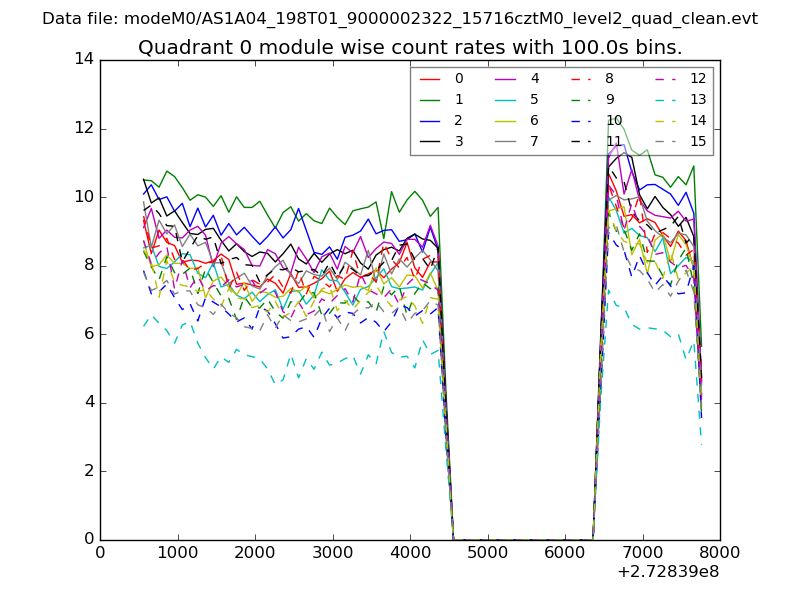

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

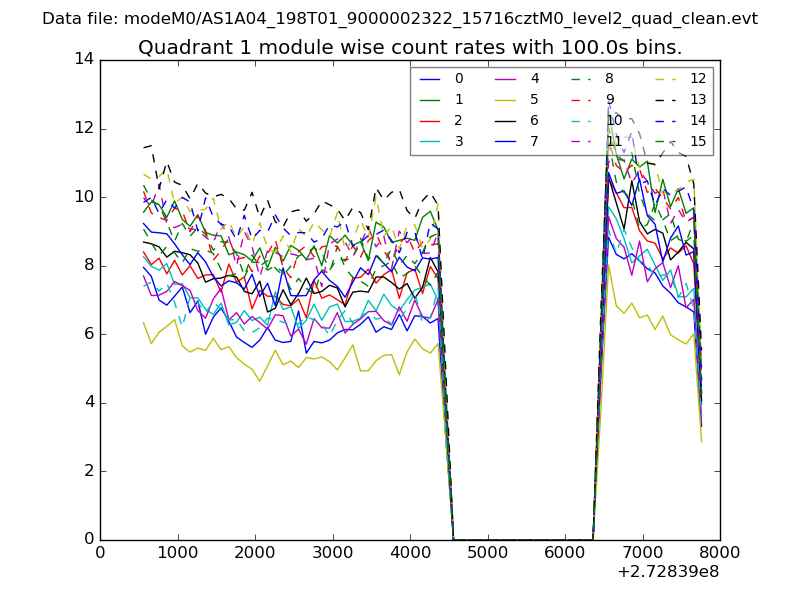

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

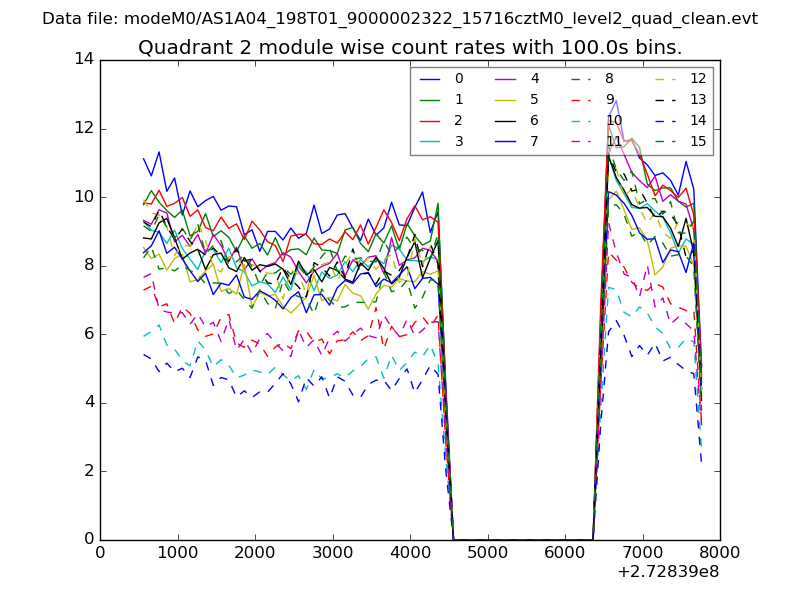

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

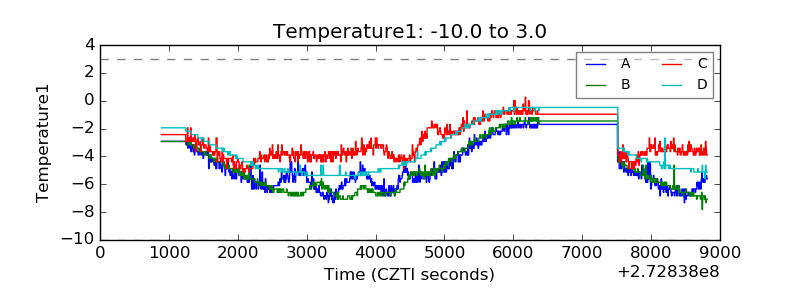

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

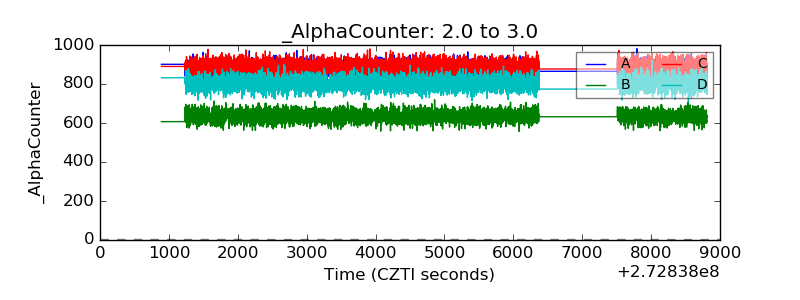

| Alpha Counter |  |
| _CPM_Rate |  |

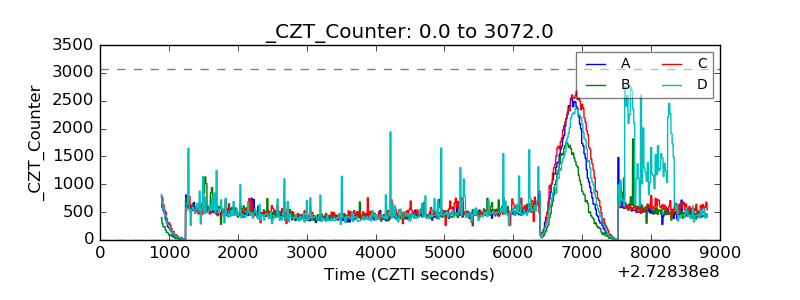

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

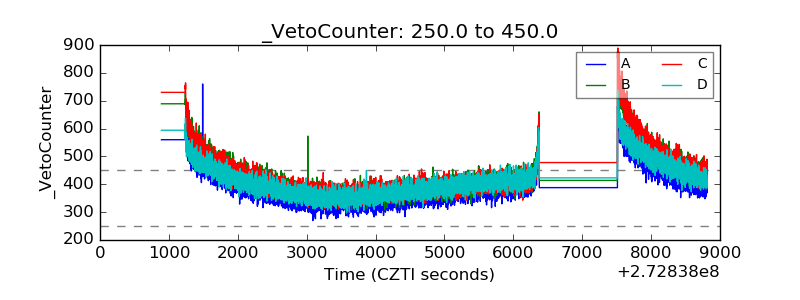

| Veto Counter |  |
