| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_198T01_9000002322_15719cztM0_level2.evt | modeM0/AS1A04_198T01_9000002322_15719cztM0_level2_quad_clean.evt |
| Size (bytes) | 454,000,320 | 97,418,880 |
| Size | 433.0 MB | 92.9 MB |
| Events in quadrant A | 3,048,318 | 621,901 |
| Events in quadrant B | 3,191,763 | 650,019 |
| Events in quadrant C | 3,436,750 | 633,869 |
| Events in quadrant D | 3,651,550 | 611,747 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12933 | 3 |
| B | 0 | 13277 | 2 |
| C | 0 | 14112 | 2 |
| D | 0 | 14824 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6200 | 28 | 0.451613% |
| B | 6200 | 48 | 0.774194% |
| C | 6200 | 86 | 1.387097% |
| D | 6200 | 110 | 1.774194% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7526 | 6202 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7526 | 6202 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7526 | 6202 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7526 | 6202 | 72 | 72 | 0.96% | 1.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 23070 | 142.44 | 781 | 764 | 156.6 |
| A | 13 | 248 | 18797 | 115.16 | 781 | 764 | 156.6 |
| A | 0 | 226 | 6881 | 39.06 | 781 | 764 | 156.6 |
| B | 5 | 236 | 50602 | 338.6 | 790 | 770 | 147.2 |
| B | 4 | 173 | 38792 | 258.35 | 790 | 770 | 147.2 |
| B | 12 | 111 | 16477 | 106.73 | 790 | 770 | 147.2 |
| C | 3 | 233 | 219259 | 1202.6 | 782 | 789 | 181.7 |
| C | 14 | 238 | 121423 | 664.05 | 782 | 789 | 181.7 |
| C | 9 | 54 | 31741 | 170.38 | 782 | 789 | 181.7 |
| D | 1 | 52 | 244603 | 1313.23 | 776 | 757 | 185.7 |
| D | 10 | 70 | 205288 | 1101.5 | 776 | 757 | 185.7 |
| D | 12 | 144 | 159042 | 852.44 | 776 | 757 | 185.7 |

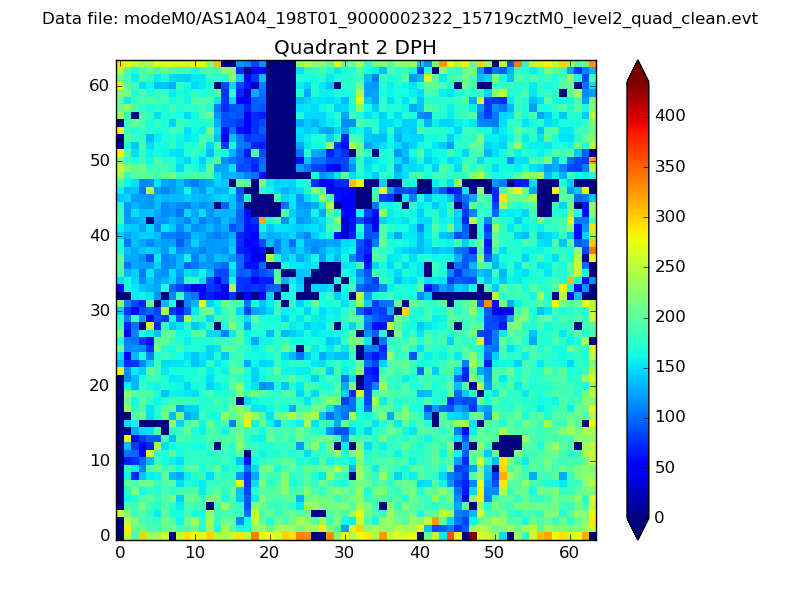

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

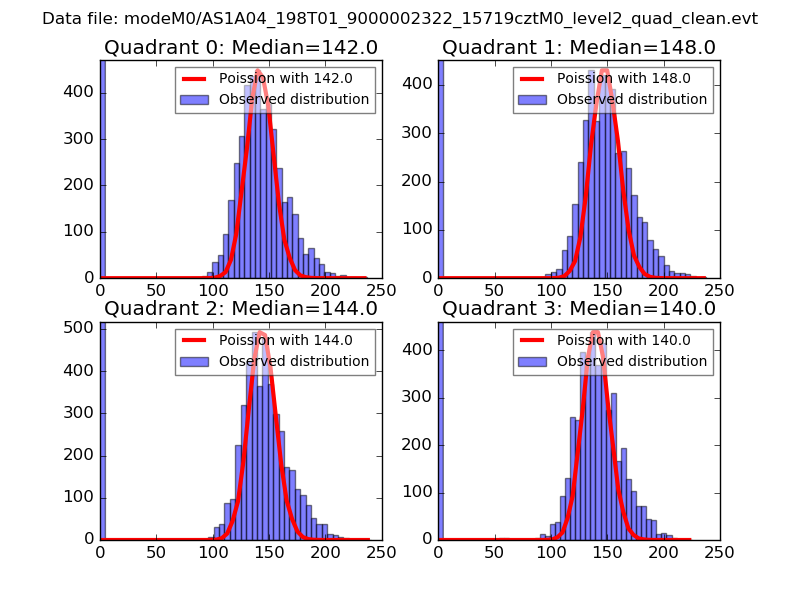

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

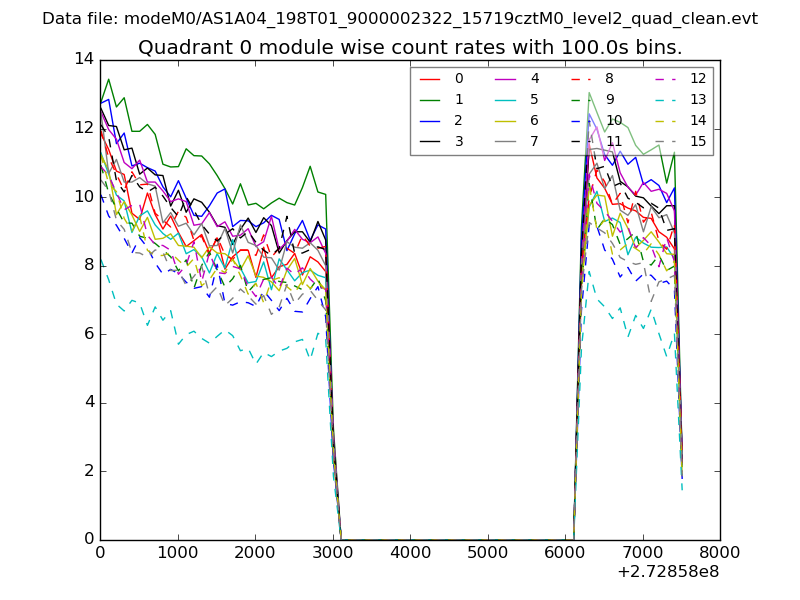

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

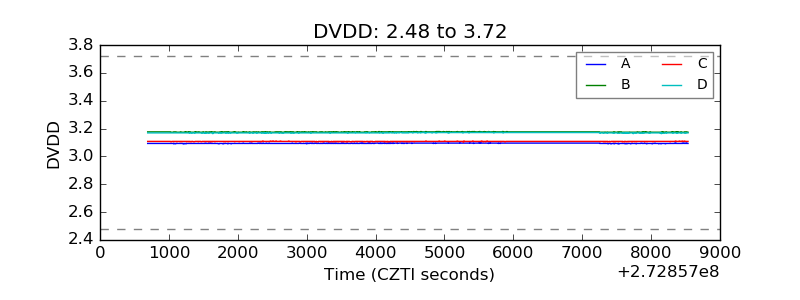

| D_VDD |  |

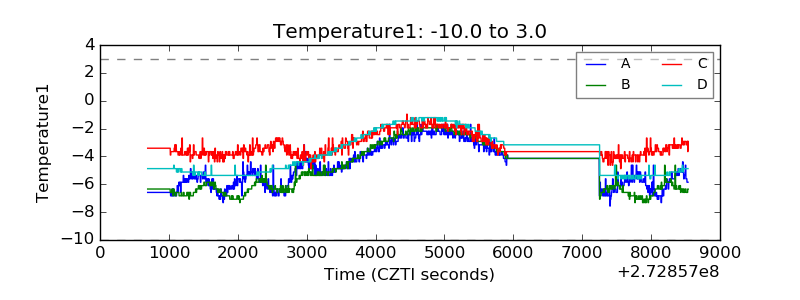

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

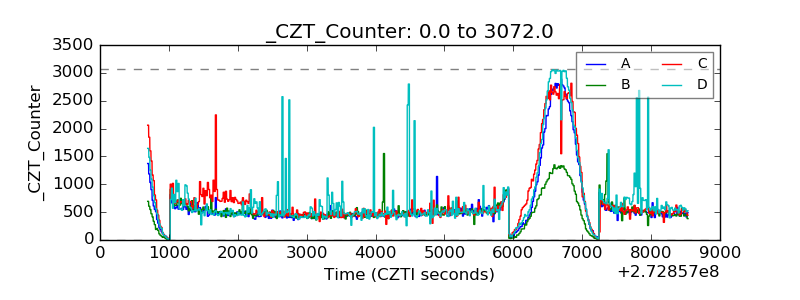

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

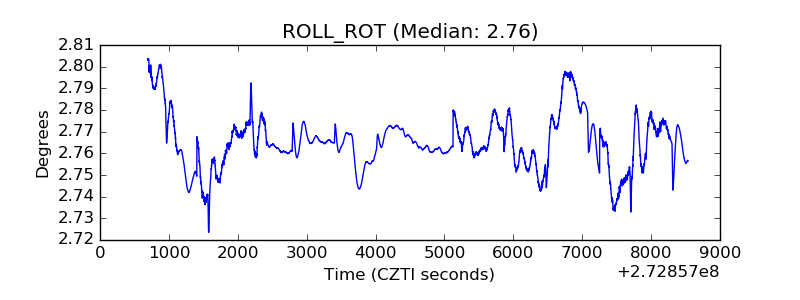

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
