| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_088T01_9000002332_15760cztM0_level2.evt | modeM0/AS1T02_088T01_9000002332_15760cztM0_level2_quad_clean.evt |
| Size (bytes) | 423,100,800 | 90,512,640 |
| Size | 403.5 MB | 86.3 MB |
| Events in quadrant A | 3,051,408 | 584,846 |
| Events in quadrant B | 3,269,517 | 598,301 |
| Events in quadrant C | 3,086,304 | 564,769 |
| Events in quadrant D | 2,974,356 | 549,871 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13206 | 3 |
| B | 0 | 13751 | 2 |
| C | 0 | 13147 | 2 |
| D | 0 | 13276 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6349 | 36 | 0.567018% |
| B | 6349 | 49 | 0.771775% |
| C | 6349 | 63 | 0.992282% |
| D | 6349 | 25 | 0.393763% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8610 | 6352 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8610 | 6352 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8610 | 6352 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8610 | 6352 | 1 | 1 | 0.01% | 0.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 6996 | 39.28 | 789 | 775 | 158.4 |
| A | 0 | 226 | 6996 | 39.28 | 789 | 775 | 158.4 |
| A | 12 | 194 | 5861 | 32.11 | 789 | 775 | 158.4 |
| B | 4 | 216 | 54075 | 351.73 | 795 | 778 | 151.5 |
| B | 3 | 209 | 44329 | 287.41 | 795 | 778 | 151.5 |
| B | 12 | 111 | 17246 | 108.68 | 795 | 778 | 151.5 |
| C | 14 | 238 | 115762 | 646.92 | 757 | 763 | 177.8 |
| C | 10 | 187 | 9668 | 50.09 | 757 | 763 | 177.8 |
| C | 13 | 61 | 5536 | 26.85 | 757 | 763 | 177.8 |
| D | 1 | 52 | 38879 | 204.93 | 757 | 737 | 186.1 |
| D | 5 | 51 | 26559 | 138.74 | 757 | 737 | 186.1 |
| D | 2 | 234 | 24928 | 129.97 | 757 | 737 | 186.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

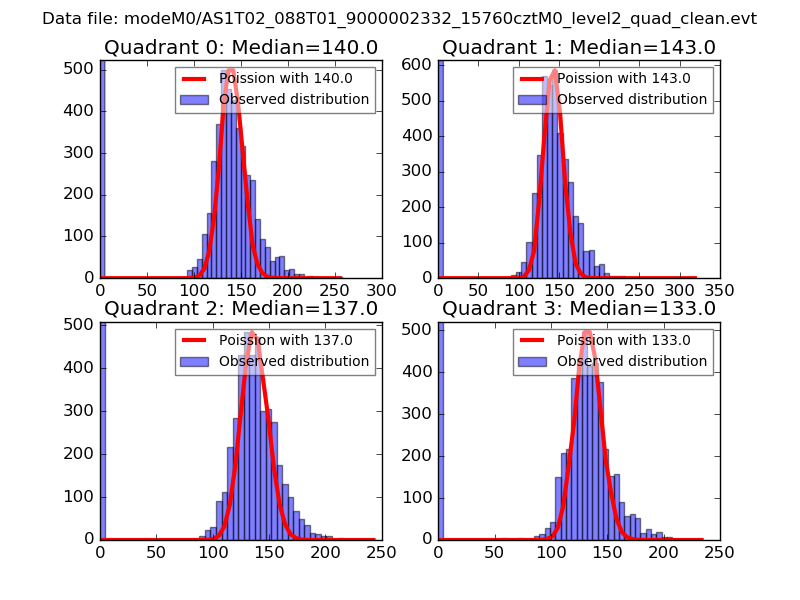

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

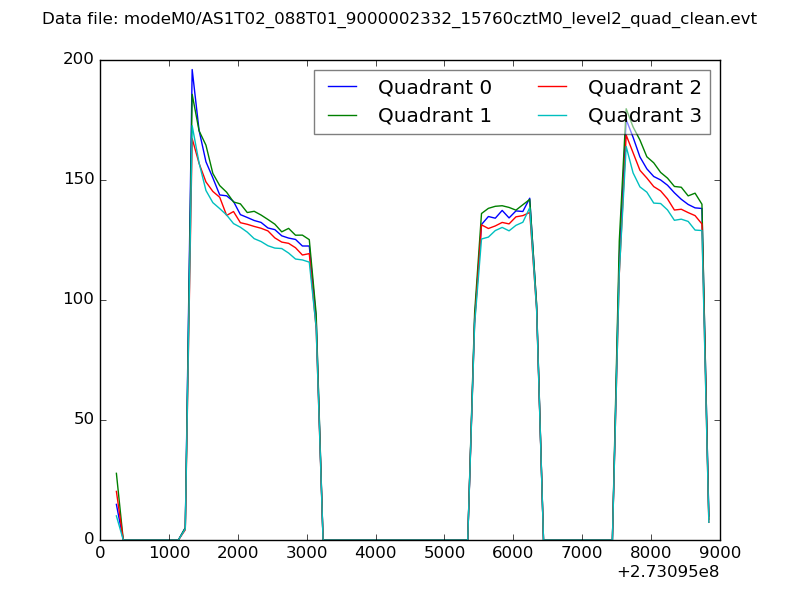

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

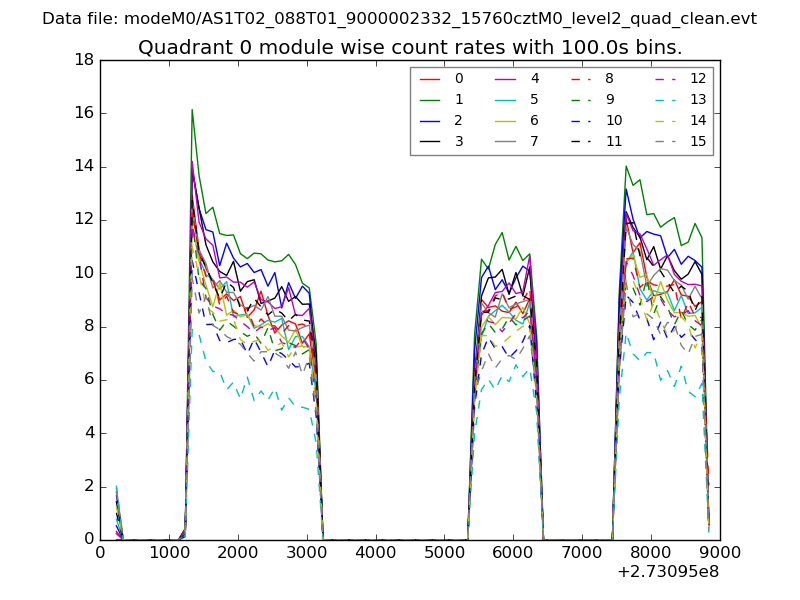

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

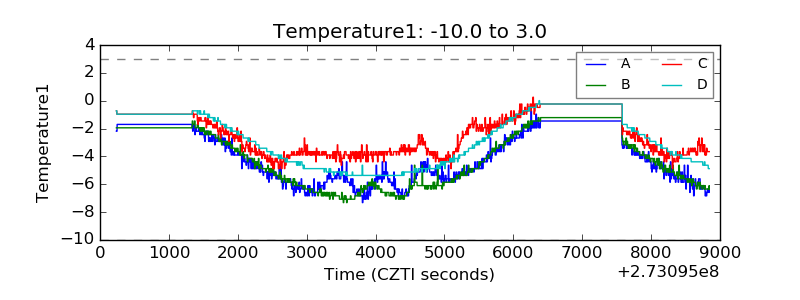

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

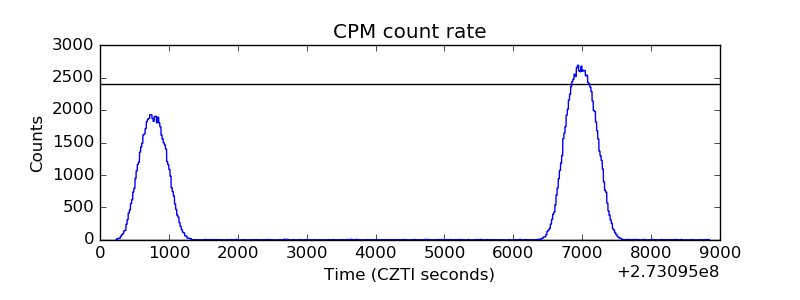

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

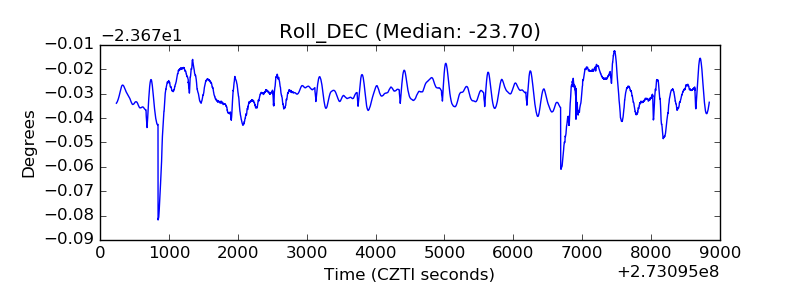

| _Roll_DEC |  |
| _Roll_RA |  |

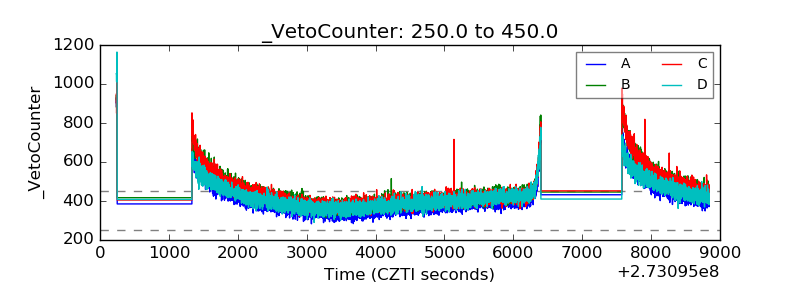

| Veto Counter |  |
