| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_100T01_9000002336_15772cztM0_level2.evt | modeM0/AS1A04_100T01_9000002336_15772cztM0_level2_quad_clean.evt |
| Size (bytes) | 461,064,960 | 69,526,080 |
| Size | 439.7 MB | 66.3 MB |
| Events in quadrant A | 3,186,835 | 409,806 |
| Events in quadrant B | 3,502,279 | 416,481 |
| Events in quadrant C | 3,224,873 | 413,299 |
| Events in quadrant D | 3,602,823 | 407,174 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13833 | 3 |
| B | 0 | 14622 | 2 |
| C | 0 | 13853 | 2 |
| D | 0 | 15302 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6570 | 47 | 0.715373% |
| B | 6570 | 79 | 1.202435% |
| C | 6570 | 73 | 1.111111% |
| D | 6571 | 128 | 1.947953% |

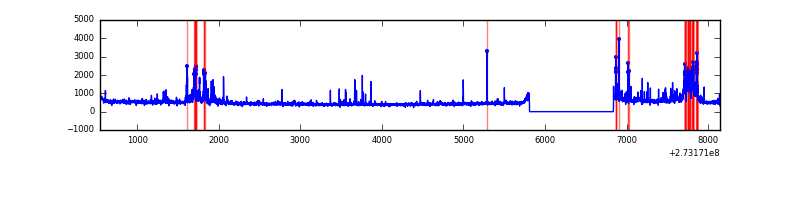

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7601 | 6572 | 16 | 16 | 0.21% | 0.24% |  |
| B | 7601 | 6572 | 14 | 14 | 0.18% | 0.21% |  |
| C | 7601 | 6572 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7602 | 6573 | 62 | 62 | 0.82% | 0.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 60841 | 365.56 | 811 | 794 | 164.3 |
| A | 0 | 226 | 7324 | 39.75 | 811 | 794 | 164.3 |
| A | 12 | 194 | 6040 | 31.93 | 811 | 794 | 164.3 |
| B | 0 | 182 | 87696 | 557.47 | 811 | 789 | 155.9 |
| B | 4 | 216 | 85484 | 543.28 | 811 | 789 | 155.9 |
| B | 3 | 209 | 48934 | 308.83 | 811 | 789 | 155.9 |
| C | 14 | 238 | 118964 | 643.33 | 785 | 788 | 183.7 |
| C | 3 | 233 | 22477 | 118.07 | 785 | 788 | 183.7 |
| C | 7 | 247 | 20483 | 107.21 | 785 | 788 | 183.7 |
| D | 13 | 172 | 343290 | 1760.85 | 794 | 770 | 194.5 |
| D | 10 | 70 | 57466 | 291.47 | 794 | 770 | 194.5 |
| D | 13 | 249 | 50208 | 254.15 | 794 | 770 | 194.5 |

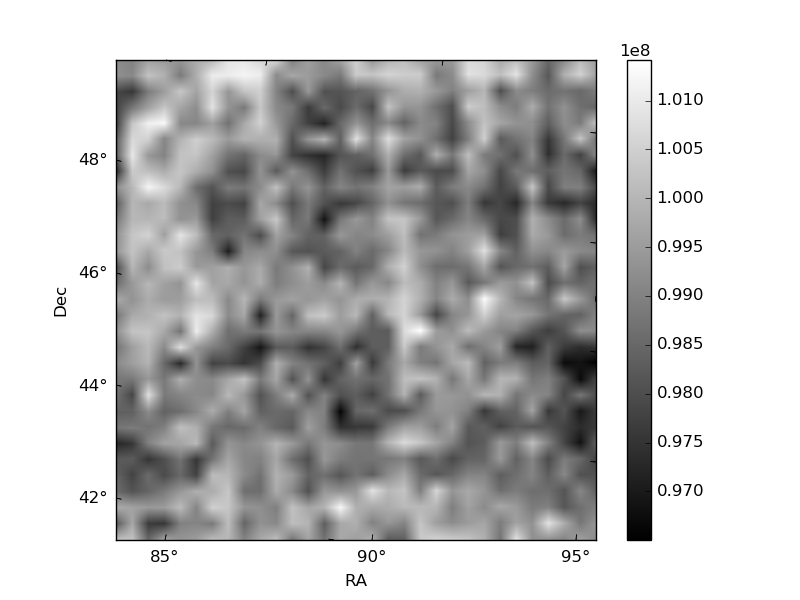

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

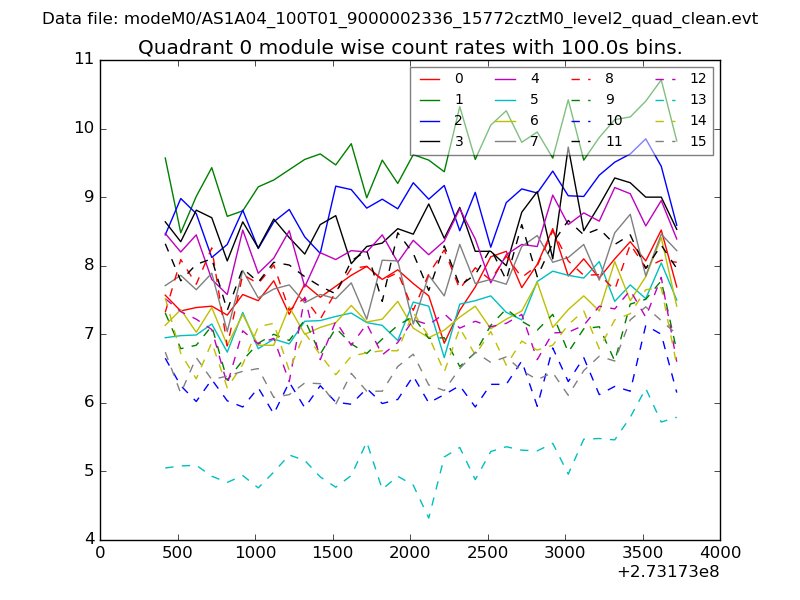

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

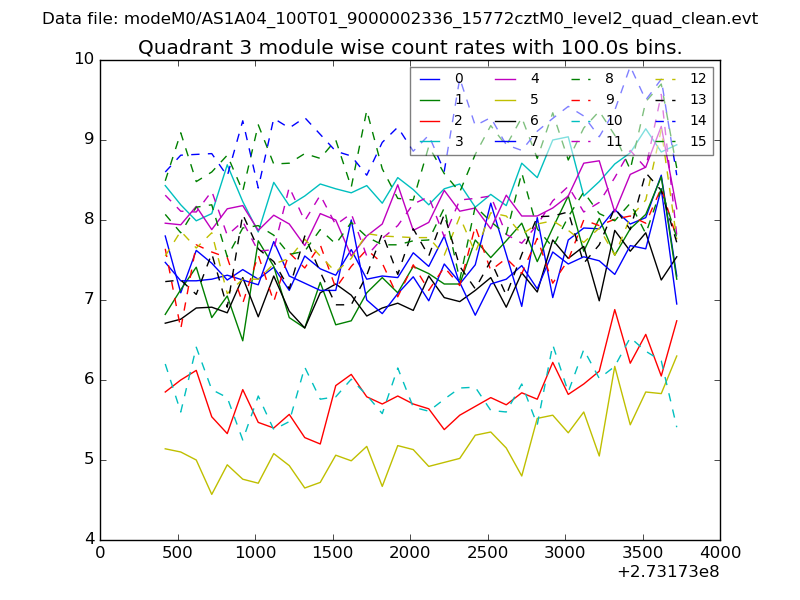

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

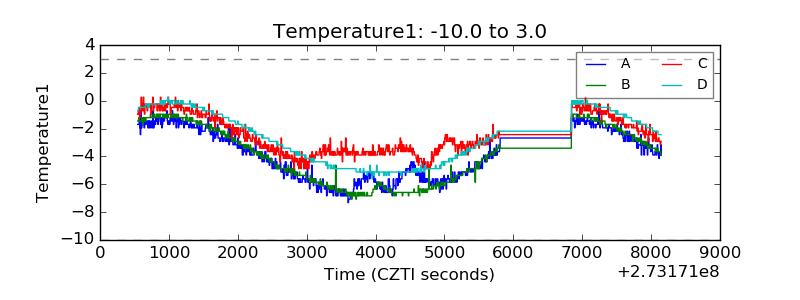

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

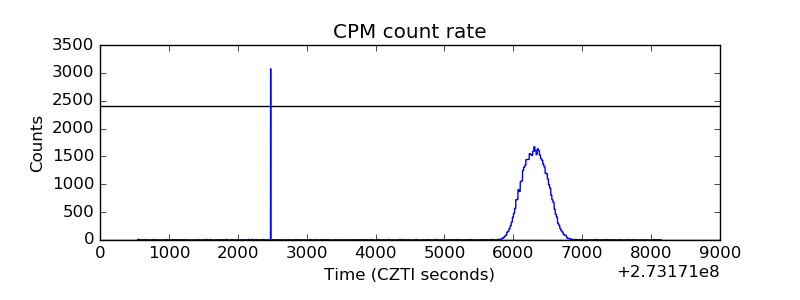

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

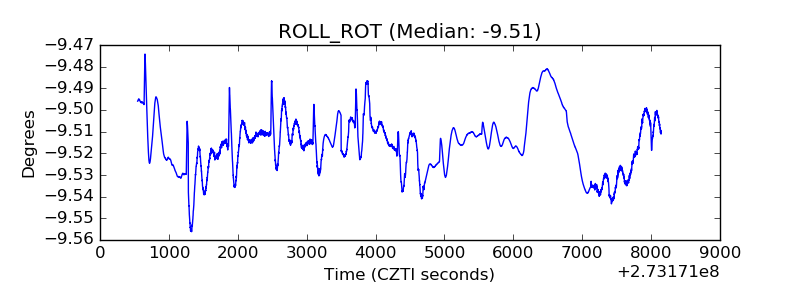

| _ROLL_ROT |  |

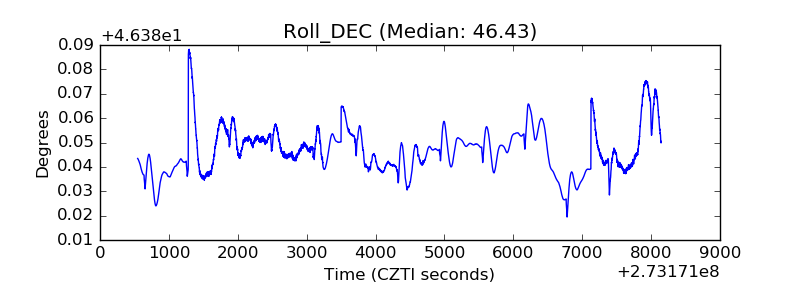

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
