| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_100T01_9000002336_15774cztM0_level2.evt | modeM0/AS1A04_100T01_9000002336_15774cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,511,040 | 78,382,080 |
| Size | 410.6 MB | 74.8 MB |
| Events in quadrant A | 2,993,256 | 482,973 |
| Events in quadrant B | 3,274,998 | 491,928 |
| Events in quadrant C | 3,072,629 | 487,886 |
| Events in quadrant D | 3,277,380 | 479,636 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13014 | 2 |
| B | 0 | 13869 | 1 |
| C | 0 | 13214 | 1 |
| D | 0 | 14081 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6180 | 48 | 0.776699% |
| B | 6180 | 73 | 1.181230% |
| C | 6180 | 72 | 1.165049% |
| D | 6180 | 107 | 1.731392% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7331 | 6182 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7331 | 6182 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7331 | 6182 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7331 | 6182 | 49 | 49 | 0.67% | 0.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 24524 | 151.73 | 771 | 753 | 156.7 |
| A | 0 | 226 | 6800 | 38.6 | 771 | 753 | 156.7 |
| A | 12 | 194 | 5791 | 32.16 | 771 | 753 | 156.7 |
| B | 4 | 216 | 67253 | 451.41 | 774 | 755 | 147.3 |
| B | 3 | 209 | 35529 | 236.06 | 774 | 755 | 147.3 |
| B | 4 | 80 | 33488 | 222.2 | 774 | 755 | 147.3 |
| C | 14 | 238 | 115497 | 650.96 | 753 | 759 | 176.3 |
| C | 7 | 247 | 8978 | 46.63 | 753 | 759 | 176.3 |
| C | 13 | 61 | 5508 | 26.94 | 753 | 759 | 176.3 |
| D | 13 | 172 | 219331 | 1089.34 | 752 | 736 | 200.7 |
| D | 10 | 70 | 63961 | 315.07 | 752 | 736 | 200.7 |
| D | 5 | 51 | 33247 | 162.01 | 752 | 736 | 200.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

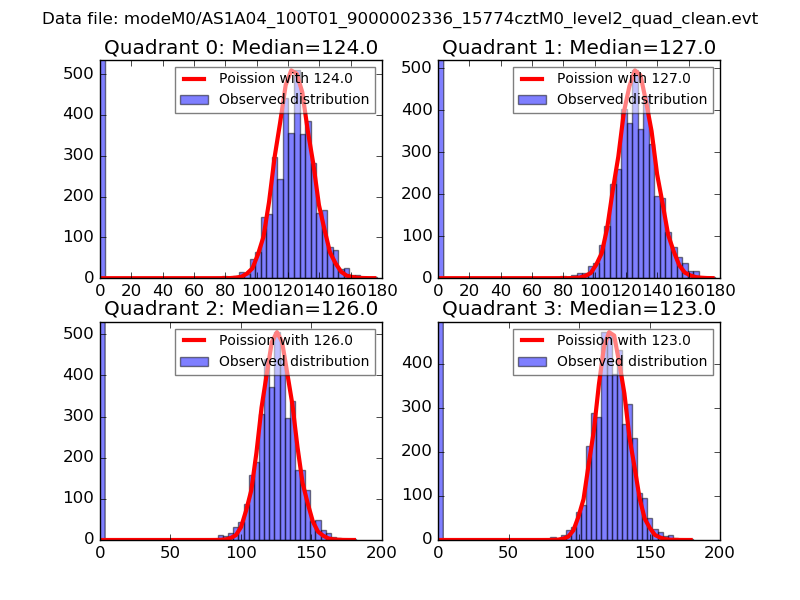

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

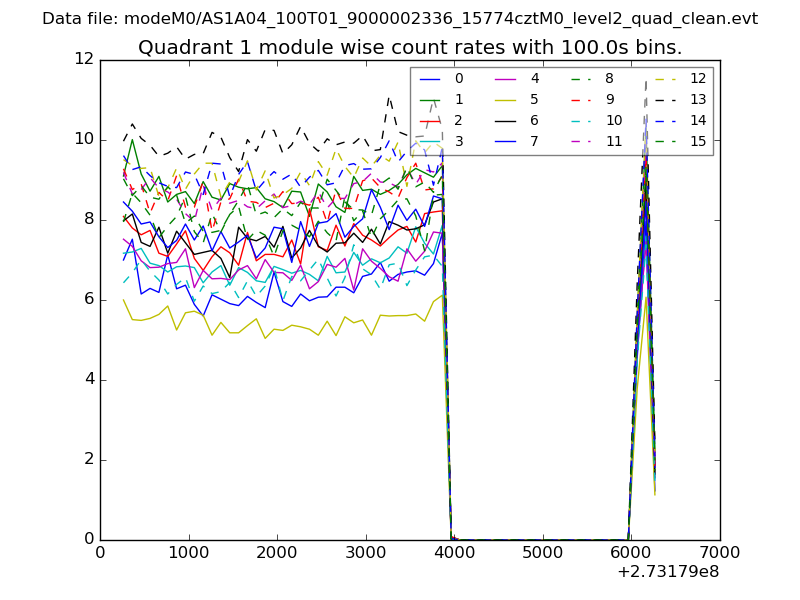

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

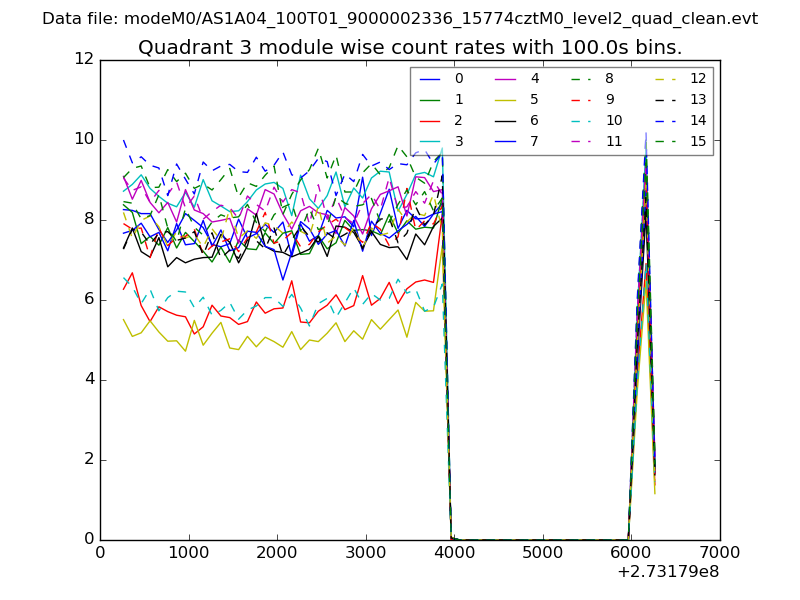

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

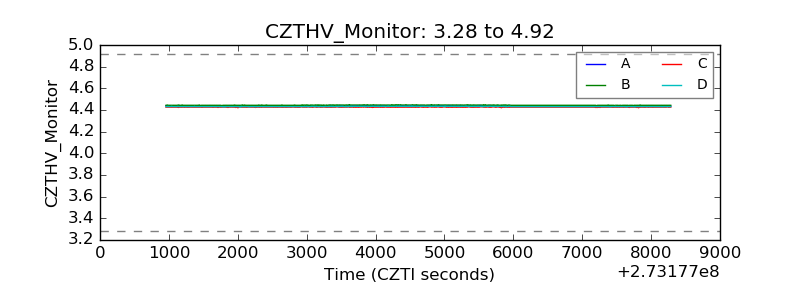

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

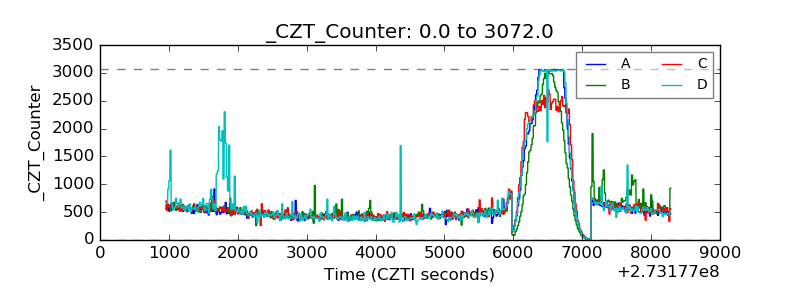

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

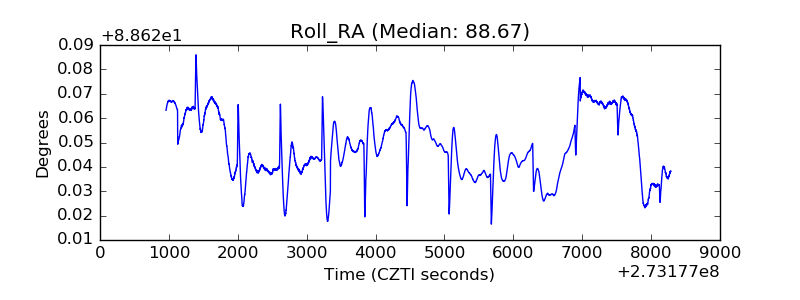

| _Roll_RA |  |
| Veto Counter |  |
