| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_100T01_9000002336_15775cztM0_level2.evt | modeM0/AS1A04_100T01_9000002336_15775cztM0_level2_quad_clean.evt |
| Size (bytes) | 435,715,200 | 92,148,480 |
| Size | 415.5 MB | 87.9 MB |
| Events in quadrant A | 3,054,389 | 584,141 |
| Events in quadrant B | 3,435,032 | 597,970 |
| Events in quadrant C | 3,207,977 | 593,814 |
| Events in quadrant D | 3,073,319 | 578,360 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13254 | 3 |
| B | 0 | 14384 | 2 |
| C | 0 | 13646 | 2 |
| D | 0 | 13398 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6246 | 20 | 0.320205% |
| B | 6246 | 62 | 0.992635% |
| C | 6246 | 58 | 0.928594% |
| D | 6246 | 22 | 0.352225% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7512 | 6248 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7512 | 6248 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7512 | 6248 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7512 | 6248 | 3 | 3 | 0.04% | 0.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7083 | 39.56 | 791 | 775 | 159.5 |
| A | 9 | 143 | 6512 | 35.98 | 791 | 775 | 159.5 |
| A | 12 | 194 | 5928 | 32.32 | 791 | 775 | 159.5 |
| B | 4 | 216 | 64627 | 428.0 | 800 | 783 | 149.2 |
| B | 0 | 189 | 52689 | 347.97 | 800 | 783 | 149.2 |
| B | 3 | 209 | 47774 | 315.02 | 800 | 783 | 149.2 |
| C | 14 | 238 | 119795 | 655.28 | 780 | 787 | 181.6 |
| C | 3 | 233 | 27802 | 148.75 | 780 | 787 | 181.6 |
| C | 8 | 128 | 9249 | 46.59 | 780 | 787 | 181.6 |
| D | 2 | 234 | 25548 | 120.14 | 777 | 762 | 206.3 |
| D | 1 | 52 | 23449 | 109.96 | 777 | 762 | 206.3 |
| D | 10 | 70 | 20781 | 97.03 | 777 | 762 | 206.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

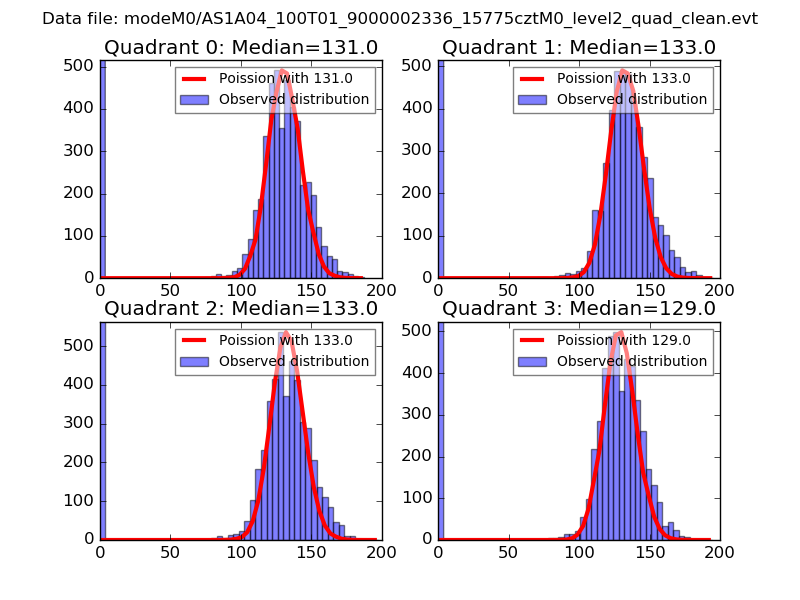

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

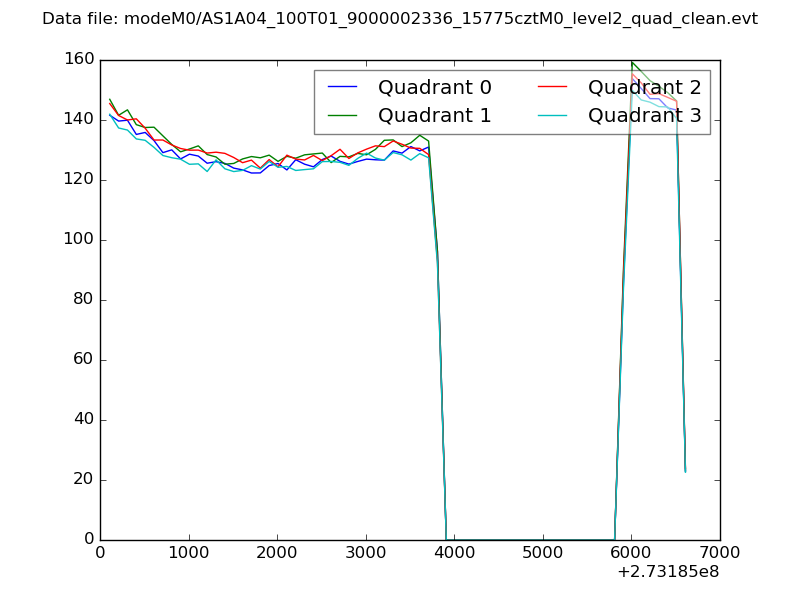

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

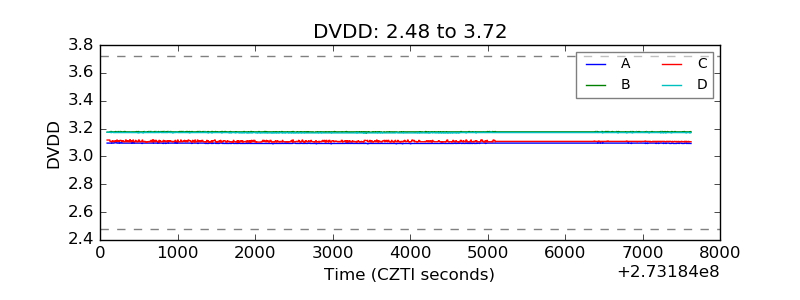

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

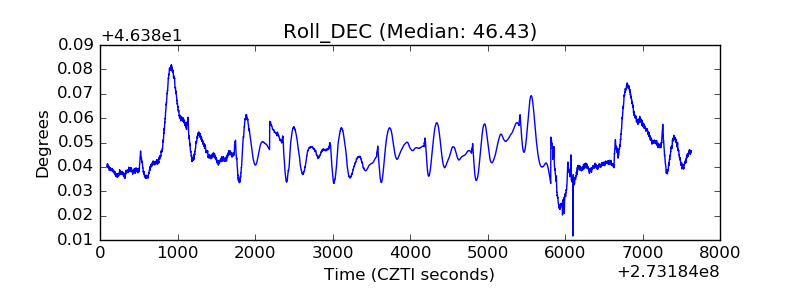

| _Roll_DEC |  |

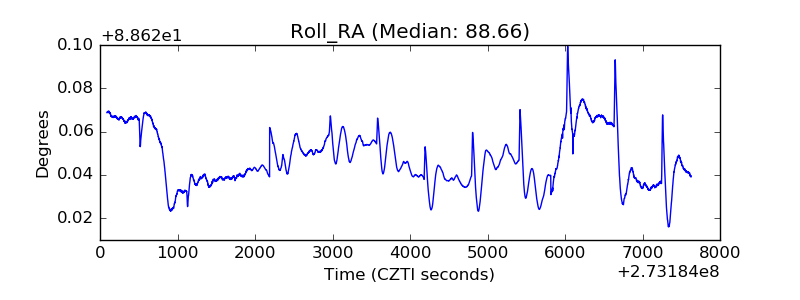

| _Roll_RA |  |
| Veto Counter |  |
