| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_100T01_9000002336_15776cztM0_level2.evt | modeM0/AS1A04_100T01_9000002336_15776cztM0_level2_quad_clean.evt |
| Size (bytes) | 419,155,200 | 102,683,520 |
| Size | 399.7 MB | 97.9 MB |
| Events in quadrant A | 2,976,559 | 661,722 |
| Events in quadrant B | 3,217,502 | 686,721 |
| Events in quadrant C | 3,093,926 | 680,041 |
| Events in quadrant D | 2,993,098 | 657,144 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12806 | 2 |
| B | 0 | 13499 | 1 |
| C | 0 | 13107 | 1 |
| D | 0 | 12990 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6074 | 32 | 0.526836% |
| B | 6074 | 46 | 0.757326% |
| C | 6074 | 73 | 1.201844% |
| D | 6074 | 35 | 0.576227% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7405 | 6076 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7405 | 6076 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7405 | 6076 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7405 | 6076 | 6 | 6 | 0.08% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 28969 | 184.34 | 765 | 749 | 153.1 |
| A | 0 | 226 | 6866 | 39.96 | 765 | 749 | 153.1 |
| A | 12 | 194 | 5693 | 32.3 | 765 | 749 | 153.1 |
| B | 0 | 189 | 60628 | 412.6 | 777 | 762 | 145.1 |
| B | 3 | 209 | 26767 | 179.23 | 777 | 762 | 145.1 |
| B | 0 | 190 | 22253 | 148.12 | 777 | 762 | 145.1 |
| C | 14 | 238 | 116092 | 661.0 | 755 | 762 | 174.5 |
| C | 3 | 233 | 24664 | 136.99 | 755 | 762 | 174.5 |
| C | 7 | 247 | 8027 | 41.64 | 755 | 762 | 174.5 |
| D | 2 | 234 | 24717 | 121.52 | 747 | 733 | 197.4 |
| D | 7 | 223 | 23552 | 115.62 | 747 | 733 | 197.4 |
| D | 5 | 51 | 20918 | 102.27 | 747 | 733 | 197.4 |

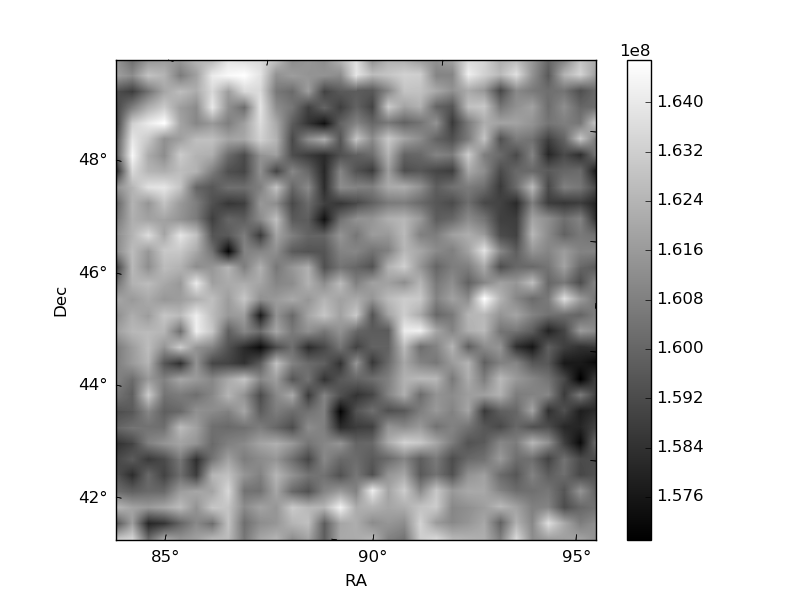

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

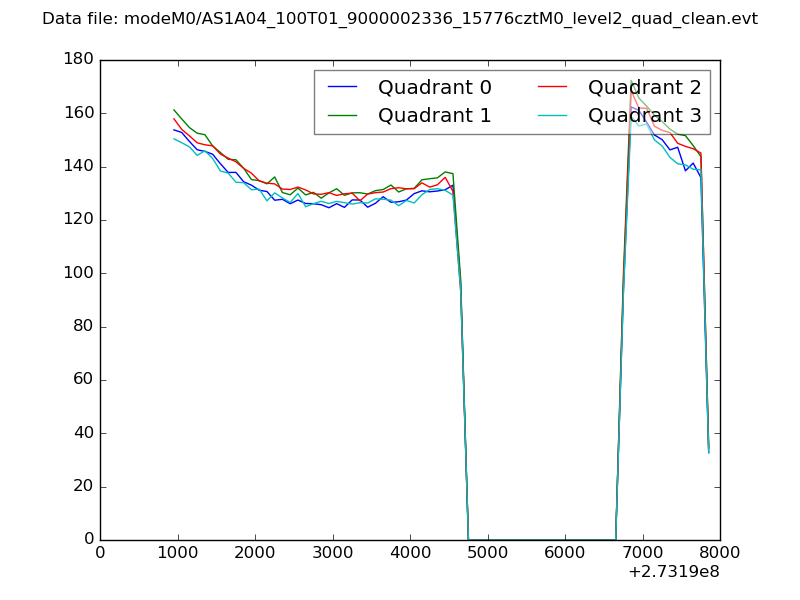

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

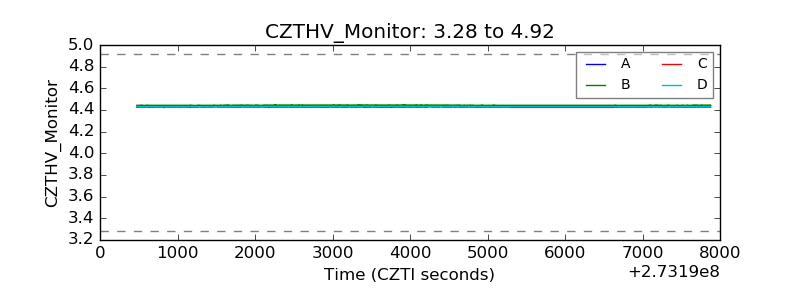

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

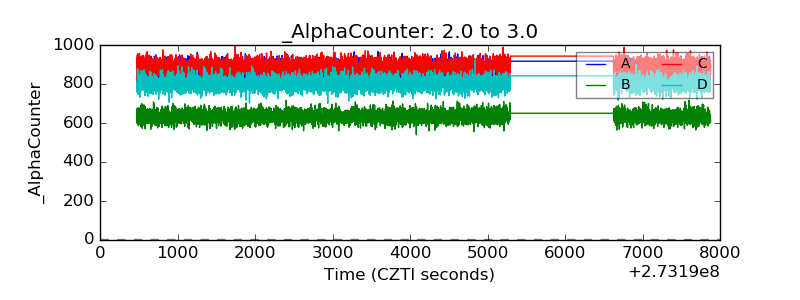

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

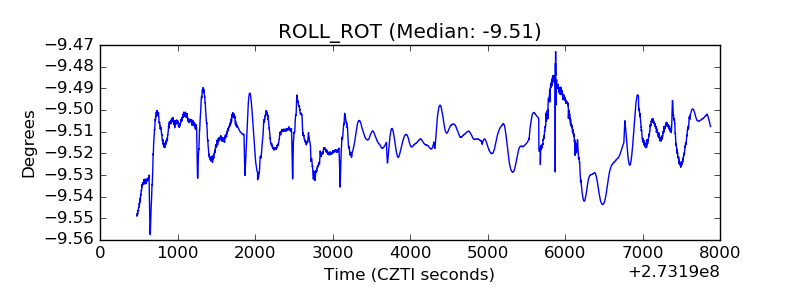

| _ROLL_ROT |  |

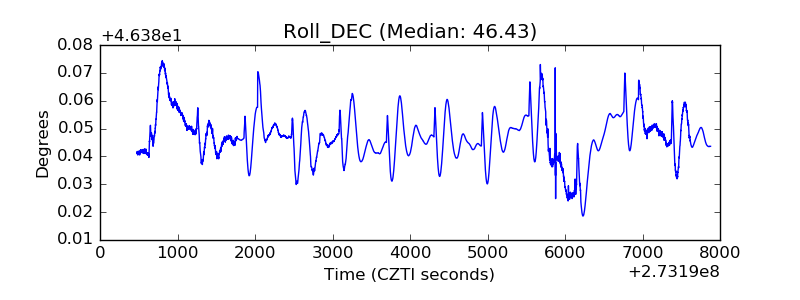

| _Roll_DEC |  |
| _Roll_RA |  |

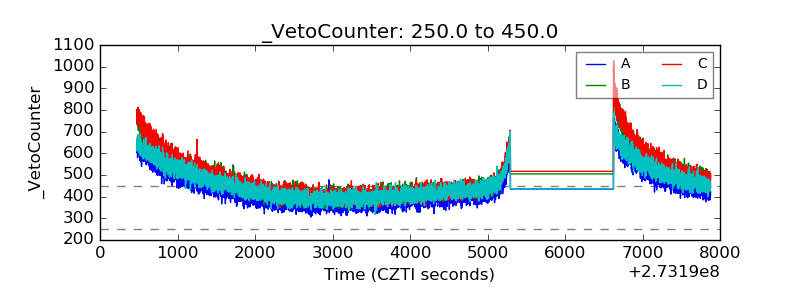

| Veto Counter |  |
