| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_100T01_9000002336_15794cztM0_level2.evt | modeM0/AS1A04_100T01_9000002336_15794cztM0_level2_quad_clean.evt |
| Size (bytes) | 408,576,960 | 84,392,640 |
| Size | 389.6 MB | 80.5 MB |
| Events in quadrant A | 2,938,226 | 523,399 |
| Events in quadrant B | 3,164,258 | 539,512 |
| Events in quadrant C | 3,053,745 | 530,127 |
| Events in quadrant D | 2,783,116 | 517,126 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13292 | 2 |
| B | 0 | 13805 | 1 |
| C | 0 | 13500 | 1 |
| D | 0 | 13072 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6383 | 28 | 0.438665% |
| B | 6383 | 30 | 0.469998% |
| C | 6383 | 54 | 0.845997% |
| D | 6383 | 11 | 0.172333% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

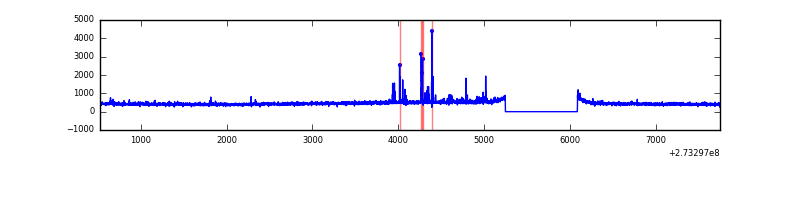

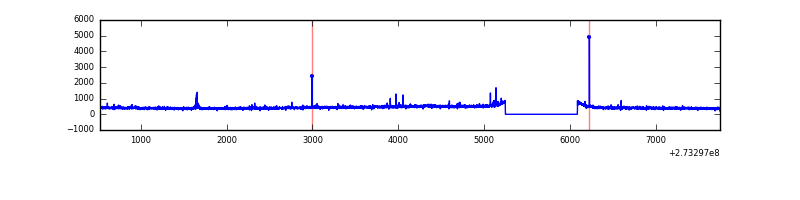

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7224 | 6385 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7224 | 6385 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7224 | 6385 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7224 | 6385 | 2 | 2 | 0.03% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 74096 | 488.52 | 736 | 719 | 150.2 |
| A | 14 | 254 | 26913 | 174.39 | 736 | 719 | 150.2 |
| A | 15 | 69 | 7668 | 46.26 | 736 | 719 | 150.2 |
| B | 10 | 245 | 64580 | 449.15 | 743 | 725 | 142.2 |
| B | 4 | 216 | 47070 | 325.98 | 743 | 725 | 142.2 |
| B | 4 | 173 | 36600 | 252.34 | 743 | 725 | 142.2 |
| C | 14 | 238 | 109616 | 654.32 | 710 | 715 | 166.4 |
| C | 7 | 247 | 81968 | 488.2 | 710 | 715 | 166.4 |
| C | 9 | 54 | 78317 | 466.27 | 710 | 715 | 166.4 |
| D | 2 | 234 | 26776 | 135.04 | 711 | 697 | 193.1 |
| D | 5 | 51 | 18465 | 92.0 | 711 | 697 | 193.1 |
| D | 2 | 152 | 14097 | 69.39 | 711 | 697 | 193.1 |

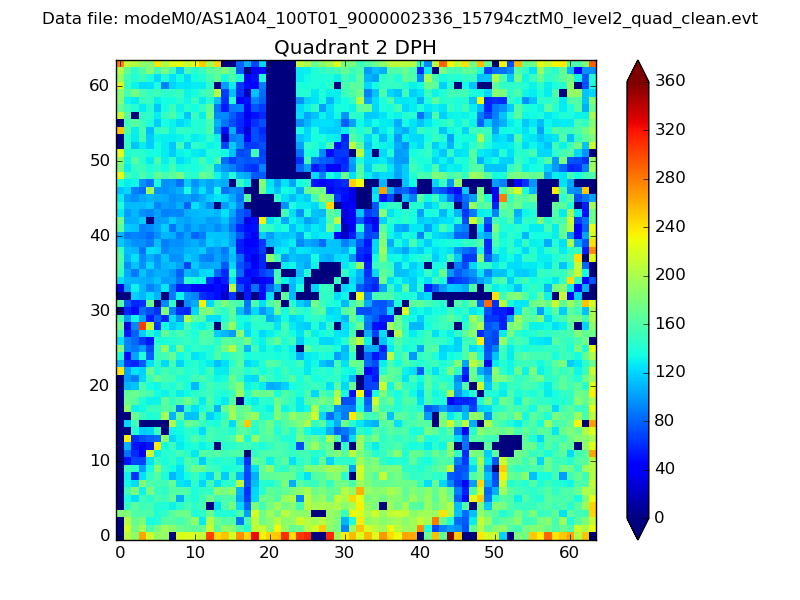

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

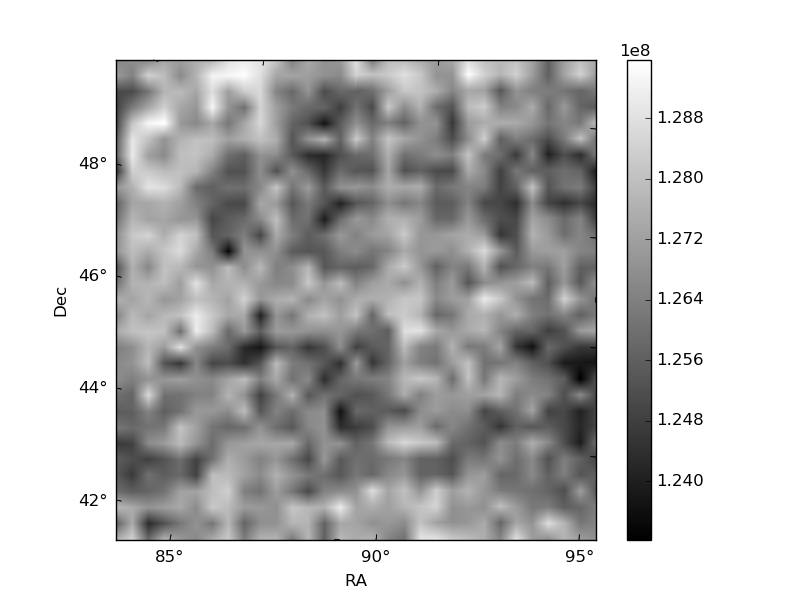

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

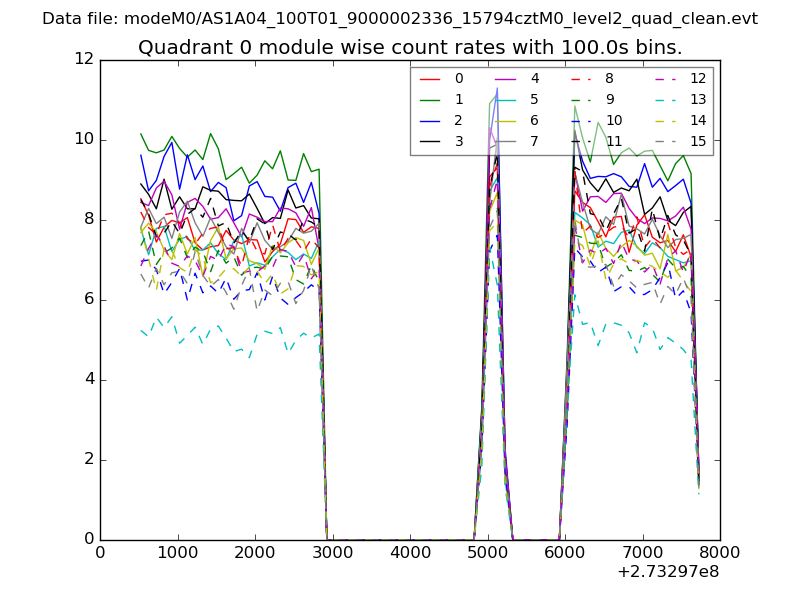

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

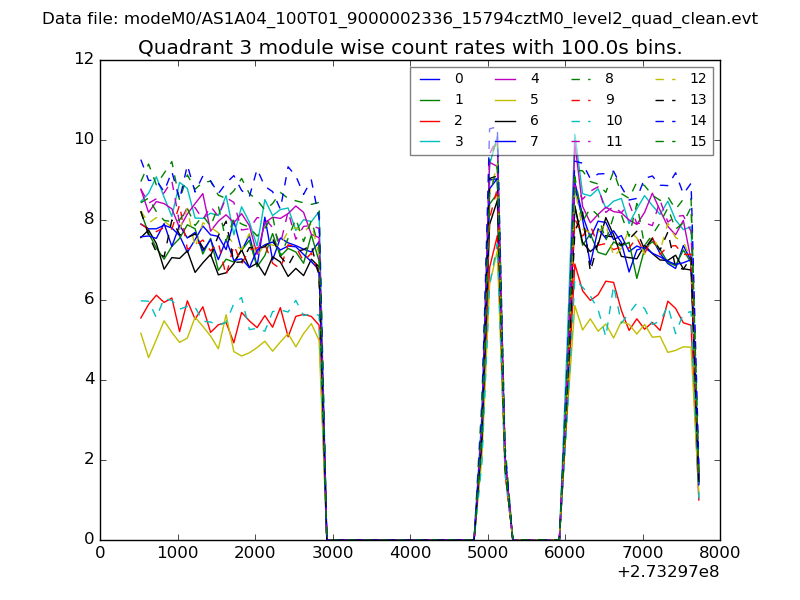

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

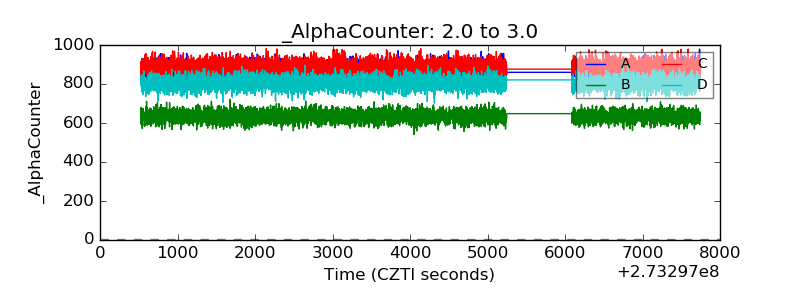

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

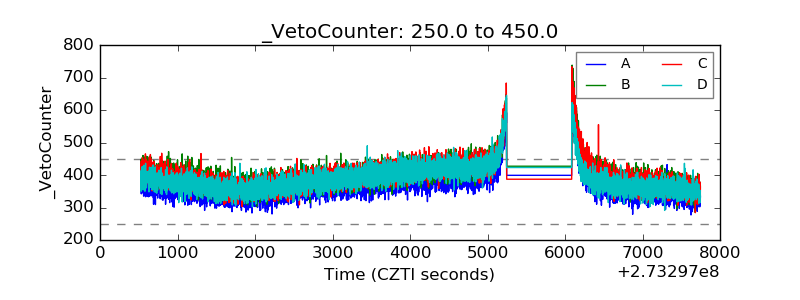

| Veto Counter |  |
