| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_100T01_9000002336_15796cztM0_level2.evt | modeM0/AS1A04_100T01_9000002336_15796cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,691,520 | 99,547,200 |
| Size | 450.8 MB | 94.9 MB |
| Events in quadrant A | 3,446,021 | 620,980 |
| Events in quadrant B | 3,761,100 | 638,924 |
| Events in quadrant C | 3,402,103 | 630,610 |
| Events in quadrant D | 3,212,774 | 618,925 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15324 | 3 |
| B | 0 | 16049 | 2 |
| C | 0 | 14984 | 2 |
| D | 0 | 14958 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7256 | 295 | 4.065601% |
| B | 7256 | 274 | 3.776185% |
| C | 7256 | 236 | 3.252481% |
| D | 7256 | 183 | 2.522051% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7292 | 7259 | 18 | 18 | 0.25% | 0.25% |  |
| B | 7292 | 7259 | 16 | 16 | 0.22% | 0.22% |  |
| C | 7292 | 7259 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7292 | 7259 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 139993 | 799.63 | 857 | 838 | 174.0 |
| A | 0 | 226 | 7688 | 39.36 | 857 | 838 | 174.0 |
| A | 12 | 194 | 6445 | 32.22 | 857 | 838 | 174.0 |
| B | 4 | 173 | 128341 | 766.68 | 856 | 832 | 166.3 |
| B | 7 | 220 | 52688 | 311.8 | 856 | 832 | 166.3 |
| B | 10 | 245 | 41455 | 244.26 | 856 | 832 | 166.3 |
| C | 14 | 238 | 125456 | 646.12 | 825 | 828 | 192.9 |
| C | 3 | 233 | 24251 | 121.43 | 825 | 828 | 192.9 |
| C | 7 | 247 | 13638 | 66.41 | 825 | 828 | 192.9 |
| D | 2 | 234 | 31661 | 141.76 | 836 | 813 | 217.6 |
| D | 10 | 70 | 10116 | 42.75 | 836 | 813 | 217.6 |
| D | 14 | 226 | 8260 | 34.22 | 836 | 813 | 217.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

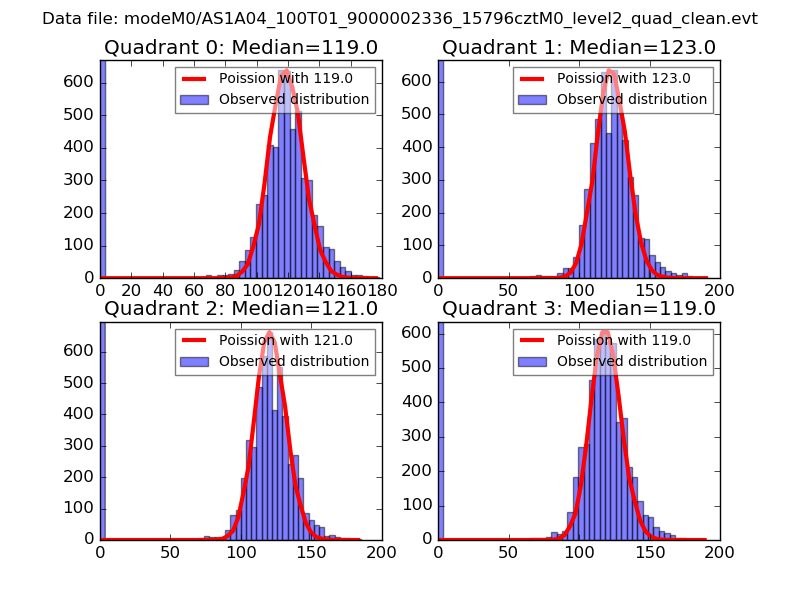

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

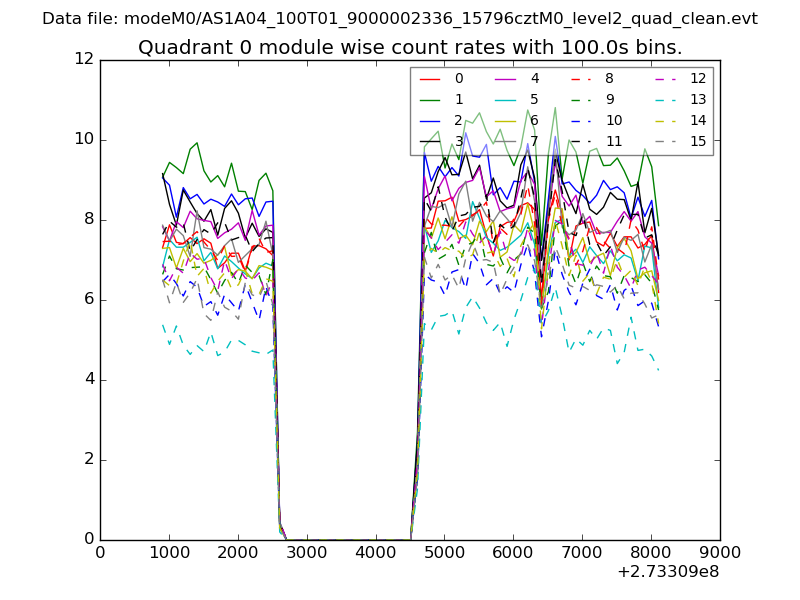

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

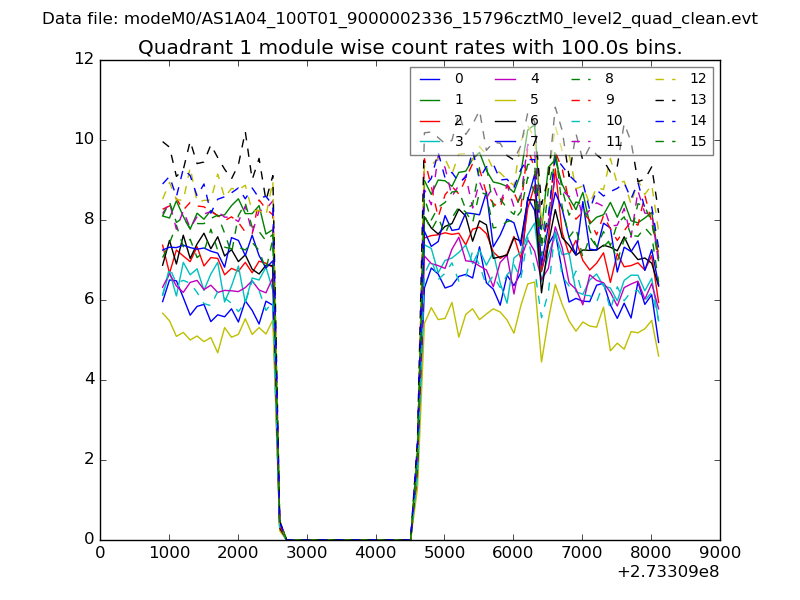

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

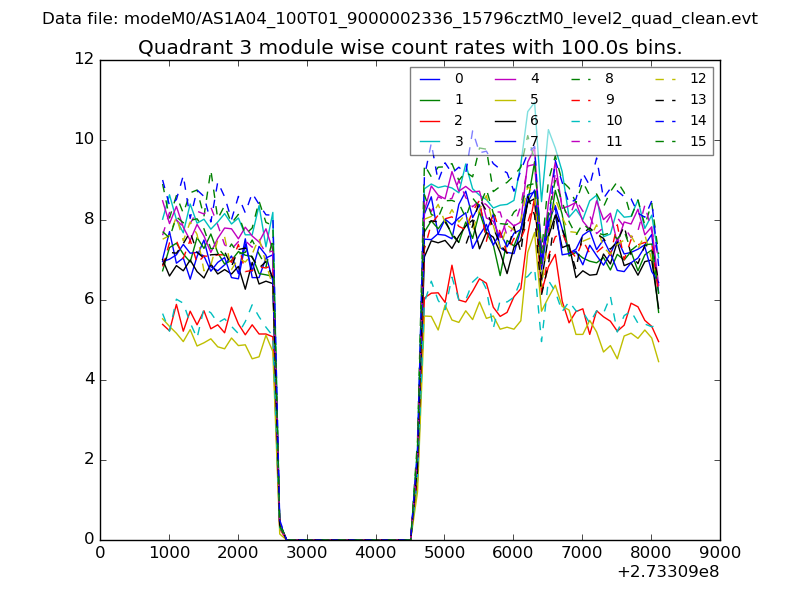

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

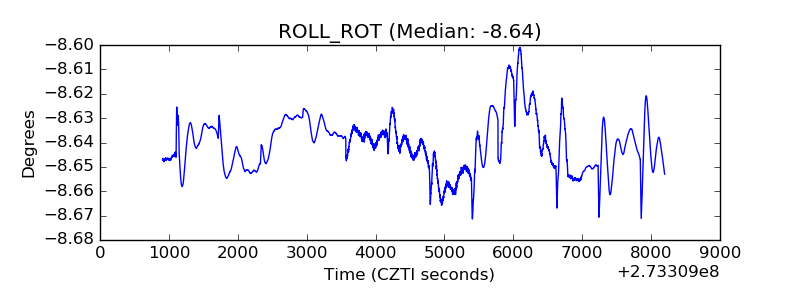

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

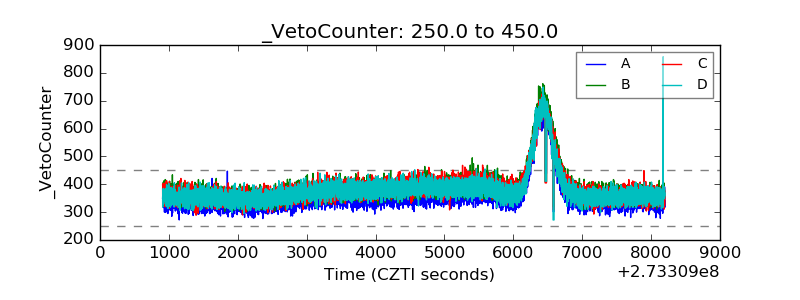

| Veto Counter |  |
