| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_058T01_9000002338_15803cztM0_level2.evt | modeM0/AS1T02_058T01_9000002338_15803cztM0_level2_quad_clean.evt |
| Size (bytes) | 224,058,240 | 23,538,240 |
| Size | 213.7 MB | 22.4 MB |
| Events in quadrant A | 2,288,244 | 131,059 |
| Events in quadrant B | 1,563,030 | 136,786 |
| Events in quadrant C | 1,370,004 | 131,689 |
| Events in quadrant D | 1,388,383 | 128,569 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 52 | 0 |
| B | 0 | 52 | 0 |
| C | 0 | 52 | 0 |
| D | 0 | 52 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8530 | 1 |
| B | 0 | 6403 | 1 |
| C | 0 | 5611 | 1 |
| D | 0 | 5817 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2562 | 319 | 12.451210% |
| B | 2562 | 26 | 1.014832% |
| C | 2562 | 20 | 0.780640% |
| D | 2562 | 8 | 0.312256% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

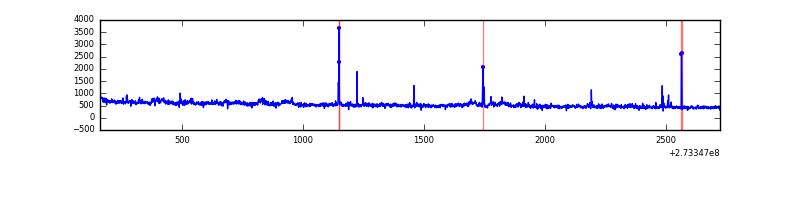

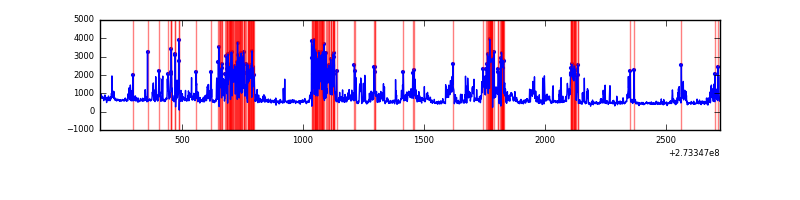

| A | 2563 | 2563 | 190 | 190 | 7.41% | 7.41% |  |
| B | 2563 | 2563 | 7 | 7 | 0.27% | 0.27% |  |
| C | 2563 | 2563 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2563 | 2563 | 5 | 5 | 0.20% | 0.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 1007586 | 15272.88 | 318 | 311 | 66.0 |
| A | 10 | 253 | 33825 | 508.16 | 318 | 311 | 66.0 |
| A | 13 | 248 | 21211 | 316.9 | 318 | 311 | 66.0 |
| B | 7 | 220 | 112230 | 1717.35 | 340 | 333 | 65.2 |
| B | 4 | 216 | 45679 | 695.95 | 340 | 333 | 65.2 |
| B | 0 | 229 | 33960 | 516.09 | 340 | 333 | 65.2 |
| C | 14 | 238 | 50869 | 653.7 | 327 | 329 | 77.3 |
| C | 7 | 247 | 35817 | 459.01 | 327 | 329 | 77.3 |
| C | 10 | 22 | 6228 | 76.3 | 327 | 329 | 77.3 |
| D | 1 | 52 | 67679 | 815.77 | 332 | 321 | 82.6 |
| D | 2 | 152 | 28501 | 341.29 | 332 | 321 | 82.6 |
| D | 2 | 234 | 11697 | 137.77 | 332 | 321 | 82.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

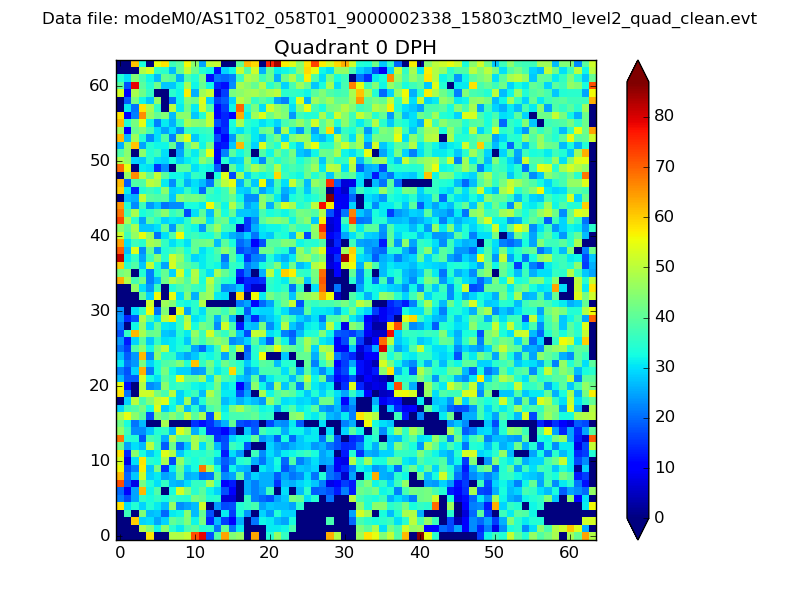

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

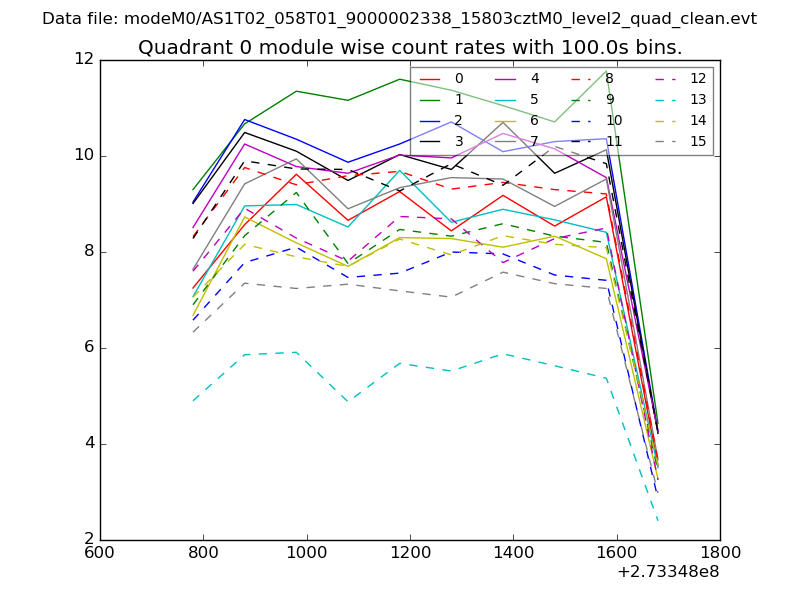

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

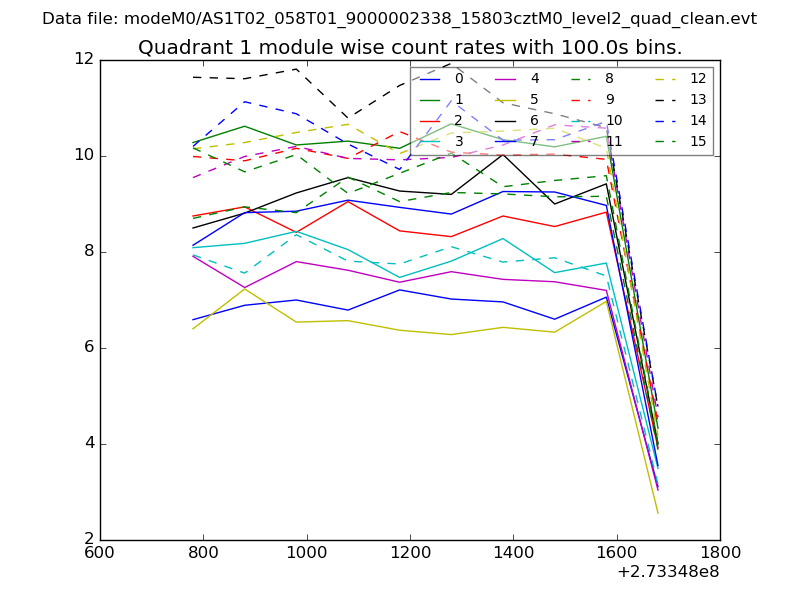

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

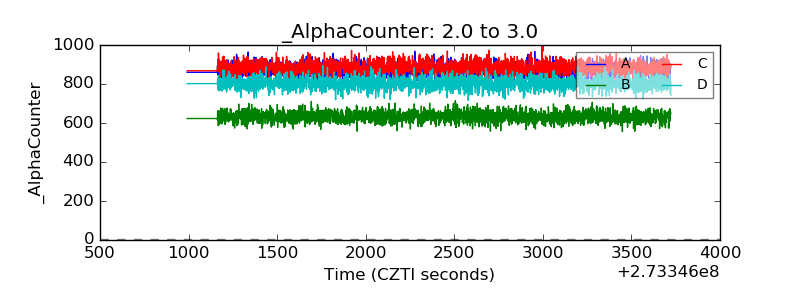

| Alpha Counter |  |

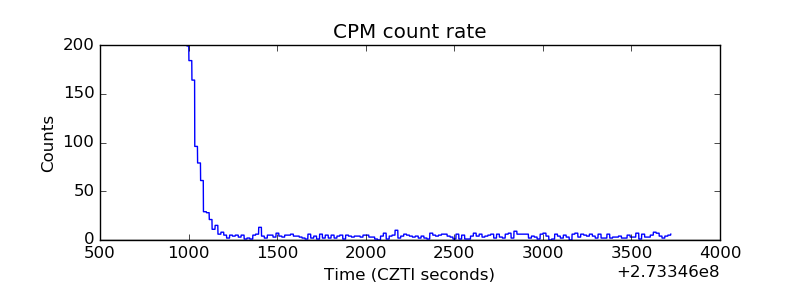

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
