| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_143T01_9000002344_15830cztM0_level2.evt | modeM0/AS1A04_143T01_9000002344_15830cztM0_level2_quad_clean.evt |
| Size (bytes) | 467,429,760 | 74,197,440 |
| Size | 445.8 MB | 70.8 MB |
| Events in quadrant A | 3,687,208 | 452,232 |
| Events in quadrant B | 3,489,940 | 462,057 |
| Events in quadrant C | 3,212,686 | 442,832 |
| Events in quadrant D | 3,326,454 | 437,963 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15160 | 3 |
| B | 0 | 14570 | 2 |
| C | 0 | 13632 | 2 |
| D | 0 | 14056 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6471 | 212 | 3.276155% |
| B | 6471 | 117 | 1.808067% |
| C | 6471 | 92 | 1.421728% |
| D | 6471 | 61 | 0.942667% |

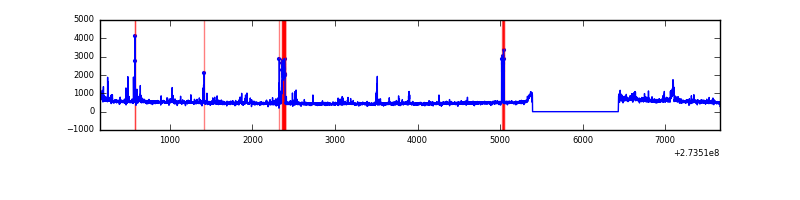

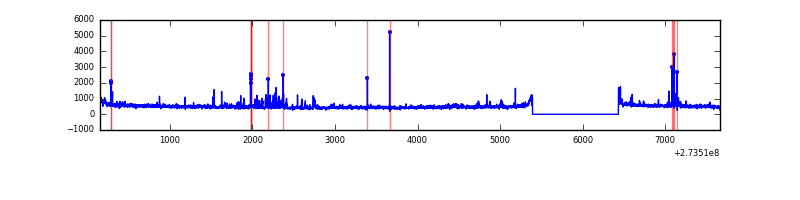

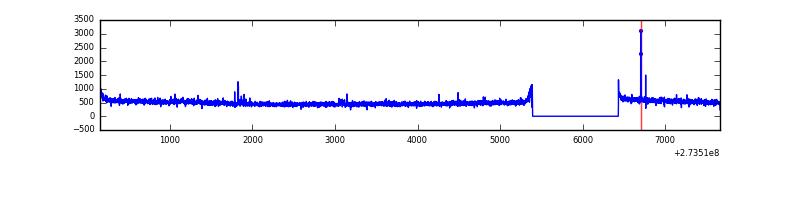

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

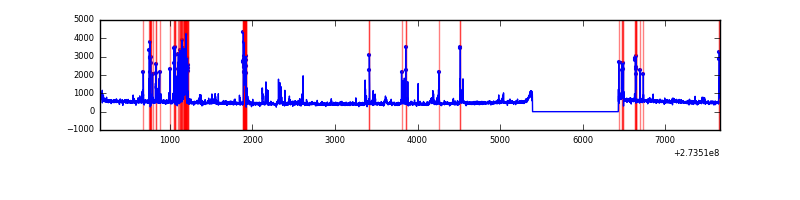

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7512 | 6473 | 102 | 102 | 1.36% | 1.58% |  |
| B | 7512 | 6473 | 35 | 35 | 0.47% | 0.54% |  |
| C | 7512 | 6473 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7512 | 6473 | 14 | 14 | 0.19% | 0.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 586931 | 3619.78 | 799 | 781 | 161.9 |
| A | 15 | 157 | 25705 | 153.92 | 799 | 781 | 161.9 |
| A | 0 | 226 | 7244 | 39.91 | 799 | 781 | 161.9 |
| B | 10 | 245 | 134416 | 871.51 | 808 | 788 | 153.3 |
| B | 4 | 173 | 67968 | 438.14 | 808 | 788 | 153.3 |
| B | 4 | 216 | 43697 | 279.85 | 808 | 788 | 153.3 |
| C | 14 | 238 | 119767 | 653.14 | 777 | 781 | 182.2 |
| C | 3 | 233 | 18822 | 99.03 | 777 | 781 | 182.2 |
| C | 0 | 207 | 17089 | 89.52 | 777 | 781 | 182.2 |
| D | 1 | 52 | 210244 | 1077.17 | 789 | 763 | 194.5 |
| D | 12 | 233 | 51847 | 262.68 | 789 | 763 | 194.5 |
| D | 2 | 234 | 23570 | 117.27 | 789 | 763 | 194.5 |

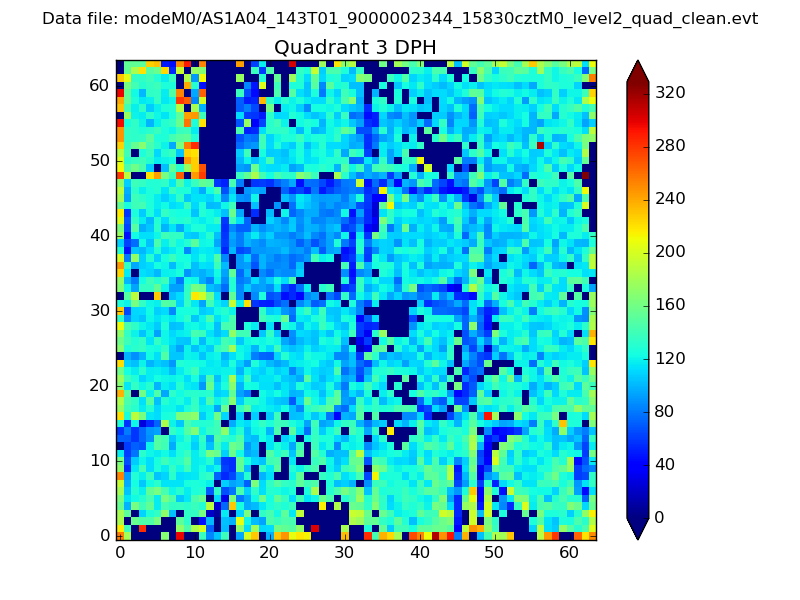

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

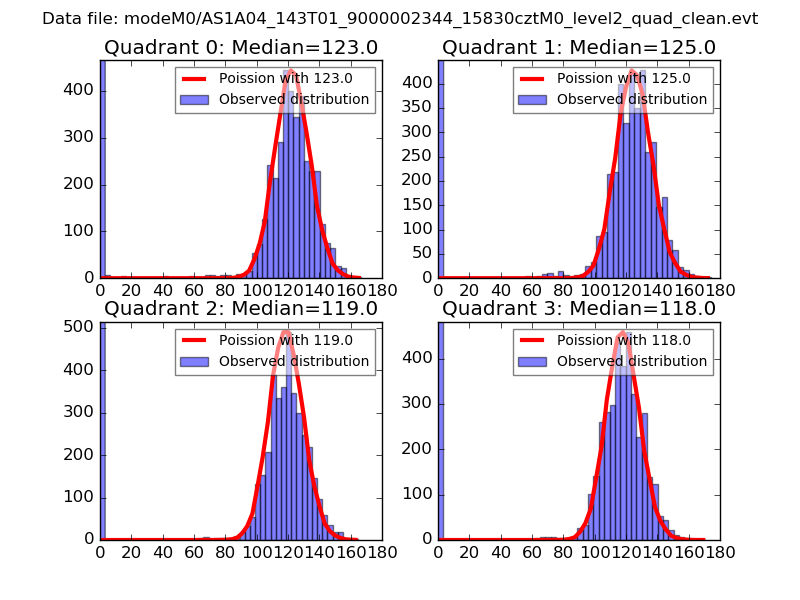

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

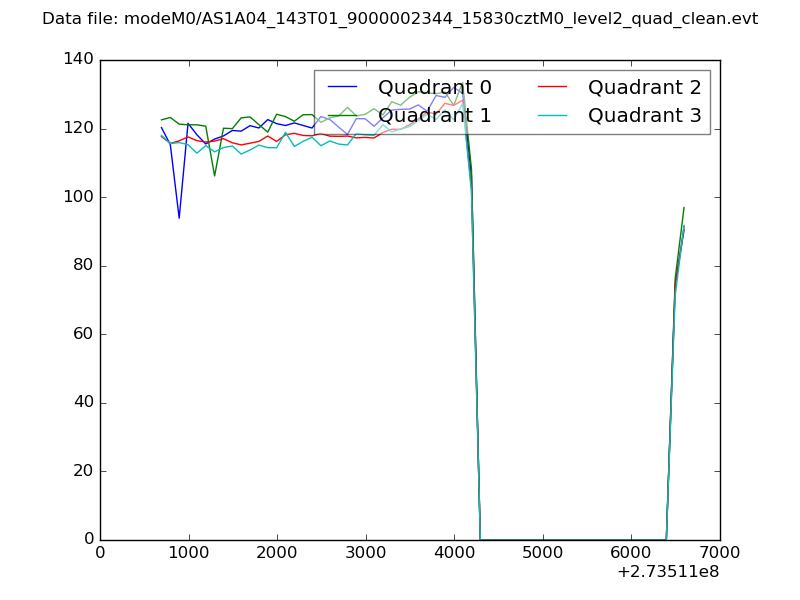

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

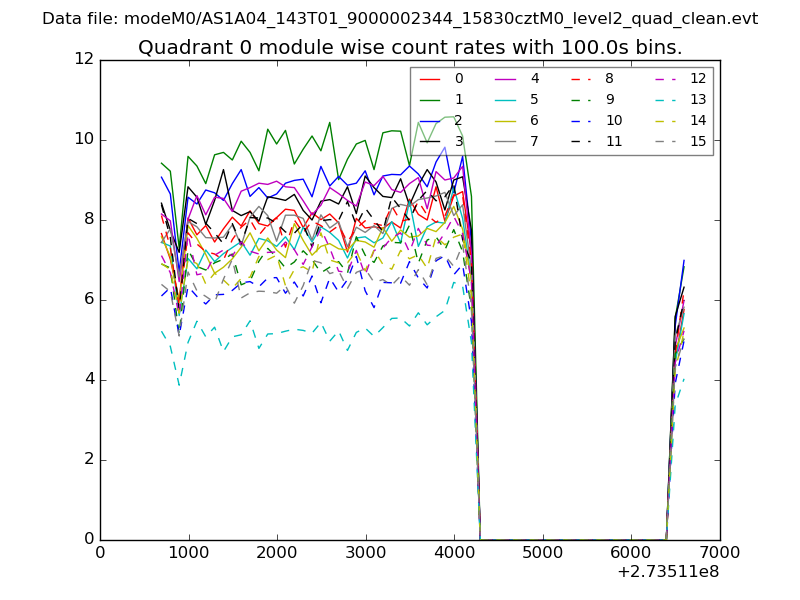

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

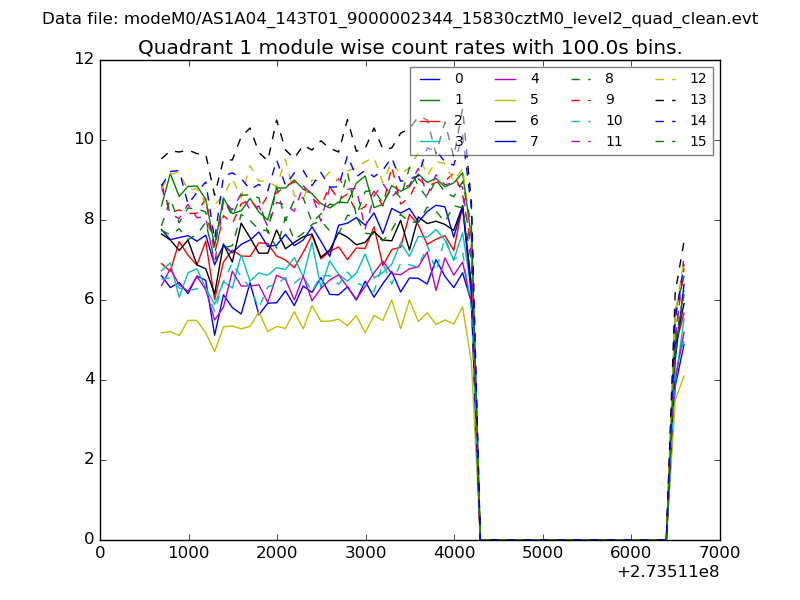

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

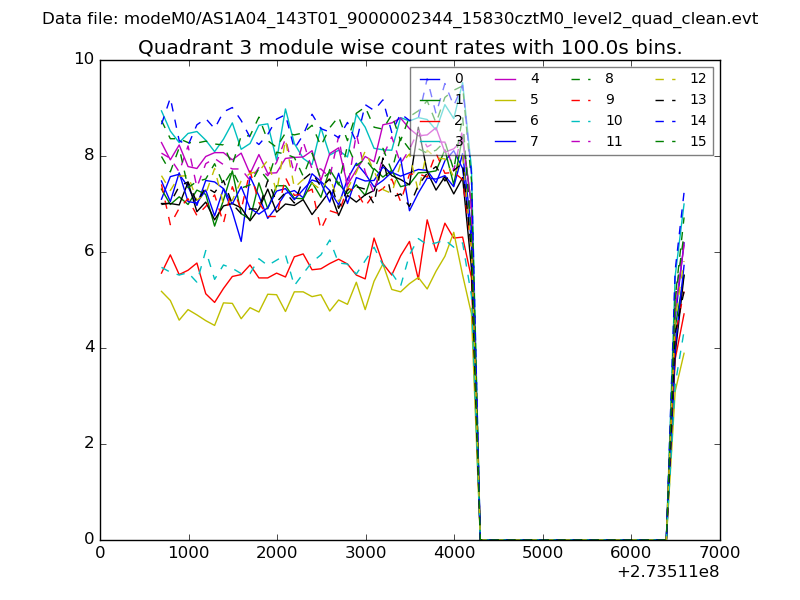

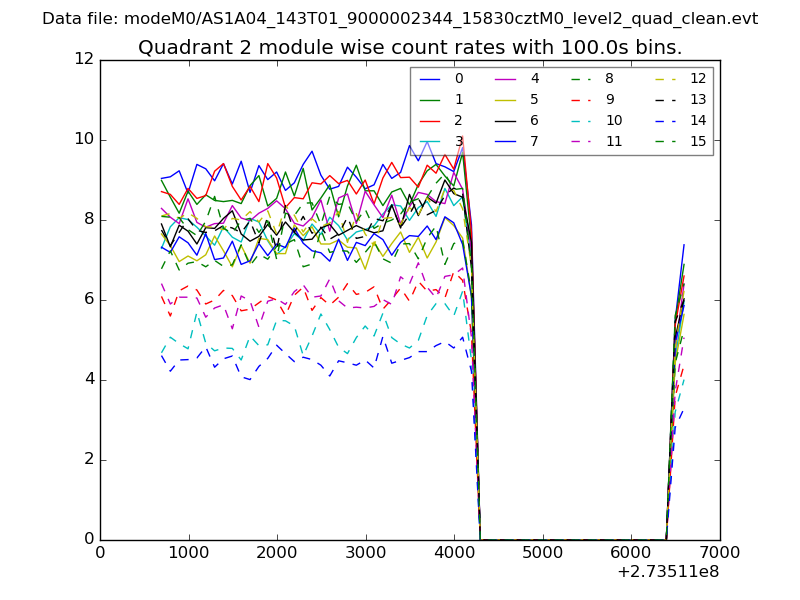

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

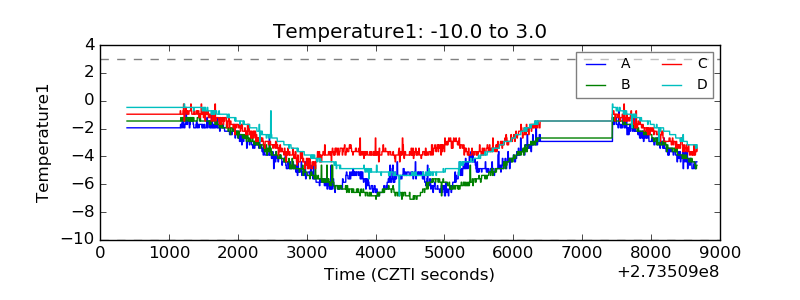

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

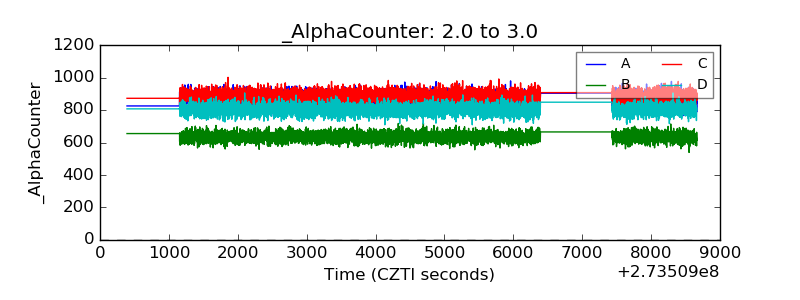

| Alpha Counter |  |

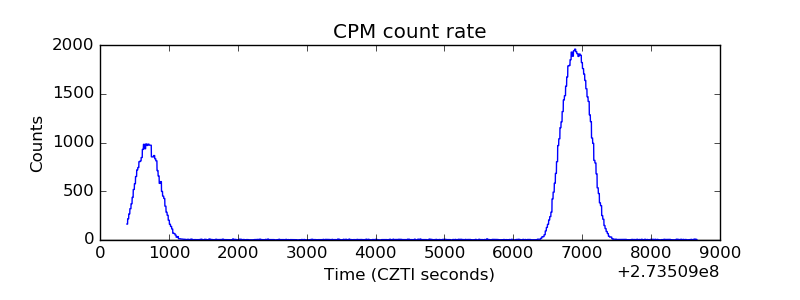

| _CPM_Rate |  |

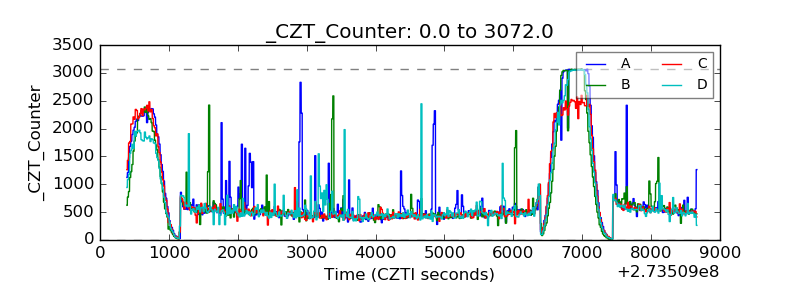

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

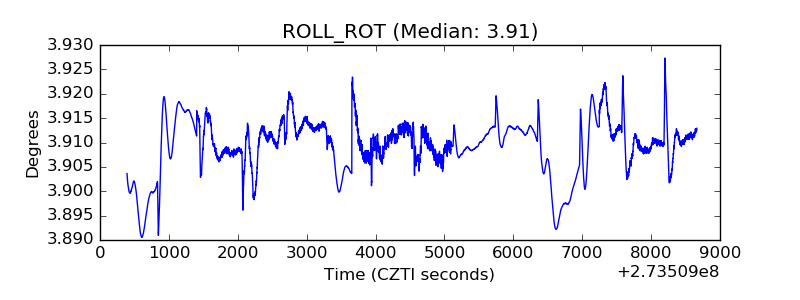

| _ROLL_ROT |  |

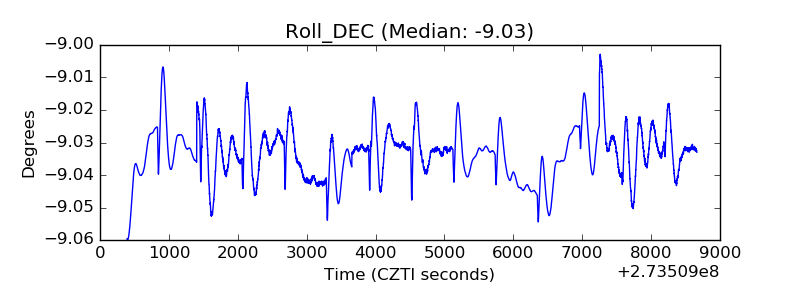

| _Roll_DEC |  |

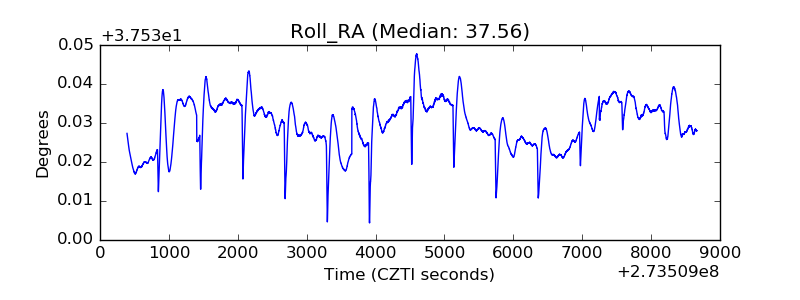

| _Roll_RA |  |

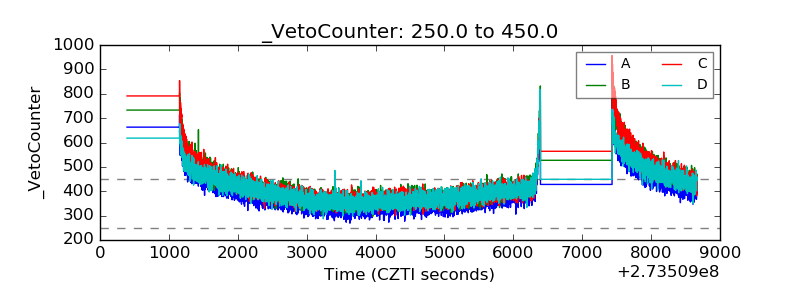

| Veto Counter |  |
