| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_143T01_9000002344_15832cztM0_level2.evt | modeM0/AS1A04_143T01_9000002344_15832cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,774,080 | 91,183,680 |
| Size | 508.1 MB | 87.0 MB |
| Events in quadrant A | 4,512,916 | 570,838 |
| Events in quadrant B | 3,804,707 | 591,738 |
| Events in quadrant C | 3,538,348 | 567,701 |
| Events in quadrant D | 3,817,946 | 557,390 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17732 | 4 |
| B | 0 | 15786 | 2 |
| C | 0 | 14851 | 2 |
| D | 0 | 16039 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6798 | 249 | 3.662842% |
| B | 6798 | 135 | 1.985878% |
| C | 6798 | 131 | 1.927037% |
| D | 6798 | 134 | 1.971168% |

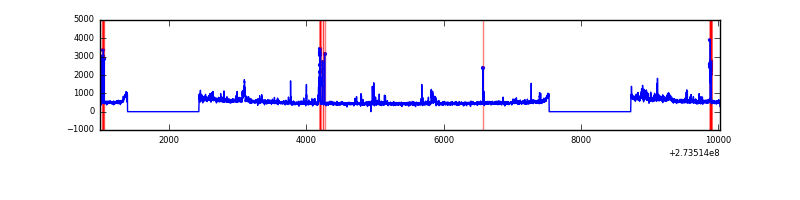

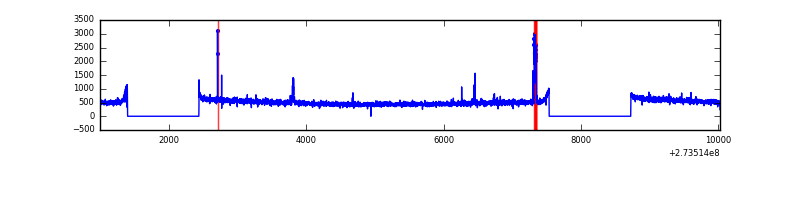

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9031 | 6802 | 133 | 133 | 1.47% | 1.96% |  |
| B | 9031 | 6802 | 32 | 32 | 0.35% | 0.47% |  |
| C | 9031 | 6802 | 18 | 18 | 0.20% | 0.26% |  |
| D | 9031 | 6802 | 58 | 58 | 0.64% | 0.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 1169131 | 6664.8 | 863 | 845 | 175.3 |
| A | 15 | 157 | 16788 | 90.95 | 863 | 845 | 175.3 |
| A | 9 | 143 | 9288 | 48.17 | 863 | 845 | 175.3 |
| B | 4 | 173 | 180352 | 1084.4 | 875 | 853 | 165.5 |
| B | 4 | 216 | 120020 | 719.92 | 875 | 853 | 165.5 |
| B | 3 | 209 | 20363 | 117.87 | 875 | 853 | 165.5 |
| C | 14 | 238 | 129352 | 654.39 | 843 | 852 | 196.4 |
| C | 10 | 22 | 101766 | 513.91 | 843 | 852 | 196.4 |
| C | 3 | 233 | 20306 | 99.07 | 843 | 852 | 196.4 |
| D | 1 | 52 | 440617 | 2077.2 | 851 | 826 | 211.7 |
| D | 12 | 233 | 70324 | 328.25 | 851 | 826 | 211.7 |
| D | 7 | 223 | 30151 | 138.51 | 851 | 826 | 211.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

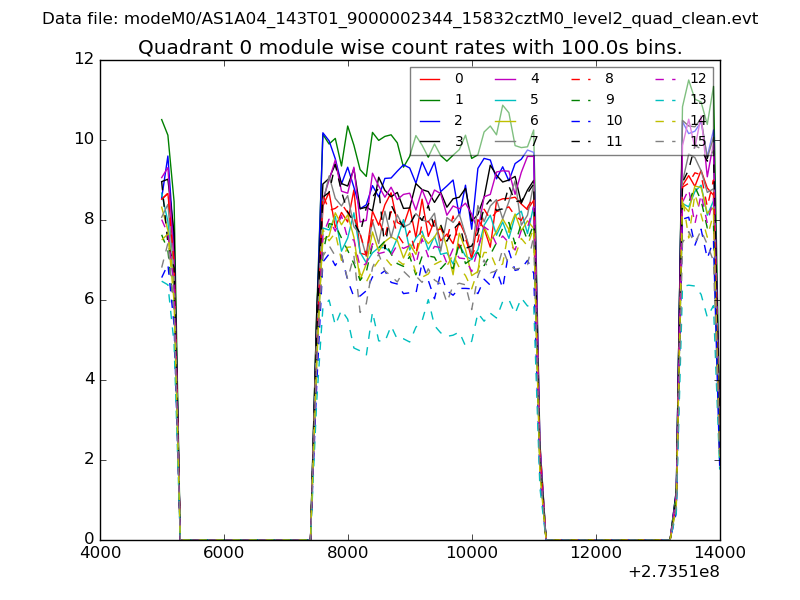

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

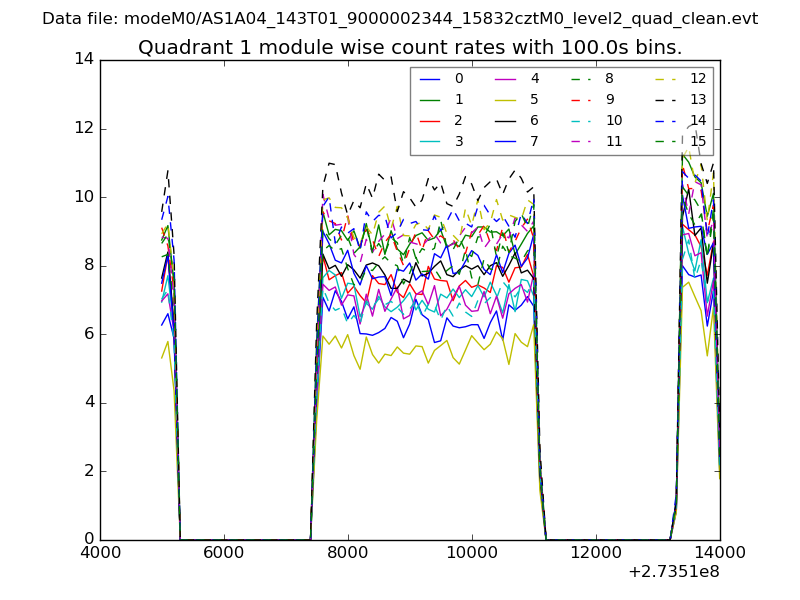

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

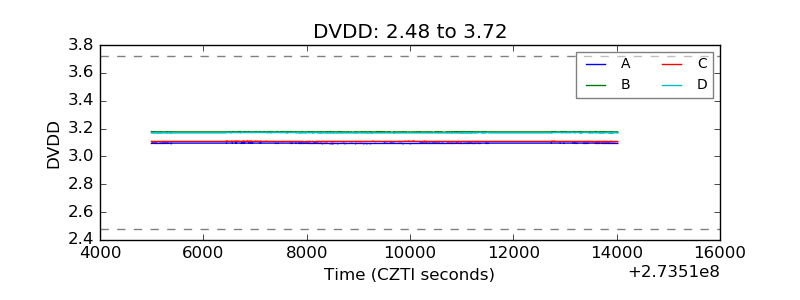

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

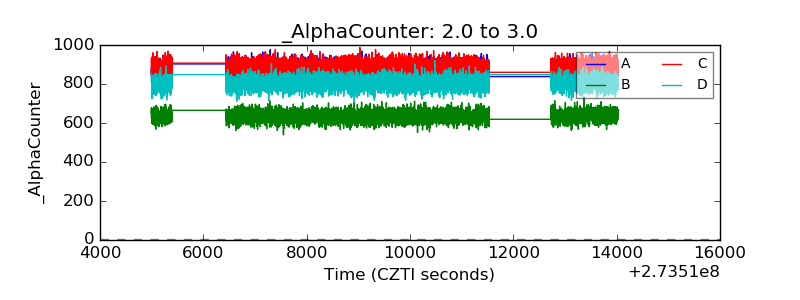

| Alpha Counter |  |

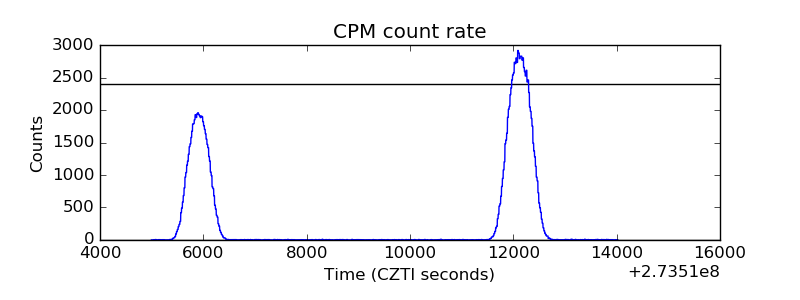

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

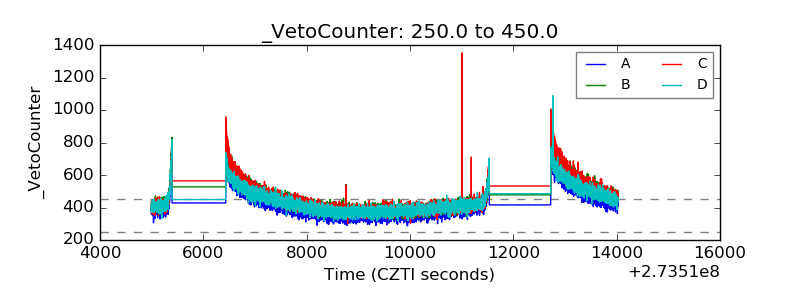

| Veto Counter |  |
