| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_143T01_9000002344_15836cztM0_level2.evt | modeM0/AS1A04_143T01_9000002344_15836cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,084,800 | 100,183,680 |
| Size | 470.2 MB | 95.5 MB |
| Events in quadrant A | 4,429,662 | 635,139 |
| Events in quadrant B | 3,434,019 | 670,786 |
| Events in quadrant C | 3,326,404 | 636,646 |
| Events in quadrant D | 3,286,485 | 622,821 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17454 | 3 |
| B | 0 | 14464 | 2 |
| C | 0 | 14066 | 2 |
| D | 0 | 14308 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6717 | 372 | 5.538187% |
| B | 6717 | 79 | 1.176120% |
| C | 6717 | 67 | 0.997469% |
| D | 6717 | 23 | 0.342415% |

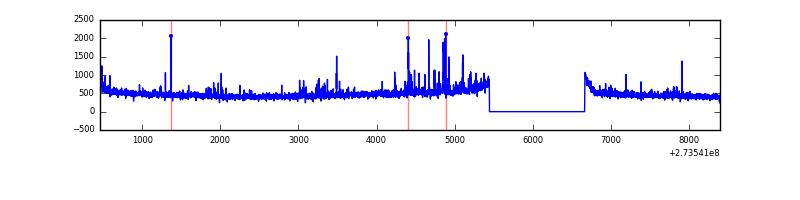

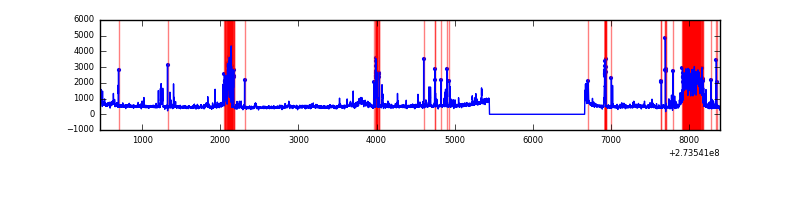

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7938 | 6719 | 298 | 298 | 3.75% | 4.44% |  |
| B | 7938 | 6719 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7938 | 6719 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7938 | 6719 | 3 | 3 | 0.04% | 0.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 1132613 | 6731.47 | 828 | 812 | 168.1 |
| A | 15 | 157 | 68637 | 403.39 | 828 | 812 | 168.1 |
| A | 14 | 239 | 50240 | 293.98 | 828 | 812 | 168.1 |
| B | 4 | 173 | 61098 | 378.65 | 849 | 830 | 159.2 |
| B | 4 | 48 | 30948 | 189.23 | 849 | 830 | 159.2 |
| B | 12 | 111 | 18562 | 111.41 | 849 | 830 | 159.2 |
| C | 14 | 238 | 125006 | 651.37 | 814 | 821 | 190.7 |
| C | 3 | 233 | 16719 | 83.39 | 814 | 821 | 190.7 |
| C | 10 | 22 | 8131 | 38.34 | 814 | 821 | 190.7 |
| D | 1 | 52 | 140117 | 688.31 | 822 | 799 | 202.4 |
| D | 2 | 234 | 24183 | 115.53 | 822 | 799 | 202.4 |
| D | 10 | 70 | 21832 | 103.92 | 822 | 799 | 202.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

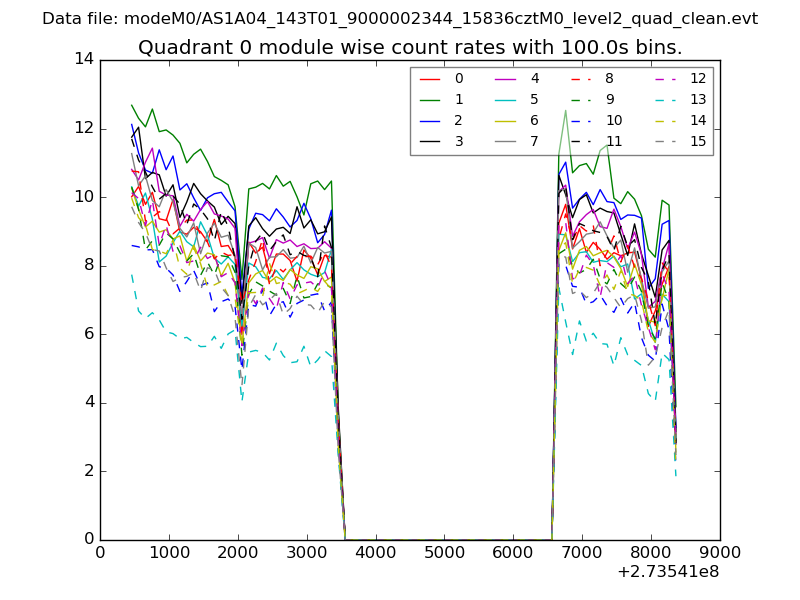

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

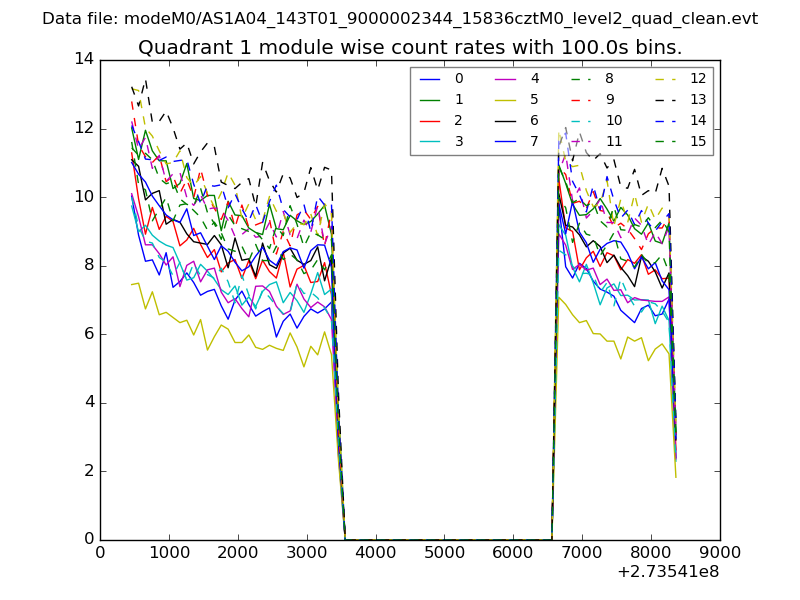

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

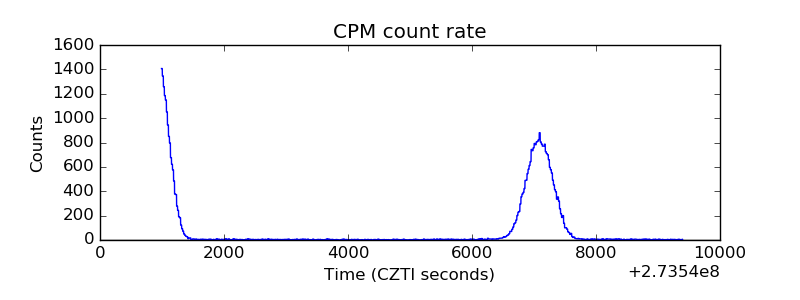

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

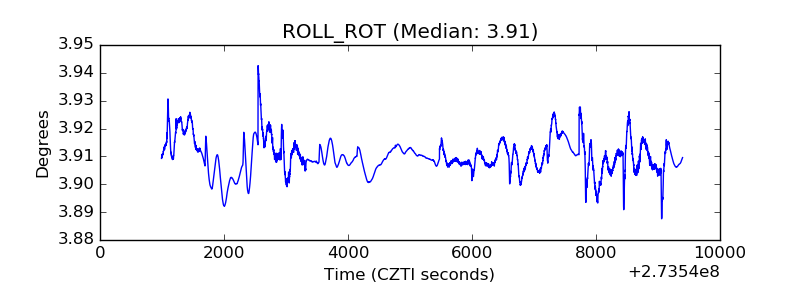

| _ROLL_ROT |  |

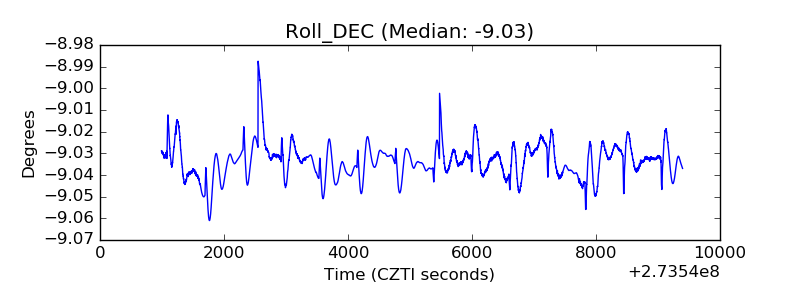

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
