| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_143T01_9000002344_15838cztM0_level2.evt | modeM0/AS1A04_143T01_9000002344_15838cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,257,920 | 91,134,720 |
| Size | 448.5 MB | 86.9 MB |
| Events in quadrant A | 3,939,032 | 568,674 |
| Events in quadrant B | 3,428,721 | 592,497 |
| Events in quadrant C | 3,261,780 | 563,428 |
| Events in quadrant D | 3,142,748 | 553,749 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16220 | 2 |
| B | 0 | 14642 | 1 |
| C | 0 | 14184 | 1 |
| D | 0 | 14267 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6909 | 288 | 4.168476% |
| B | 6909 | 105 | 1.519757% |
| C | 6909 | 109 | 1.577652% |
| D | 6909 | 86 | 1.244753% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7395 | 6911 | 112 | 112 | 1.51% | 1.62% |  |
| B | 7395 | 6911 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7395 | 6911 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7395 | 6911 | 8 | 8 | 0.11% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 702351 | 4244.98 | 816 | 797 | 165.3 |
| A | 13 | 210 | 88462 | 530.45 | 816 | 797 | 165.3 |
| A | 0 | 226 | 7073 | 37.97 | 816 | 797 | 165.3 |
| B | 4 | 173 | 64771 | 394.44 | 832 | 809 | 162.2 |
| B | 0 | 189 | 51218 | 310.86 | 832 | 809 | 162.2 |
| B | 3 | 209 | 23491 | 139.87 | 832 | 809 | 162.2 |
| C | 14 | 238 | 121521 | 636.36 | 800 | 805 | 189.7 |
| C | 10 | 22 | 9877 | 47.82 | 800 | 805 | 189.7 |
| C | 3 | 233 | 6988 | 32.59 | 800 | 805 | 189.7 |
| D | 13 | 172 | 28238 | 136.49 | 814 | 788 | 201.1 |
| D | 2 | 234 | 26148 | 126.09 | 814 | 788 | 201.1 |
| D | 7 | 223 | 18714 | 89.13 | 814 | 788 | 201.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

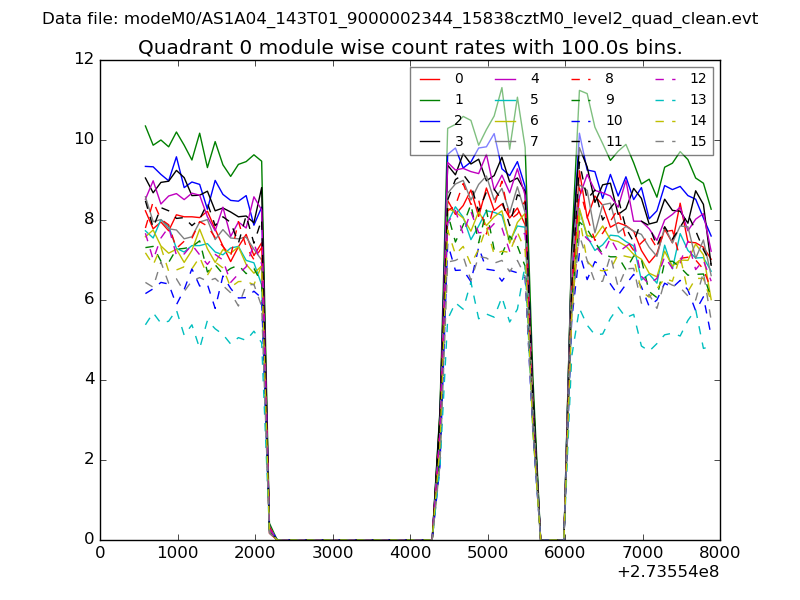

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

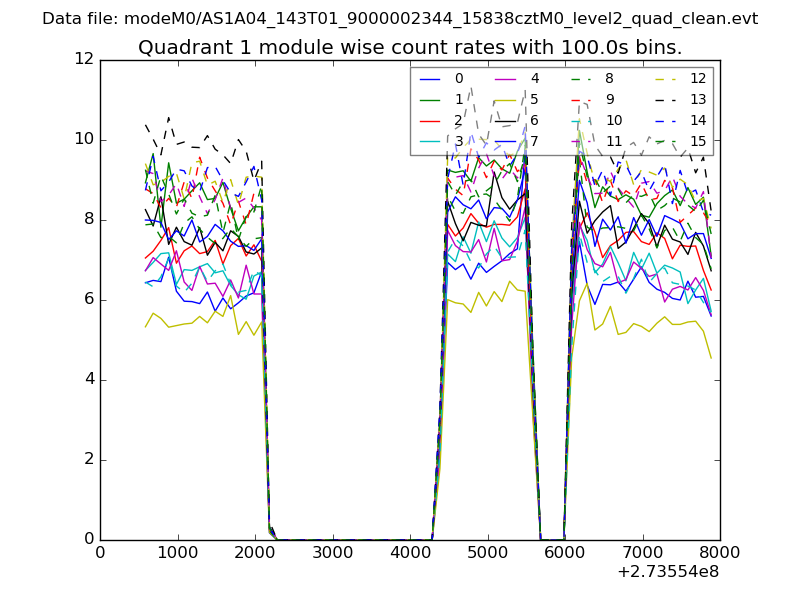

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

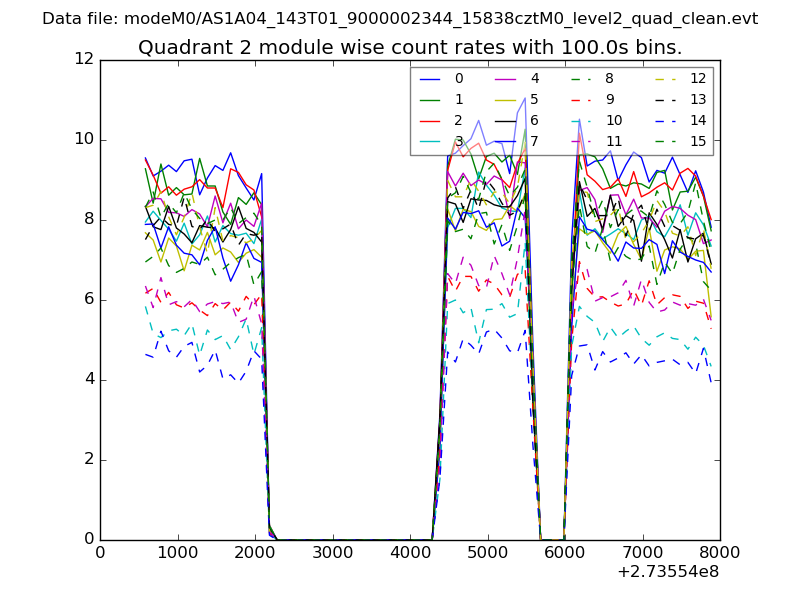

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

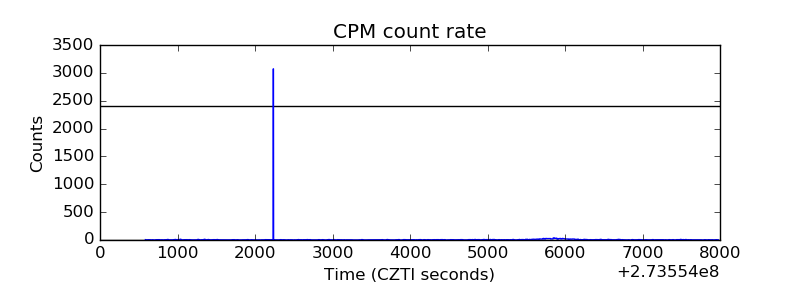

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

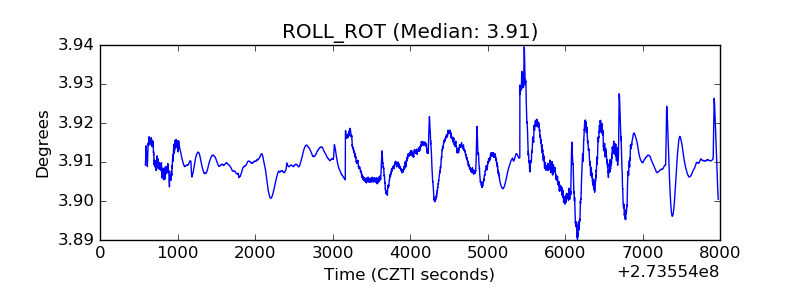

| _ROLL_ROT |  |

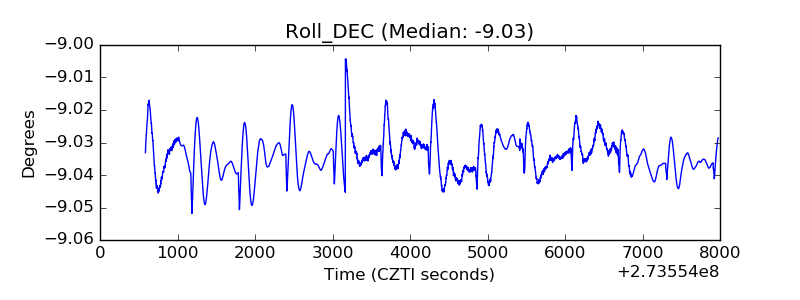

| _Roll_DEC |  |
| _Roll_RA |  |

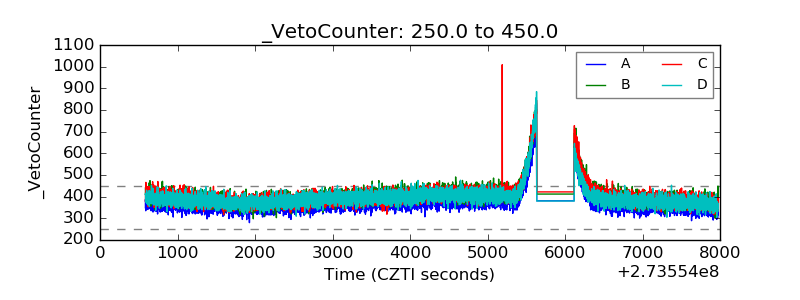

| Veto Counter |  |
