| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_143T01_9000002344_15840cztM0_level2.evt | modeM0/AS1A04_143T01_9000002344_15840cztM0_level2_quad_clean.evt |
| Size (bytes) | 408,533,760 | 68,693,760 |
| Size | 389.6 MB | 65.5 MB |
| Events in quadrant A | 3,908,116 | 416,109 |
| Events in quadrant B | 2,779,043 | 432,403 |
| Events in quadrant C | 2,704,397 | 422,685 |
| Events in quadrant D | 2,592,118 | 409,182 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 24 |
| B | 0 | 140 | 24 |
| C | 0 | 140 | 24 |
| D | 0 | 140 | 22 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17847 | 2464 |
| B | 0 | 14465 | 2519 |
| C | 0 | 14134 | 2363 |
| D | 0 | 14232 | 2463 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5701 | 302 | 5.297316% |
| B | 5675 | 142 | 2.502203% |
| C | 5730 | 148 | 2.582897% |
| D | 5691 | 116 | 2.038306% |

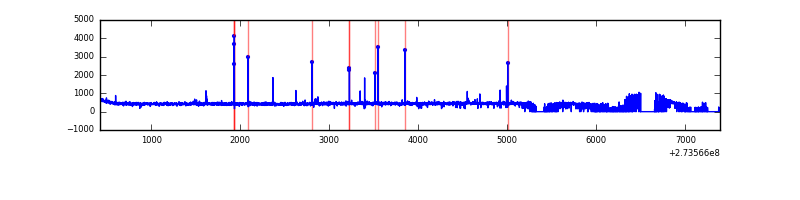

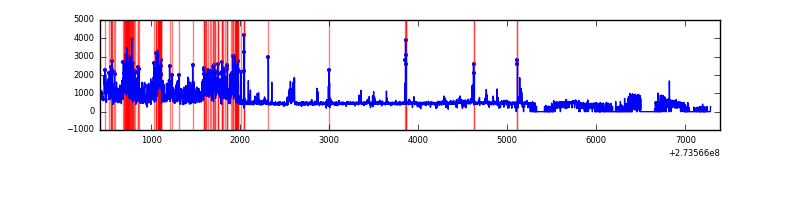

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6859 | 6039 | 133 | 133 | 1.94% | 2.20% |  |
| B | 6925 | 6023 | 4 | 4 | 0.06% | 0.07% |  |
| C | 6905 | 6051 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6965 | 6037 | 11 | 11 | 0.16% | 0.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 1268931 | 9131.39 | 678 | 663 | 138.9 |
| A | 14 | 239 | 25311 | 177.46 | 678 | 663 | 138.9 |
| A | 0 | 226 | 5943 | 38.02 | 678 | 663 | 138.9 |
| B | 3 | 209 | 33752 | 248.51 | 680 | 660 | 133.2 |
| B | 10 | 245 | 25445 | 186.13 | 680 | 660 | 133.2 |
| B | 4 | 216 | 23825 | 173.96 | 680 | 660 | 133.2 |
| C | 14 | 238 | 100716 | 634.14 | 663 | 666 | 157.8 |
| C | 0 | 207 | 6472 | 36.8 | 663 | 666 | 157.8 |
| C | 3 | 233 | 5707 | 31.95 | 663 | 666 | 157.8 |
| D | 2 | 234 | 24511 | 145.24 | 669 | 649 | 164.3 |
| D | 1 | 52 | 19900 | 117.17 | 669 | 649 | 164.3 |
| D | 13 | 104 | 14601 | 84.92 | 669 | 649 | 164.3 |

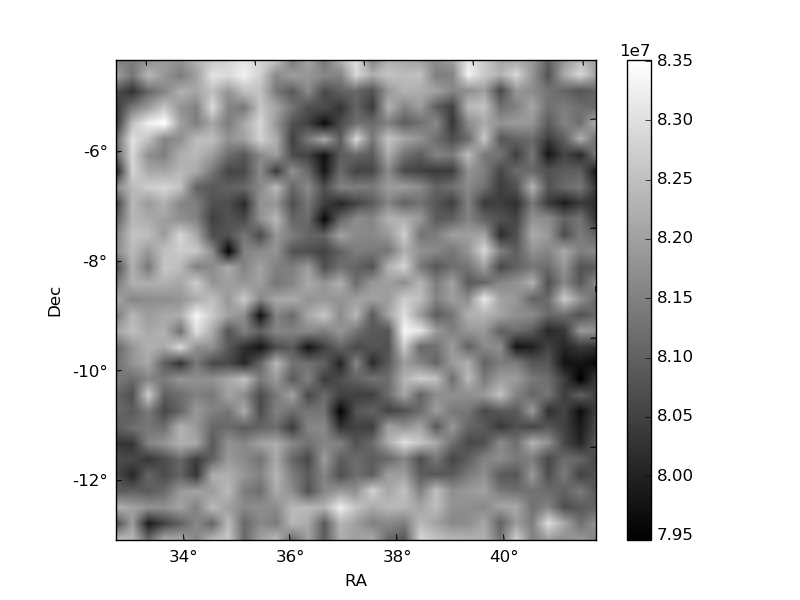

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

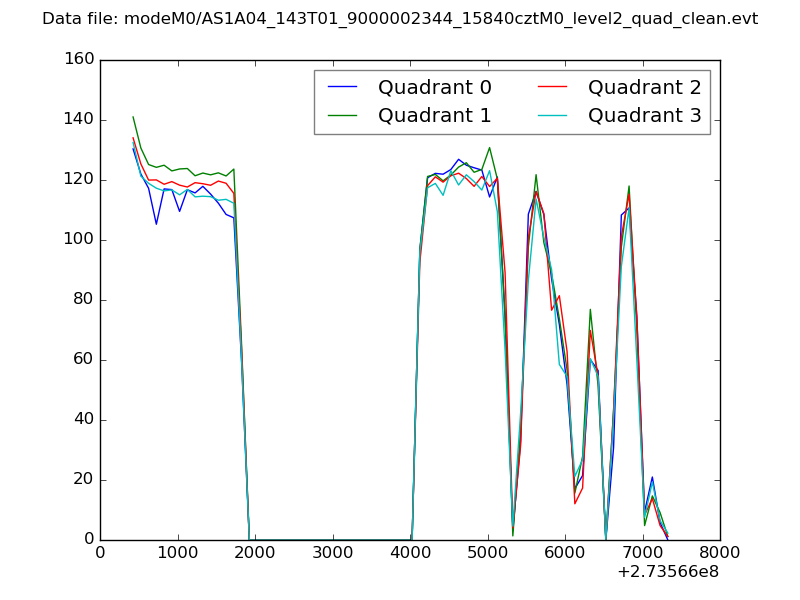

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

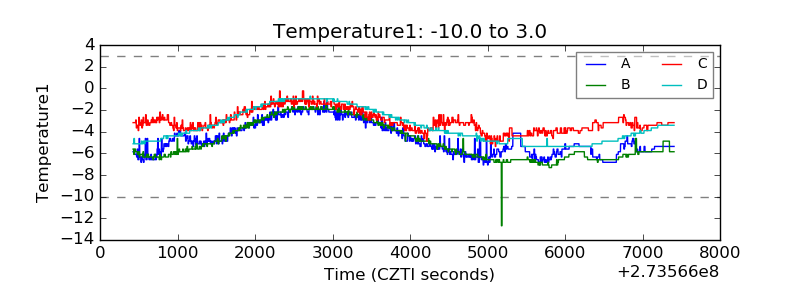

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

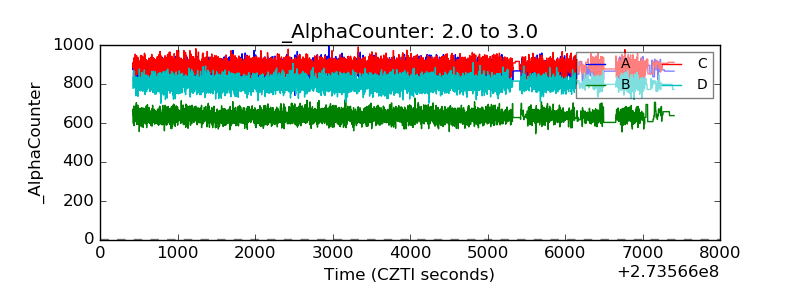

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

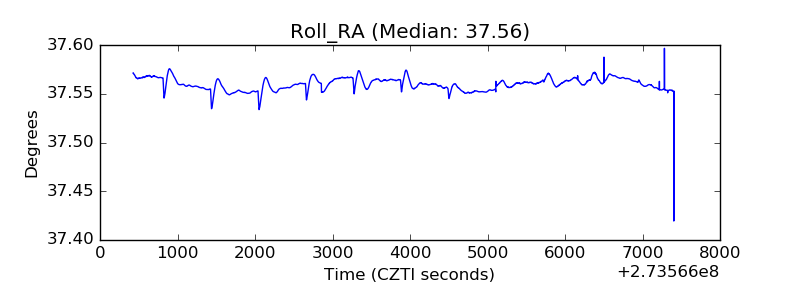

| _Roll_RA |  |

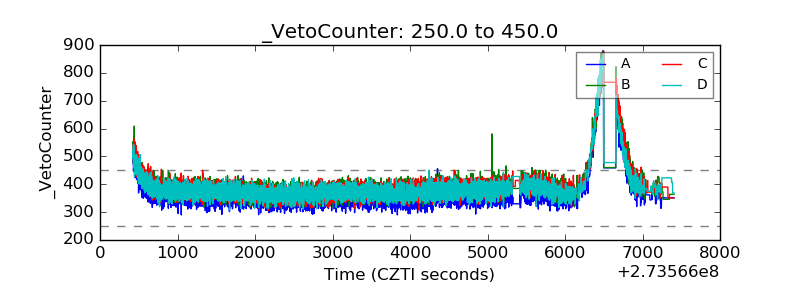

| Veto Counter |  |
