| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_143T01_9000002344_15843cztM0_level2.evt | modeM0/AS1A04_143T01_9000002344_15843cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,407,314,880 | 200,825,280 |
| Size | 1.3 GB | 191.5 MB |
| Events in quadrant A | 10,018,529 | 1,228,358 |
| Events in quadrant B | 9,236,466 | 1,254,199 |
| Events in quadrant C | 8,906,131 | 1,199,584 |
| Events in quadrant D | 13,223,902 | 1,139,345 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 372 | 0 |
| B | 0 | 372 | 0 |
| C | 0 | 372 | 0 |
| D | 0 | 372 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41765 | 4 |
| B | 0 | 39008 | 3 |
| C | 0 | 37995 | 3 |
| D | 0 | 52216 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18285 | 482 | 2.636040% |
| B | 18285 | 267 | 1.460213% |
| C | 18285 | 257 | 1.405524% |
| D | 18285 | 2095 | 11.457479% |

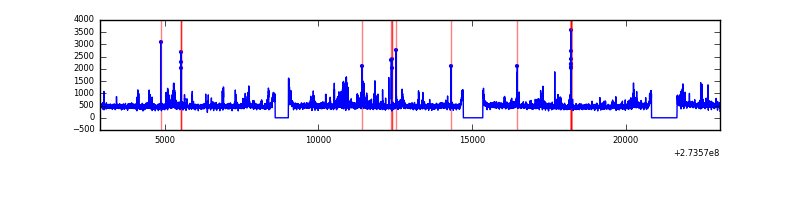

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20181 | 18288 | 197 | 197 | 0.98% | 1.08% |  |
| B | 20181 | 18289 | 18 | 18 | 0.09% | 0.10% |  |
| C | 20181 | 18287 | 4 | 4 | 0.02% | 0.02% |  |
| D | 20181 | 18287 | 1710 | 1710 | 8.47% | 9.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 1290362 | 2907.28 | 2183 | 2132 | 443.1 |
| A | 15 | 157 | 203179 | 453.72 | 2183 | 2132 | 443.1 |
| A | 14 | 239 | 69350 | 151.7 | 2183 | 2132 | 443.1 |
| B | 10 | 245 | 153043 | 359.22 | 2190 | 2130 | 420.1 |
| B | 4 | 216 | 144638 | 339.21 | 2190 | 2130 | 420.1 |
| B | 4 | 173 | 117805 | 275.34 | 2190 | 2130 | 420.1 |
| C | 14 | 238 | 320497 | 643.33 | 2106 | 2116 | 494.9 |
| C | 7 | 247 | 278504 | 558.48 | 2106 | 2116 | 494.9 |
| C | 3 | 233 | 52611 | 102.03 | 2106 | 2116 | 494.9 |
| D | 1 | 52 | 5507040 | 11257.8 | 1999 | 1943 | 489.0 |
| D | 2 | 234 | 73089 | 145.49 | 1999 | 1943 | 489.0 |
| D | 7 | 223 | 36576 | 70.82 | 1999 | 1943 | 489.0 |

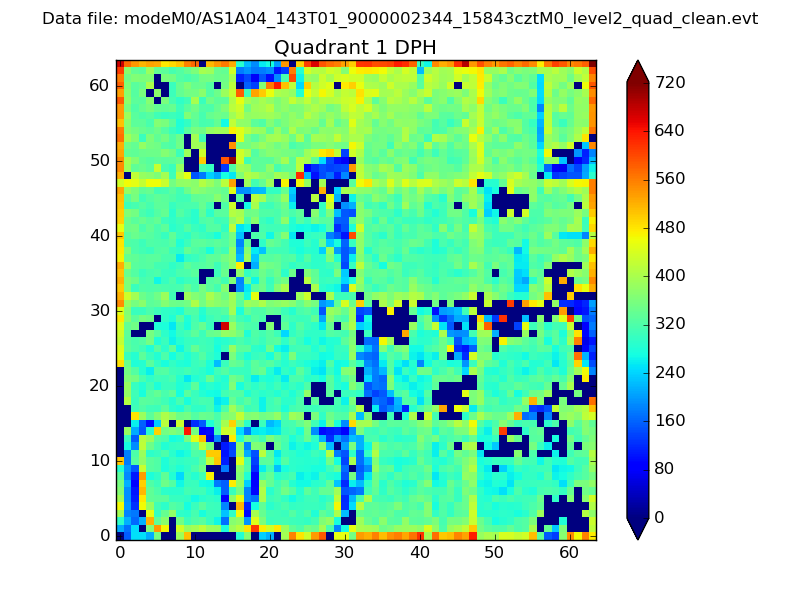

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

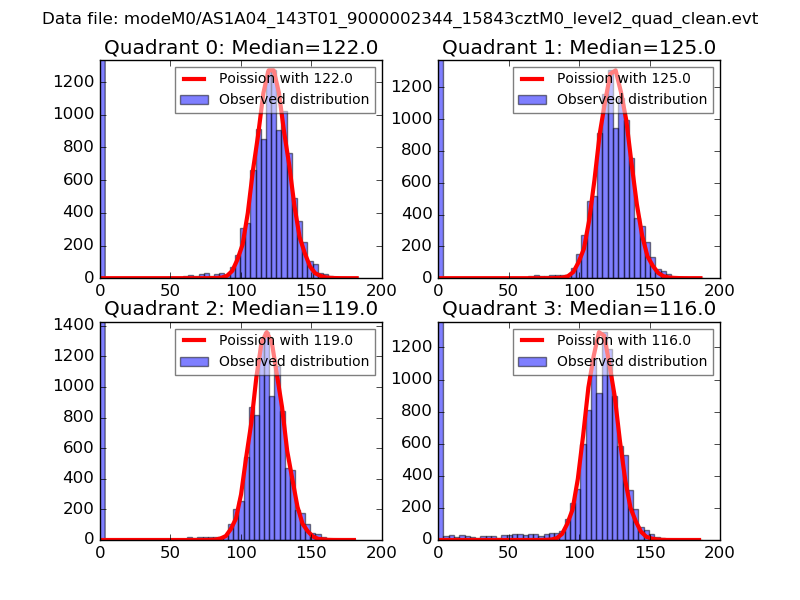

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

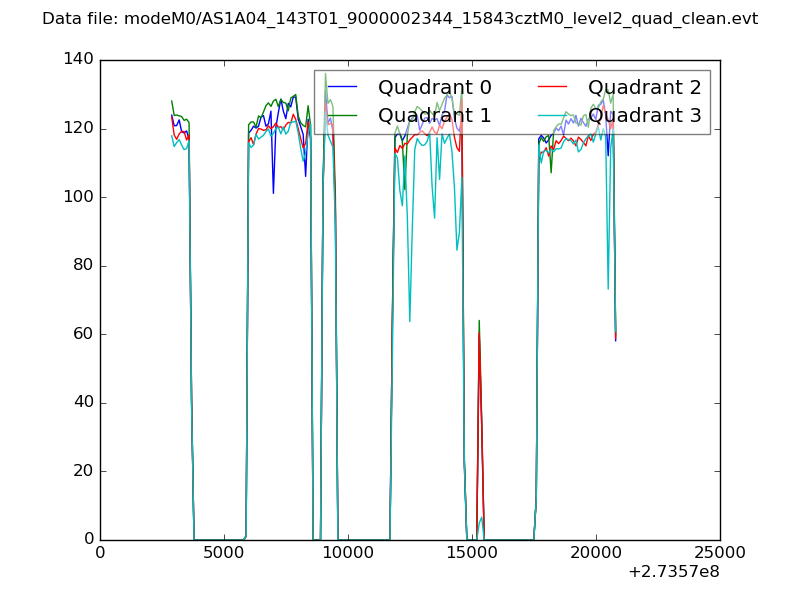

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

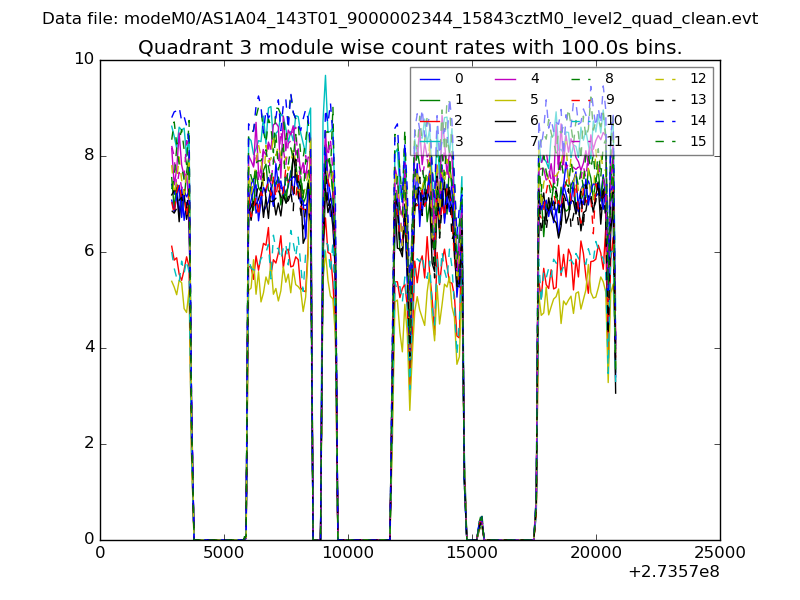

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

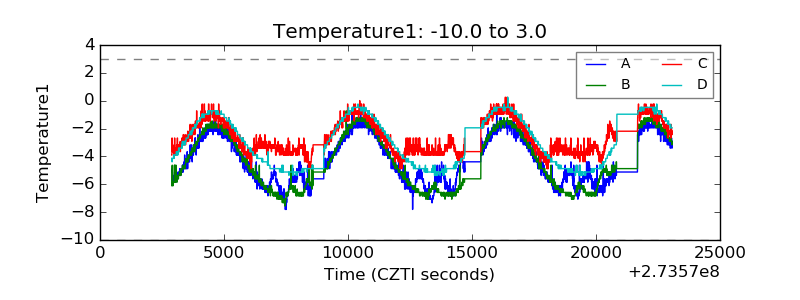

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

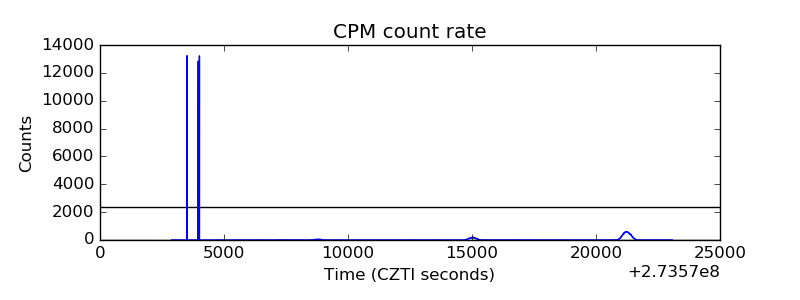

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

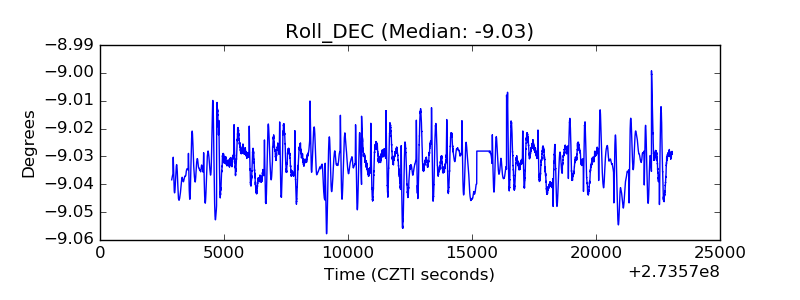

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
