| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_143T01_9000002344_15846cztM0_level2.evt | modeM0/AS1A04_143T01_9000002344_15846cztM0_level2_quad_clean.evt |
| Size (bytes) | 453,729,600 | 80,317,440 |
| Size | 432.7 MB | 76.6 MB |
| Events in quadrant A | 3,404,830 | 500,326 |
| Events in quadrant B | 3,495,139 | 510,066 |
| Events in quadrant C | 3,239,308 | 486,804 |
| Events in quadrant D | 3,159,974 | 481,391 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14574 | 3 |
| B | 0 | 14781 | 2 |
| C | 0 | 13792 | 2 |
| D | 0 | 13816 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6497 | 110 | 1.693089% |
| B | 6497 | 67 | 1.031245% |
| C | 6497 | 86 | 1.323688% |
| D | 6497 | 37 | 0.569494% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

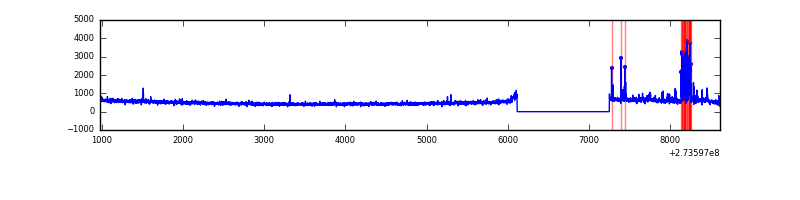

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7633 | 6499 | 33 | 33 | 0.43% | 0.51% |  |
| B | 7633 | 6499 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7633 | 6499 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7633 | 6499 | 7 | 7 | 0.09% | 0.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 228962 | 1388.85 | 816 | 798 | 164.3 |
| A | 15 | 157 | 23057 | 135.49 | 816 | 798 | 164.3 |
| A | 9 | 143 | 7298 | 39.57 | 816 | 798 | 164.3 |
| B | 4 | 216 | 96671 | 605.54 | 824 | 802 | 158.3 |
| B | 10 | 245 | 59019 | 367.72 | 824 | 802 | 158.3 |
| B | 4 | 173 | 44229 | 274.3 | 824 | 802 | 158.3 |
| C | 14 | 238 | 124144 | 671.48 | 788 | 794 | 183.7 |
| C | 7 | 247 | 16738 | 86.79 | 788 | 794 | 183.7 |
| C | 3 | 233 | 11655 | 59.12 | 788 | 794 | 183.7 |
| D | 1 | 52 | 106311 | 508.32 | 797 | 778 | 207.6 |
| D | 2 | 234 | 28366 | 132.88 | 797 | 778 | 207.6 |
| D | 2 | 69 | 15745 | 72.09 | 797 | 778 | 207.6 |

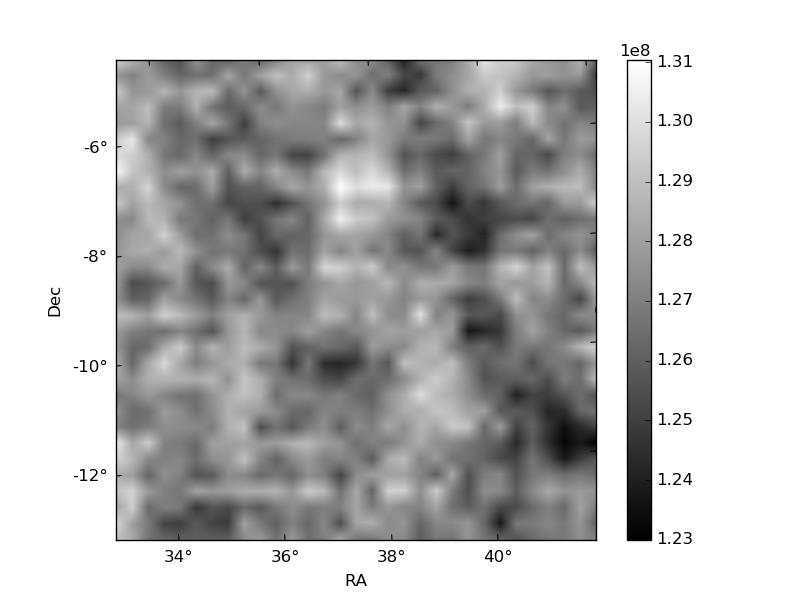

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

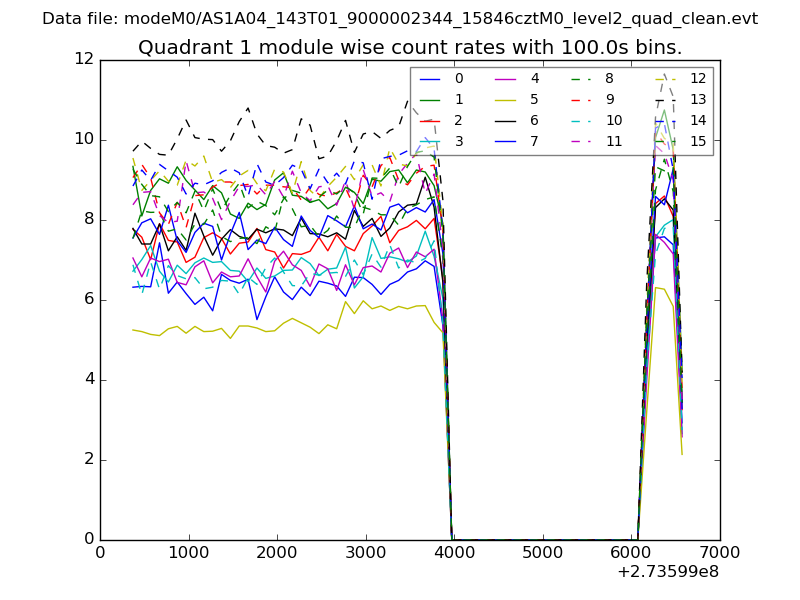

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

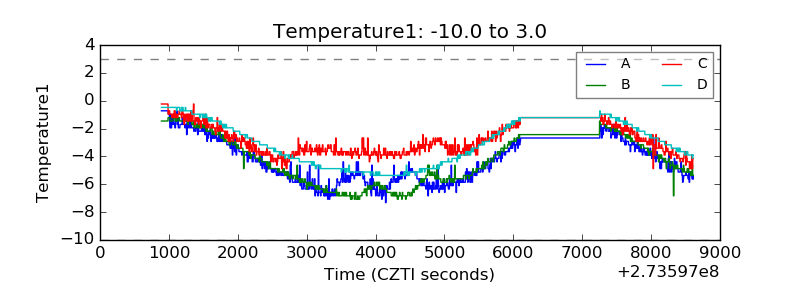

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

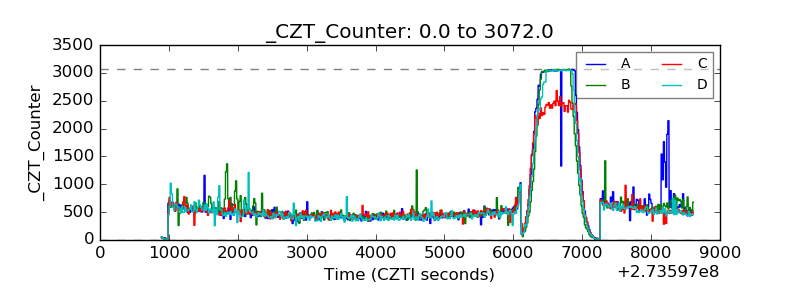

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

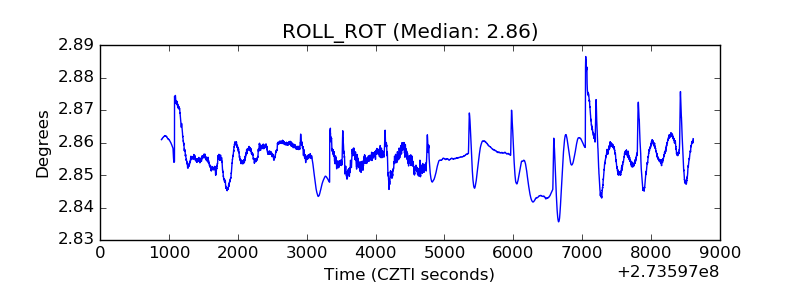

| _ROLL_ROT |  |

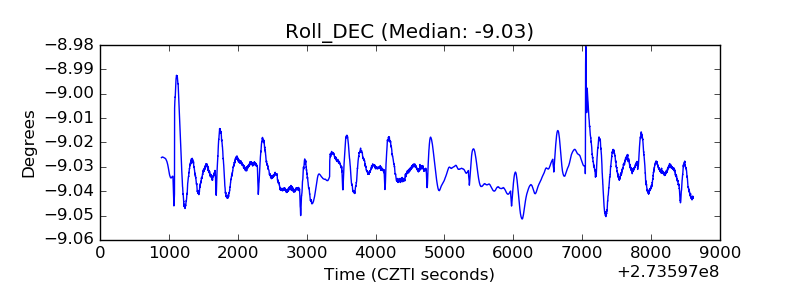

| _Roll_DEC |  |

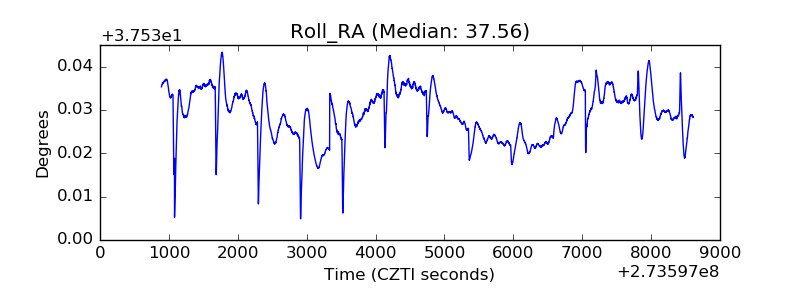

| _Roll_RA |  |
| Veto Counter |  |
