| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_143T01_9000002344_15850cztM0_level2.evt | modeM0/AS1A04_143T01_9000002344_15850cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,404,800 | 102,139,200 |
| Size | 448.6 MB | 97.4 MB |
| Events in quadrant A | 3,826,774 | 661,091 |
| Events in quadrant B | 3,440,502 | 690,263 |
| Events in quadrant C | 3,378,502 | 653,813 |
| Events in quadrant D | 3,160,438 | 636,543 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15512 | 3 |
| B | 0 | 14289 | 2 |
| C | 0 | 14019 | 2 |
| D | 0 | 13762 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6472 | 181 | 2.796663% |
| B | 6472 | 126 | 1.946848% |
| C | 6472 | 129 | 1.993201% |
| D | 6472 | 36 | 0.556242% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9123 | 6475 | 64 | 64 | 0.70% | 0.99% |  |
| B | 9123 | 6475 | 8 | 8 | 0.09% | 0.12% |  |
| C | 9123 | 6475 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9123 | 6475 | 12 | 12 | 0.13% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 517970 | 3085.62 | 831 | 814 | 167.6 |
| A | 15 | 157 | 92278 | 545.72 | 831 | 814 | 167.6 |
| A | 9 | 143 | 21746 | 124.89 | 831 | 814 | 167.6 |
| B | 4 | 173 | 93690 | 571.35 | 849 | 826 | 162.5 |
| B | 12 | 111 | 18527 | 108.91 | 849 | 826 | 162.5 |
| B | 0 | 245 | 17650 | 103.51 | 849 | 826 | 162.5 |
| C | 14 | 238 | 124185 | 647.87 | 814 | 821 | 190.4 |
| C | 3 | 233 | 49888 | 257.69 | 814 | 821 | 190.4 |
| C | 0 | 207 | 14795 | 73.39 | 814 | 821 | 190.4 |
| D | 10 | 253 | 42926 | 214.22 | 815 | 795 | 196.7 |
| D | 1 | 52 | 24818 | 122.15 | 815 | 795 | 196.7 |
| D | 2 | 234 | 24005 | 118.01 | 815 | 795 | 196.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

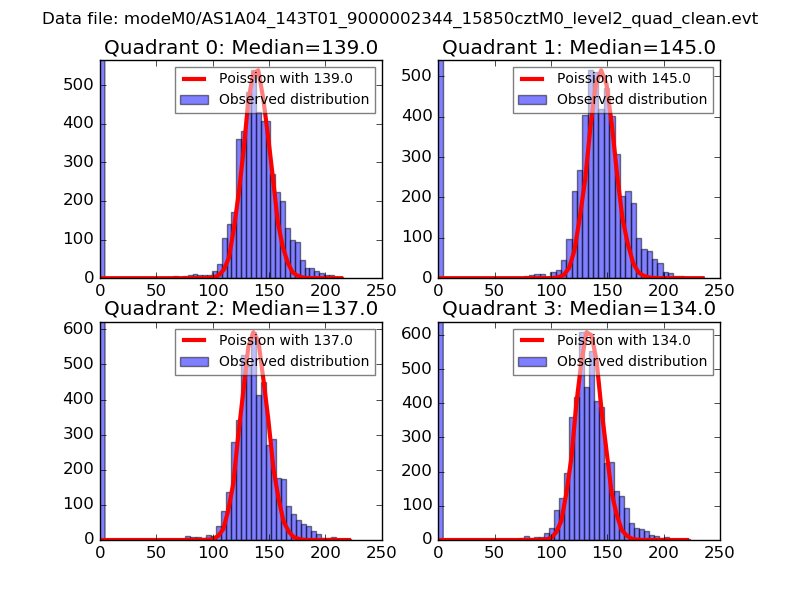

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

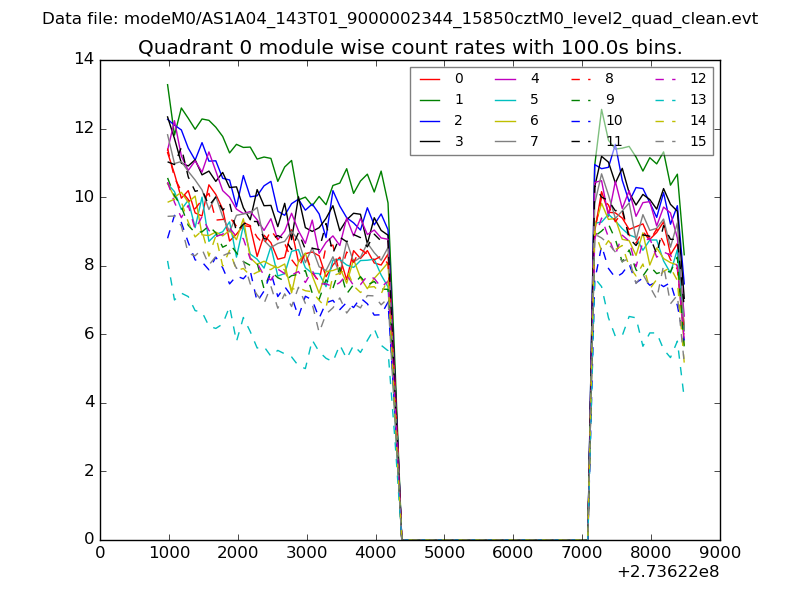

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

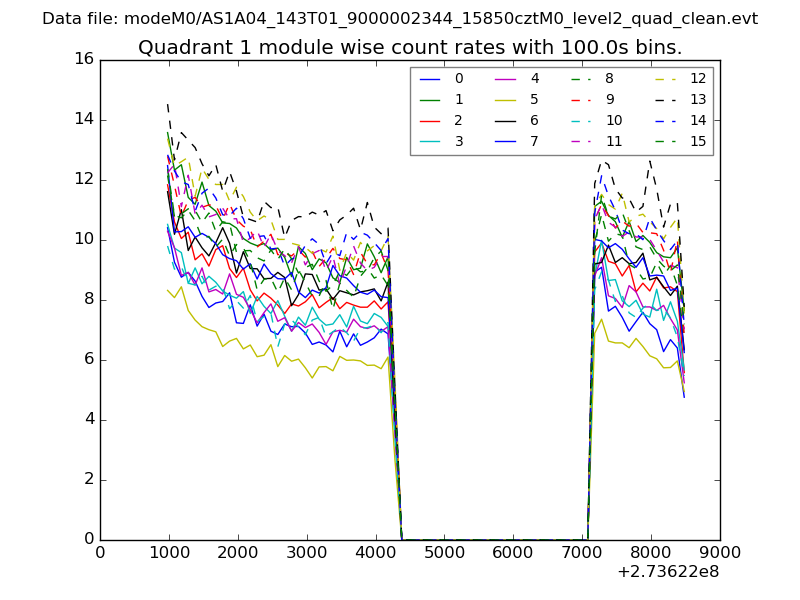

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

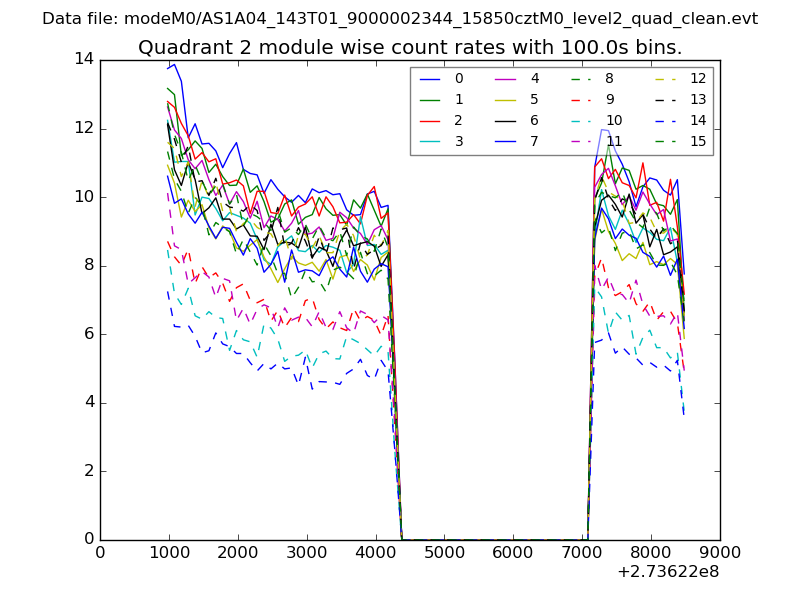

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

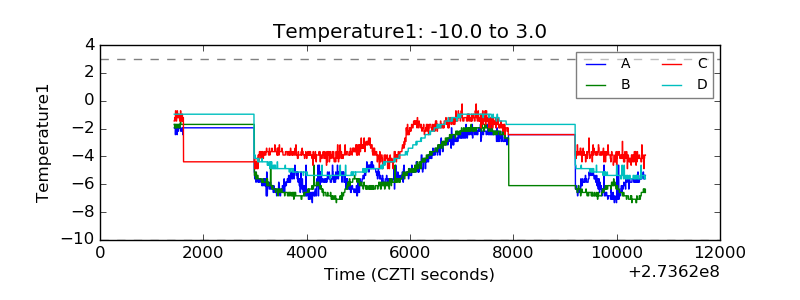

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

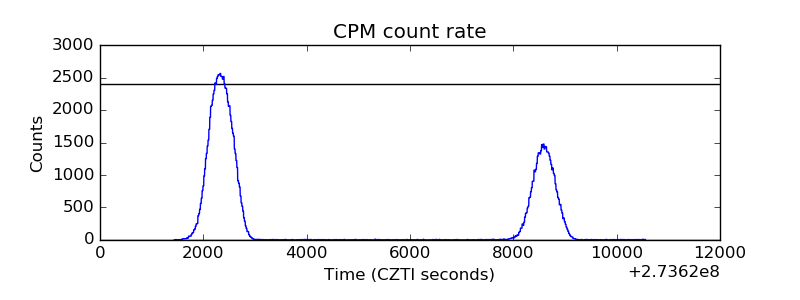

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

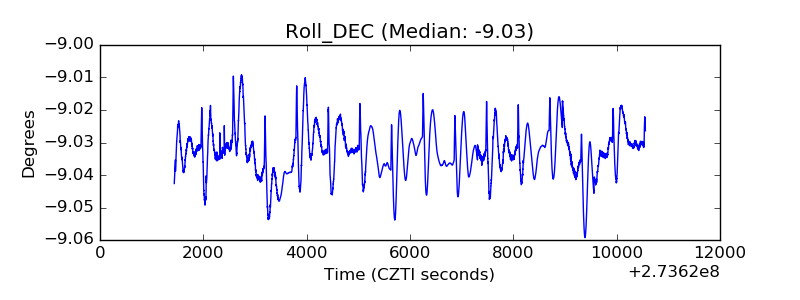

| _Roll_DEC |  |

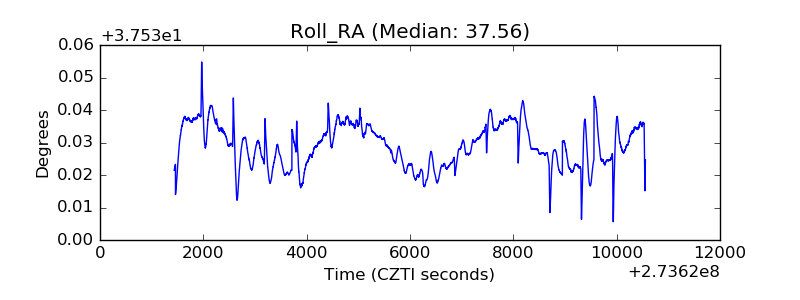

| _Roll_RA |  |
| Veto Counter |  |
