| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_143T01_9000002344_15859cztM0_level2.evt | modeM0/AS1A04_143T01_9000002344_15859cztM0_level2_quad_clean.evt |
| Size (bytes) | 514,255,680 | 76,216,320 |
| Size | 490.4 MB | 72.7 MB |
| Events in quadrant A | 4,608,777 | 457,627 |
| Events in quadrant B | 3,546,056 | 475,714 |
| Events in quadrant C | 3,402,427 | 452,224 |
| Events in quadrant D | 3,555,052 | 448,038 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18211 | 3 |
| B | 0 | 14955 | 2 |
| C | 0 | 14358 | 2 |
| D | 0 | 14992 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6804 | 500 | 7.348618% |
| B | 6804 | 117 | 1.719577% |
| C | 6804 | 114 | 1.675485% |
| D | 6804 | 59 | 0.867137% |

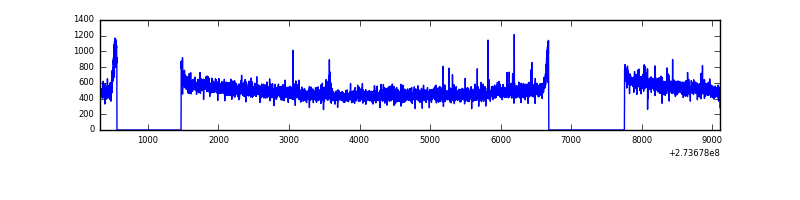

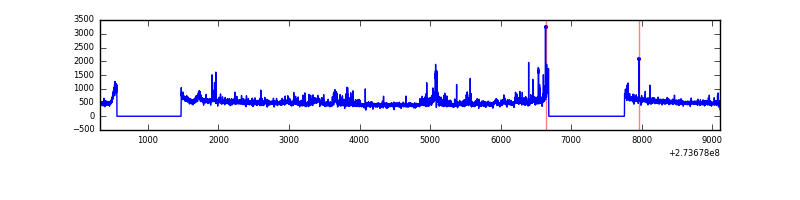

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8790 | 6806 | 213 | 213 | 2.42% | 3.13% |  |
| B | 8790 | 6807 | 4 | 4 | 0.05% | 0.06% |  |
| C | 8790 | 6806 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8790 | 6806 | 2 | 2 | 0.02% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 1369303 | 8139.21 | 837 | 819 | 168.1 |
| A | 7 | 16 | 12689 | 70.6 | 837 | 819 | 168.1 |
| A | 0 | 226 | 7383 | 39.04 | 837 | 819 | 168.1 |
| B | 4 | 216 | 64110 | 387.44 | 859 | 839 | 163.3 |
| B | 10 | 245 | 31896 | 190.18 | 859 | 839 | 163.3 |
| B | 4 | 48 | 21173 | 124.52 | 859 | 839 | 163.3 |
| C | 14 | 238 | 125465 | 643.09 | 826 | 833 | 193.8 |
| C | 3 | 233 | 23364 | 116.26 | 826 | 833 | 193.8 |
| C | 0 | 207 | 17955 | 88.35 | 826 | 833 | 193.8 |
| D | 1 | 52 | 239495 | 1174.17 | 838 | 814 | 203.3 |
| D | 12 | 110 | 99374 | 484.86 | 838 | 814 | 203.3 |
| D | 2 | 234 | 26510 | 126.41 | 838 | 814 | 203.3 |

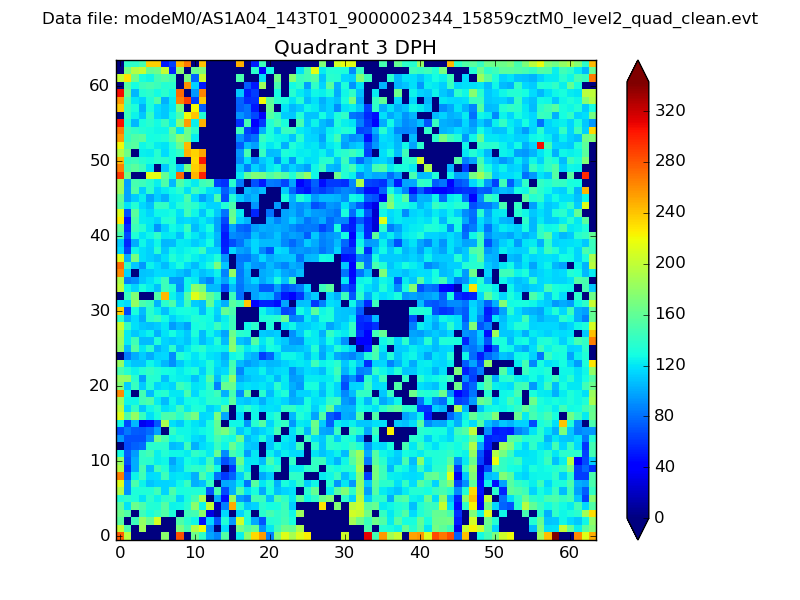

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

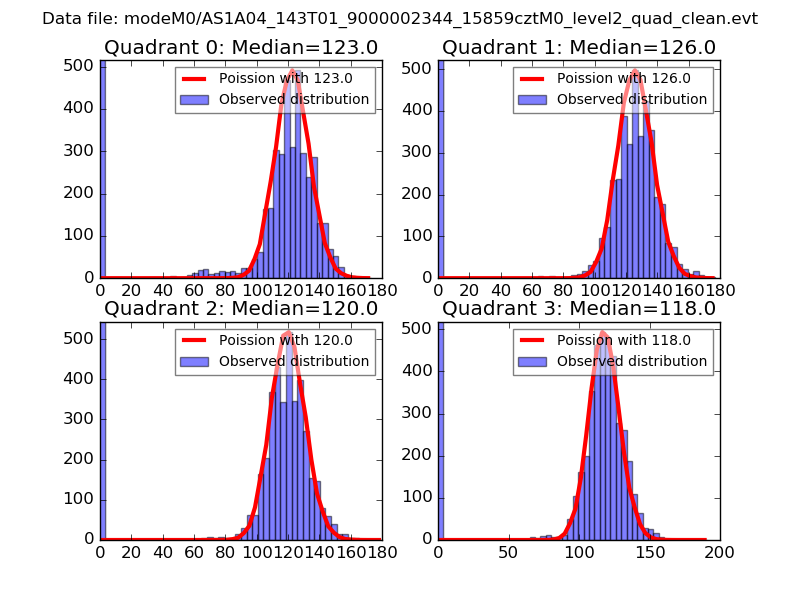

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

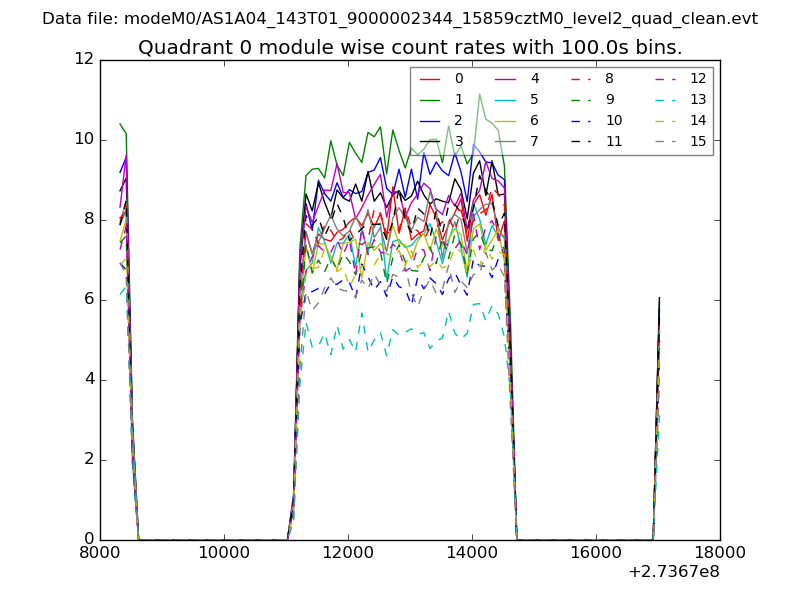

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

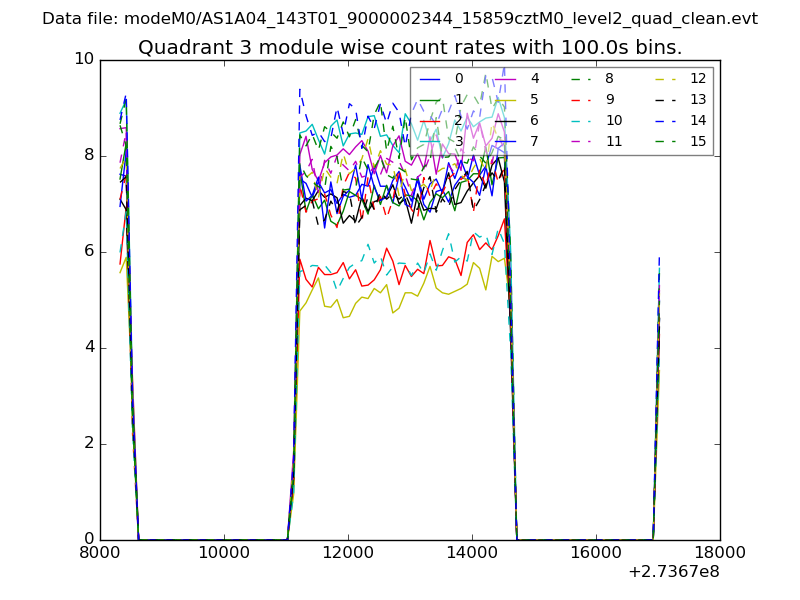

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

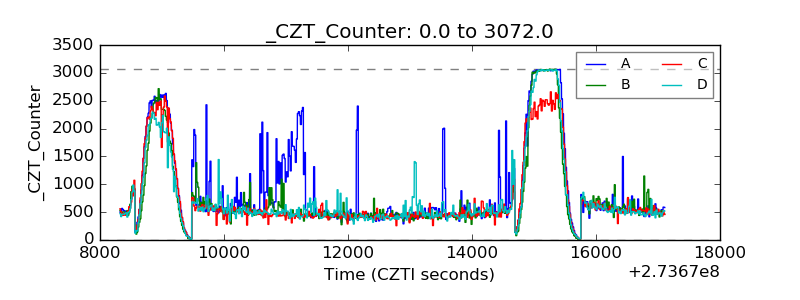

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

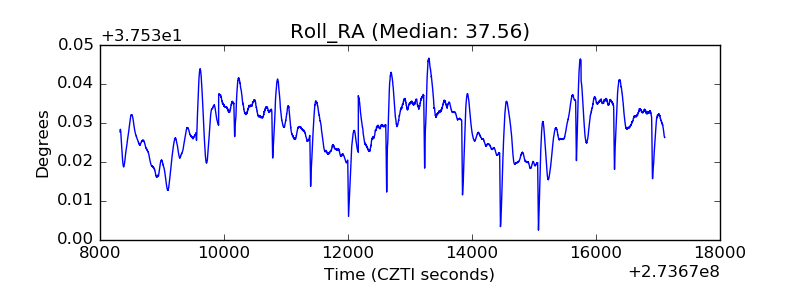

| _Roll_RA |  |
| Veto Counter |  |
