| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_143T01_9000002344_15875cztM0_level2.evt | modeM0/AS1A04_143T01_9000002344_15875cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,487,680 | 75,686,400 |
| Size | 449.6 MB | 72.2 MB |
| Events in quadrant A | 3,578,457 | 466,589 |
| Events in quadrant B | 3,425,237 | 475,602 |
| Events in quadrant C | 3,621,326 | 446,773 |
| Events in quadrant D | 3,213,920 | 450,766 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14898 | 3 |
| B | 0 | 14427 | 2 |
| C | 0 | 14821 | 2 |
| D | 0 | 13938 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6471 | 56 | 0.865399% |
| B | 6471 | 77 | 1.189924% |
| C | 6471 | 136 | 2.101684% |
| D | 6471 | 42 | 0.649050% |

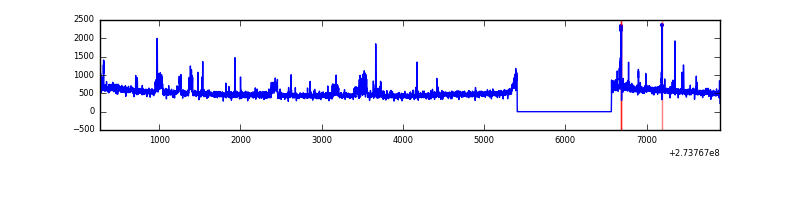

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7632 | 6473 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7632 | 6473 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7632 | 6473 | 47 | 47 | 0.62% | 0.73% |  |
| D | 7632 | 6473 | 8 | 8 | 0.10% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 423964 | 2573.51 | 820 | 804 | 164.4 |
| A | 0 | 226 | 7314 | 39.59 | 820 | 804 | 164.4 |
| A | 12 | 194 | 6155 | 32.54 | 820 | 804 | 164.4 |
| B | 5 | 65 | 140555 | 895.32 | 823 | 803 | 156.1 |
| B | 12 | 111 | 17651 | 107.93 | 823 | 803 | 156.1 |
| B | 0 | 189 | 16347 | 99.58 | 823 | 803 | 156.1 |
| C | 9 | 54 | 246083 | 1337.24 | 786 | 794 | 183.4 |
| C | 14 | 238 | 123276 | 667.73 | 786 | 794 | 183.4 |
| C | 3 | 233 | 85557 | 462.1 | 786 | 794 | 183.4 |
| D | 12 | 218 | 93140 | 451.2 | 797 | 777 | 204.7 |
| D | 1 | 52 | 43528 | 208.84 | 797 | 777 | 204.7 |
| D | 2 | 234 | 30943 | 147.36 | 797 | 777 | 204.7 |

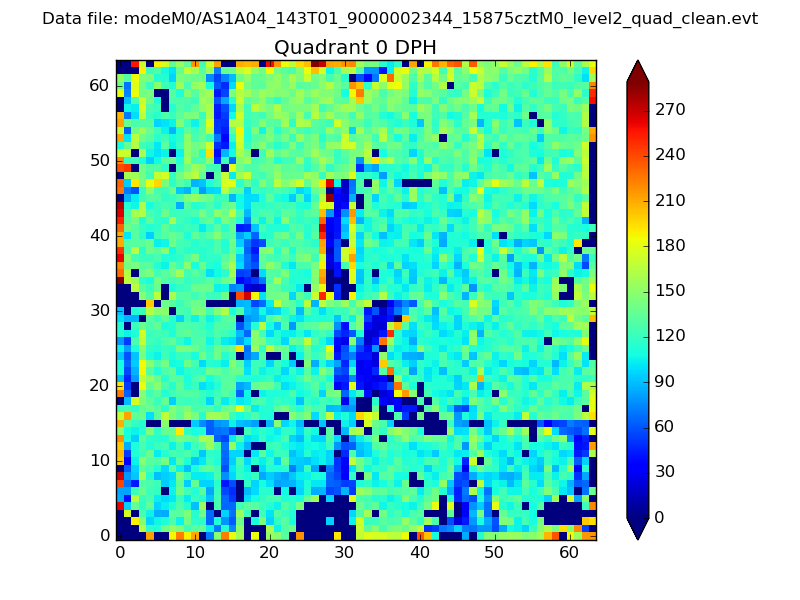

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

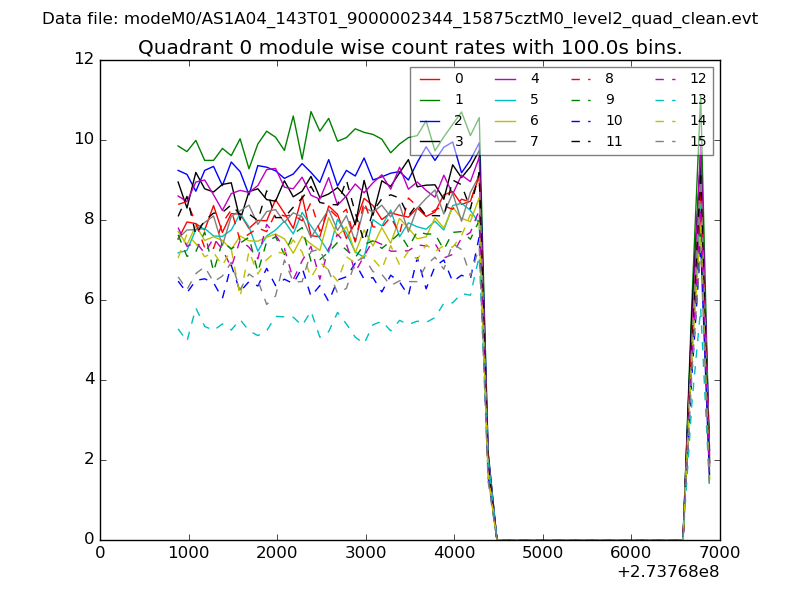

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

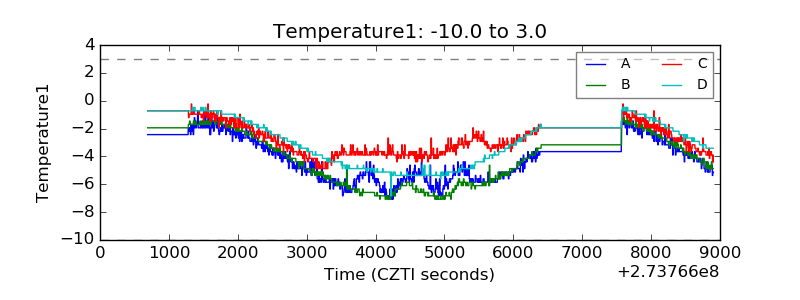

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

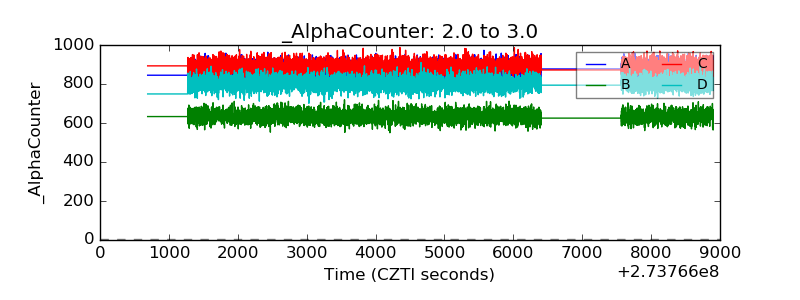

| Alpha Counter |  |

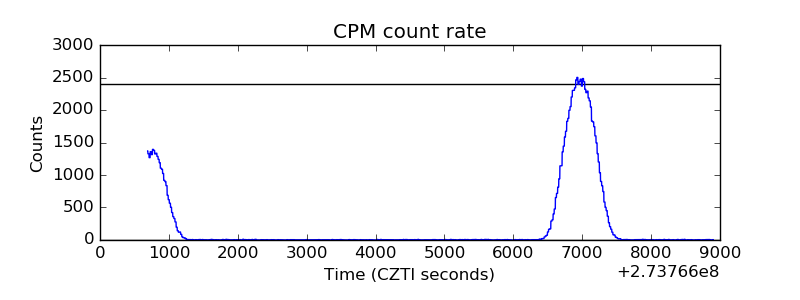

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
