| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_143T01_9000002344_15890cztM0_level2.evt | modeM0/AS1A04_143T01_9000002344_15890cztM0_level2_quad_clean.evt |
| Size (bytes) | 465,995,520 | 79,136,640 |
| Size | 444.4 MB | 75.5 MB |
| Events in quadrant A | 3,505,909 | 491,268 |
| Events in quadrant B | 3,679,619 | 505,892 |
| Events in quadrant C | 3,316,463 | 478,774 |
| Events in quadrant D | 3,175,685 | 473,602 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14628 | 3 |
| B | 0 | 15134 | 2 |
| C | 0 | 13888 | 2 |
| D | 0 | 13846 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6404 | 142 | 2.217364% |
| B | 6404 | 74 | 1.155528% |
| C | 6404 | 77 | 1.202374% |
| D | 6404 | 25 | 0.390381% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

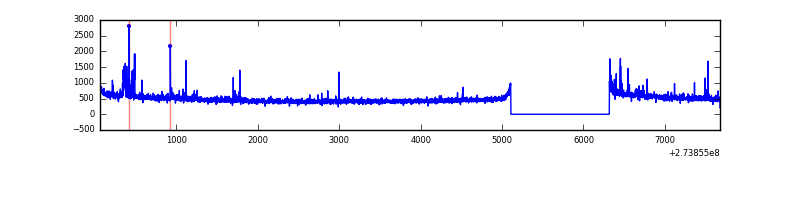

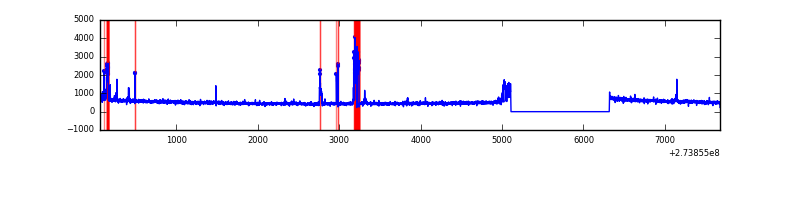

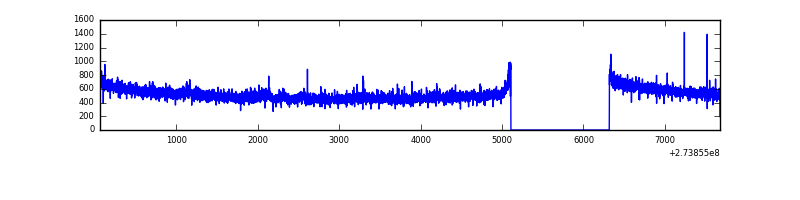

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7615 | 6406 | 73 | 73 | 0.96% | 1.14% |  |
| B | 7615 | 6406 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7615 | 6406 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7615 | 6406 | 2 | 2 | 0.03% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 246417 | 1478.67 | 823 | 806 | 166.1 |
| A | 15 | 157 | 58870 | 349.56 | 823 | 806 | 166.1 |
| A | 13 | 248 | 20848 | 120.66 | 823 | 806 | 166.1 |
| B | 5 | 65 | 137666 | 877.07 | 833 | 814 | 156.0 |
| B | 4 | 216 | 117727 | 749.28 | 833 | 814 | 156.0 |
| B | 4 | 173 | 47702 | 300.5 | 833 | 814 | 156.0 |
| C | 14 | 238 | 124062 | 663.14 | 798 | 803 | 185.9 |
| C | 3 | 233 | 67677 | 359.78 | 798 | 803 | 185.9 |
| C | 10 | 22 | 10274 | 50.95 | 798 | 803 | 185.9 |
| D | 13 | 172 | 70398 | 354.52 | 806 | 785 | 196.4 |
| D | 2 | 234 | 28350 | 140.38 | 806 | 785 | 196.4 |
| D | 12 | 218 | 24831 | 122.46 | 806 | 785 | 196.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

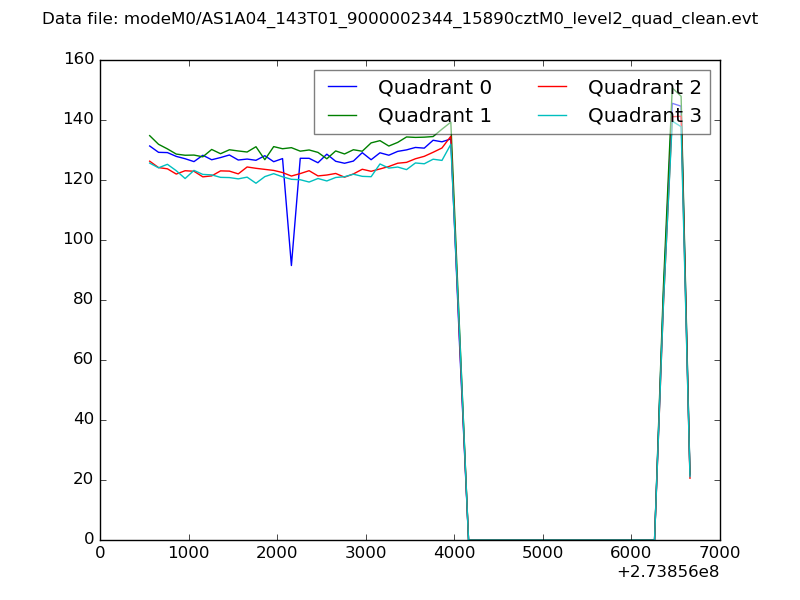

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

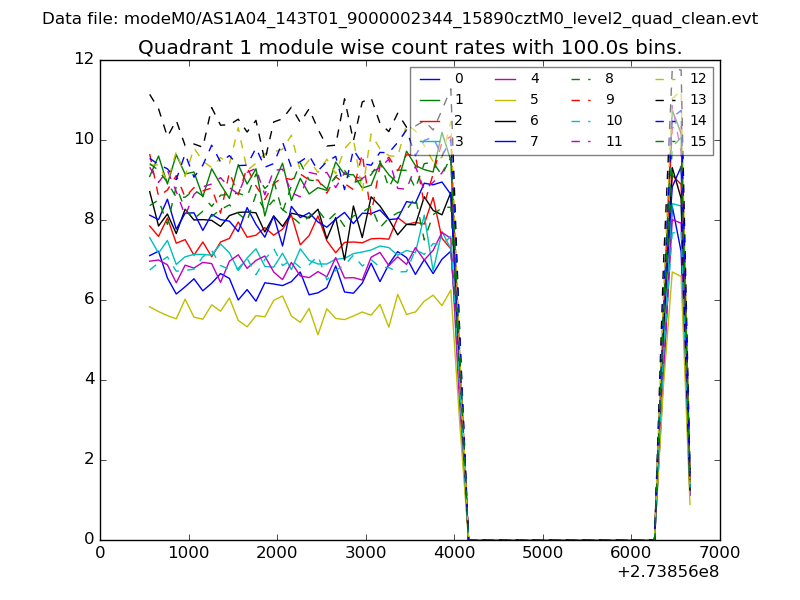

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

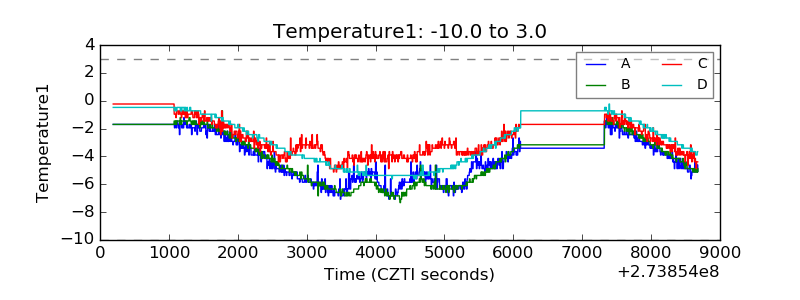

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

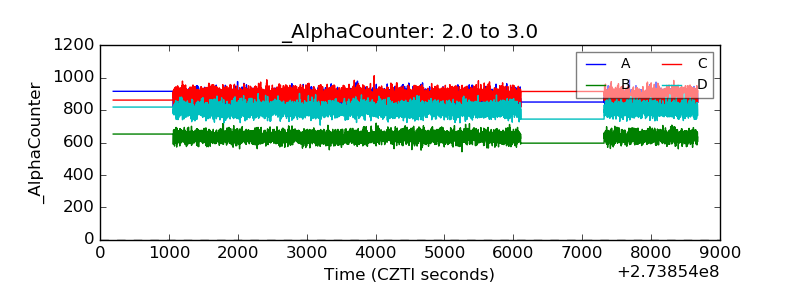

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

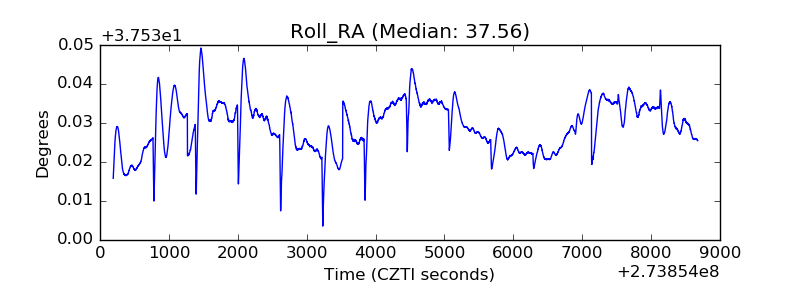

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
