| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_143T01_9000002344_15892cztM0_level2.evt | modeM0/AS1A04_143T01_9000002344_15892cztM0_level2_quad_clean.evt |
| Size (bytes) | 448,865,280 | 100,523,520 |
| Size | 428.1 MB | 95.9 MB |
| Events in quadrant A | 3,295,940 | 656,321 |
| Events in quadrant B | 3,397,122 | 684,421 |
| Events in quadrant C | 3,378,937 | 644,015 |
| Events in quadrant D | 3,102,325 | 628,280 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13768 | 3 |
| B | 0 | 14025 | 2 |
| C | 0 | 13900 | 2 |
| D | 0 | 13220 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6177 | 72 | 1.165614% |
| B | 6177 | 84 | 1.359883% |
| C | 6177 | 109 | 1.764611% |
| D | 6177 | 39 | 0.631374% |

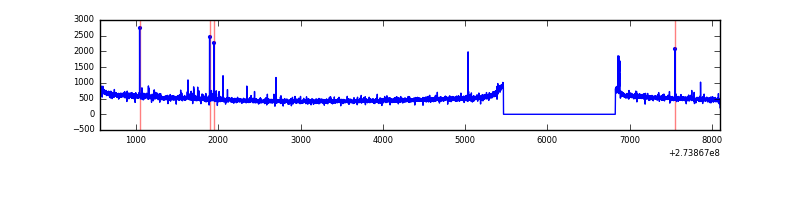

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7538 | 6179 | 6 | 6 | 0.08% | 0.10% |  |
| B | 7538 | 6179 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7538 | 6179 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7538 | 6179 | 4 | 4 | 0.05% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 85711 | 508.6 | 828 | 814 | 166.9 |
| A | 15 | 157 | 22353 | 129.03 | 828 | 814 | 166.9 |
| A | 0 | 226 | 7274 | 38.7 | 828 | 814 | 166.9 |
| B | 4 | 173 | 31981 | 198.68 | 840 | 821 | 156.8 |
| B | 0 | 244 | 25458 | 157.09 | 840 | 821 | 156.8 |
| B | 12 | 111 | 17558 | 106.72 | 840 | 821 | 156.8 |
| C | 14 | 238 | 127266 | 680.79 | 803 | 813 | 185.7 |
| C | 3 | 233 | 83053 | 442.76 | 803 | 813 | 185.7 |
| C | 0 | 207 | 16335 | 83.57 | 803 | 813 | 185.7 |
| D | 2 | 234 | 27418 | 136.1 | 807 | 785 | 195.7 |
| D | 13 | 172 | 14646 | 70.83 | 807 | 785 | 195.7 |
| D | 4 | 239 | 14641 | 70.81 | 807 | 785 | 195.7 |

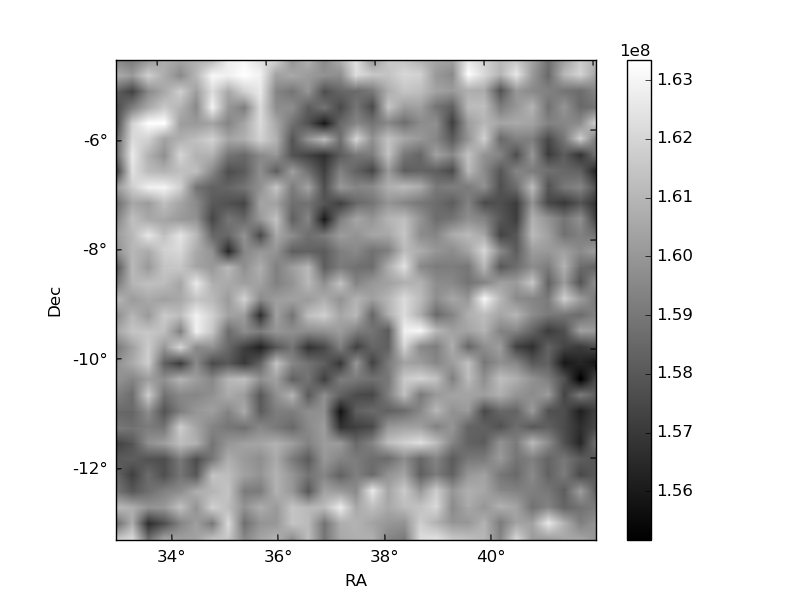

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

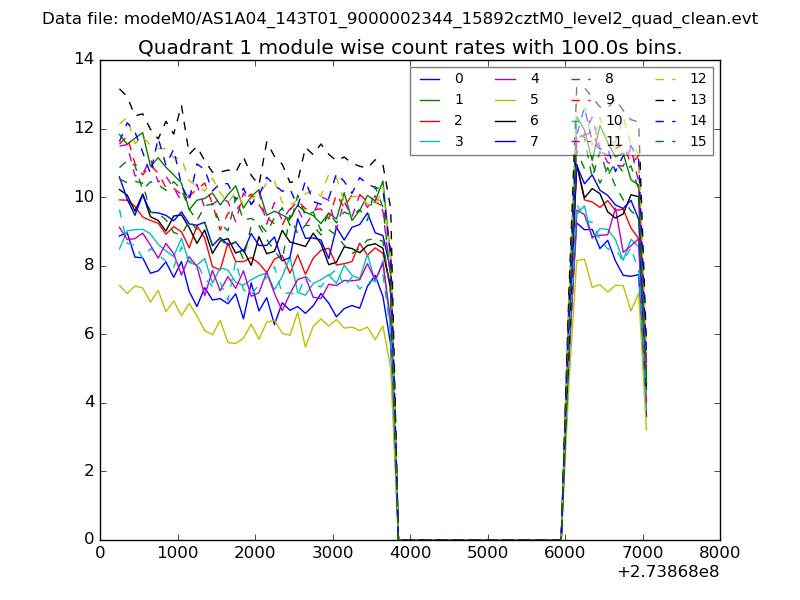

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

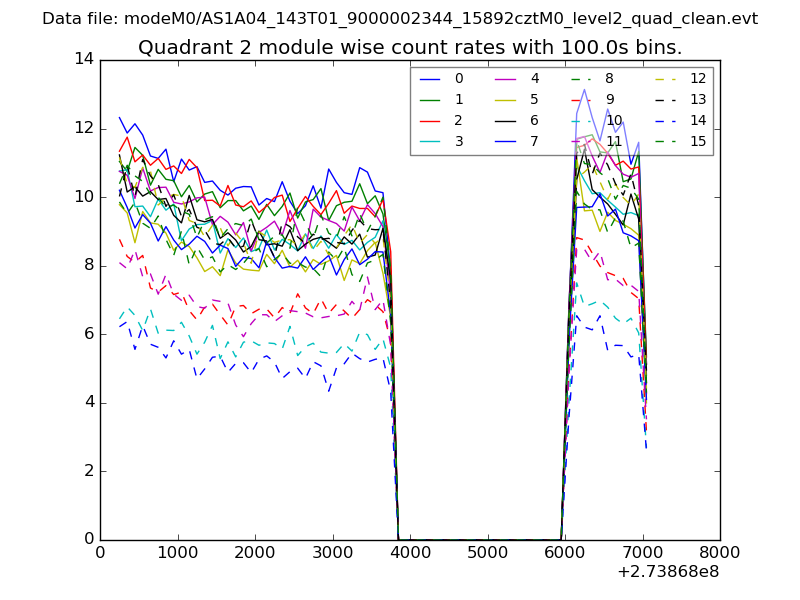

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

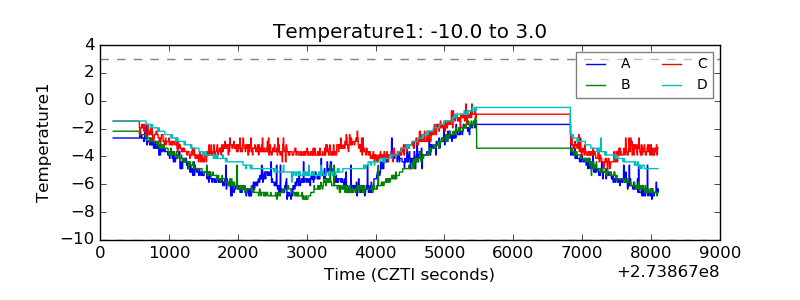

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

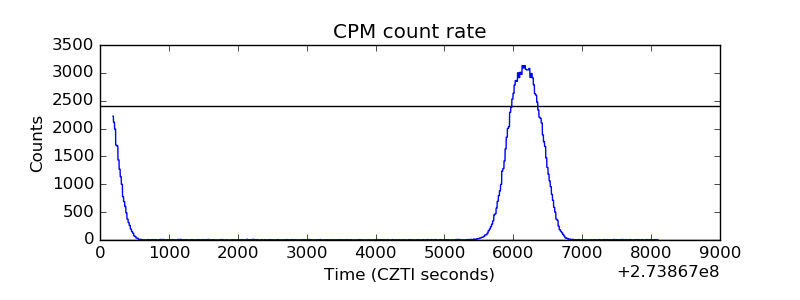

| _CPM_Rate |  |

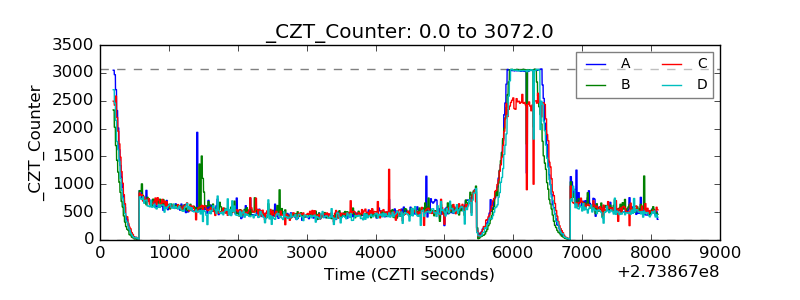

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

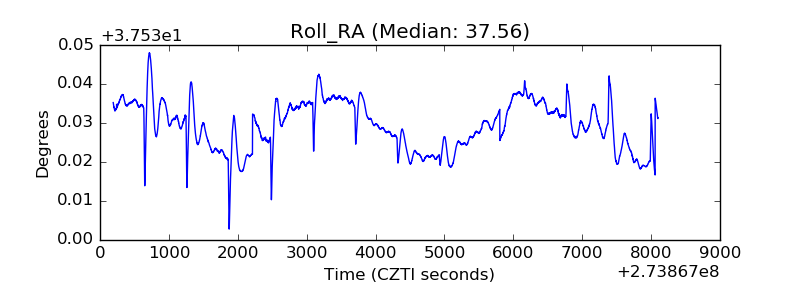

| _Roll_RA |  |
| Veto Counter |  |
