| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_143T01_9000002344_15904cztM0_level2.evt | modeM0/AS1A04_143T01_9000002344_15904cztM0_level2_quad_clean.evt |
| Size (bytes) | 477,720,000 | 72,152,640 |
| Size | 455.6 MB | 68.8 MB |
| Events in quadrant A | 3,518,285 | 439,059 |
| Events in quadrant B | 3,473,042 | 444,664 |
| Events in quadrant C | 3,396,558 | 423,627 |
| Events in quadrant D | 3,634,700 | 420,243 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14725 | 3 |
| B | 0 | 14642 | 2 |
| C | 0 | 14282 | 2 |
| D | 0 | 15209 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6557 | 147 | 2.241879% |
| B | 6557 | 110 | 1.677596% |
| C | 6557 | 125 | 1.906360% |
| D | 6557 | 206 | 3.141681% |

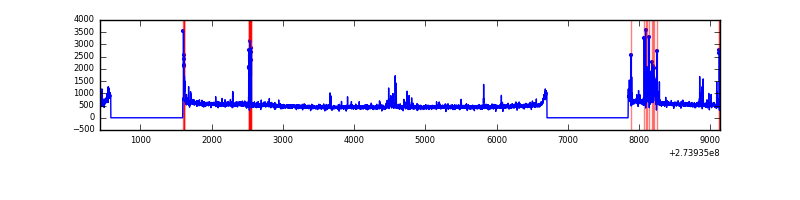

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8708 | 6559 | 30 | 30 | 0.34% | 0.46% |  |
| B | 8708 | 6559 | 2 | 2 | 0.02% | 0.03% |  |
| C | 8708 | 6559 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8708 | 6559 | 111 | 111 | 1.27% | 1.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 234419 | 1372.32 | 844 | 826 | 170.2 |
| A | 15 | 157 | 28590 | 163.11 | 844 | 826 | 170.2 |
| A | 9 | 143 | 12673 | 69.6 | 844 | 826 | 170.2 |
| B | 0 | 219 | 34956 | 211.19 | 849 | 830 | 161.6 |
| B | 4 | 216 | 29208 | 175.62 | 849 | 830 | 161.6 |
| B | 5 | 236 | 23348 | 139.35 | 849 | 830 | 161.6 |
| C | 14 | 238 | 126103 | 661.51 | 811 | 819 | 189.4 |
| C | 3 | 233 | 101738 | 532.86 | 811 | 819 | 189.4 |
| C | 13 | 61 | 5684 | 25.69 | 811 | 819 | 189.4 |
| D | 12 | 218 | 383708 | 1892.38 | 820 | 795 | 202.3 |
| D | 2 | 136 | 83212 | 407.31 | 820 | 795 | 202.3 |
| D | 2 | 234 | 31291 | 150.71 | 820 | 795 | 202.3 |

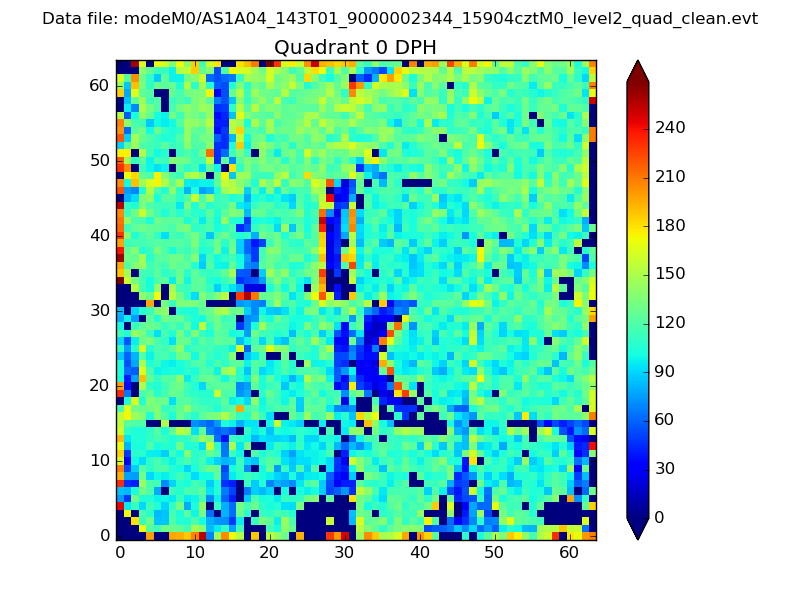

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

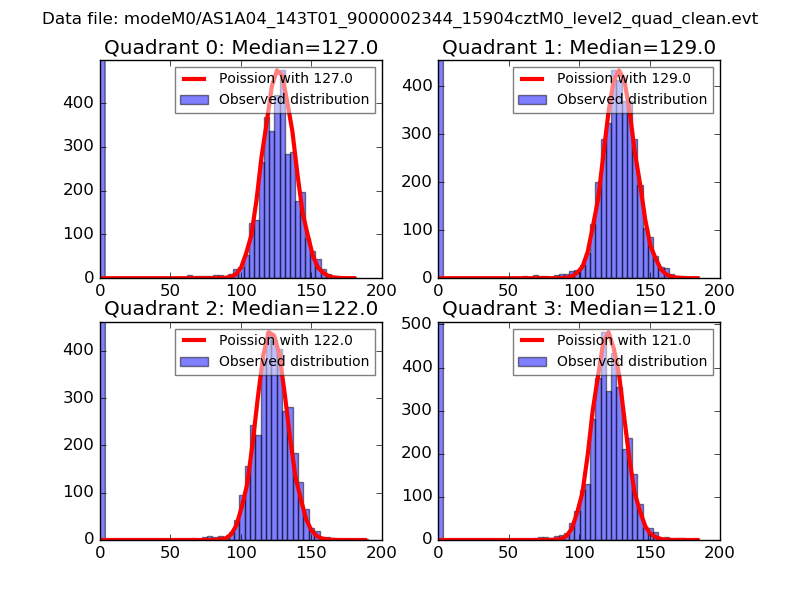

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

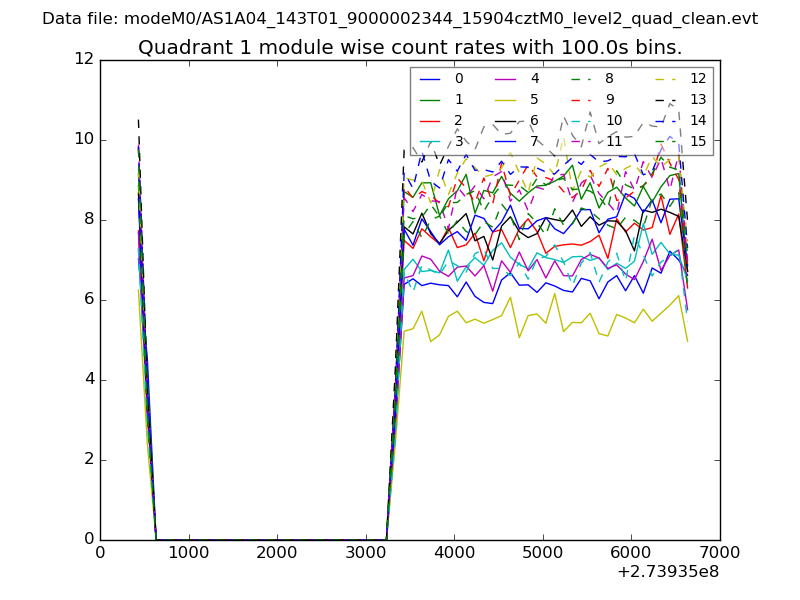

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

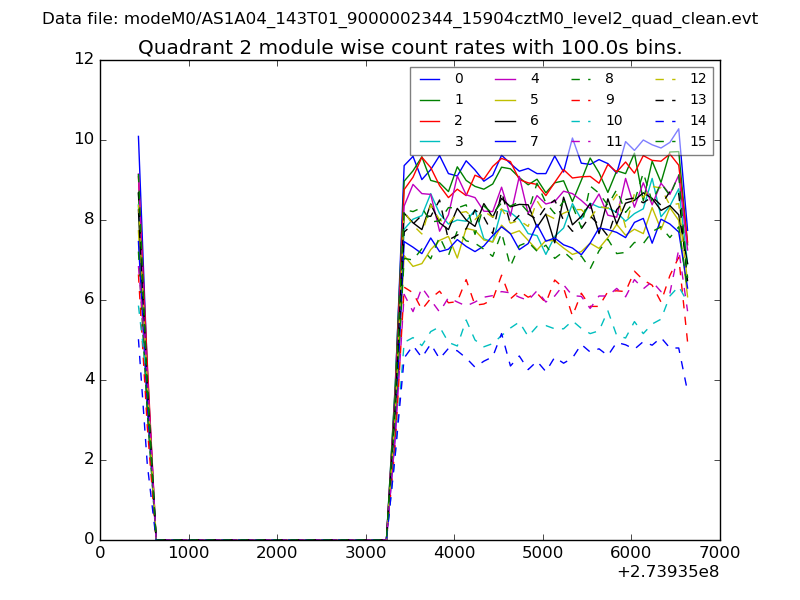

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

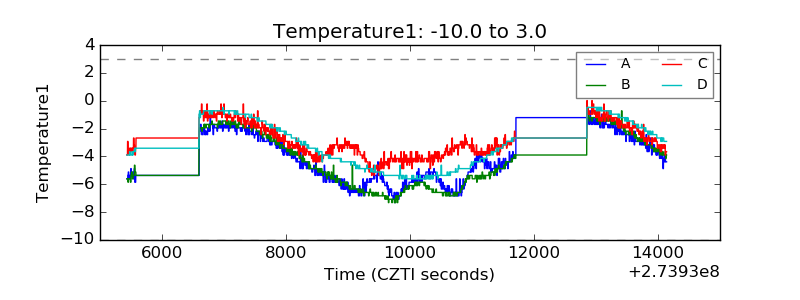

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

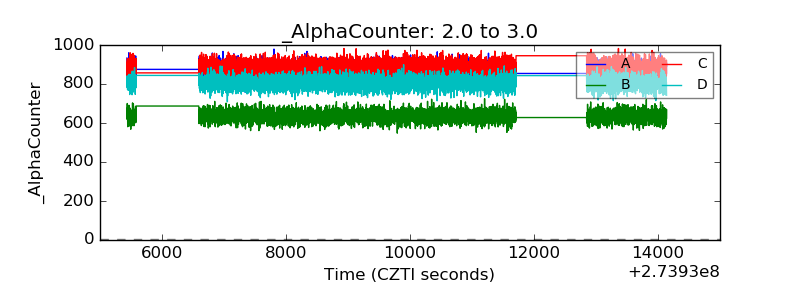

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

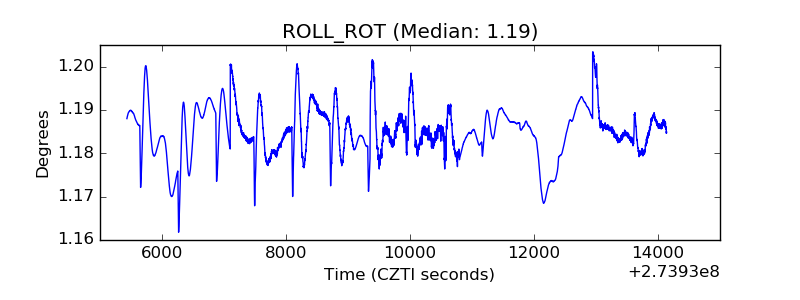

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
