| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_143T01_9000002344_15905cztM0_level2.evt | modeM0/AS1A04_143T01_9000002344_15905cztM0_level2_quad_clean.evt |
| Size (bytes) | 466,787,520 | 80,277,120 |
| Size | 445.2 MB | 76.6 MB |
| Events in quadrant A | 3,961,963 | 502,022 |
| Events in quadrant B | 3,414,274 | 518,619 |
| Events in quadrant C | 3,257,942 | 492,184 |
| Events in quadrant D | 3,080,895 | 484,461 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15837 | 3 |
| B | 0 | 14213 | 2 |
| C | 0 | 13665 | 2 |
| D | 0 | 13333 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6212 | 148 | 2.382486% |
| B | 6212 | 79 | 1.271732% |
| C | 6212 | 91 | 1.464907% |
| D | 6212 | 39 | 0.627817% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7463 | 6213 | 70 | 70 | 0.94% | 1.13% |  |
| B | 7463 | 6214 | 13 | 13 | 0.17% | 0.21% |  |
| C | 7463 | 6214 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7463 | 6214 | 4 | 4 | 0.05% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 805079 | 4915.5 | 818 | 803 | 163.6 |
| A | 15 | 157 | 12333 | 70.47 | 818 | 803 | 163.6 |
| A | 0 | 226 | 7354 | 40.04 | 818 | 803 | 163.6 |
| B | 4 | 173 | 35645 | 224.97 | 827 | 809 | 154.8 |
| B | 0 | 219 | 29716 | 186.68 | 827 | 809 | 154.8 |
| B | 4 | 216 | 27365 | 171.5 | 827 | 809 | 154.8 |
| C | 14 | 238 | 122468 | 665.34 | 791 | 797 | 182.9 |
| C | 3 | 233 | 31285 | 166.72 | 791 | 797 | 182.9 |
| C | 10 | 22 | 20023 | 105.13 | 791 | 797 | 182.9 |
| D | 2 | 234 | 31383 | 155.61 | 803 | 779 | 196.7 |
| D | 13 | 172 | 14968 | 72.15 | 803 | 779 | 196.7 |
| D | 10 | 70 | 11655 | 55.3 | 803 | 779 | 196.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

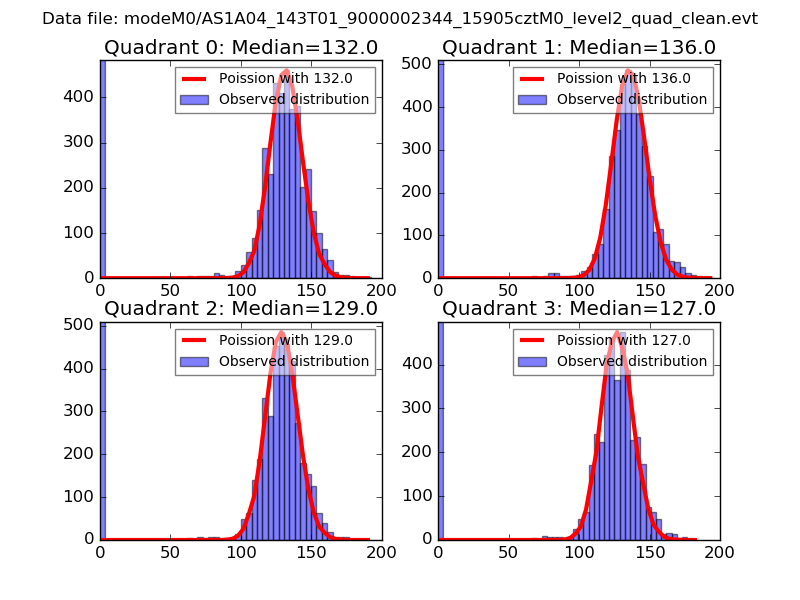

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

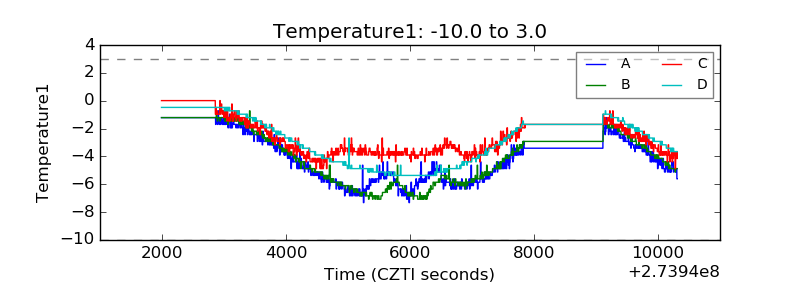

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

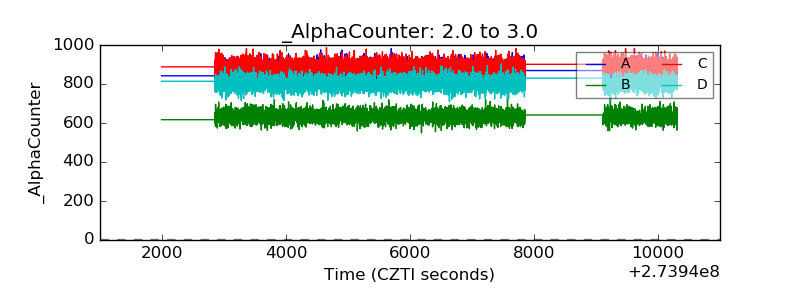

| Alpha Counter |  |

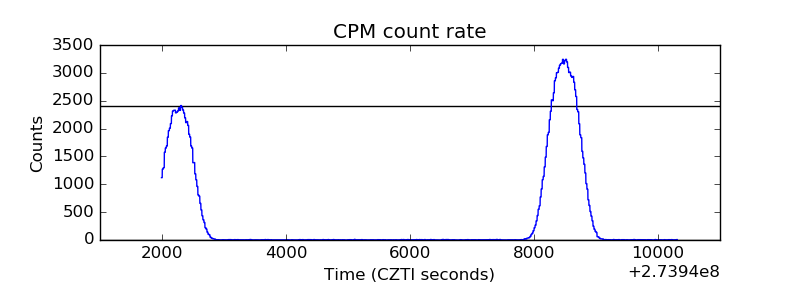

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
