| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_143T01_9000002344_15906cztM0_level2.evt | modeM0/AS1A04_143T01_9000002344_15906cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,108,160 | 96,860,160 |
| Size | 456.9 MB | 92.4 MB |
| Events in quadrant A | 3,564,666 | 625,908 |
| Events in quadrant B | 3,632,337 | 650,160 |
| Events in quadrant C | 3,471,640 | 611,926 |
| Events in quadrant D | 3,405,539 | 597,937 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14716 | 3 |
| B | 0 | 14899 | 2 |
| C | 0 | 14371 | 2 |
| D | 0 | 14415 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6416 | 143 | 2.228803% |
| B | 6416 | 130 | 2.026185% |
| C | 6416 | 142 | 2.213217% |
| D | 6416 | 87 | 1.355985% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8987 | 6417 | 7 | 7 | 0.08% | 0.11% |  |
| B | 8987 | 6419 | 4 | 4 | 0.04% | 0.06% |  |
| C | 8987 | 6419 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8987 | 6419 | 19 | 19 | 0.21% | 0.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 208548 | 1180.6 | 872 | 857 | 175.9 |
| A | 0 | 226 | 8014 | 40.68 | 872 | 857 | 175.9 |
| A | 12 | 194 | 6513 | 32.15 | 872 | 857 | 175.9 |
| B | 4 | 173 | 43166 | 255.62 | 882 | 864 | 165.5 |
| B | 4 | 216 | 28633 | 167.8 | 882 | 864 | 165.5 |
| B | 5 | 236 | 22662 | 131.72 | 882 | 864 | 165.5 |
| C | 14 | 238 | 131666 | 671.79 | 843 | 851 | 194.7 |
| C | 3 | 233 | 35522 | 178.05 | 843 | 851 | 194.7 |
| C | 10 | 22 | 18625 | 91.28 | 843 | 851 | 194.7 |
| D | 7 | 223 | 69573 | 332.99 | 852 | 829 | 206.4 |
| D | 8 | 230 | 55758 | 266.07 | 852 | 829 | 206.4 |
| D | 2 | 234 | 32510 | 153.46 | 852 | 829 | 206.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

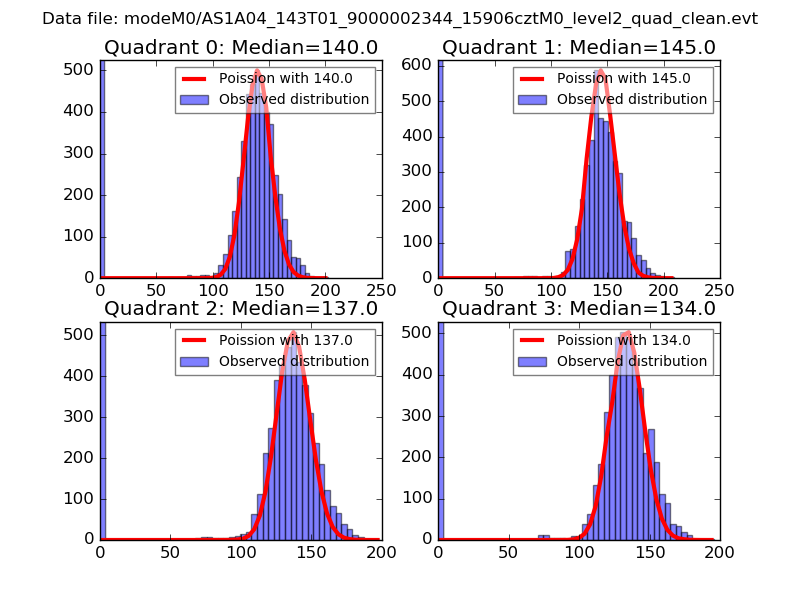

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

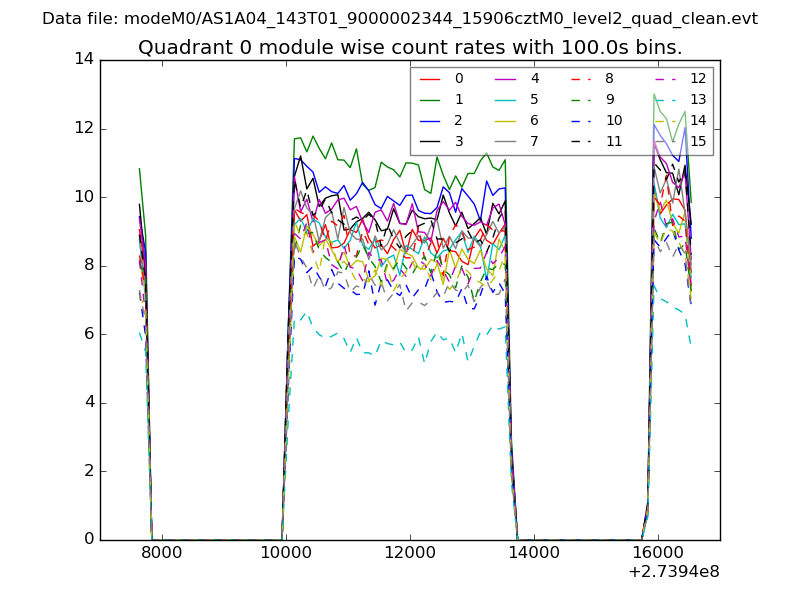

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

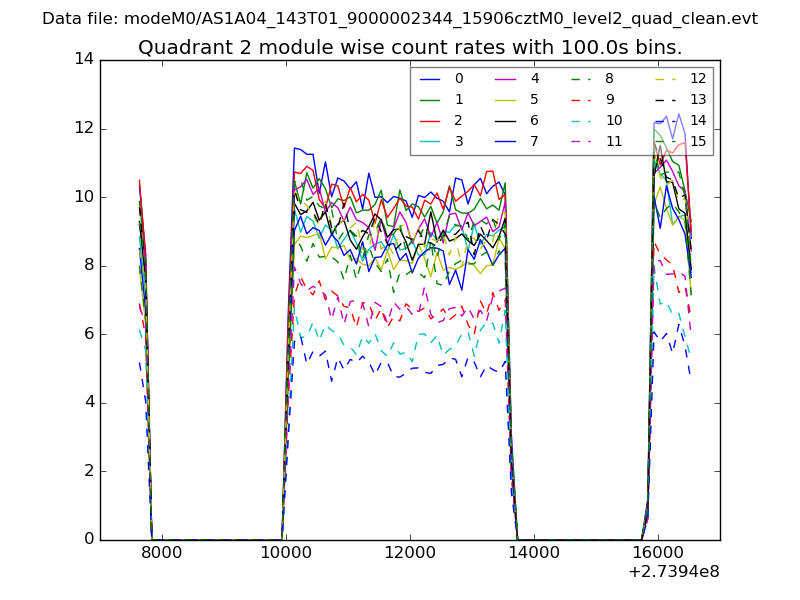

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

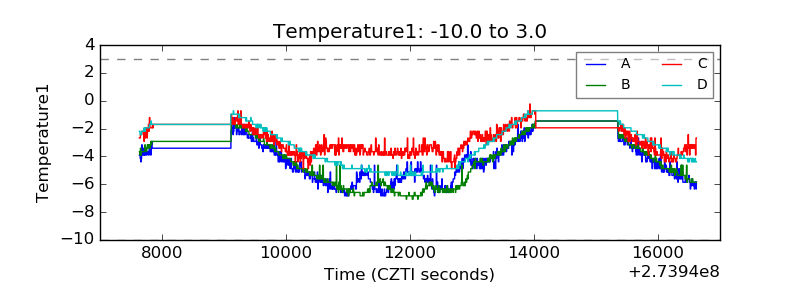

| Temperature 1 |  |

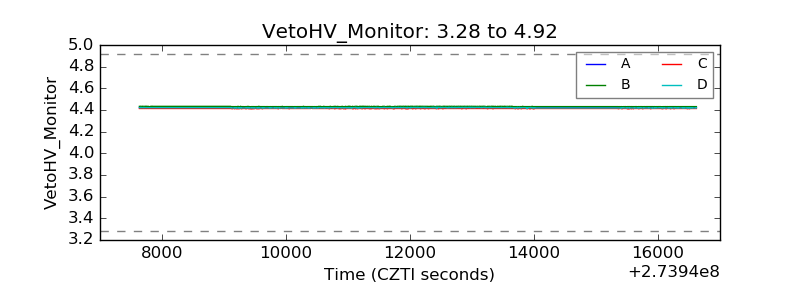

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

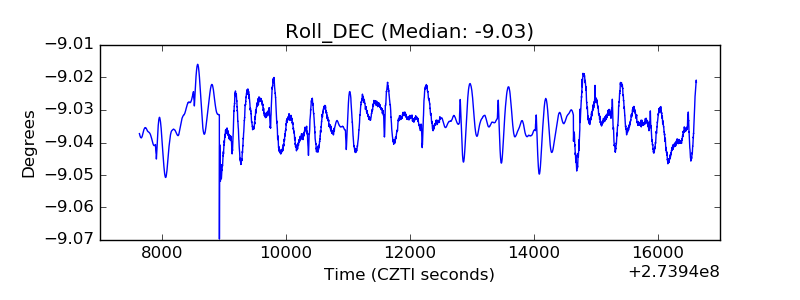

| _Roll_DEC |  |

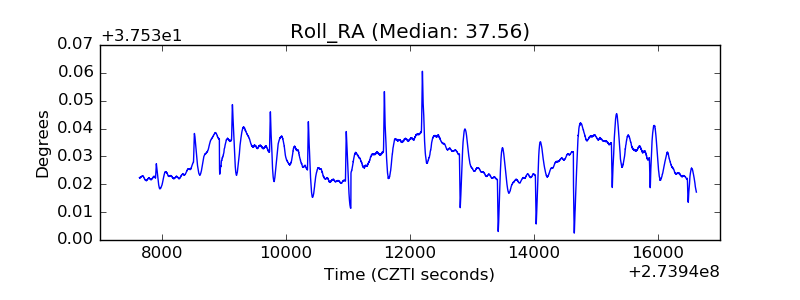

| _Roll_RA |  |
| Veto Counter |  |
