| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_143T01_9000002344_15919cztM0_level2.evt | modeM0/AS1A04_143T01_9000002344_15919cztM0_level2_quad_clean.evt |
| Size (bytes) | 564,710,400 | 70,698,240 |
| Size | 538.5 MB | 67.4 MB |
| Events in quadrant A | 6,495,706 | 420,732 |
| Events in quadrant B | 3,455,764 | 442,954 |
| Events in quadrant C | 3,365,162 | 420,377 |
| Events in quadrant D | 3,356,006 | 413,493 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23685 | 3 |
| B | 0 | 14599 | 2 |
| C | 0 | 14130 | 2 |
| D | 0 | 14285 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6347 | 242 | 3.812825% |
| B | 6347 | 61 | 0.961084% |
| C | 6347 | 113 | 1.780369% |
| D | 6347 | 76 | 1.197416% |

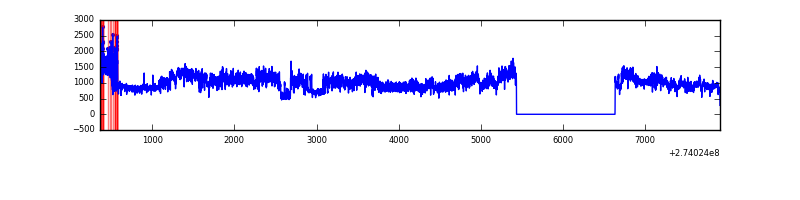

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7548 | 6348 | 22 | 22 | 0.29% | 0.35% |  |
| B | 7548 | 6348 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7548 | 6348 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7548 | 6348 | 27 | 27 | 0.36% | 0.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 3341509 | 20376.38 | 817 | 801 | 163.9 |
| A | 13 | 210 | 9651 | 53.98 | 817 | 801 | 163.9 |
| A | 0 | 226 | 7468 | 40.66 | 817 | 801 | 163.9 |
| B | 4 | 216 | 96028 | 606.75 | 832 | 812 | 156.9 |
| B | 0 | 189 | 40282 | 251.51 | 832 | 812 | 156.9 |
| B | 0 | 190 | 22957 | 141.11 | 832 | 812 | 156.9 |
| C | 3 | 233 | 134079 | 720.32 | 796 | 805 | 185.0 |
| C | 14 | 238 | 124205 | 666.96 | 796 | 805 | 185.0 |
| C | 13 | 61 | 5675 | 26.32 | 796 | 805 | 185.0 |
| D | 5 | 51 | 98181 | 490.7 | 807 | 784 | 198.5 |
| D | 10 | 70 | 48553 | 240.67 | 807 | 784 | 198.5 |
| D | 12 | 221 | 48139 | 238.58 | 807 | 784 | 198.5 |

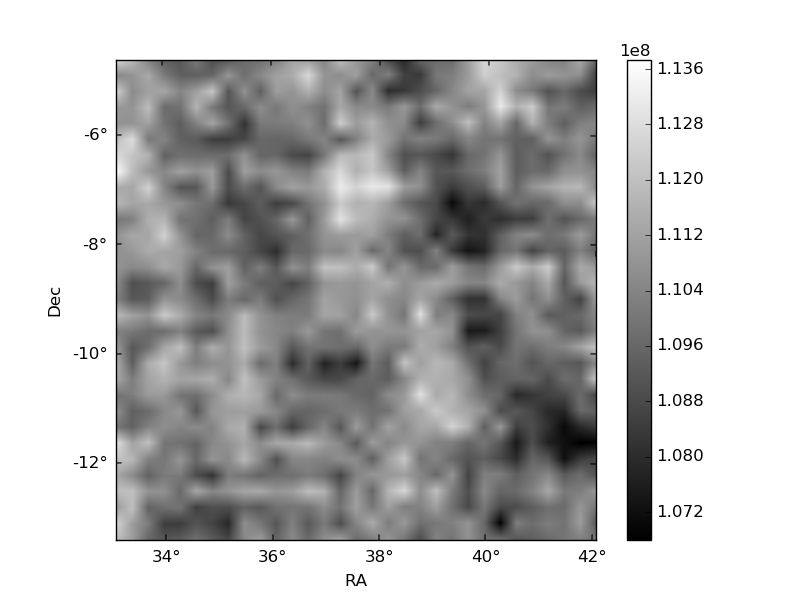

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

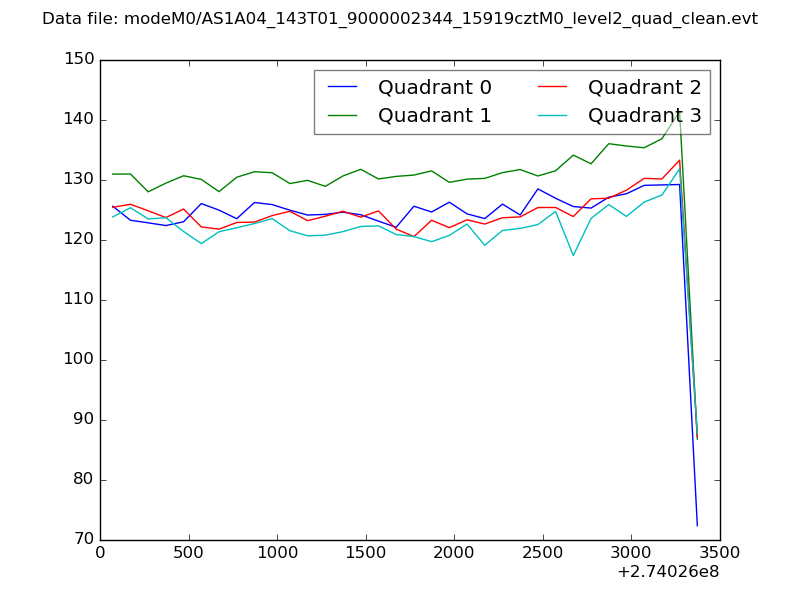

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

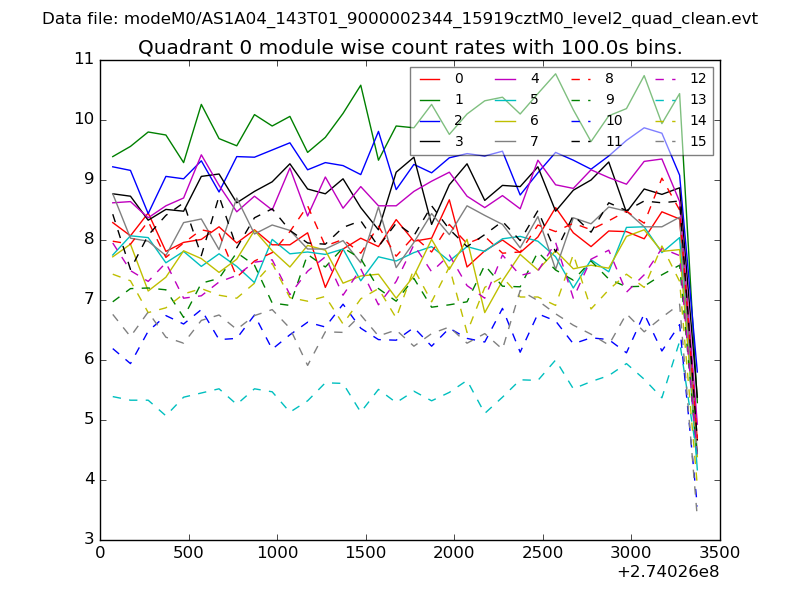

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

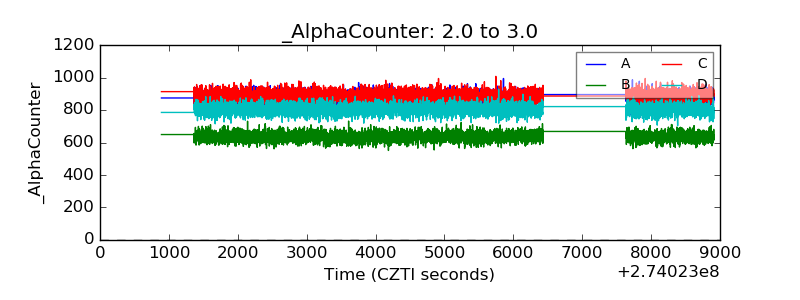

| Alpha Counter |  |

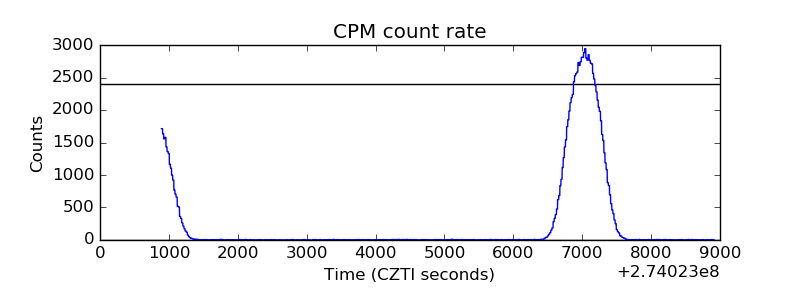

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

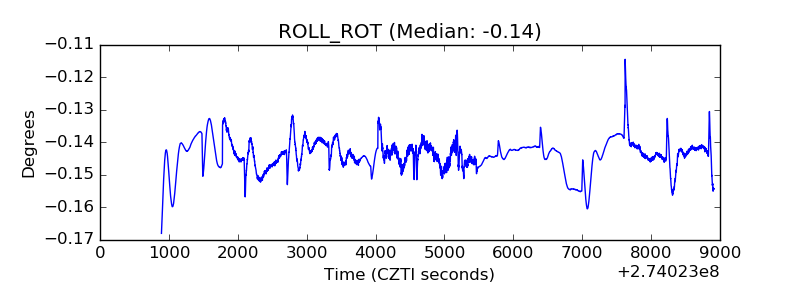

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

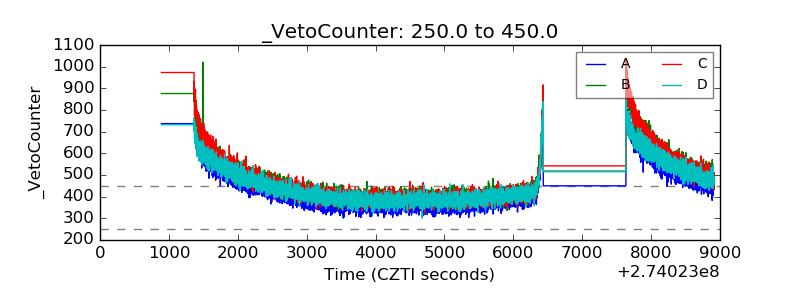

| Veto Counter |  |
