| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_143T01_9000002344_15920cztM0_level2.evt | modeM0/AS1A04_143T01_9000002344_15920cztM0_level2_quad_clean.evt |
| Size (bytes) | 566,663,040 | 89,948,160 |
| Size | 540.4 MB | 85.8 MB |
| Events in quadrant A | 5,954,631 | 561,189 |
| Events in quadrant B | 3,596,196 | 595,714 |
| Events in quadrant C | 3,555,642 | 563,754 |
| Events in quadrant D | 3,618,313 | 553,269 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22245 | 3 |
| B | 0 | 14943 | 2 |
| C | 0 | 14761 | 2 |
| D | 0 | 14904 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6460 | 355 | 5.495356% |
| B | 6460 | 115 | 1.780186% |
| C | 6460 | 140 | 2.167183% |
| D | 6460 | 98 | 1.517028% |

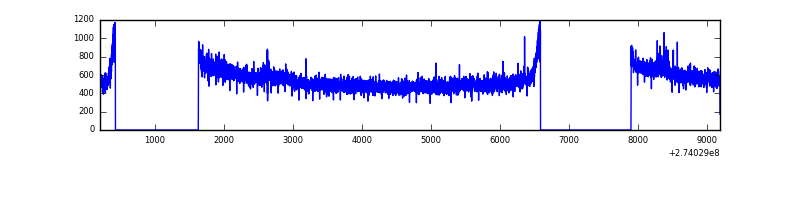

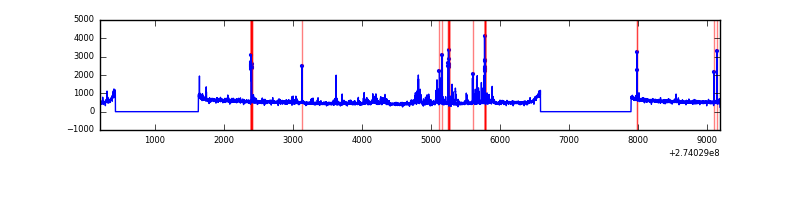

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8971 | 6461 | 130 | 130 | 1.45% | 2.01% |  |
| B | 8971 | 6461 | 11 | 11 | 0.12% | 0.17% |  |
| C | 8971 | 6461 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8971 | 6462 | 32 | 32 | 0.36% | 0.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 2463392 | 14364.09 | 859 | 843 | 171.4 |
| A | 9 | 143 | 135701 | 786.63 | 859 | 843 | 171.4 |
| A | 13 | 248 | 46894 | 268.62 | 859 | 843 | 171.4 |
| B | 0 | 182 | 31993 | 188.67 | 881 | 862 | 165.0 |
| B | 0 | 229 | 31629 | 186.47 | 881 | 862 | 165.0 |
| B | 4 | 216 | 27403 | 160.85 | 881 | 862 | 165.0 |
| C | 3 | 233 | 131900 | 668.48 | 843 | 849 | 196.0 |
| C | 14 | 238 | 130844 | 663.1 | 843 | 849 | 196.0 |
| C | 7 | 247 | 8819 | 40.65 | 843 | 849 | 196.0 |
| D | 12 | 17 | 110330 | 528.36 | 852 | 829 | 207.2 |
| D | 4 | 239 | 93933 | 449.24 | 852 | 829 | 207.2 |
| D | 5 | 51 | 88918 | 425.05 | 852 | 829 | 207.2 |

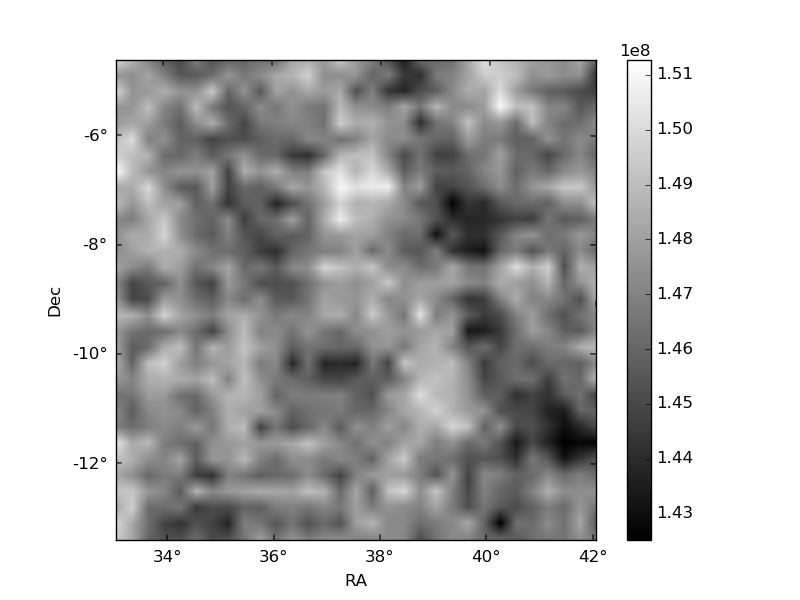

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

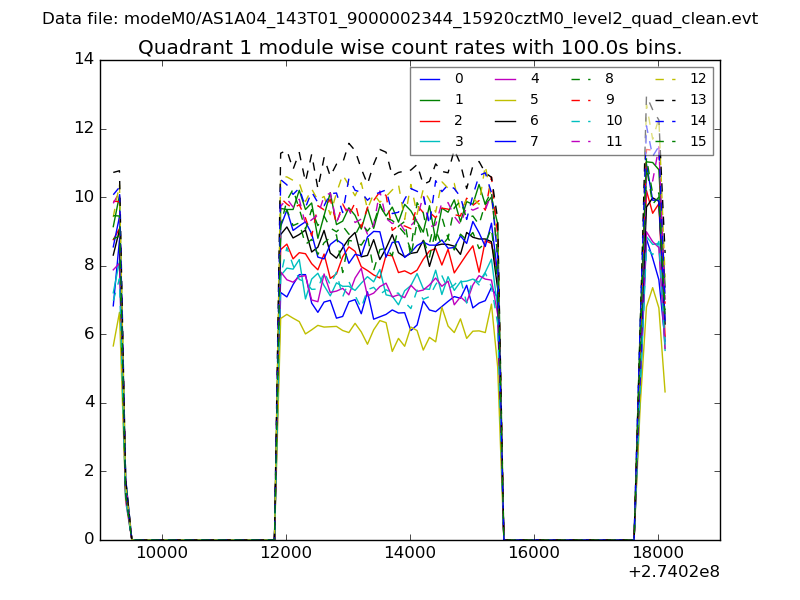

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

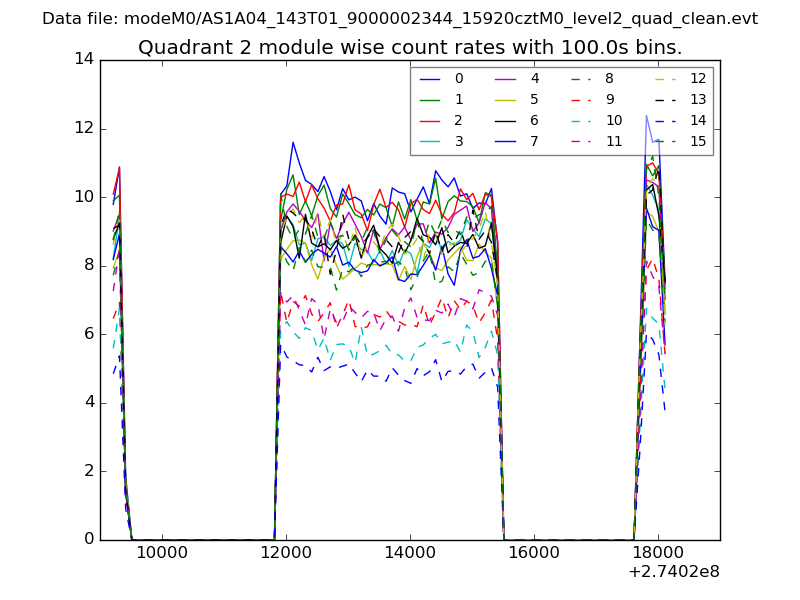

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

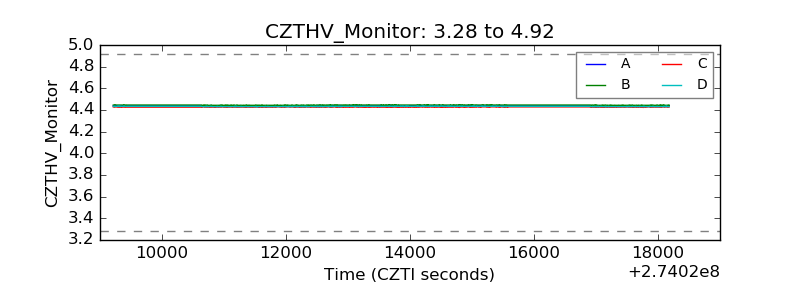

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

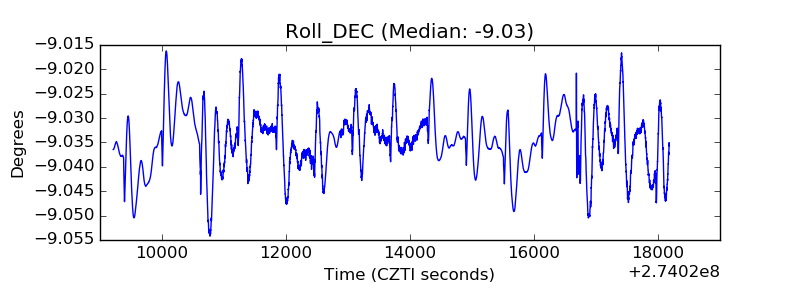

| _Roll_DEC |  |

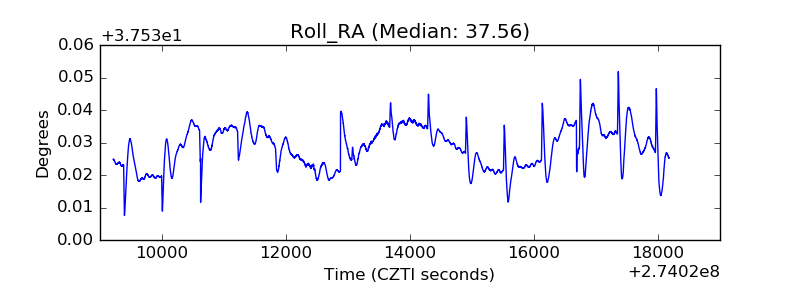

| _Roll_RA |  |
| Veto Counter |  |
