| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_104T03_9000002348_15935cztM0_level2.evt | modeM0/AS1A04_104T03_9000002348_15935cztM0_level2_quad_clean.evt |
| Size (bytes) | 465,744,960 | 110,361,600 |
| Size | 444.2 MB | 105.2 MB |
| Events in quadrant A | 3,404,725 | 746,926 |
| Events in quadrant B | 3,537,137 | 749,276 |
| Events in quadrant C | 3,401,451 | 703,084 |
| Events in quadrant D | 3,323,772 | 693,500 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14367 | 3 |
| B | 0 | 14615 | 2 |
| C | 0 | 14229 | 2 |
| D | 0 | 14208 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6450 | 145 | 2.248062% |
| B | 6450 | 150 | 2.325581% |
| C | 6450 | 158 | 2.449612% |
| D | 6450 | 129 | 2.000000% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

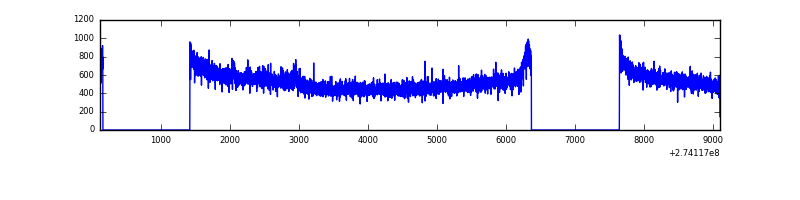

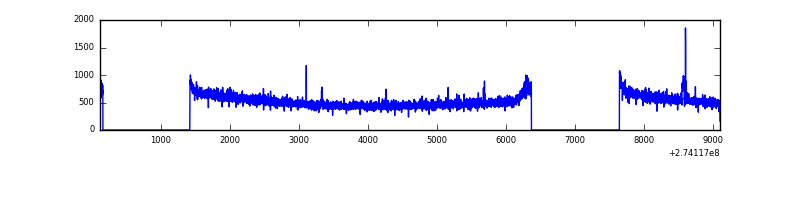

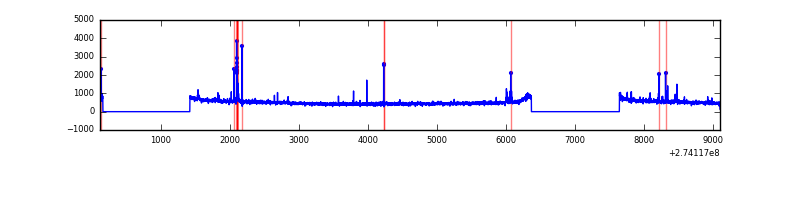

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8986 | 6451 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8986 | 6452 | 1 | 1 | 0.01% | 0.02% |  |
| C | 8986 | 6451 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8986 | 6452 | 16 | 16 | 0.18% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 25504 | 138.76 | 879 | 864 | 177.6 |
| A | 0 | 226 | 8069 | 40.57 | 879 | 864 | 177.6 |
| A | 12 | 194 | 6569 | 32.13 | 879 | 864 | 177.6 |
| B | 4 | 216 | 74354 | 447.7 | 868 | 850 | 164.2 |
| B | 3 | 209 | 24779 | 145.75 | 868 | 850 | 164.2 |
| B | 12 | 111 | 17622 | 102.16 | 868 | 850 | 164.2 |
| C | 14 | 238 | 128724 | 675.44 | 821 | 826 | 189.4 |
| C | 3 | 233 | 66851 | 348.68 | 821 | 826 | 189.4 |
| C | 13 | 61 | 6002 | 27.33 | 821 | 826 | 189.4 |
| D | 15 | 0 | 39783 | 190.36 | 845 | 821 | 204.7 |
| D | 2 | 120 | 29029 | 137.82 | 845 | 821 | 204.7 |
| D | 2 | 234 | 27799 | 131.81 | 845 | 821 | 204.7 |

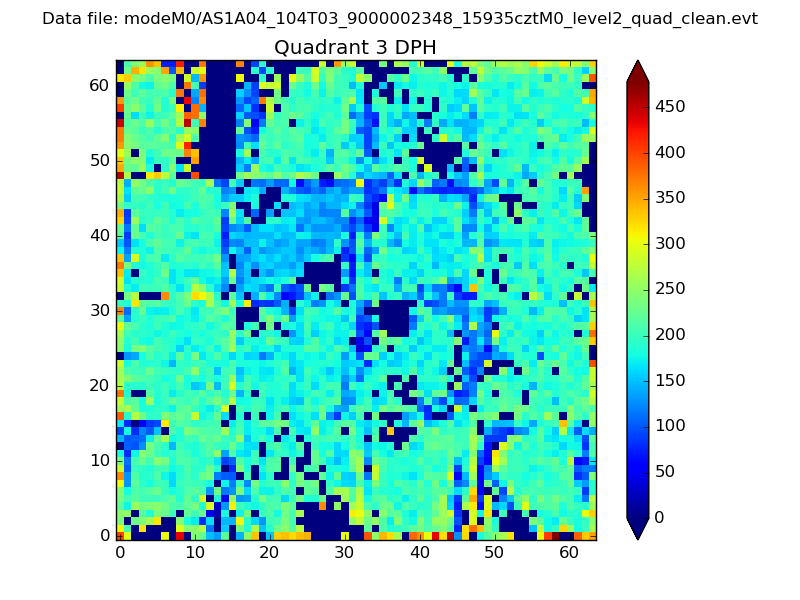

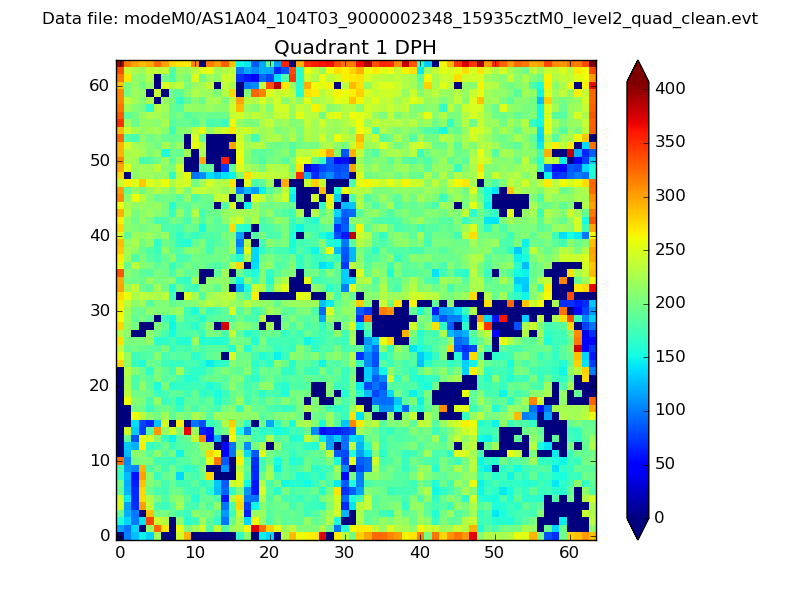

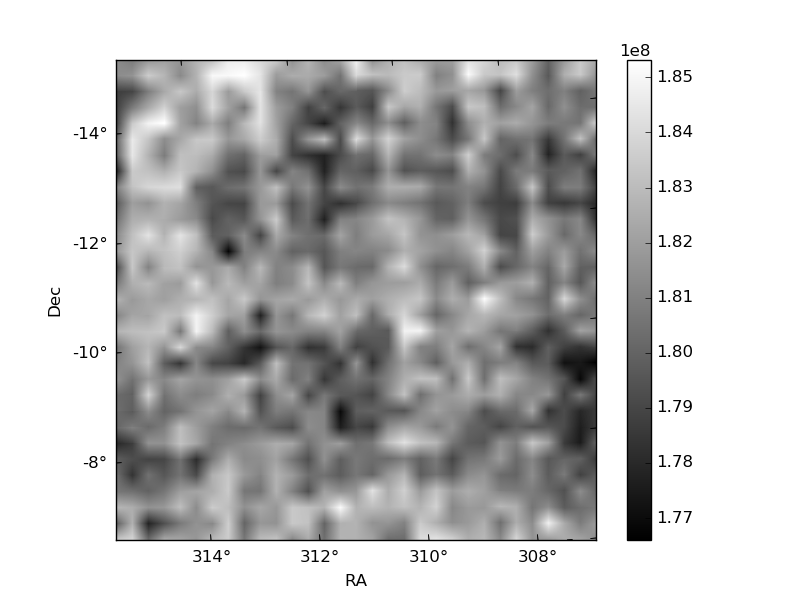

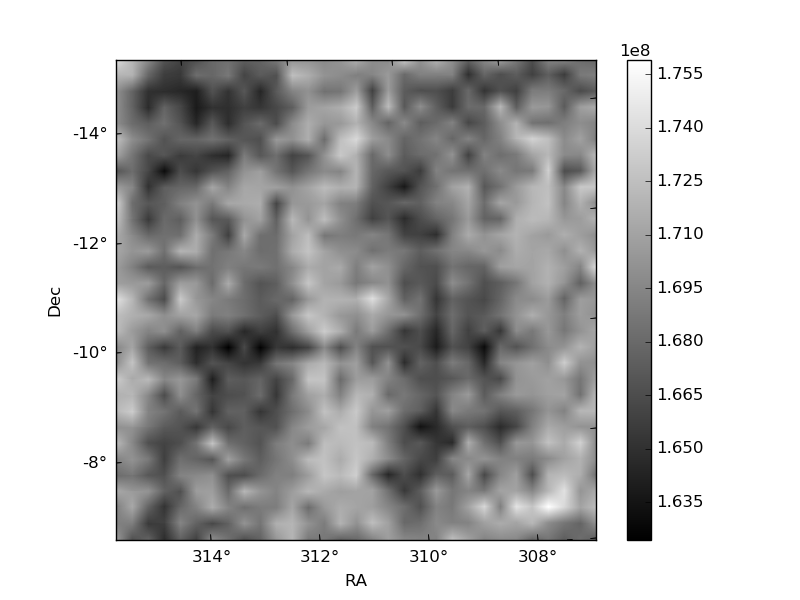

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

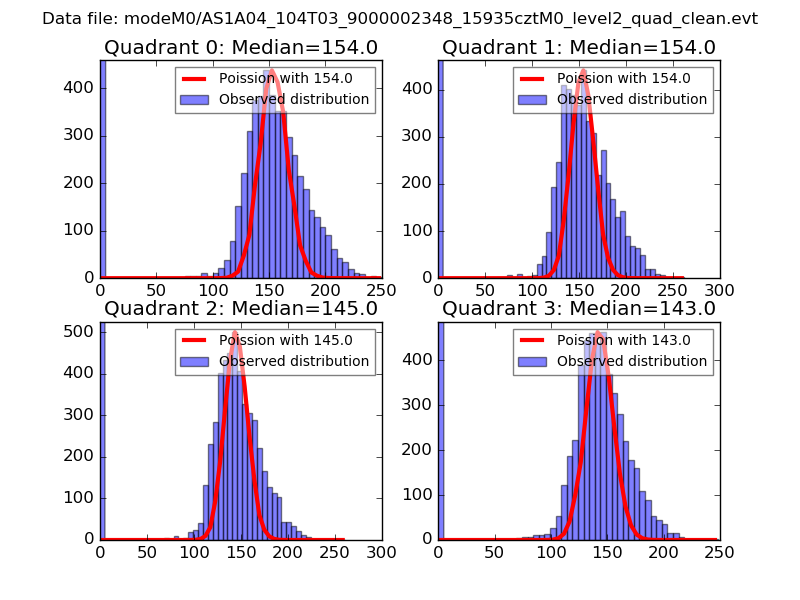

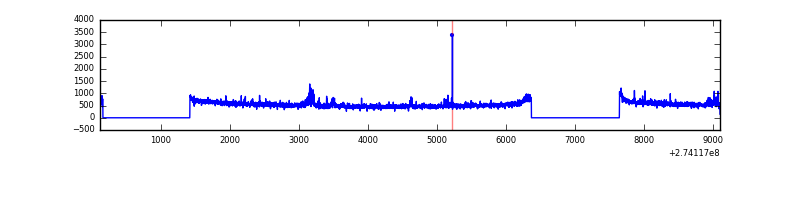

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

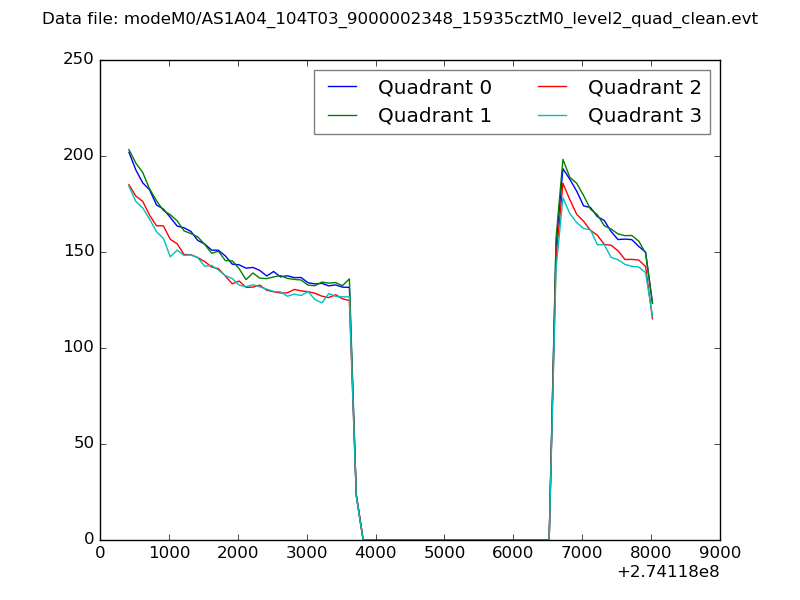

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

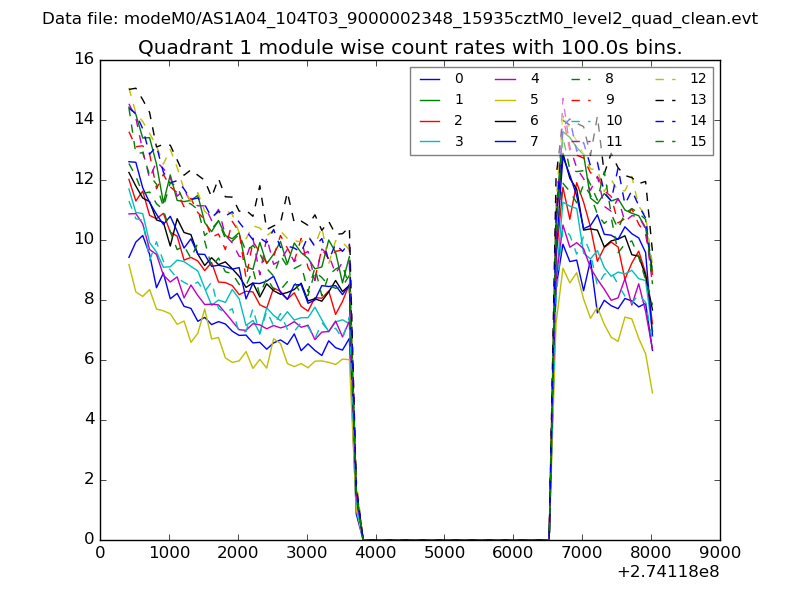

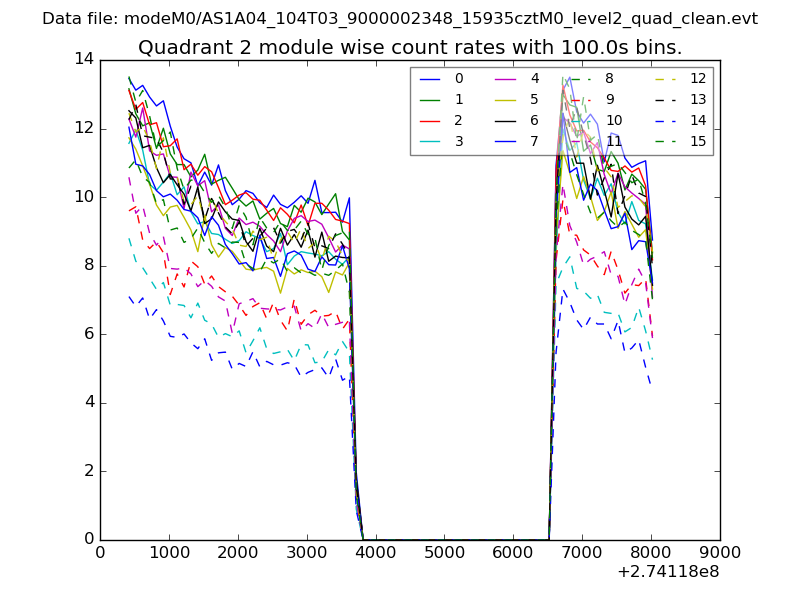

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

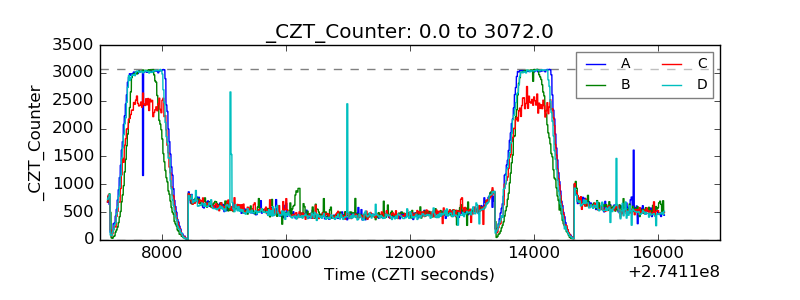

| CZT HV Monitor |  |

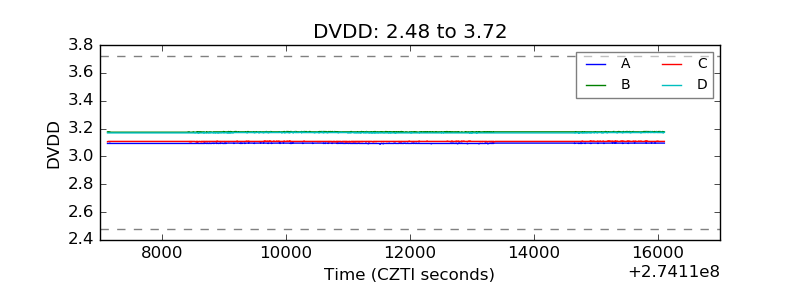

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

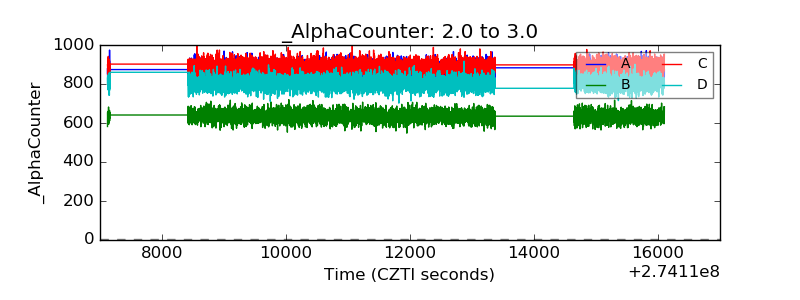

| Alpha Counter |  |

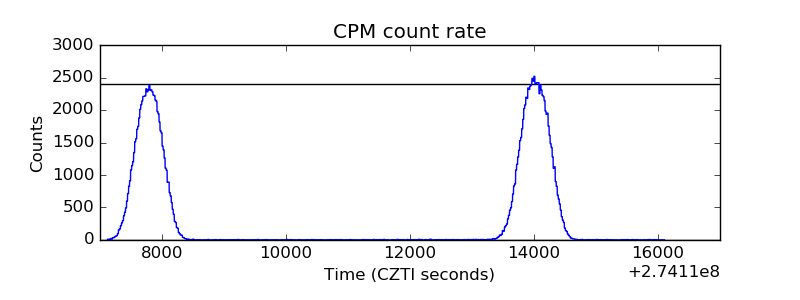

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

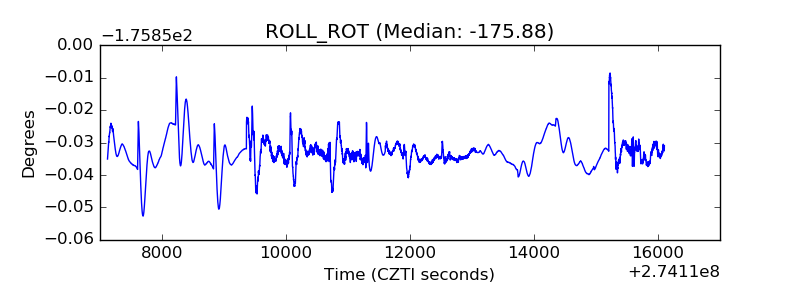

| _ROLL_ROT |  |

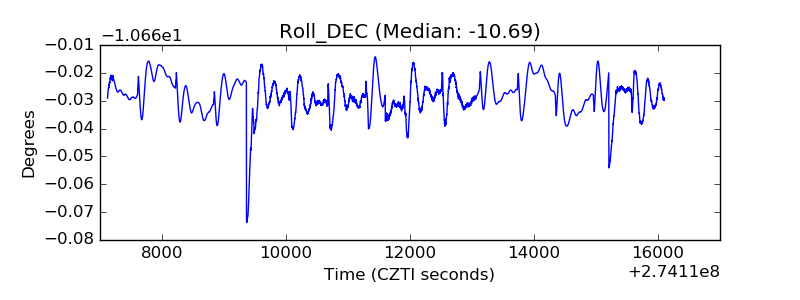

| _Roll_DEC |  |

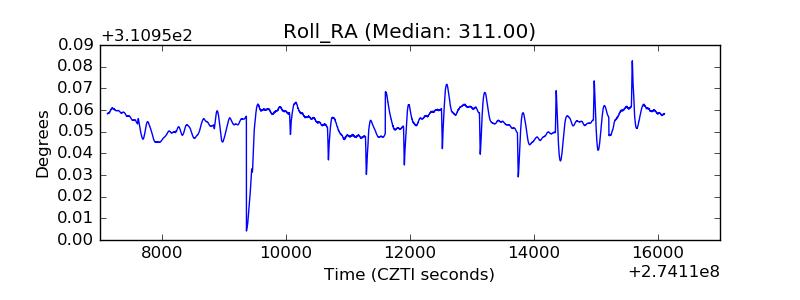

| _Roll_RA |  |

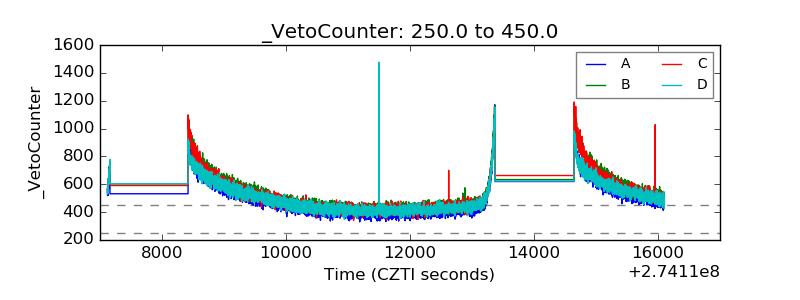

| Veto Counter |  |
