| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_104T03_9000002348_15936cztM0_level2.evt | modeM0/AS1A04_104T03_9000002348_15936cztM0_level2_quad_clean.evt |
| Size (bytes) | 449,640,000 | 100,558,080 |
| Size | 428.8 MB | 95.9 MB |
| Events in quadrant A | 3,275,895 | 666,284 |
| Events in quadrant B | 3,522,702 | 675,871 |
| Events in quadrant C | 3,266,082 | 636,956 |
| Events in quadrant D | 3,123,540 | 625,558 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13772 | 2 |
| B | 0 | 14495 | 1 |
| C | 0 | 13585 | 1 |
| D | 0 | 13470 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6317 | 93 | 1.472218% |
| B | 6317 | 90 | 1.424727% |
| C | 6317 | 97 | 1.535539% |
| D | 6317 | 60 | 0.949818% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7688 | 6318 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7688 | 6318 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7688 | 6319 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7688 | 6319 | 6 | 6 | 0.08% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 44255 | 260.3 | 839 | 825 | 166.8 |
| A | 0 | 226 | 7549 | 40.3 | 839 | 825 | 166.8 |
| A | 12 | 194 | 6257 | 32.56 | 839 | 825 | 166.8 |
| B | 4 | 142 | 71036 | 449.42 | 836 | 819 | 156.2 |
| B | 10 | 245 | 69795 | 441.48 | 836 | 819 | 156.2 |
| B | 3 | 209 | 32281 | 201.37 | 836 | 819 | 156.2 |
| C | 14 | 238 | 125305 | 680.55 | 789 | 796 | 183.0 |
| C | 3 | 233 | 53792 | 289.67 | 789 | 796 | 183.0 |
| C | 7 | 247 | 7347 | 35.81 | 789 | 796 | 183.0 |
| D | 2 | 234 | 28612 | 142.08 | 807 | 786 | 195.8 |
| D | 2 | 120 | 18620 | 91.06 | 807 | 786 | 195.8 |
| D | 13 | 172 | 14626 | 70.67 | 807 | 786 | 195.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

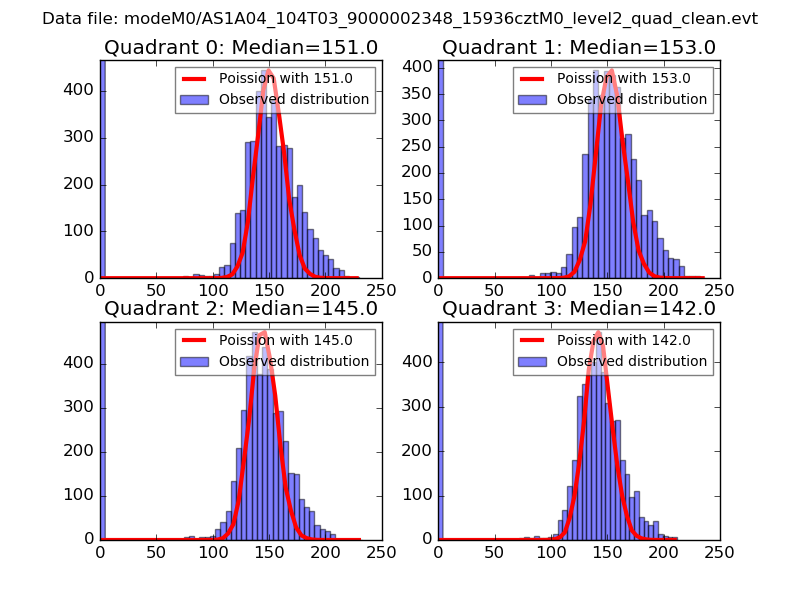

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

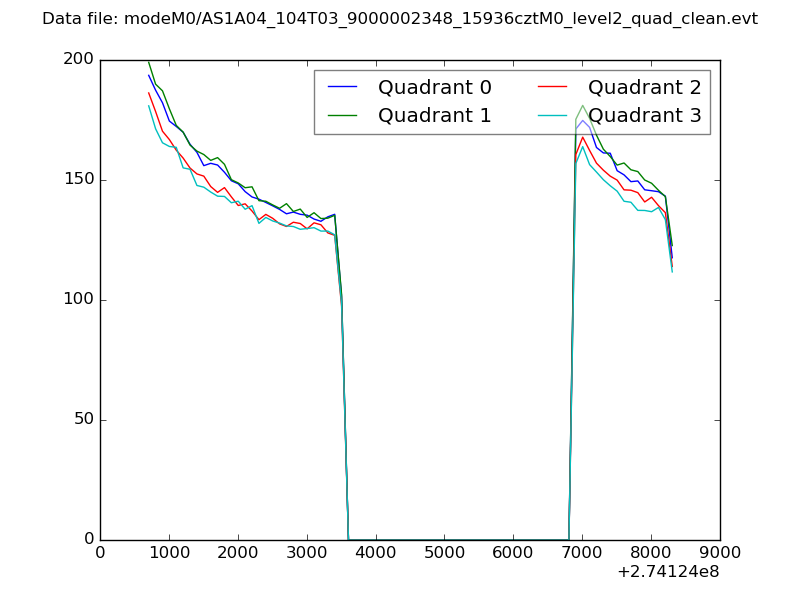

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

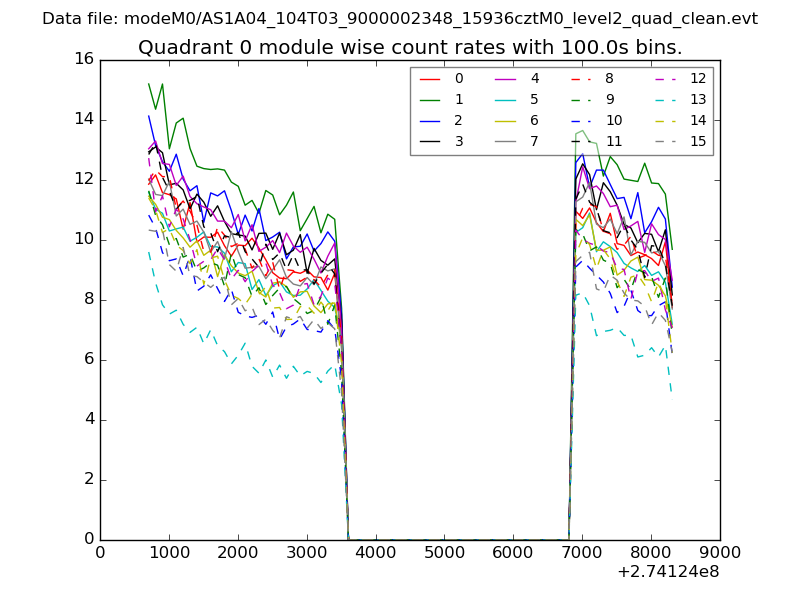

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

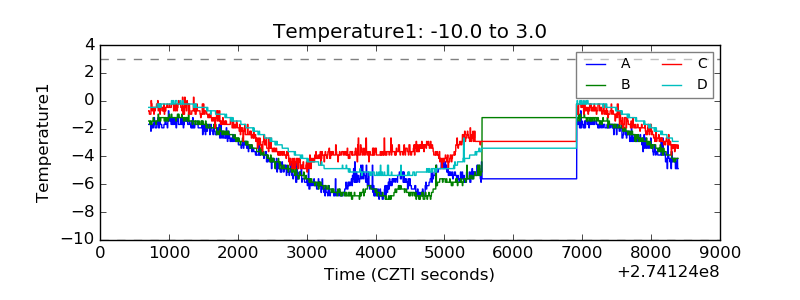

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

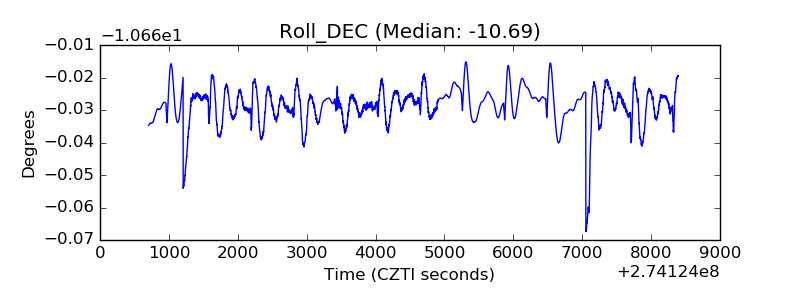

| _ROLL_ROT |  |
| _Roll_DEC |  |

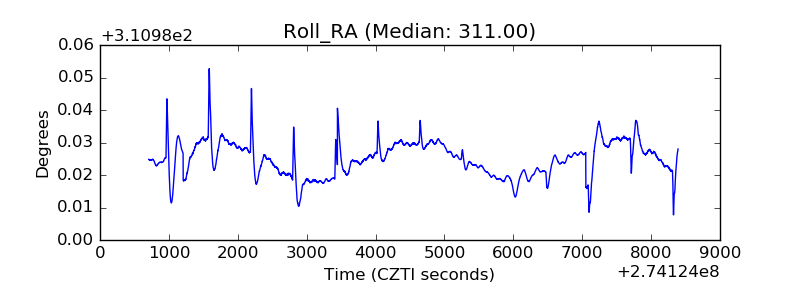

| _Roll_RA |  |

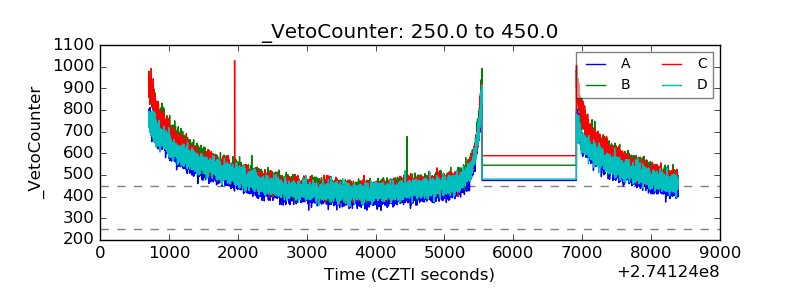

| Veto Counter |  |
