| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_104T03_9000002348_15944cztM0_level2.evt | modeM0/AS1A04_104T03_9000002348_15944cztM0_level2_quad_clean.evt |
| Size (bytes) | 293,388,480 | 46,972,800 |
| Size | 279.8 MB | 44.8 MB |
| Events in quadrant A | 2,101,600 | 277,252 |
| Events in quadrant B | 2,241,105 | 283,615 |
| Events in quadrant C | 2,185,918 | 273,124 |
| Events in quadrant D | 2,046,925 | 269,038 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 92 | 0 |
| B | 0 | 92 | 0 |
| C | 0 | 92 | 0 |
| D | 0 | 92 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9367 | 1 |
| B | 0 | 9560 | 1 |
| C | 0 | 9437 | 1 |
| D | 0 | 9357 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4538 | 65 | 1.432349% |
| B | 4538 | 89 | 1.961216% |
| C | 4538 | 89 | 1.961216% |
| D | 4538 | 43 | 0.947554% |

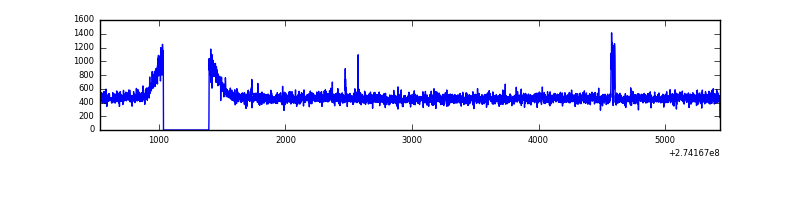

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

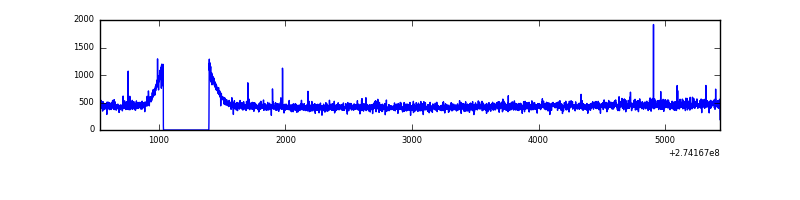

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4899 | 4539 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4899 | 4540 | 5 | 5 | 0.10% | 0.11% |  |
| C | 4899 | 4540 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4899 | 4540 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 4844 | 38.56 | 545 | 532 | 111.8 |
| A | 12 | 194 | 3936 | 30.44 | 545 | 532 | 111.8 |
| A | 3 | 137 | 3845 | 29.63 | 545 | 532 | 111.8 |
| B | 4 | 173 | 37768 | 344.21 | 547 | 534 | 108.2 |
| B | 3 | 209 | 24874 | 225.01 | 547 | 534 | 108.2 |
| B | 5 | 65 | 18757 | 168.46 | 547 | 534 | 108.2 |
| C | 14 | 238 | 78635 | 623.57 | 522 | 525 | 125.3 |
| C | 3 | 233 | 43545 | 343.44 | 522 | 525 | 125.3 |
| C | 7 | 247 | 23490 | 183.34 | 522 | 525 | 125.3 |
| D | 2 | 152 | 20777 | 155.02 | 530 | 514 | 130.7 |
| D | 2 | 234 | 19351 | 144.11 | 530 | 514 | 130.7 |
| D | 12 | 221 | 10984 | 80.1 | 530 | 514 | 130.7 |

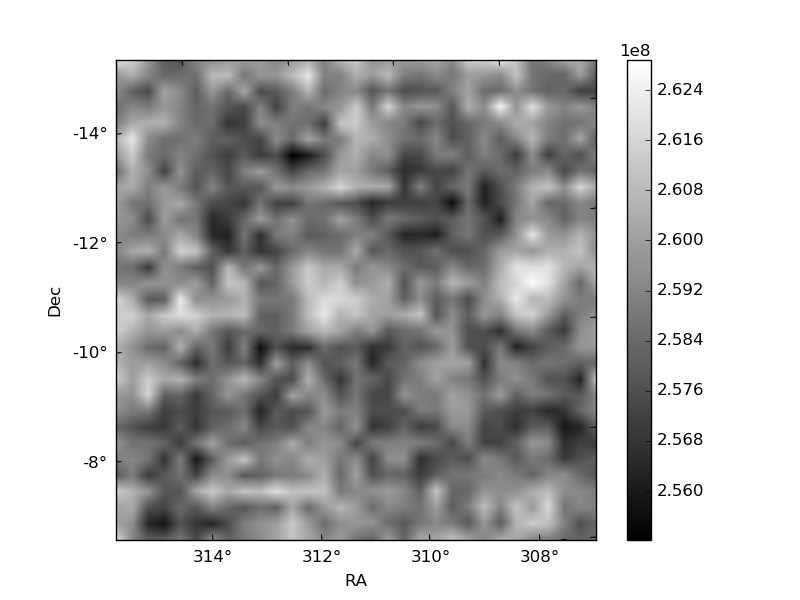

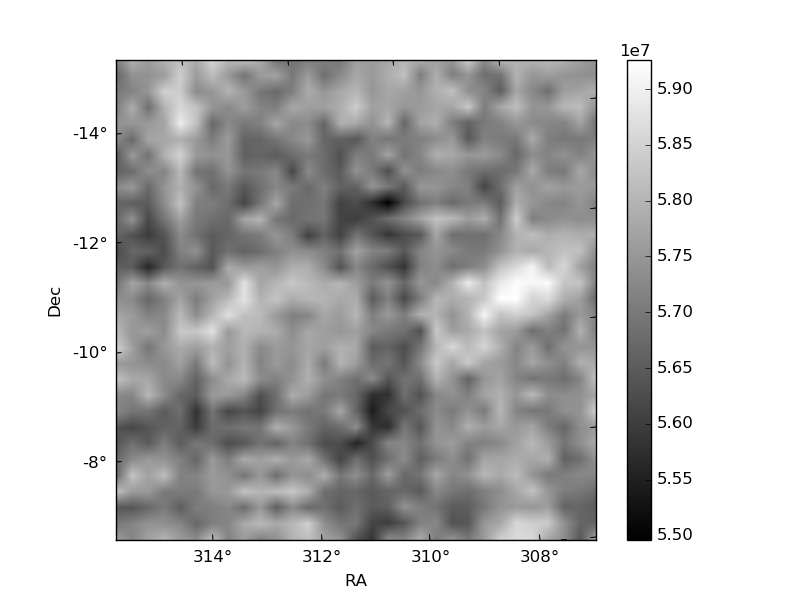

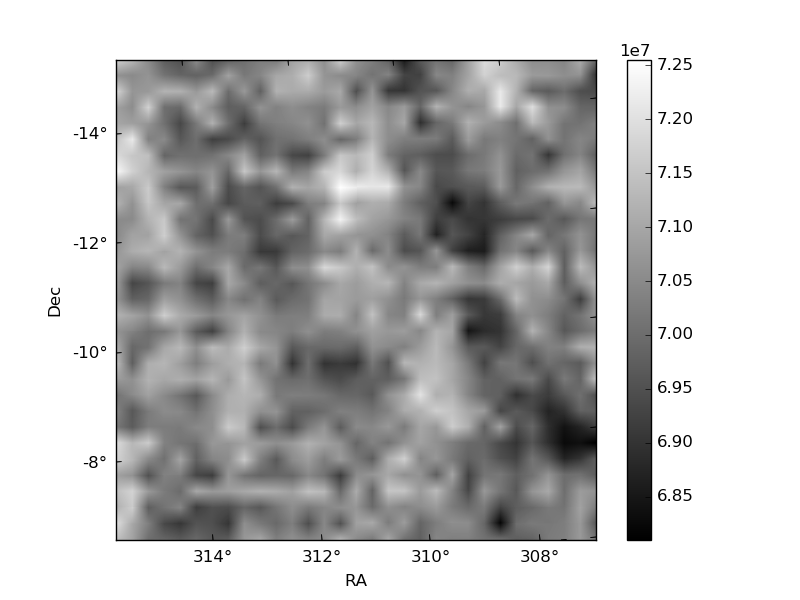

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

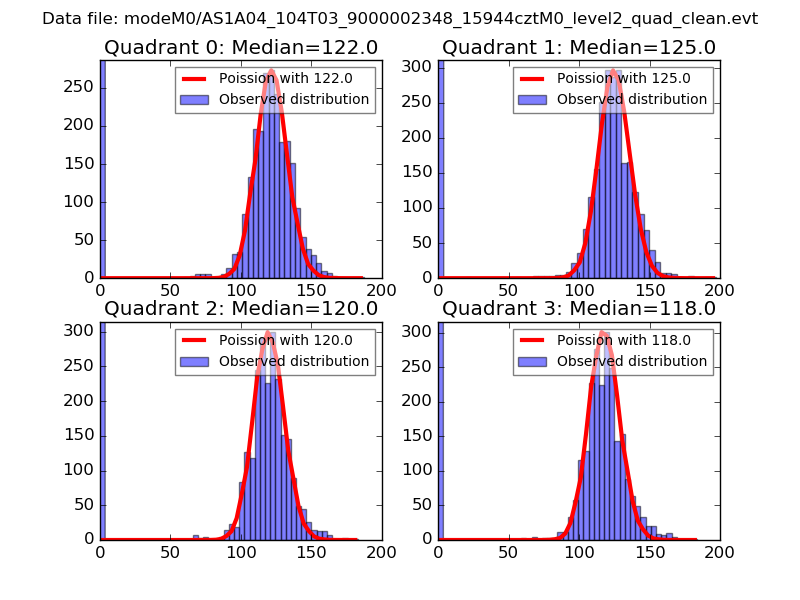

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

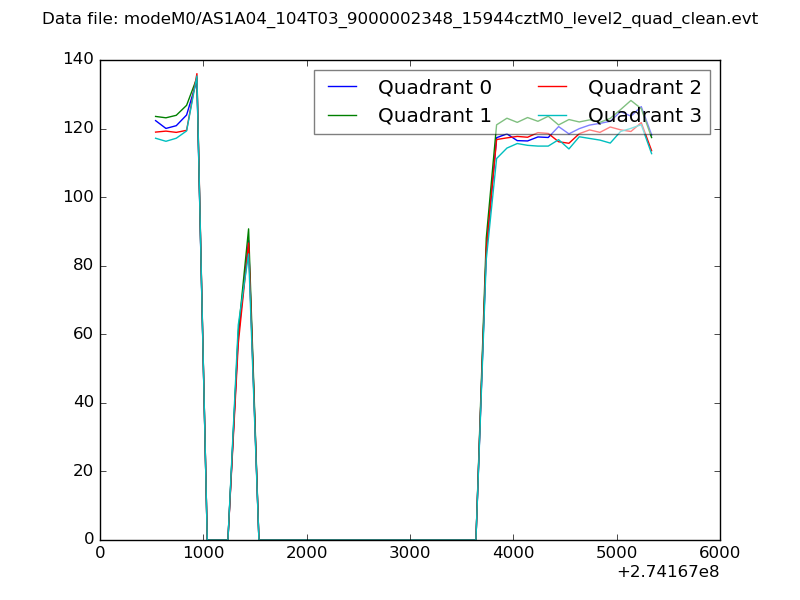

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

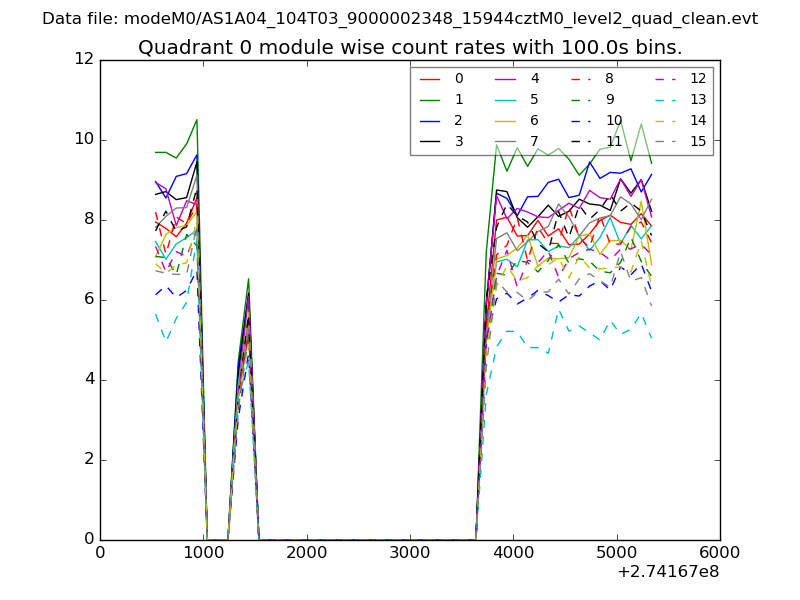

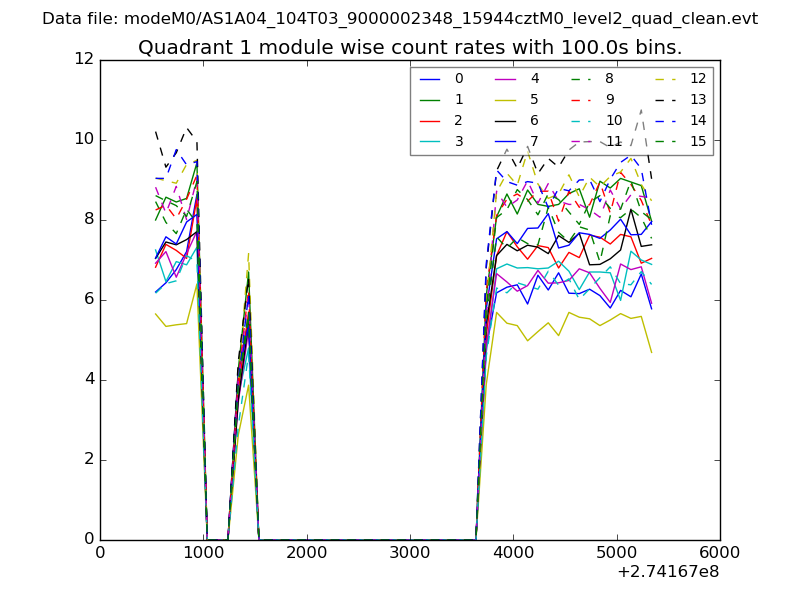

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

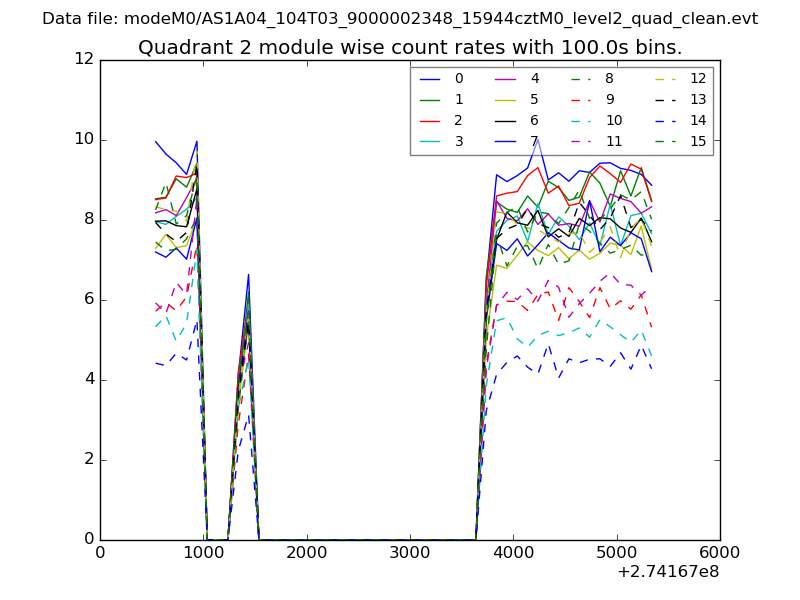

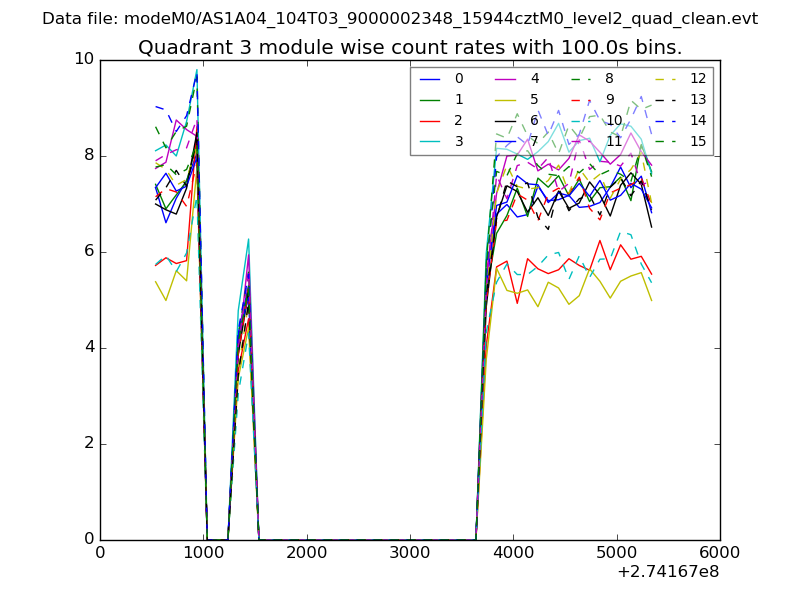

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

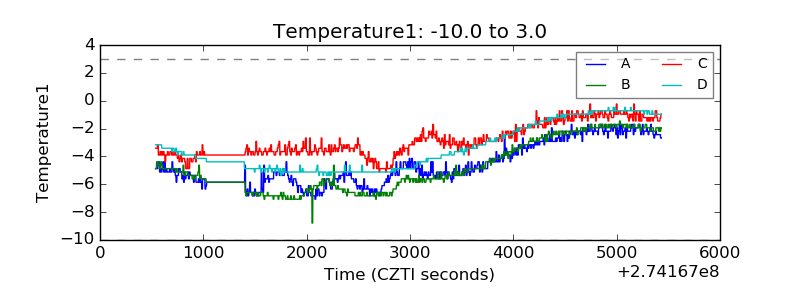

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

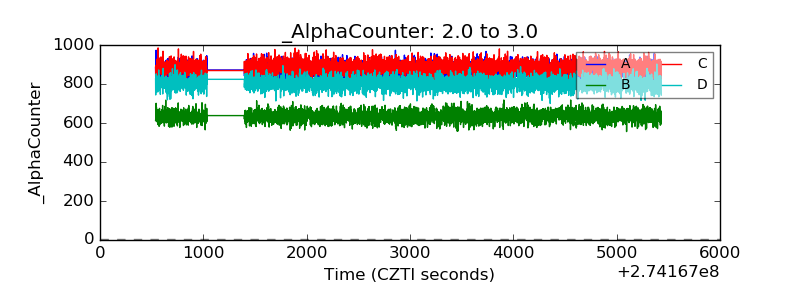

| Alpha Counter |  |

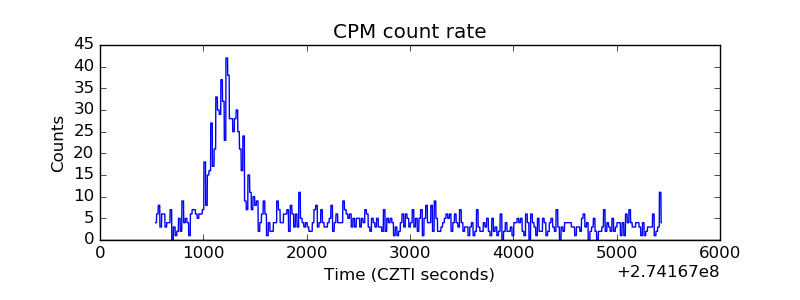

| _CPM_Rate |  |

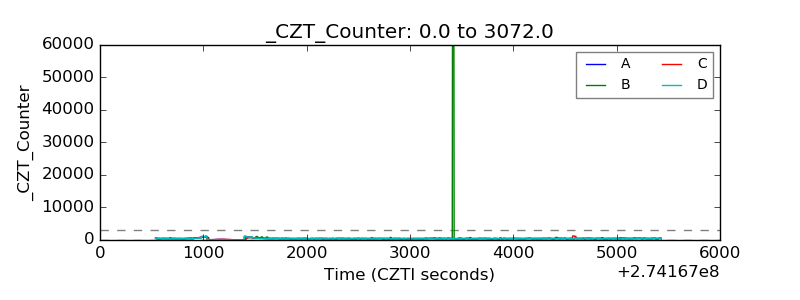

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

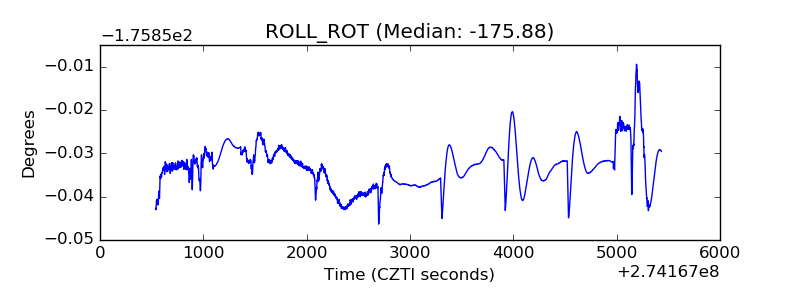

| _ROLL_ROT |  |

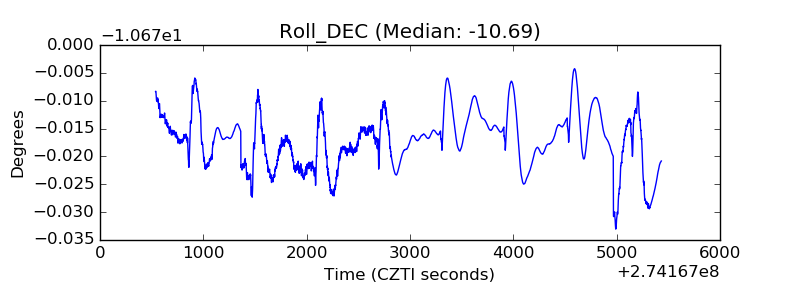

| _Roll_DEC |  |

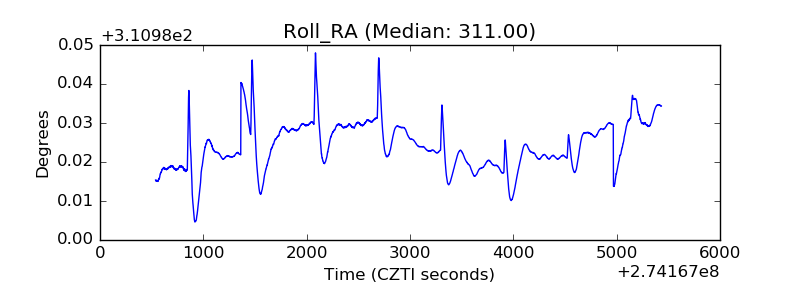

| _Roll_RA |  |

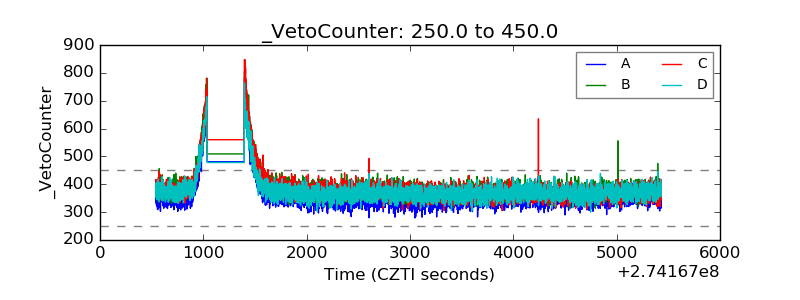

| Veto Counter |  |
