| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_066T02_9000002346_15931cztM0_level2.evt | modeM0/AS1G08_066T02_9000002346_15931cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,883,384,640 | 336,640,320 |
| Size | 1.8 GB | 321.0 MB |
| Events in quadrant A | 14,904,128 | 2,071,425 |
| Events in quadrant B | 13,751,033 | 2,142,798 |
| Events in quadrant C | 13,714,327 | 2,034,010 |
| Events in quadrant D | 12,762,921 | 2,008,184 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 570 | 0 |
| B | 0 | 570 | 0 |
| C | 0 | 570 | 0 |
| D | 0 | 570 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 61695 | 4 |
| B | 0 | 58886 | 4 |
| C | 0 | 58076 | 4 |
| D | 0 | 58118 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 28195 | 594 | 2.106757% |
| B | 28195 | 575 | 2.039369% |
| C | 28195 | 613 | 2.174144% |
| D | 28195 | 432 | 1.532187% |

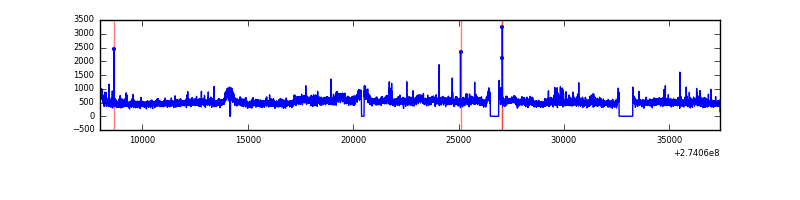

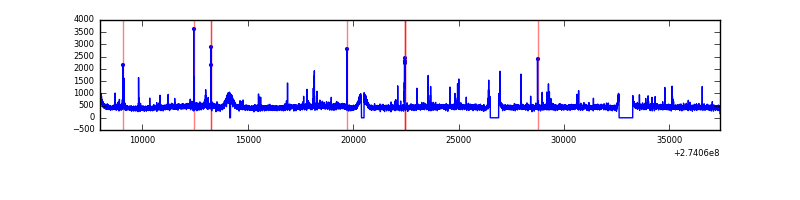

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 29411 | 28197 | 4 | 4 | 0.01% | 0.01% |  |
| B | 29411 | 28198 | 20 | 20 | 0.07% | 0.07% |  |
| C | 29411 | 28198 | 0 | 0 | 0.00% | 0.00% |  |
| D | 29411 | 28197 | 9 | 9 | 0.03% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 1867205 | 2739.09 | 3379 | 3298 | 680.5 |
| A | 0 | 226 | 29787 | 38.93 | 3379 | 3298 | 680.5 |
| A | 12 | 194 | 25193 | 32.17 | 3379 | 3298 | 680.5 |
| B | 0 | 189 | 120064 | 178.85 | 3390 | 3303 | 652.8 |
| B | 4 | 173 | 119094 | 177.36 | 3390 | 3303 | 652.8 |
| B | 12 | 111 | 78037 | 114.47 | 3390 | 3303 | 652.8 |
| C | 14 | 238 | 494016 | 642.74 | 3257 | 3272 | 763.5 |
| C | 3 | 233 | 475555 | 618.56 | 3257 | 3272 | 763.5 |
| C | 7 | 247 | 26263 | 30.11 | 3257 | 3272 | 763.5 |
| D | 2 | 234 | 110396 | 133.07 | 3315 | 3219 | 805.4 |
| D | 13 | 172 | 71199 | 84.41 | 3315 | 3219 | 805.4 |
| D | 2 | 152 | 58692 | 68.88 | 3315 | 3219 | 805.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

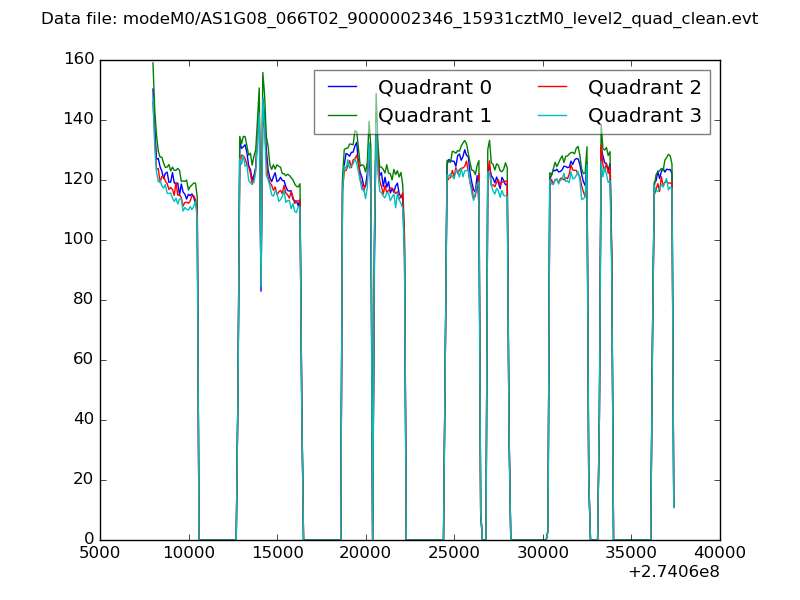

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

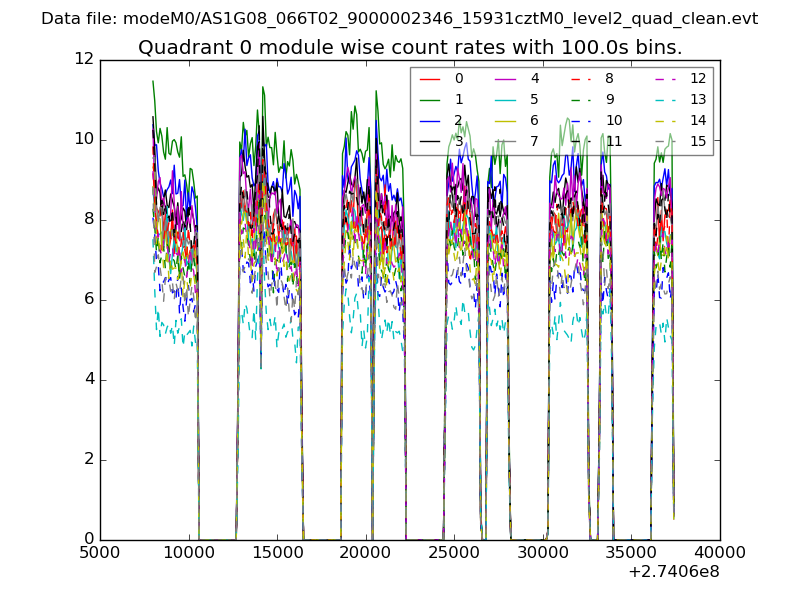

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

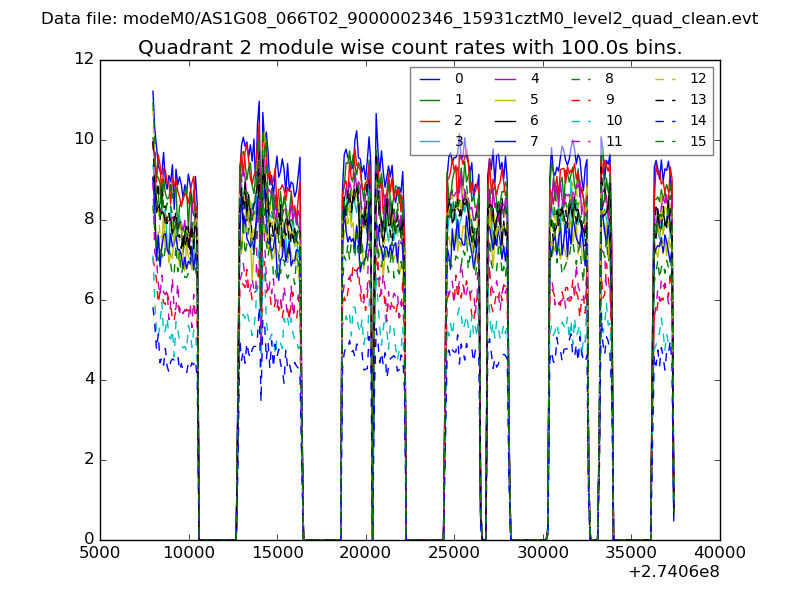

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

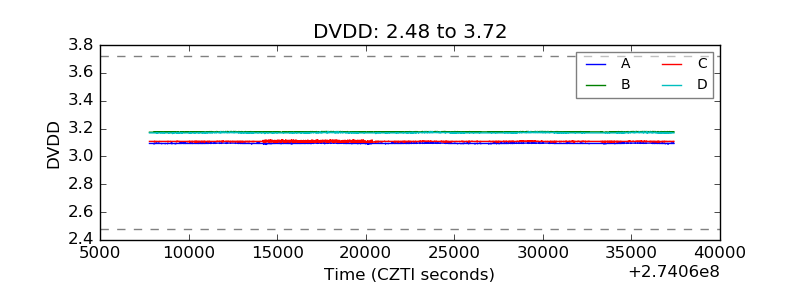

| D_VDD |  |

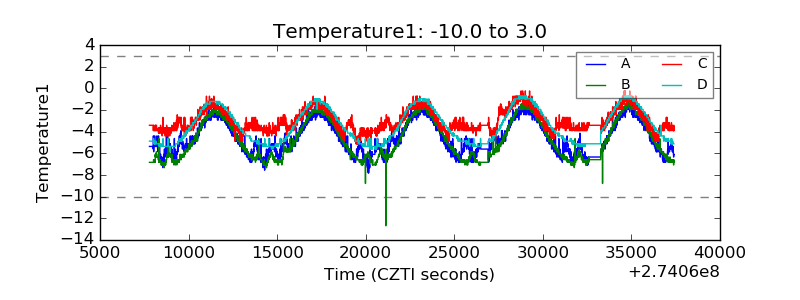

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

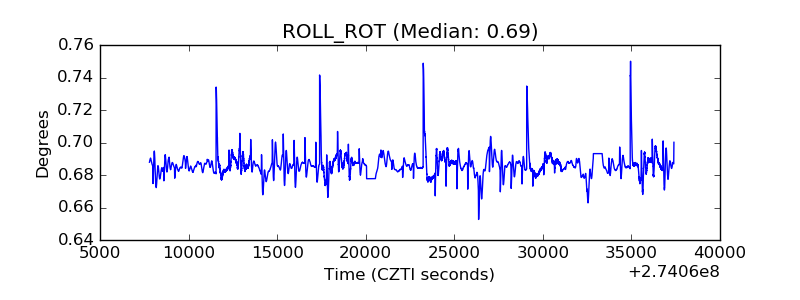

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
