| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_081T01_9000002350_15944cztM0_level2.evt | modeM0/AS1G08_081T01_9000002350_15944cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,275,840 | 96,840,000 |
| Size | 507.6 MB | 92.4 MB |
| Events in quadrant A | 3,868,382 | 596,202 |
| Events in quadrant B | 4,076,645 | 607,118 |
| Events in quadrant C | 3,957,236 | 584,064 |
| Events in quadrant D | 3,661,180 | 576,125 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16851 | 3 |
| B | 0 | 17217 | 2 |
| C | 0 | 16799 | 2 |
| D | 0 | 16722 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8189 | 162 | 1.978264% |
| B | 8189 | 174 | 2.124802% |
| C | 8189 | 172 | 2.100379% |
| D | 8189 | 111 | 1.355477% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9415 | 8190 | 17 | 17 | 0.18% | 0.21% |  |
| B | 9415 | 8190 | 3 | 3 | 0.03% | 0.04% |  |
| C | 9415 | 8191 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9415 | 8190 | 2 | 2 | 0.02% | 0.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 68970 | 341.18 | 986 | 962 | 199.3 |
| A | 0 | 226 | 8780 | 39.22 | 986 | 962 | 199.3 |
| A | 13 | 34 | 7722 | 33.91 | 986 | 962 | 199.3 |
| B | 4 | 173 | 73497 | 379.44 | 992 | 966 | 191.2 |
| B | 4 | 216 | 51728 | 265.55 | 992 | 966 | 191.2 |
| B | 12 | 111 | 23241 | 116.53 | 992 | 966 | 191.2 |
| C | 14 | 238 | 146546 | 654.94 | 951 | 954 | 222.3 |
| C | 3 | 233 | 65834 | 291.86 | 951 | 954 | 222.3 |
| C | 7 | 247 | 29929 | 130.34 | 951 | 954 | 222.3 |
| D | 2 | 234 | 32754 | 135.86 | 961 | 933 | 234.2 |
| D | 2 | 120 | 12128 | 47.8 | 961 | 933 | 234.2 |
| D | 2 | 152 | 10491 | 40.81 | 961 | 933 | 234.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

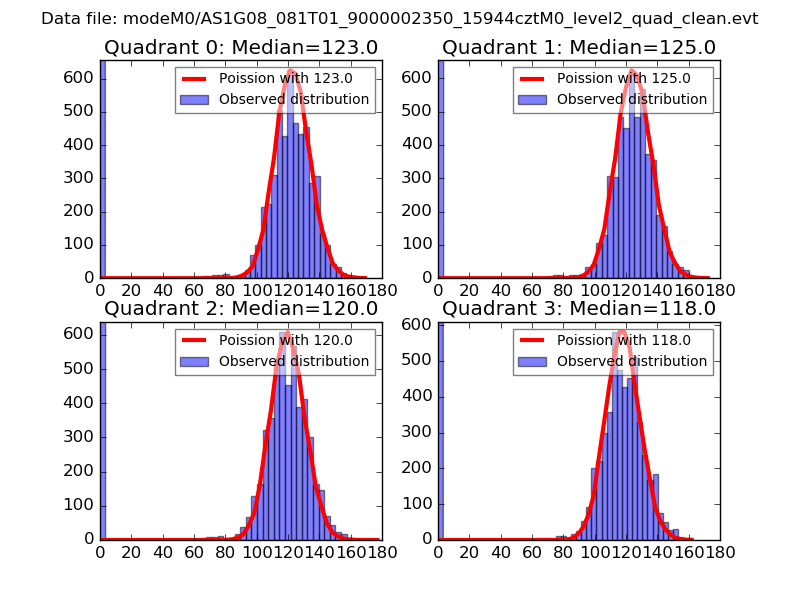

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

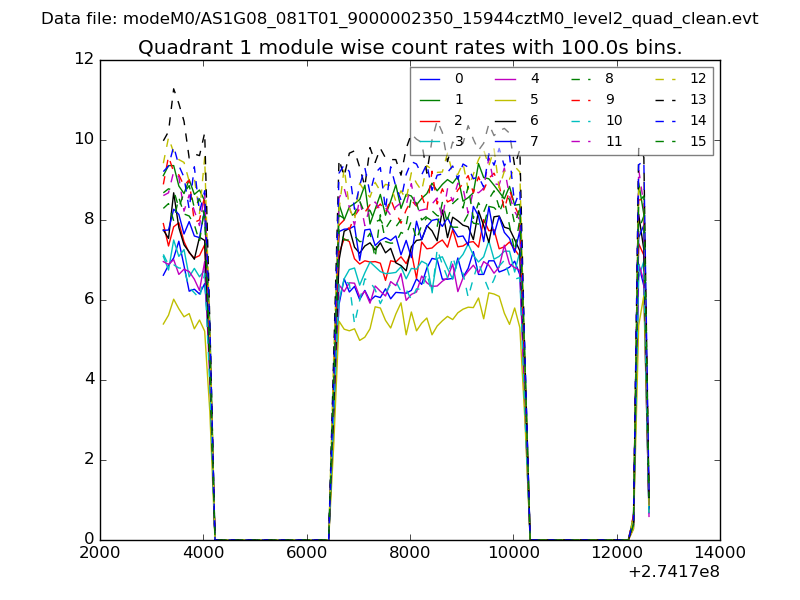

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

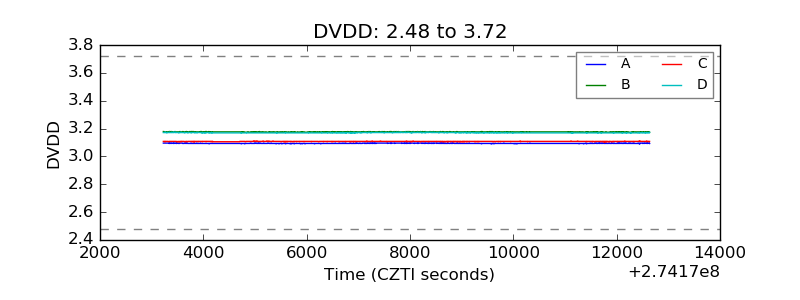

| D_VDD |  |

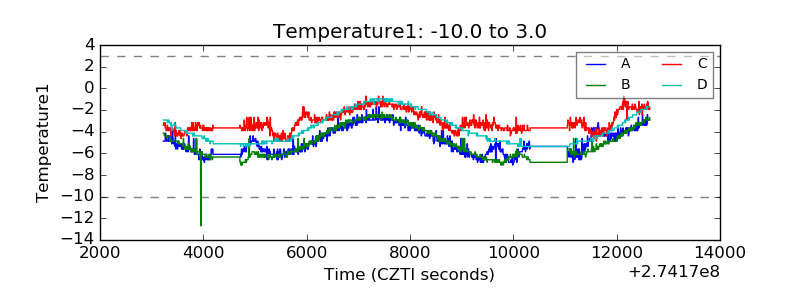

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

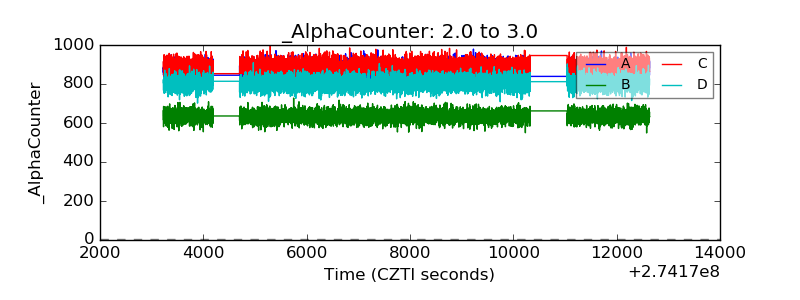

| Alpha Counter |  |
| _CPM_Rate |  |

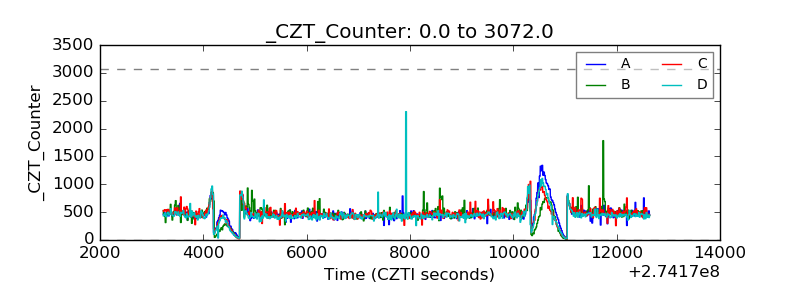

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
