| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_081T01_9000002350_15946cztM0_level2.evt | modeM0/AS1G08_081T01_9000002350_15946cztM0_level2_quad_clean.evt |
| Size (bytes) | 476,827,200 | 93,450,240 |
| Size | 454.7 MB | 89.1 MB |
| Events in quadrant A | 3,423,293 | 598,327 |
| Events in quadrant B | 3,758,205 | 603,514 |
| Events in quadrant C | 3,428,216 | 573,932 |
| Events in quadrant D | 3,354,654 | 566,167 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14796 | 3 |
| B | 0 | 15613 | 2 |
| C | 0 | 14646 | 2 |
| D | 0 | 14747 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7007 | 132 | 1.883830% |
| B | 7007 | 227 | 3.239618% |
| C | 7007 | 155 | 2.212074% |
| D | 7007 | 111 | 1.584130% |

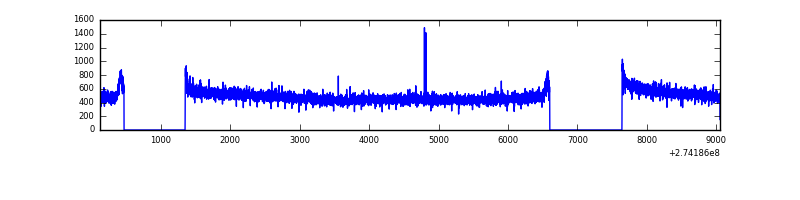

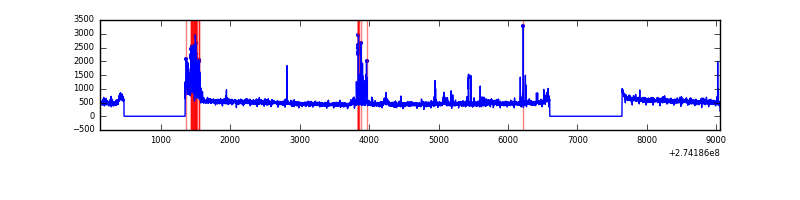

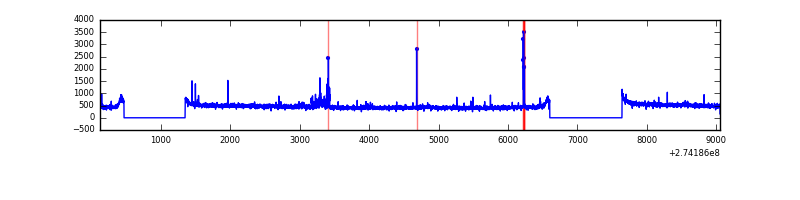

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8928 | 7008 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8928 | 7008 | 40 | 40 | 0.45% | 0.57% |  |
| C | 8928 | 7008 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8928 | 7008 | 8 | 8 | 0.09% | 0.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 23260 | 125.71 | 881 | 861 | 178.2 |
| A | 13 | 210 | 10622 | 54.78 | 881 | 861 | 178.2 |
| A | 0 | 226 | 7971 | 39.9 | 881 | 861 | 178.2 |
| B | 4 | 173 | 207789 | 1238.03 | 869 | 848 | 167.2 |
| B | 10 | 245 | 73290 | 433.39 | 869 | 848 | 167.2 |
| B | 4 | 216 | 24815 | 143.38 | 869 | 848 | 167.2 |
| C | 14 | 238 | 127736 | 650.68 | 839 | 843 | 195.0 |
| C | 3 | 233 | 23916 | 118.31 | 839 | 843 | 195.0 |
| C | 13 | 61 | 5911 | 25.99 | 839 | 843 | 195.0 |
| D | 12 | 110 | 55260 | 262.83 | 855 | 830 | 207.1 |
| D | 2 | 120 | 31680 | 148.97 | 855 | 830 | 207.1 |
| D | 2 | 234 | 27744 | 129.96 | 855 | 830 | 207.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

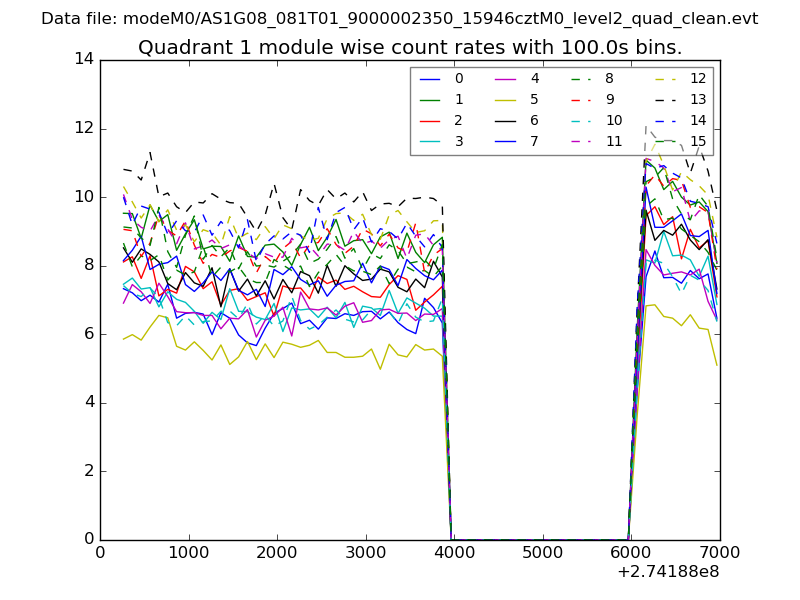

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

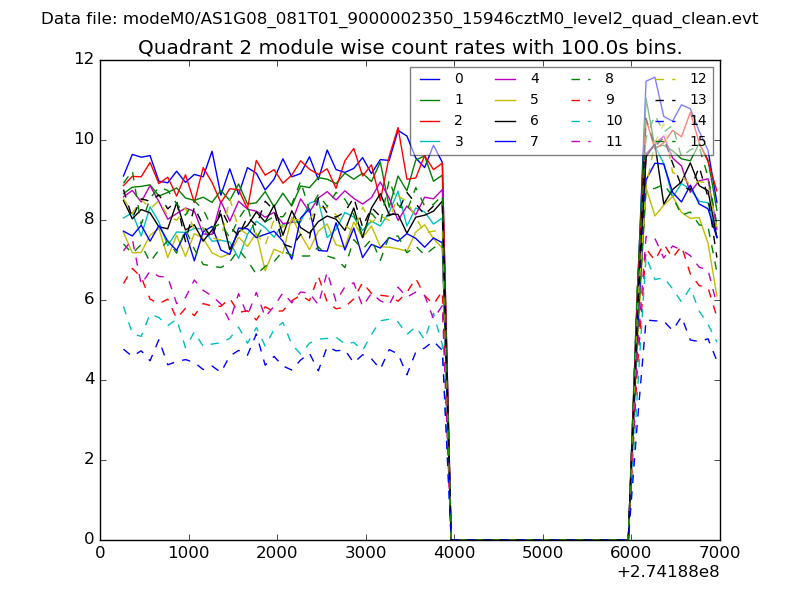

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

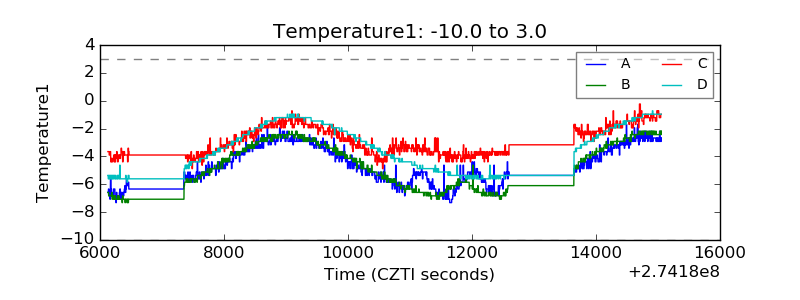

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

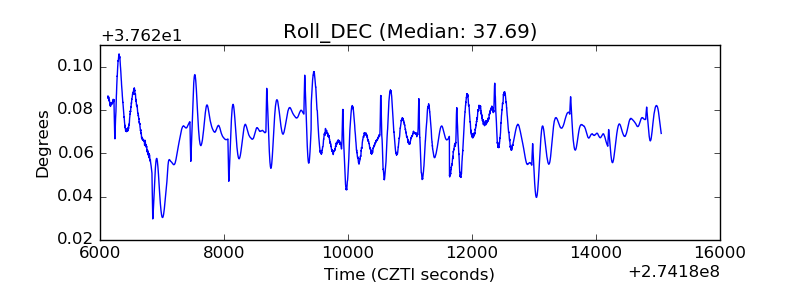

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
