| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_081T01_9000002350_15949cztM0_level2.evt | modeM0/AS1G08_081T01_9000002350_15949cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,356,800 | 113,379,840 |
| Size | 425.7 MB | 108.1 MB |
| Events in quadrant A | 3,388,819 | 764,053 |
| Events in quadrant B | 3,291,928 | 770,459 |
| Events in quadrant C | 3,237,828 | 738,609 |
| Events in quadrant D | 3,174,228 | 724,193 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14232 | 3 |
| B | 0 | 13902 | 2 |
| C | 0 | 13657 | 2 |
| D | 0 | 13683 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6252 | 86 | 1.375560% |
| B | 6252 | 76 | 1.215611% |
| C | 6252 | 84 | 1.343570% |
| D | 6252 | 67 | 1.071657% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7553 | 6254 | 19 | 19 | 0.25% | 0.30% |  |
| B | 7553 | 6253 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7553 | 6254 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7553 | 6253 | 16 | 16 | 0.21% | 0.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 162820 | 990.38 | 825 | 809 | 163.6 |
| A | 13 | 34 | 29285 | 174.08 | 825 | 809 | 163.6 |
| A | 13 | 210 | 25125 | 148.64 | 825 | 809 | 163.6 |
| B | 0 | 189 | 36622 | 234.64 | 819 | 800 | 152.7 |
| B | 4 | 173 | 22843 | 144.39 | 819 | 800 | 152.7 |
| B | 12 | 111 | 16958 | 105.84 | 819 | 800 | 152.7 |
| C | 14 | 238 | 124417 | 677.33 | 794 | 800 | 182.5 |
| C | 0 | 207 | 7329 | 35.77 | 794 | 800 | 182.5 |
| C | 3 | 233 | 7230 | 35.23 | 794 | 800 | 182.5 |
| D | 1 | 52 | 63461 | 318.37 | 807 | 785 | 196.9 |
| D | 2 | 234 | 32648 | 161.85 | 807 | 785 | 196.9 |
| D | 13 | 104 | 18069 | 87.8 | 807 | 785 | 196.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

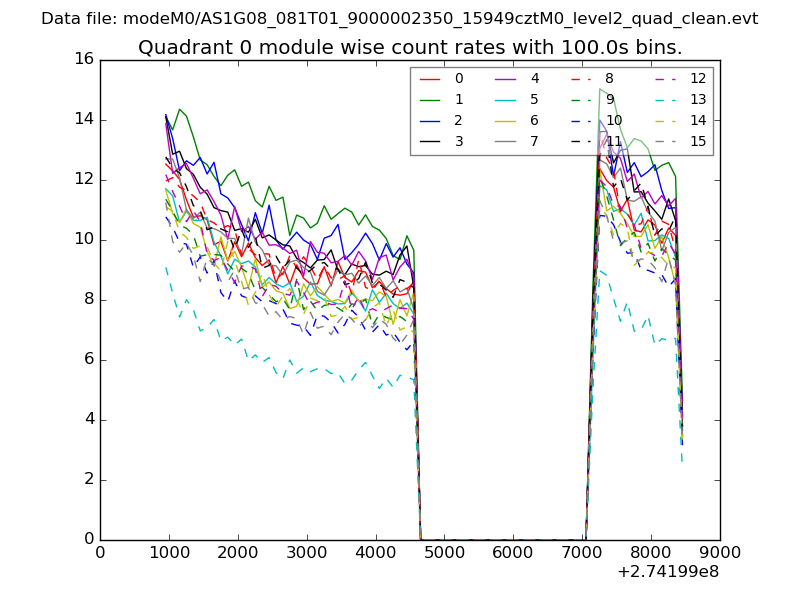

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

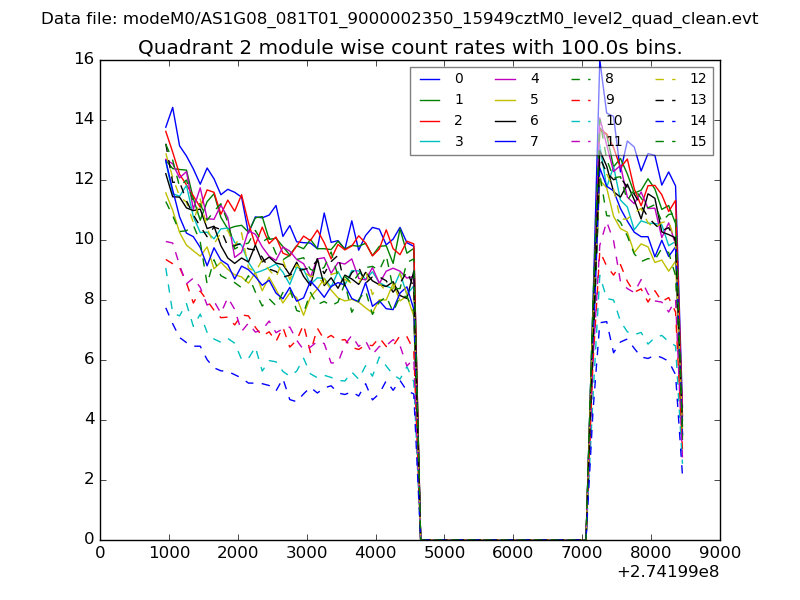

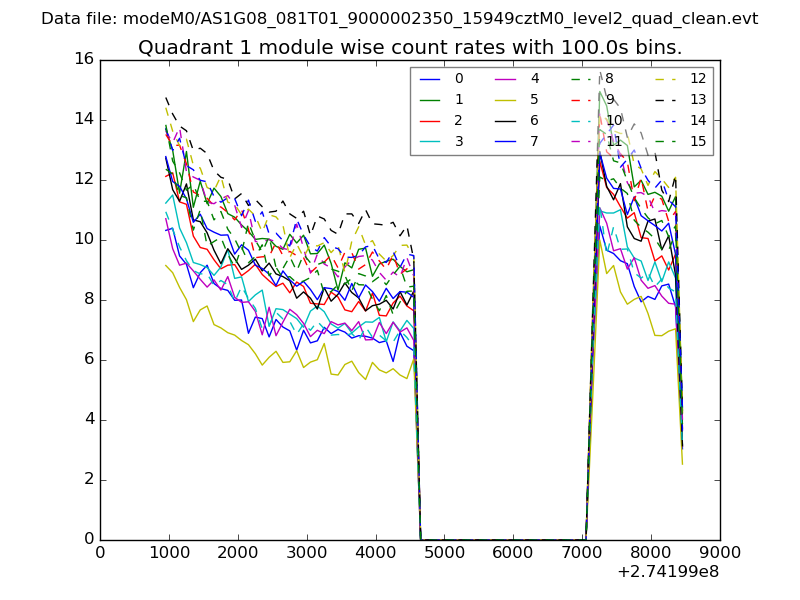

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

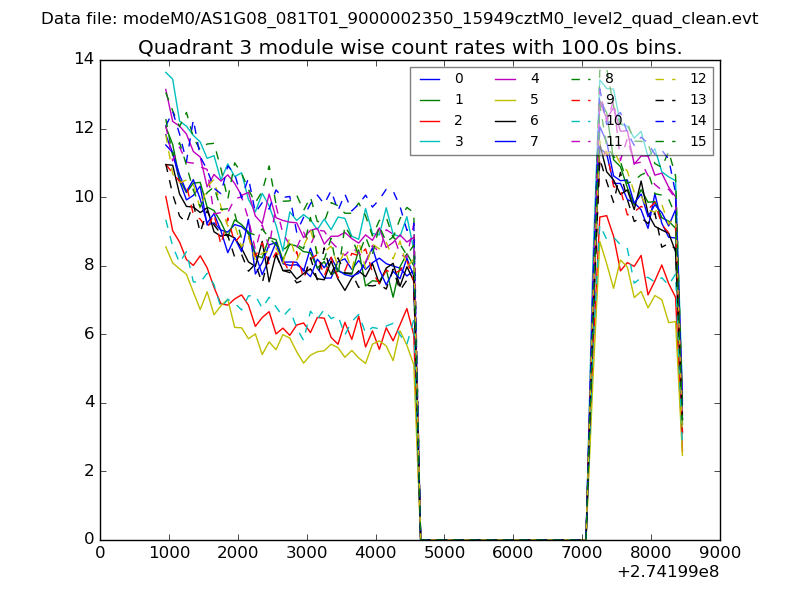

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

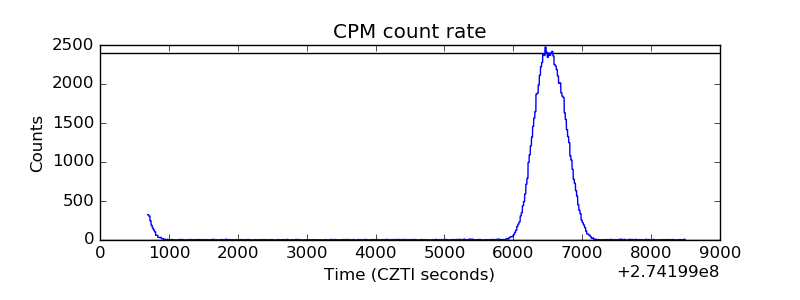

| _CPM_Rate |  |

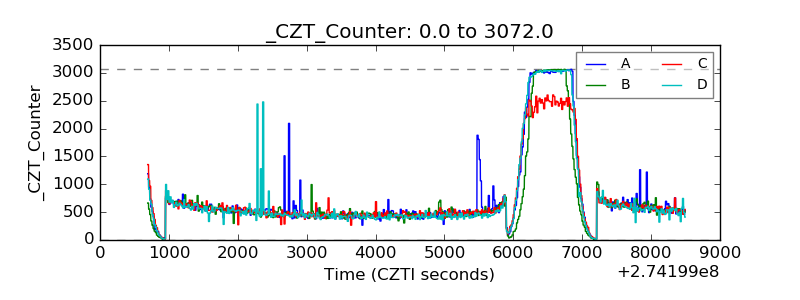

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

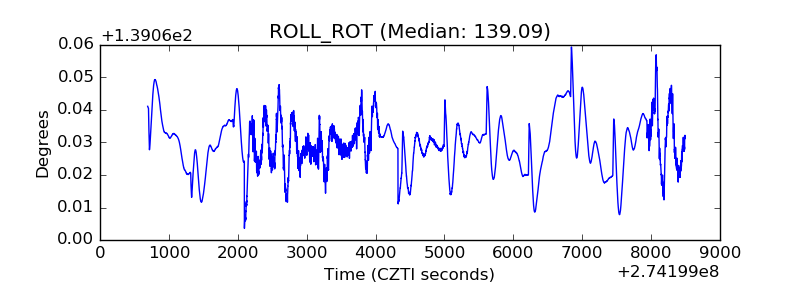

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

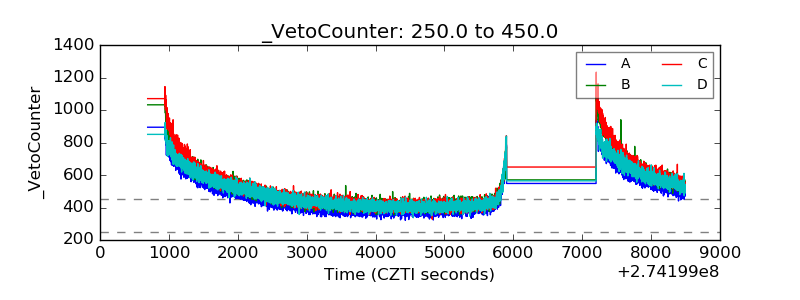

| Veto Counter |  |
