| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_081T01_9000002350_15950cztM0_level2.evt | modeM0/AS1G08_081T01_9000002350_15950cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,138,240 | 108,495,360 |
| Size | 437.9 MB | 103.5 MB |
| Events in quadrant A | 3,252,943 | 726,485 |
| Events in quadrant B | 3,333,283 | 736,955 |
| Events in quadrant C | 3,262,097 | 706,384 |
| Events in quadrant D | 3,635,541 | 683,301 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13684 | 3 |
| B | 0 | 13894 | 2 |
| C | 0 | 13621 | 2 |
| D | 0 | 14964 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6208 | 61 | 0.982603% |
| B | 6208 | 66 | 1.063144% |
| C | 6208 | 84 | 1.353093% |
| D | 6208 | 120 | 1.932990% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7574 | 6210 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7574 | 6210 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7574 | 6210 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7574 | 6210 | 86 | 86 | 1.14% | 1.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 43982 | 263.8 | 825 | 810 | 163.7 |
| A | 13 | 210 | 24258 | 143.28 | 825 | 810 | 163.7 |
| A | 13 | 34 | 12133 | 69.19 | 825 | 810 | 163.7 |
| B | 0 | 189 | 51449 | 331.93 | 821 | 803 | 152.6 |
| B | 4 | 173 | 21724 | 137.12 | 821 | 803 | 152.6 |
| B | 4 | 216 | 18679 | 117.16 | 821 | 803 | 152.6 |
| C | 14 | 238 | 124285 | 671.89 | 799 | 809 | 183.8 |
| C | 3 | 233 | 13324 | 68.1 | 799 | 809 | 183.8 |
| C | 13 | 61 | 5738 | 26.82 | 799 | 809 | 183.8 |
| D | 13 | 104 | 437778 | 2259.75 | 806 | 784 | 193.4 |
| D | 4 | 239 | 49698 | 252.94 | 806 | 784 | 193.4 |
| D | 10 | 70 | 46349 | 235.62 | 806 | 784 | 193.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

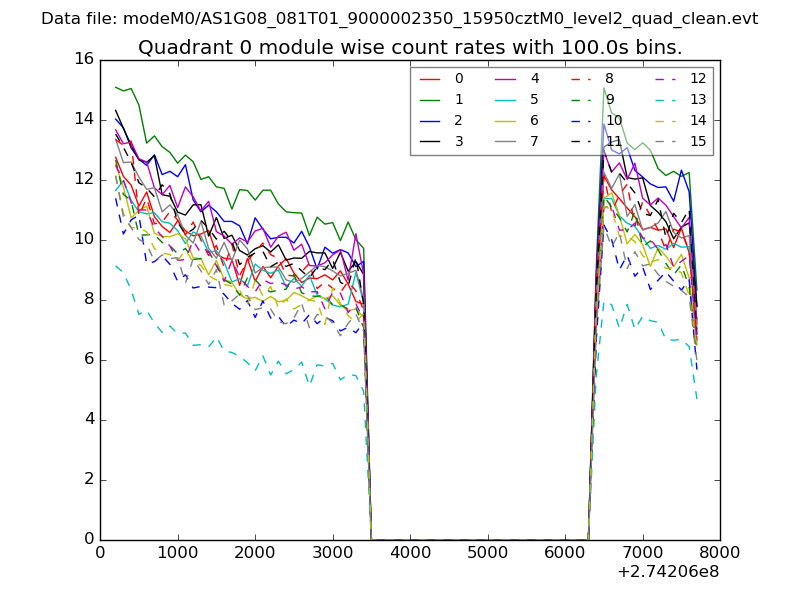

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

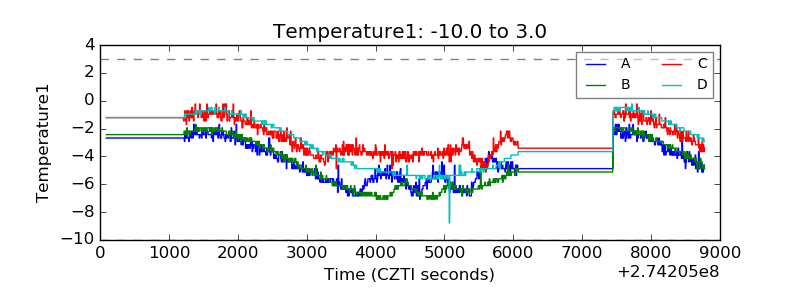

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

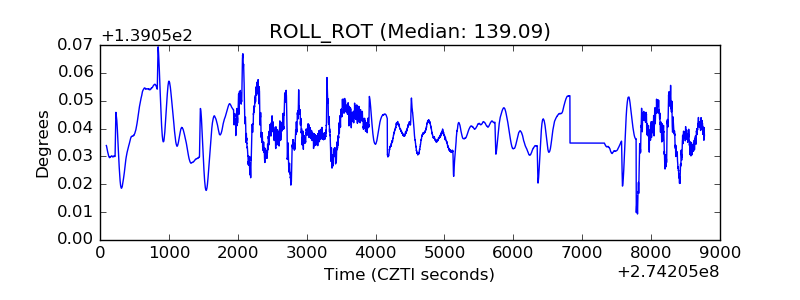

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

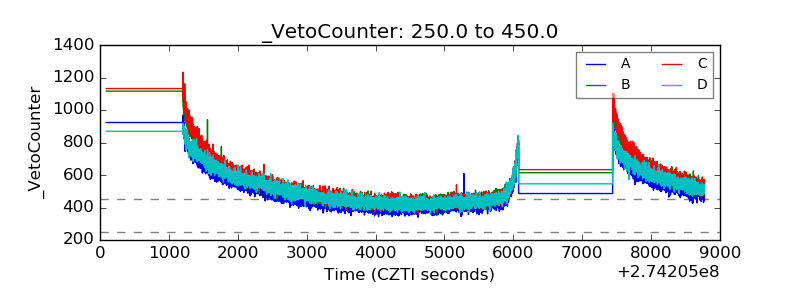

| Veto Counter |  |
