| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_081T01_9000002350_15955cztM0_level2.evt | modeM0/AS1G08_081T01_9000002350_15955cztM0_level2_quad_clean.evt |
| Size (bytes) | 583,594,560 | 113,008,320 |
| Size | 556.6 MB | 107.8 MB |
| Events in quadrant A | 4,553,388 | 714,854 |
| Events in quadrant B | 4,259,565 | 728,189 |
| Events in quadrant C | 4,422,555 | 700,290 |
| Events in quadrant D | 3,871,694 | 698,589 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19153 | 3 |
| B | 0 | 18117 | 2 |
| C | 0 | 18617 | 2 |
| D | 0 | 17568 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8356 | 198 | 2.369555% |
| B | 8356 | 264 | 3.159406% |
| C | 8356 | 316 | 3.781714% |
| D | 8356 | 85 | 1.017233% |

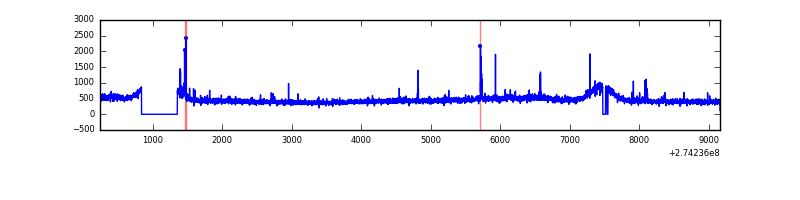

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8927 | 8360 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8927 | 8360 | 10 | 10 | 0.11% | 0.12% |  |
| C | 8927 | 8360 | 36 | 36 | 0.40% | 0.43% |  |
| D | 8927 | 8360 | 3 | 3 | 0.03% | 0.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 210 | 666576 | 3264.02 | 1010 | 986 | 203.9 |
| A | 0 | 226 | 8789 | 38.27 | 1010 | 986 | 203.9 |
| A | 12 | 194 | 7529 | 32.09 | 1010 | 986 | 203.9 |
| B | 5 | 65 | 84653 | 425.31 | 1016 | 986 | 196.7 |
| B | 0 | 189 | 45704 | 227.32 | 1016 | 986 | 196.7 |
| B | 4 | 216 | 41685 | 206.89 | 1016 | 986 | 196.7 |
| C | 9 | 236 | 277067 | 1196.05 | 982 | 988 | 230.8 |
| C | 3 | 233 | 152395 | 655.94 | 982 | 988 | 230.8 |
| C | 14 | 238 | 151113 | 650.38 | 982 | 988 | 230.8 |
| D | 2 | 234 | 40170 | 161.66 | 997 | 967 | 242.5 |
| D | 2 | 152 | 39415 | 158.54 | 997 | 967 | 242.5 |
| D | 10 | 70 | 39027 | 156.94 | 997 | 967 | 242.5 |

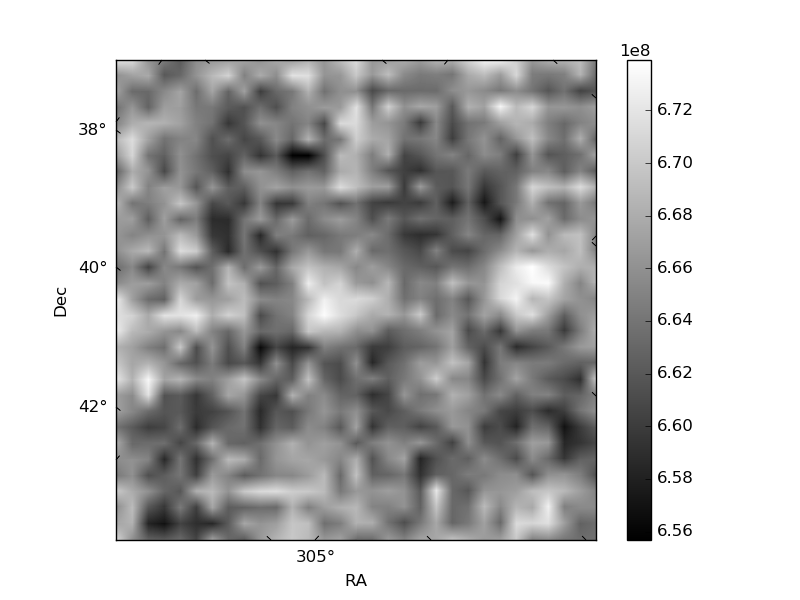

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

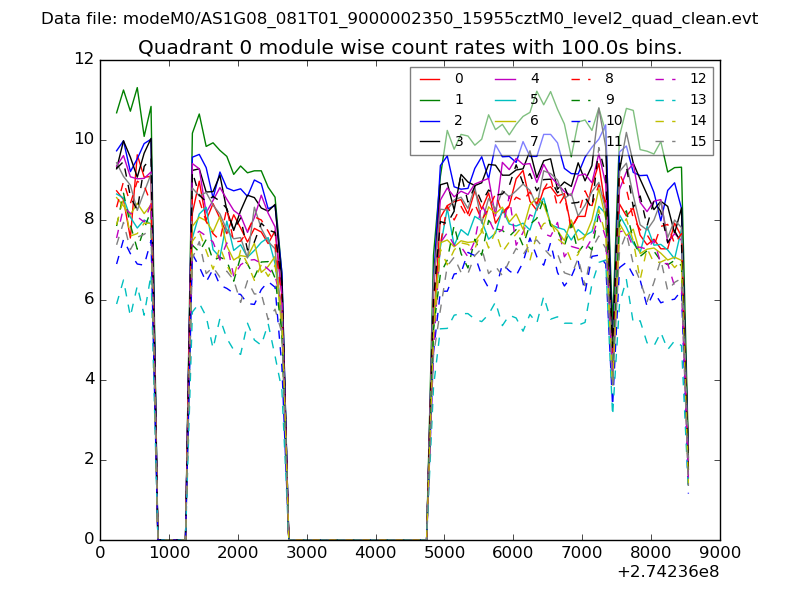

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

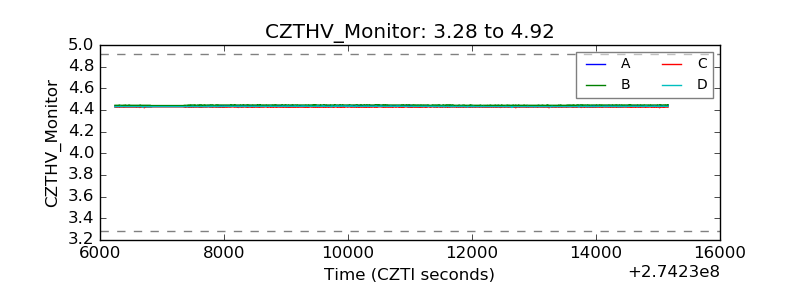

| CZT HV Monitor |  |

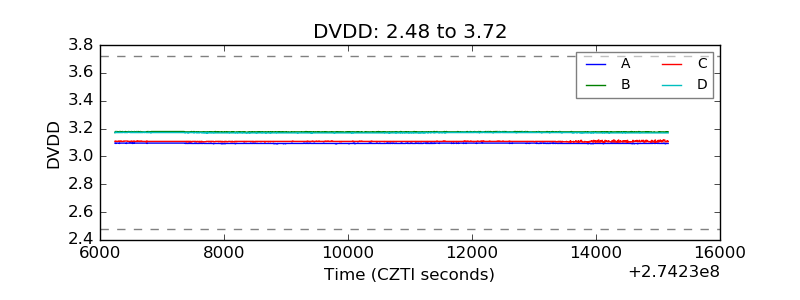

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

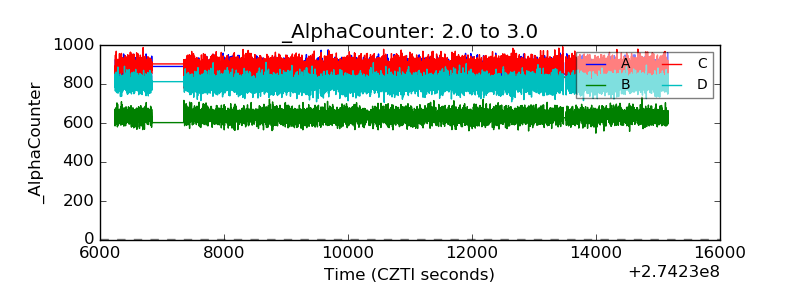

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

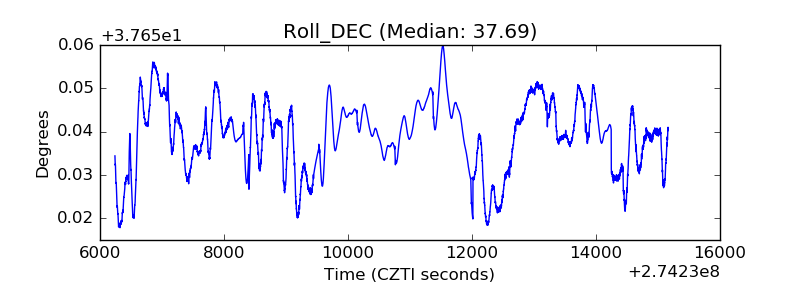

| _Roll_DEC |  |

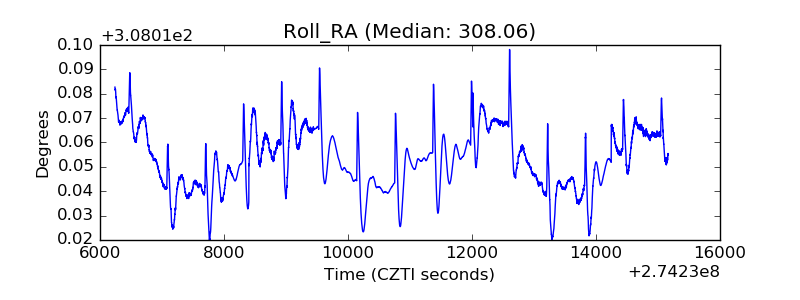

| _Roll_RA |  |
| Veto Counter |  |
