| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_087T01_9000002352_15968cztM0_level2.evt | modeM0/AS1T02_087T01_9000002352_15968cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,353,280 | 94,838,400 |
| Size | 452.4 MB | 90.4 MB |
| Events in quadrant A | 3,423,700 | 609,197 |
| Events in quadrant B | 3,759,755 | 610,572 |
| Events in quadrant C | 3,434,695 | 586,675 |
| Events in quadrant D | 3,265,774 | 571,581 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14849 | 3 |
| B | 0 | 15602 | 2 |
| C | 0 | 14794 | 2 |
| D | 0 | 14761 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7093 | 41 | 0.578035% |
| B | 7093 | 97 | 1.367545% |
| C | 7093 | 79 | 1.113774% |
| D | 7093 | 19 | 0.267870% |

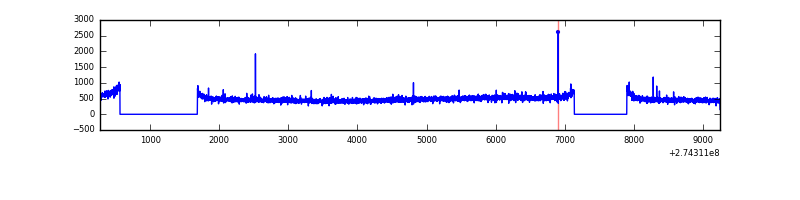

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8974 | 7096 | 3 | 3 | 0.03% | 0.04% |  |
| B | 8974 | 7096 | 17 | 17 | 0.19% | 0.24% |  |
| C | 8974 | 7096 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8974 | 7096 | 4 | 4 | 0.04% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 31281 | 169.57 | 878 | 860 | 179.4 |
| A | 9 | 143 | 15924 | 83.97 | 878 | 860 | 179.4 |
| A | 0 | 226 | 7844 | 38.93 | 878 | 860 | 179.4 |
| B | 0 | 229 | 92789 | 540.26 | 878 | 855 | 170.2 |
| B | 15 | 222 | 56172 | 325.07 | 878 | 855 | 170.2 |
| B | 0 | 189 | 39452 | 226.82 | 878 | 855 | 170.2 |
| C | 14 | 238 | 127743 | 640.52 | 839 | 844 | 198.1 |
| C | 3 | 233 | 13761 | 65.2 | 839 | 844 | 198.1 |
| C | 7 | 247 | 11384 | 53.2 | 839 | 844 | 198.1 |
| D | 2 | 234 | 26171 | 121.62 | 845 | 819 | 208.5 |
| D | 15 | 145 | 18424 | 84.46 | 845 | 819 | 208.5 |
| D | 5 | 51 | 16533 | 75.38 | 845 | 819 | 208.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

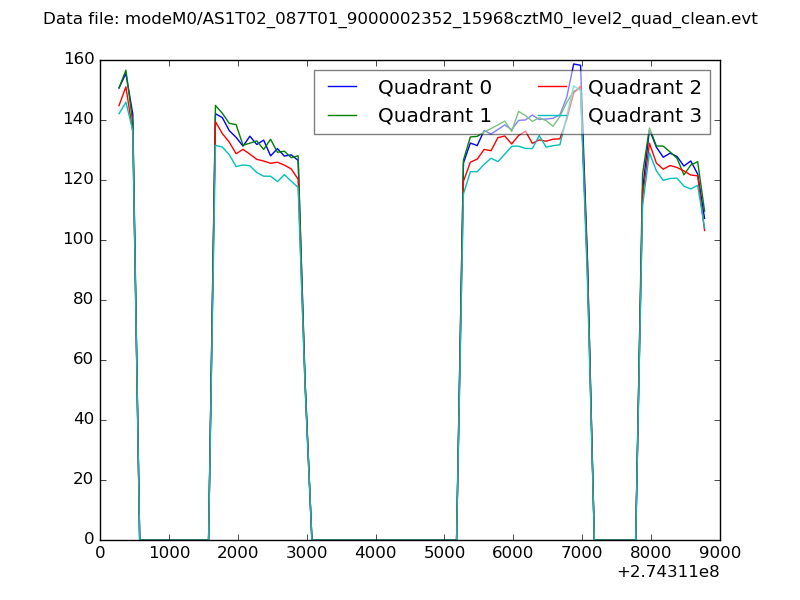

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

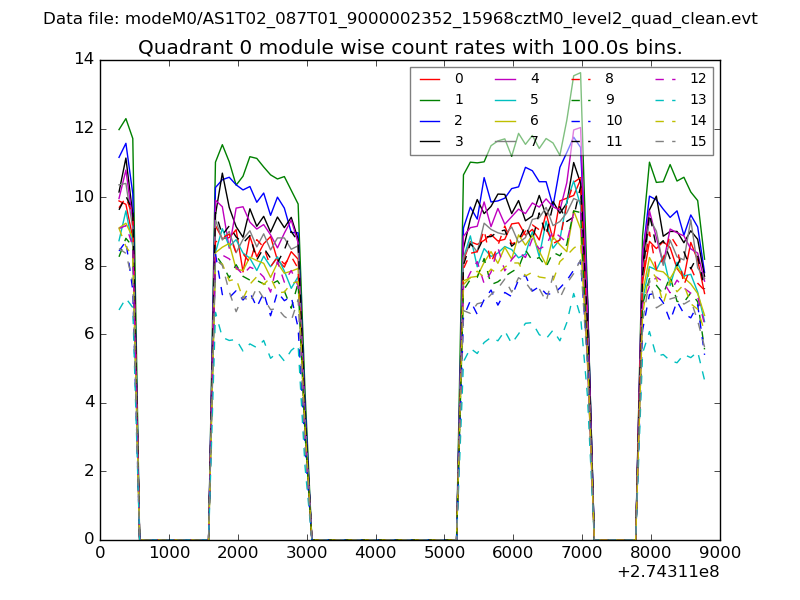

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

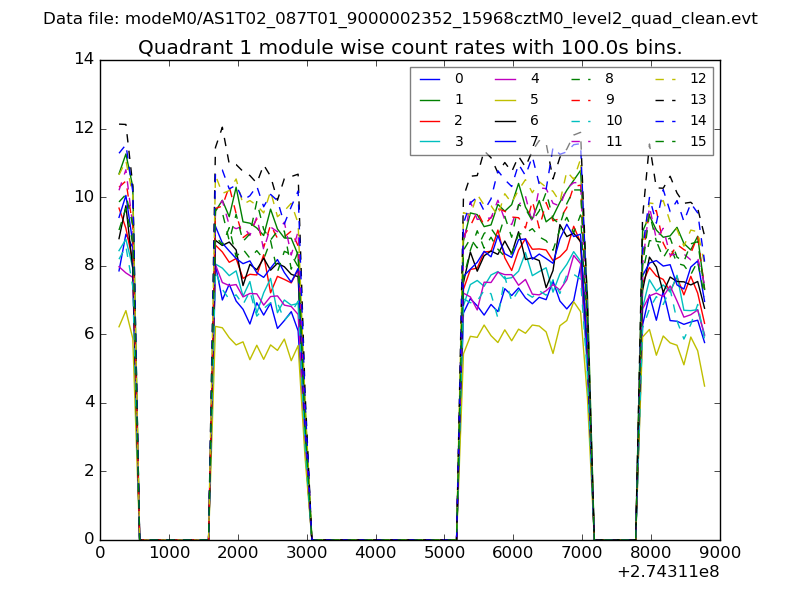

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

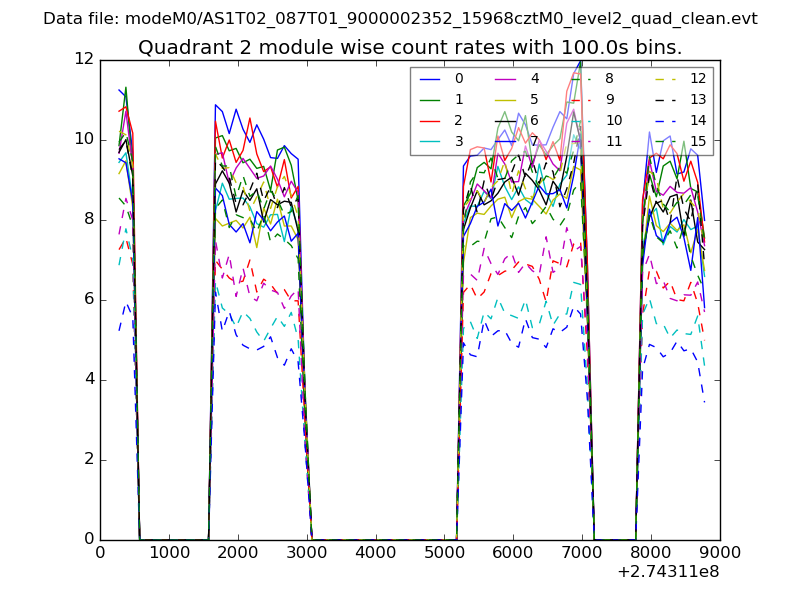

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

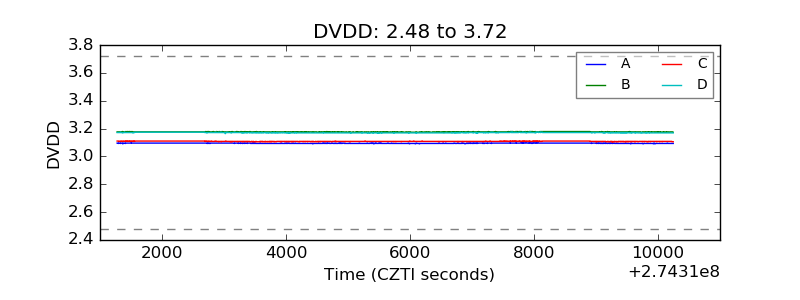

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

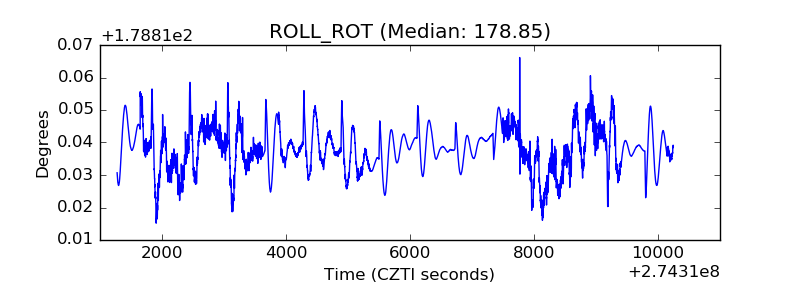

| _ROLL_ROT |  |

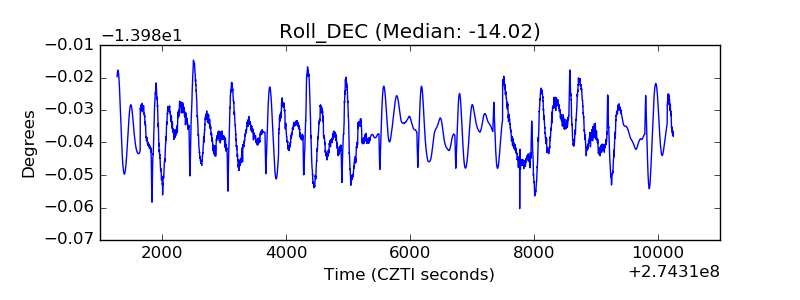

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
