| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_087T01_9000002352_15969cztM0_level2.evt | modeM0/AS1T02_087T01_9000002352_15969cztM0_level2_quad_clean.evt |
| Size (bytes) | 569,194,560 | 108,446,400 |
| Size | 542.8 MB | 103.4 MB |
| Events in quadrant A | 4,400,476 | 694,580 |
| Events in quadrant B | 4,245,866 | 688,993 |
| Events in quadrant C | 3,976,964 | 667,972 |
| Events in quadrant D | 4,057,710 | 662,411 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18471 | 3 |
| B | 0 | 17824 | 2 |
| C | 0 | 17056 | 2 |
| D | 0 | 17878 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8208 | 189 | 2.302632% |
| B | 8208 | 116 | 1.413255% |
| C | 8208 | 103 | 1.254873% |
| D | 8208 | 38 | 0.462963% |

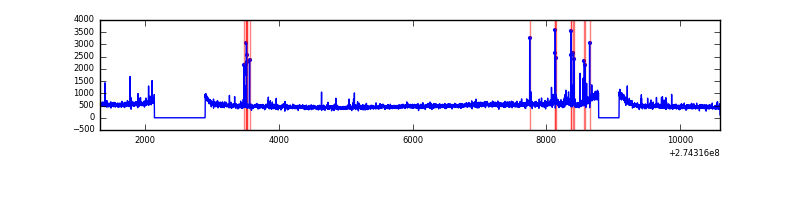

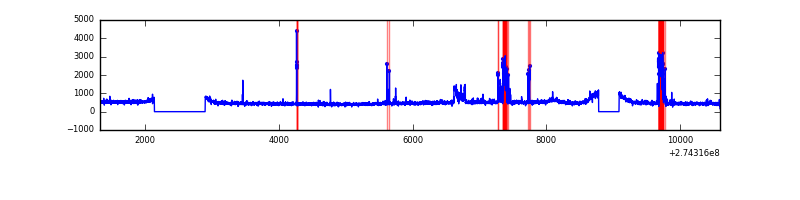

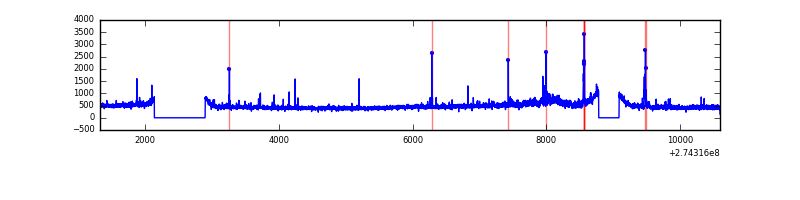

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9274 | 8211 | 99 | 99 | 1.07% | 1.21% |  |
| B | 9274 | 8211 | 17 | 17 | 0.18% | 0.21% |  |
| C | 9274 | 8211 | 1 | 1 | 0.01% | 0.01% |  |
| D | 9274 | 8211 | 10 | 10 | 0.11% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 424256 | 2036.47 | 1015 | 993 | 207.8 |
| A | 13 | 248 | 32755 | 152.82 | 1015 | 993 | 207.8 |
| A | 13 | 210 | 25148 | 116.22 | 1015 | 993 | 207.8 |
| B | 7 | 220 | 61520 | 306.19 | 1017 | 989 | 197.7 |
| B | 0 | 189 | 36553 | 179.9 | 1017 | 989 | 197.7 |
| B | 0 | 219 | 33629 | 165.11 | 1017 | 989 | 197.7 |
| C | 14 | 238 | 146473 | 633.22 | 970 | 975 | 229.8 |
| C | 7 | 247 | 21545 | 89.52 | 970 | 975 | 229.8 |
| C | 3 | 233 | 16561 | 67.83 | 970 | 975 | 229.8 |
| D | 12 | 110 | 180063 | 738.02 | 985 | 956 | 242.7 |
| D | 2 | 234 | 34538 | 138.38 | 985 | 956 | 242.7 |
| D | 7 | 223 | 34373 | 137.7 | 985 | 956 | 242.7 |

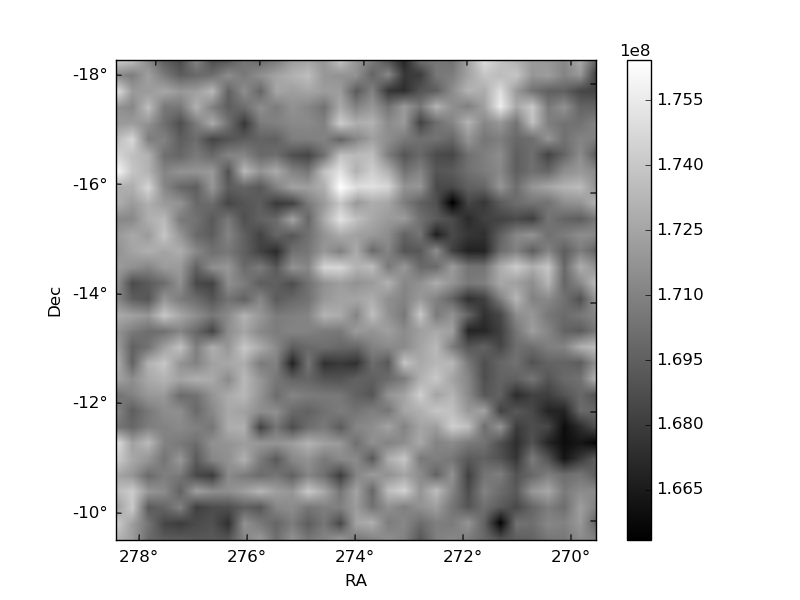

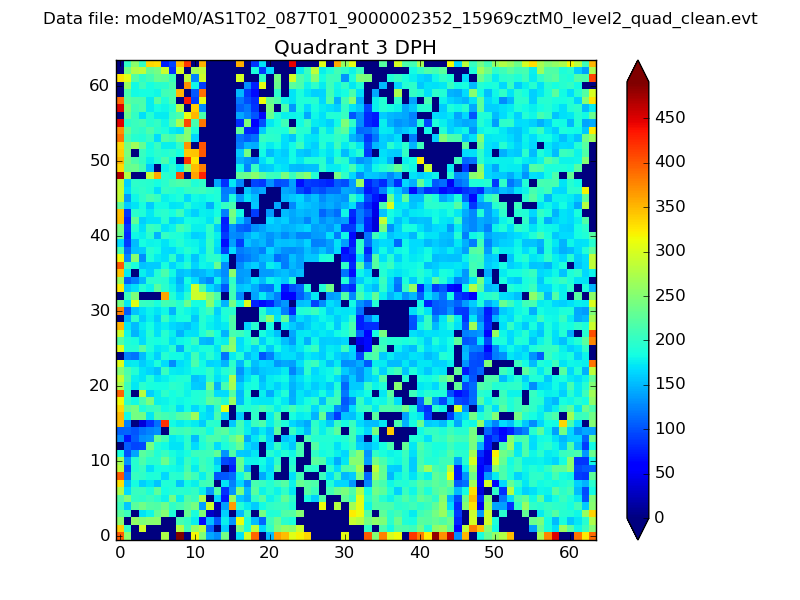

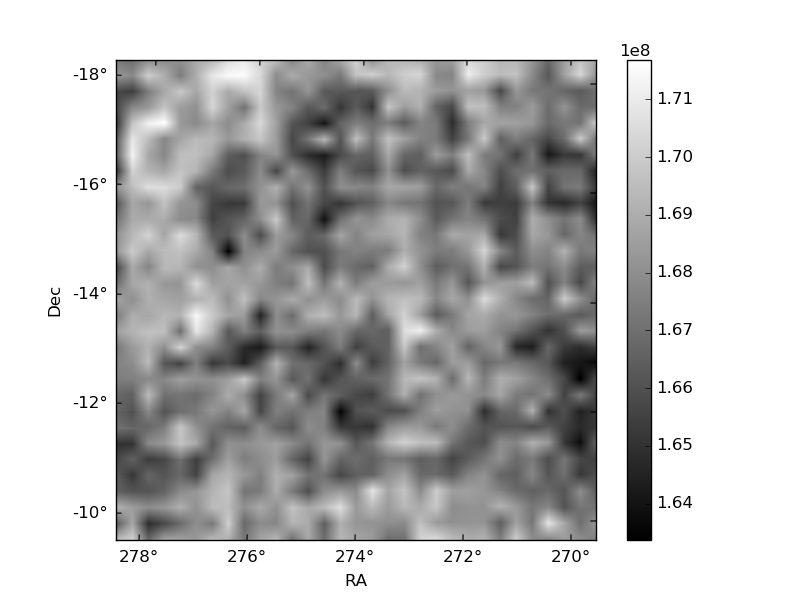

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

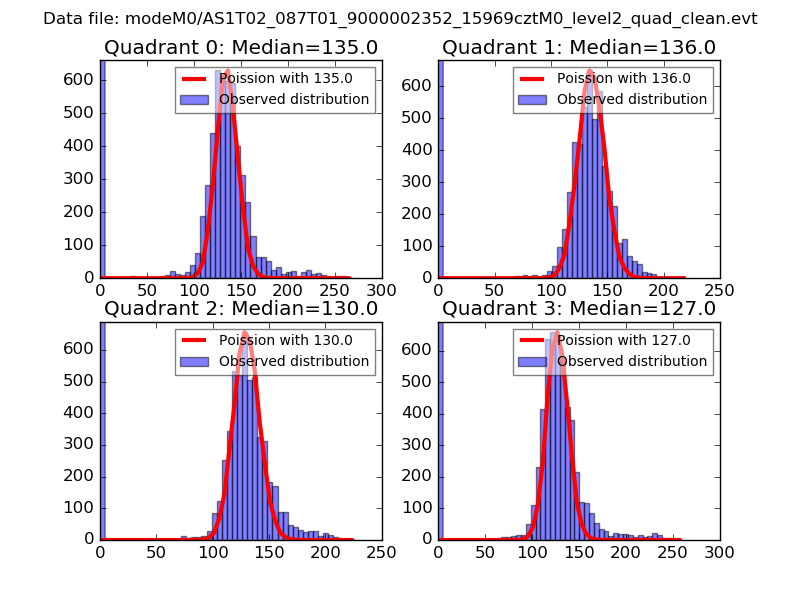

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

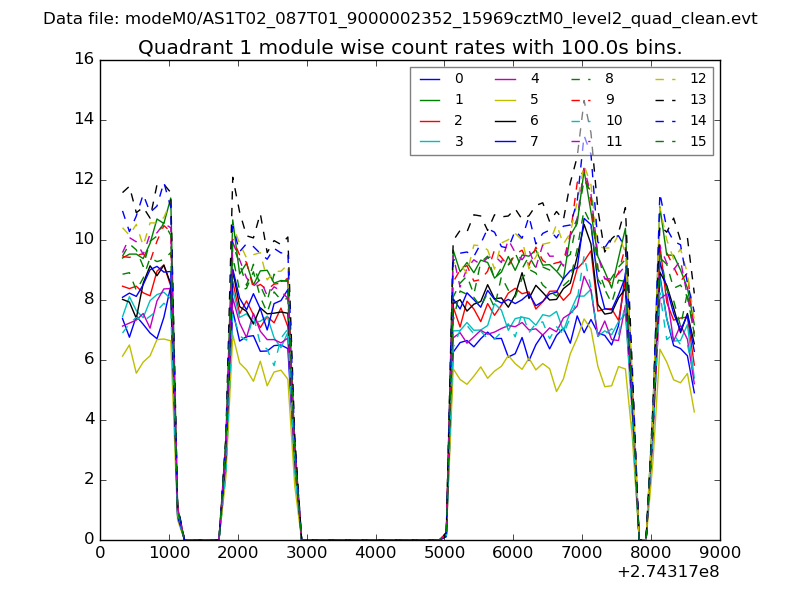

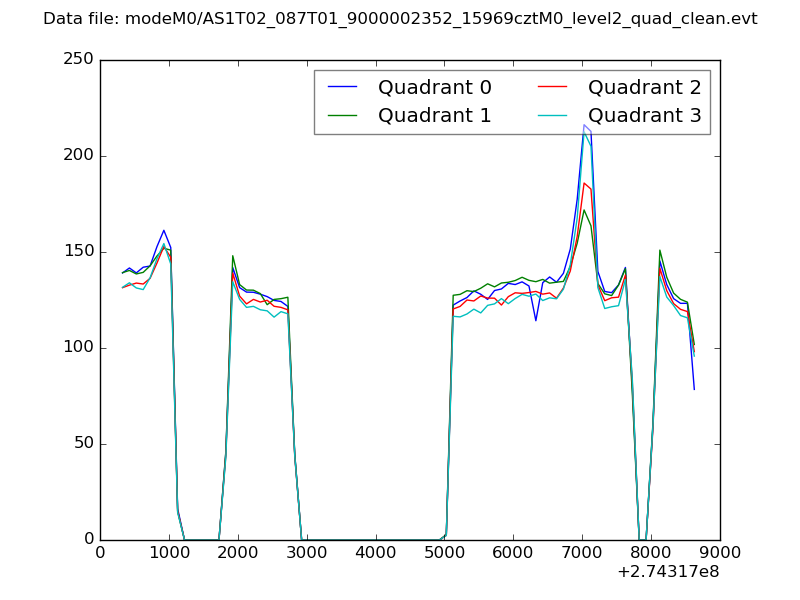

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

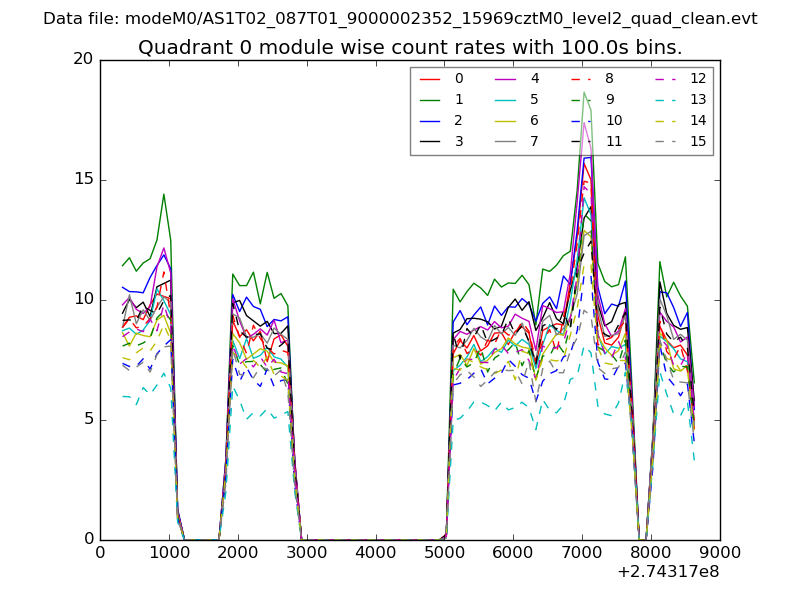

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

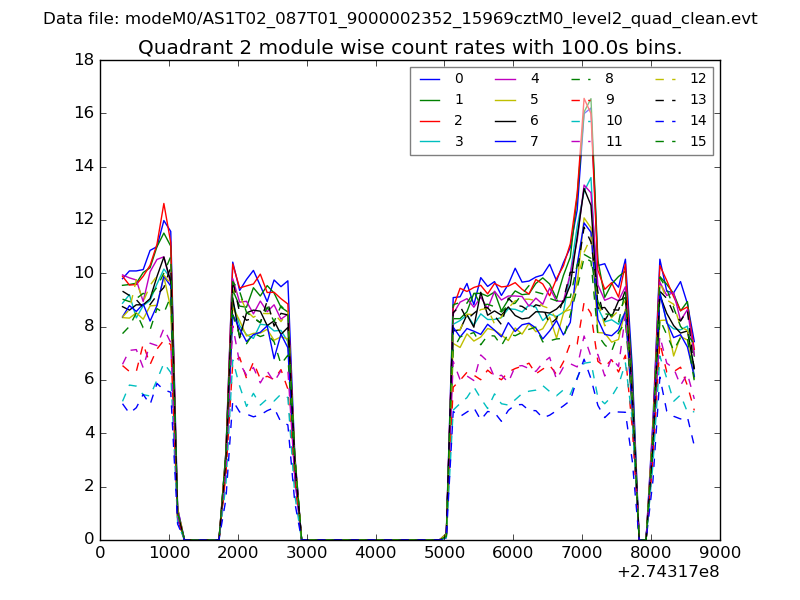

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

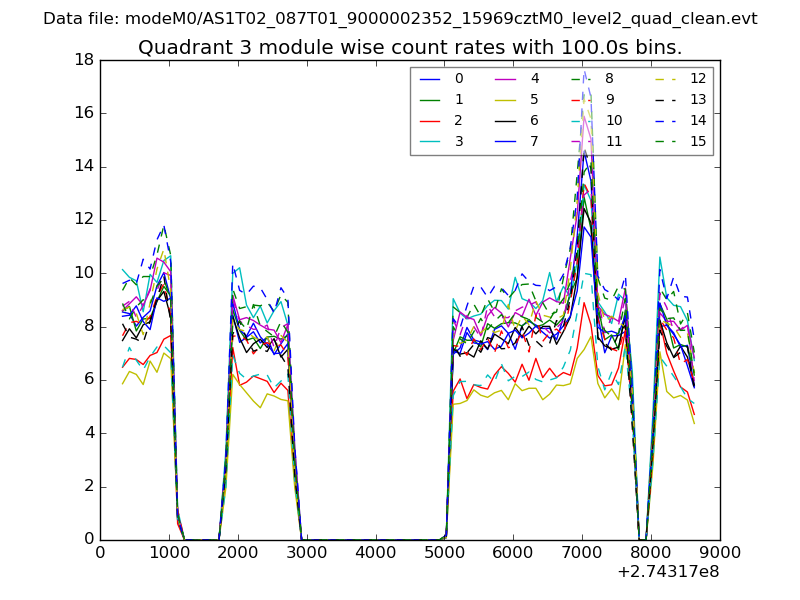

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

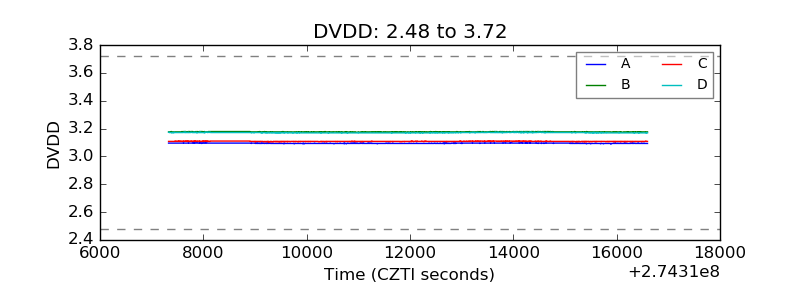

| D_VDD |  |

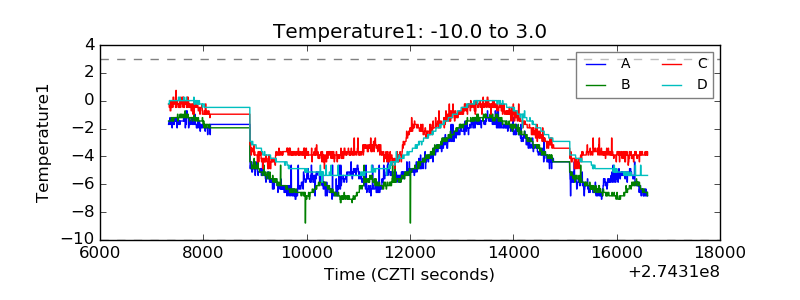

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

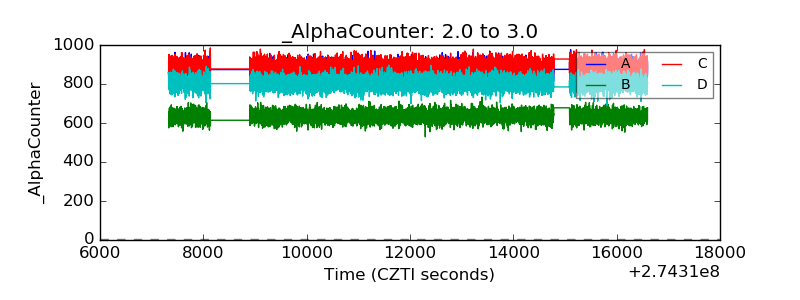

| Alpha Counter |  |

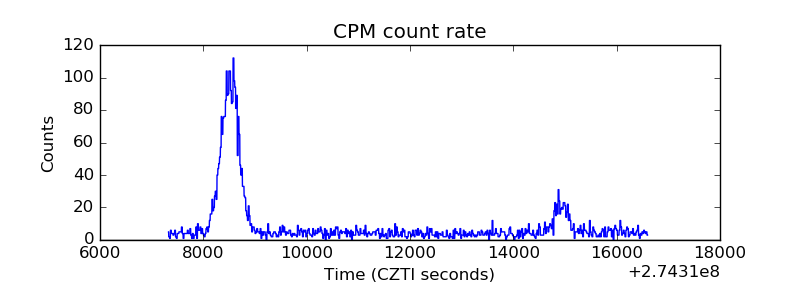

| _CPM_Rate |  |

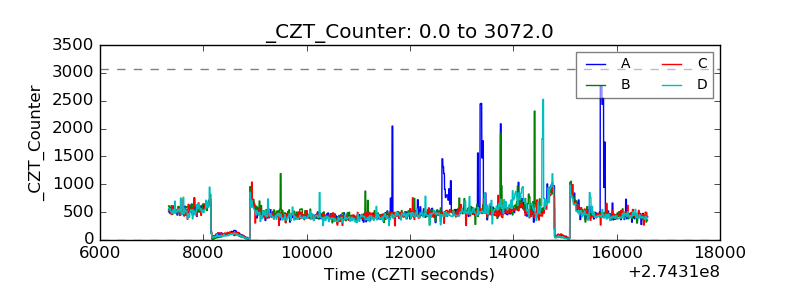

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

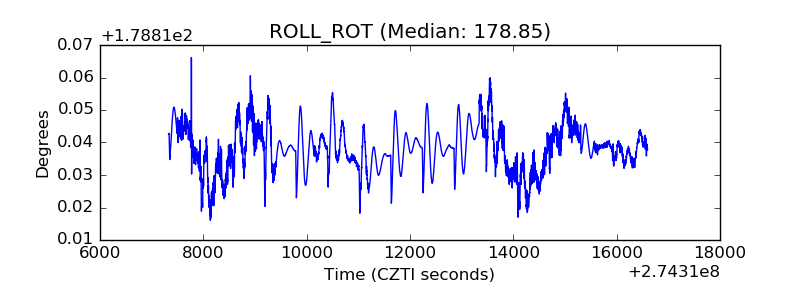

| _ROLL_ROT |  |

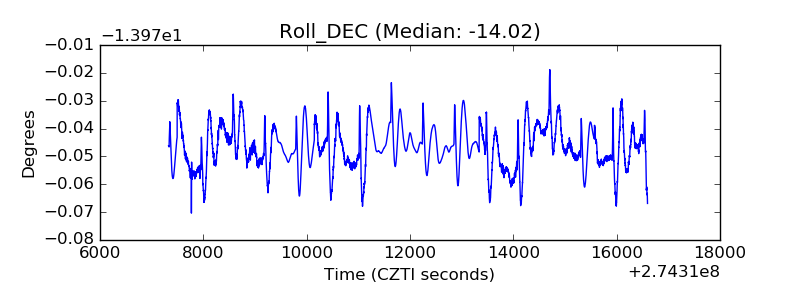

| _Roll_DEC |  |

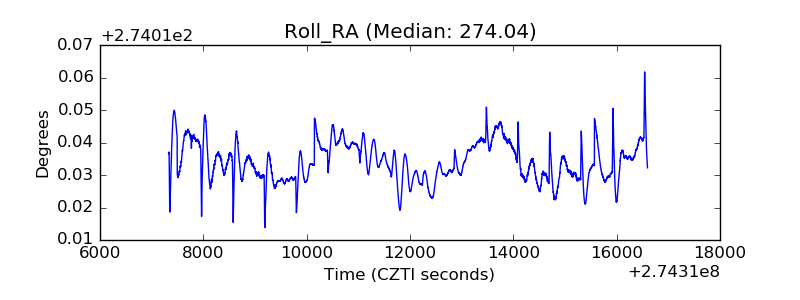

| _Roll_RA |  |
| Veto Counter |  |
