| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_087T01_9000002352_15970cztM0_level2.evt | modeM0/AS1T02_087T01_9000002352_15970cztM0_level2_quad_clean.evt |
| Size (bytes) | 547,968,960 | 91,347,840 |
| Size | 522.6 MB | 87.1 MB |
| Events in quadrant A | 4,116,932 | 564,604 |
| Events in quadrant B | 4,115,361 | 563,577 |
| Events in quadrant C | 3,866,373 | 546,820 |
| Events in quadrant D | 3,953,654 | 535,214 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17496 | 3 |
| B | 0 | 17338 | 2 |
| C | 0 | 16710 | 2 |
| D | 0 | 17416 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7996 | 203 | 2.538769% |
| B | 7996 | 198 | 2.476238% |
| C | 7996 | 159 | 1.988494% |
| D | 7996 | 98 | 1.225613% |

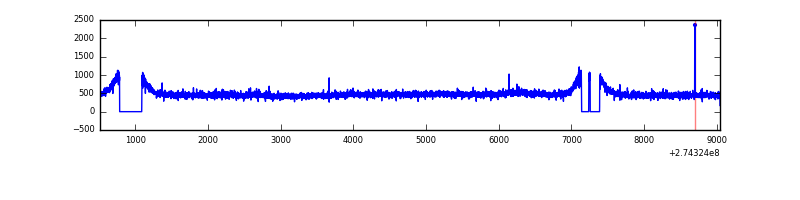

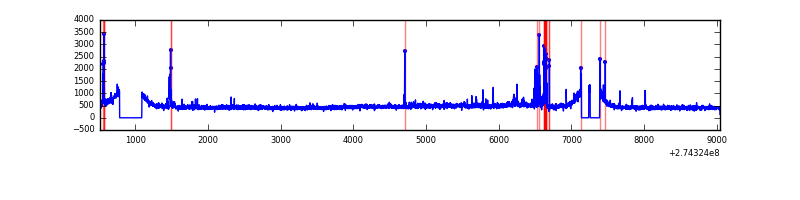

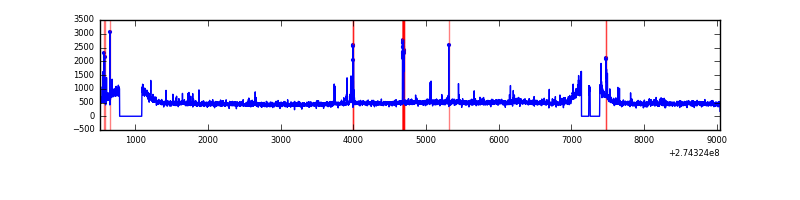

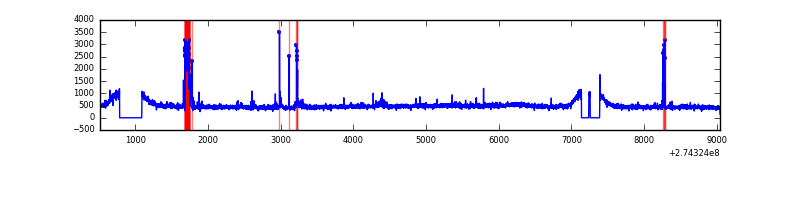

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8532 | 7999 | 70 | 70 | 0.82% | 0.88% |  |
| B | 8532 | 7999 | 22 | 22 | 0.26% | 0.28% |  |
| C | 8532 | 8000 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8532 | 7999 | 33 | 33 | 0.39% | 0.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 281164 | 1391.33 | 983 | 962 | 201.4 |
| A | 9 | 143 | 32875 | 158.46 | 983 | 962 | 201.4 |
| A | 13 | 210 | 25238 | 120.54 | 983 | 962 | 201.4 |
| B | 4 | 173 | 69036 | 353.2 | 987 | 961 | 192.7 |
| B | 15 | 222 | 53452 | 272.34 | 987 | 961 | 192.7 |
| B | 0 | 189 | 35600 | 179.72 | 987 | 961 | 192.7 |
| C | 14 | 238 | 141390 | 620.43 | 945 | 952 | 226.4 |
| C | 7 | 247 | 17868 | 74.73 | 945 | 952 | 226.4 |
| C | 3 | 233 | 15721 | 65.25 | 945 | 952 | 226.4 |
| D | 10 | 70 | 107400 | 446.92 | 954 | 926 | 238.2 |
| D | 12 | 110 | 93093 | 386.87 | 954 | 926 | 238.2 |
| D | 2 | 152 | 43624 | 179.22 | 954 | 926 | 238.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

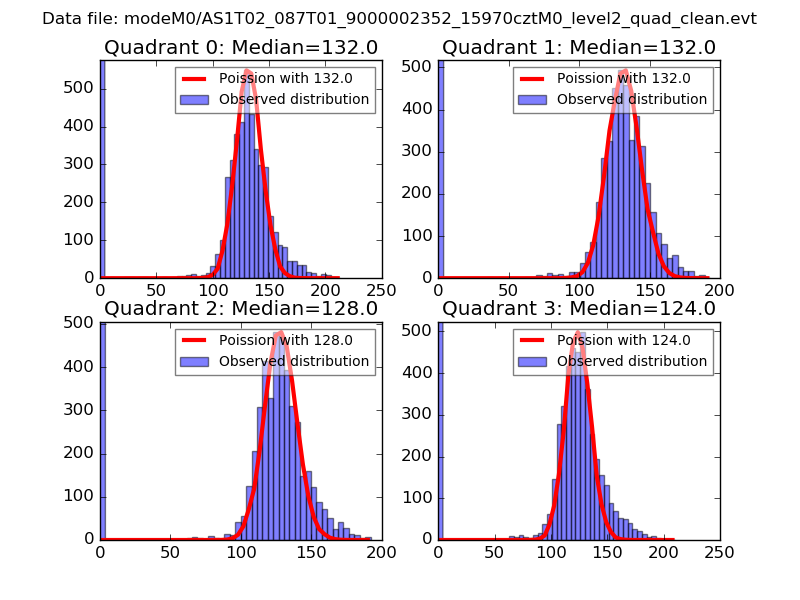

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

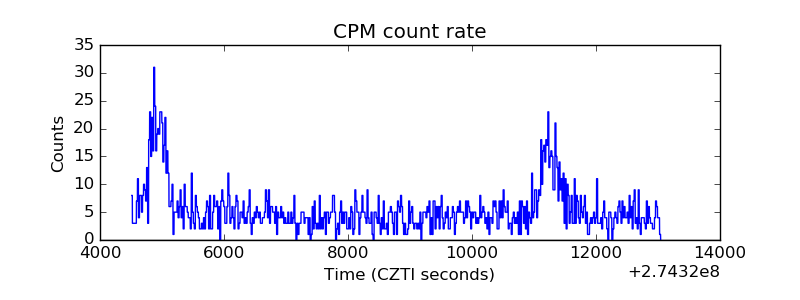

| _CPM_Rate |  |

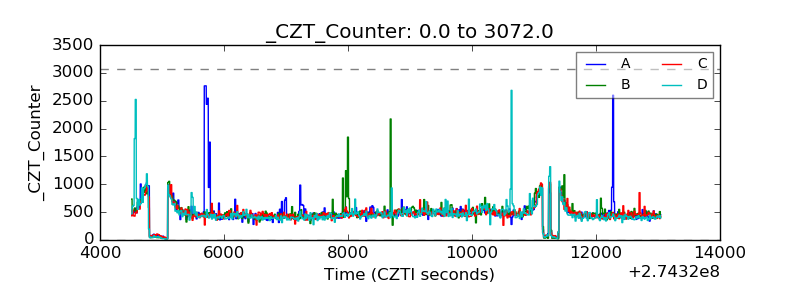

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
