| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_104T01_9000002356_15982cztM0_level2.evt | modeM0/AS1T02_104T01_9000002356_15982cztM0_level2_quad_clean.evt |
| Size (bytes) | 435,389,760 | 95,451,840 |
| Size | 415.2 MB | 91.0 MB |
| Events in quadrant A | 3,088,107 | 608,989 |
| Events in quadrant B | 3,257,329 | 623,013 |
| Events in quadrant C | 3,314,895 | 604,033 |
| Events in quadrant D | 3,071,216 | 589,142 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13847 | 3 |
| B | 0 | 14180 | 2 |
| C | 0 | 14194 | 2 |
| D | 0 | 14053 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6683 | 23 | 0.344157% |
| B | 6683 | 51 | 0.763130% |
| C | 6683 | 75 | 1.122250% |
| D | 6683 | 49 | 0.733204% |

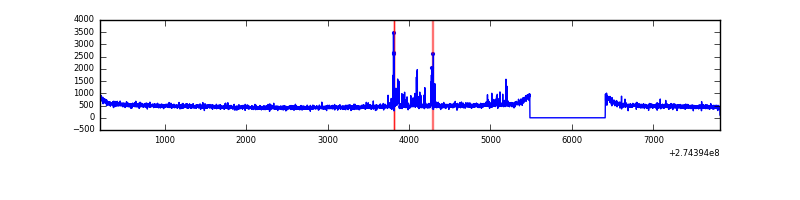

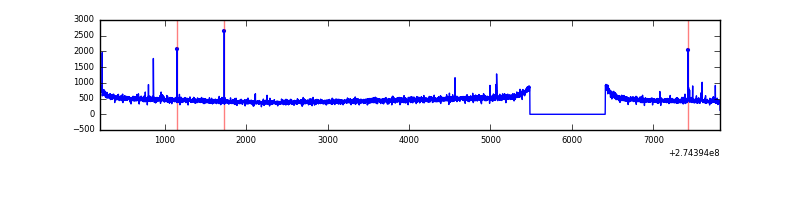

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7609 | 6685 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7609 | 6685 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7609 | 6685 | 5 | 5 | 0.07% | 0.07% |  |
| D | 7609 | 6685 | 12 | 12 | 0.16% | 0.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 17460 | 103.78 | 793 | 777 | 160.8 |
| A | 9 | 143 | 15308 | 90.39 | 793 | 777 | 160.8 |
| A | 12 | 96 | 9435 | 53.86 | 793 | 777 | 160.8 |
| B | 4 | 173 | 32195 | 206.68 | 804 | 784 | 152.0 |
| B | 15 | 222 | 21568 | 136.75 | 804 | 784 | 152.0 |
| B | 12 | 111 | 17812 | 112.04 | 804 | 784 | 152.0 |
| C | 9 | 236 | 121463 | 667.52 | 774 | 779 | 180.8 |
| C | 14 | 238 | 118534 | 651.32 | 774 | 779 | 180.8 |
| C | 0 | 207 | 28636 | 154.08 | 774 | 779 | 180.8 |
| D | 10 | 70 | 35301 | 182.35 | 777 | 754 | 189.4 |
| D | 12 | 218 | 33024 | 170.34 | 777 | 754 | 189.4 |
| D | 2 | 234 | 29503 | 151.75 | 777 | 754 | 189.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

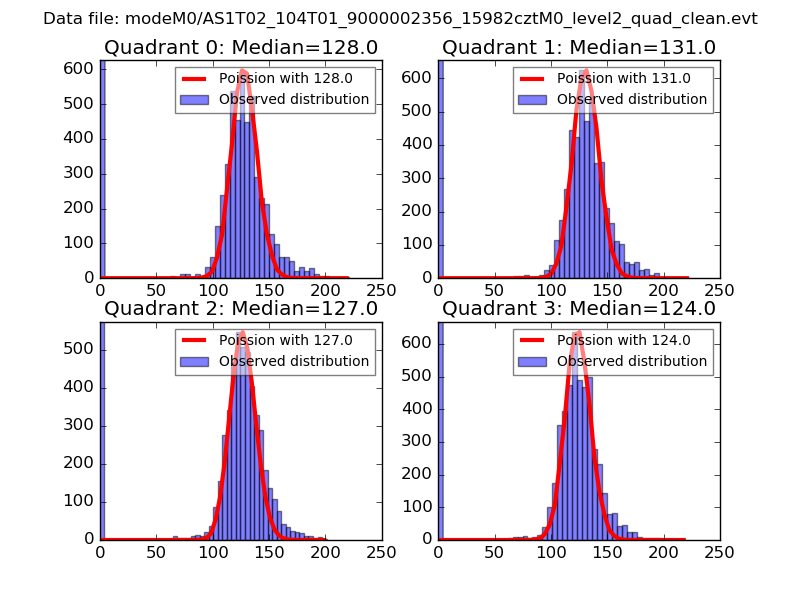

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

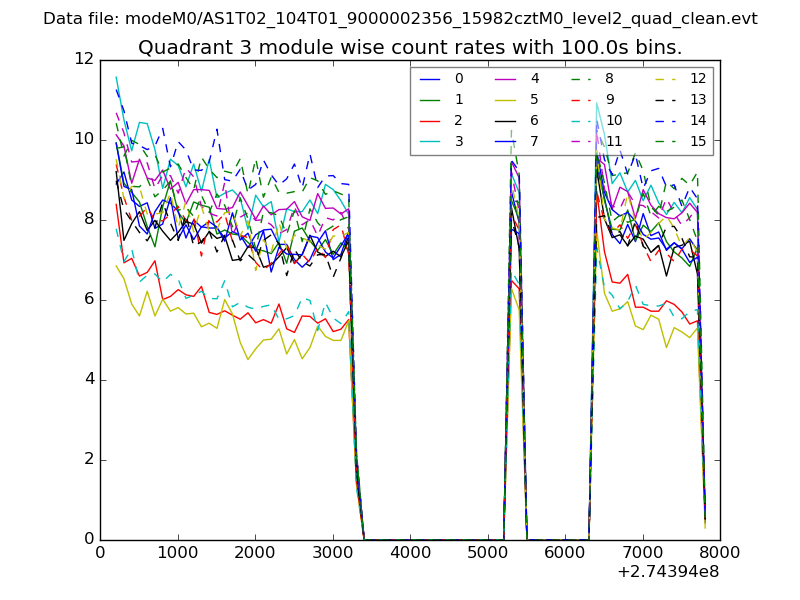

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

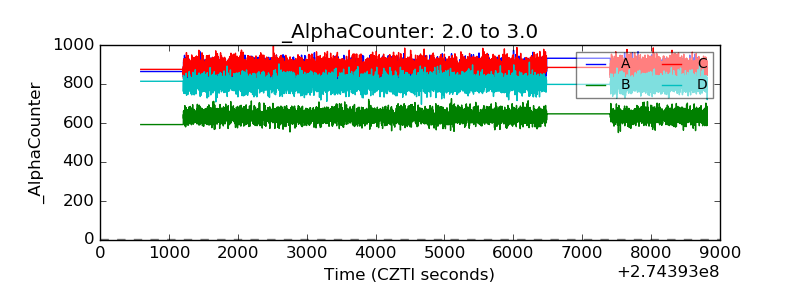

| Alpha Counter |  |
| _CPM_Rate |  |

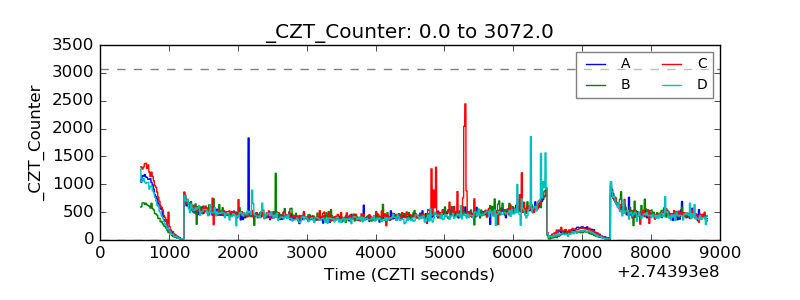

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

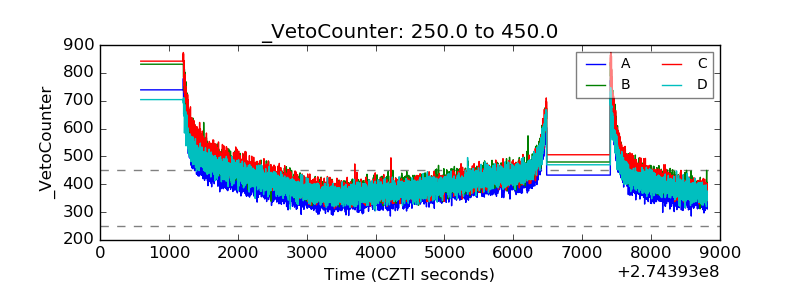

| Veto Counter |  |
