| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_090T01_9000002360_15996cztM0_level2.evt | modeM0/AS1T02_090T01_9000002360_15996cztM0_level2_quad_clean.evt |
| Size (bytes) | 525,346,560 | 105,048,000 |
| Size | 501.0 MB | 100.2 MB |
| Events in quadrant A | 3,556,149 | 688,386 |
| Events in quadrant B | 4,574,090 | 684,954 |
| Events in quadrant C | 3,636,390 | 676,111 |
| Events in quadrant D | 3,686,200 | 662,054 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14767 | 3 |
| B | 0 | 18022 | 2 |
| C | 0 | 14859 | 2 |
| D | 0 | 15353 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6743 | 108 | 1.601661% |
| B | 6743 | 462 | 6.851550% |
| C | 6743 | 182 | 2.699095% |
| D | 6743 | 138 | 2.046567% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

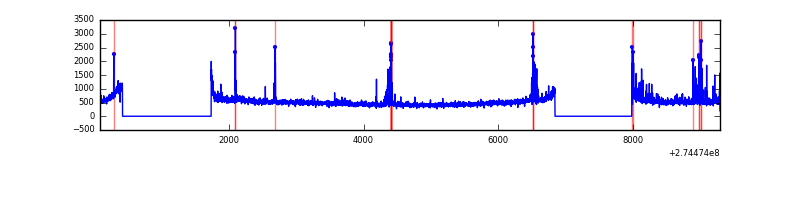

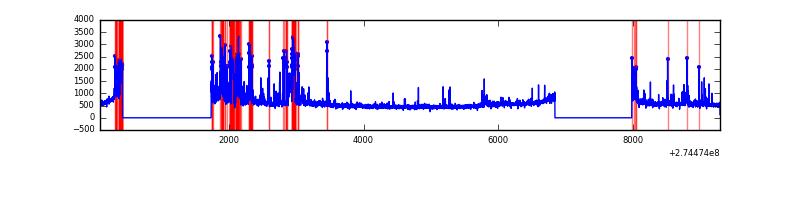

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9199 | 6745 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9199 | 6745 | 213 | 213 | 2.32% | 3.16% |  |
| C | 9199 | 6745 | 2 | 2 | 0.02% | 0.03% |  |
| D | 9199 | 6745 | 21 | 21 | 0.23% | 0.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 39311 | 209.31 | 908 | 891 | 183.6 |
| A | 13 | 210 | 15065 | 77.22 | 908 | 891 | 183.6 |
| A | 0 | 226 | 8160 | 39.6 | 908 | 891 | 183.6 |
| B | 7 | 220 | 390060 | 2309.29 | 884 | 865 | 168.5 |
| B | 10 | 245 | 335069 | 1983.0 | 884 | 865 | 168.5 |
| B | 4 | 173 | 172239 | 1016.85 | 884 | 865 | 168.5 |
| C | 14 | 238 | 135907 | 655.15 | 881 | 892 | 206.1 |
| C | 3 | 233 | 39693 | 188.28 | 881 | 892 | 206.1 |
| C | 0 | 207 | 24405 | 114.09 | 881 | 892 | 206.1 |
| D | 12 | 218 | 117362 | 530.53 | 892 | 870 | 219.6 |
| D | 9 | 85 | 81049 | 365.15 | 892 | 870 | 219.6 |
| D | 2 | 152 | 74292 | 334.38 | 892 | 870 | 219.6 |

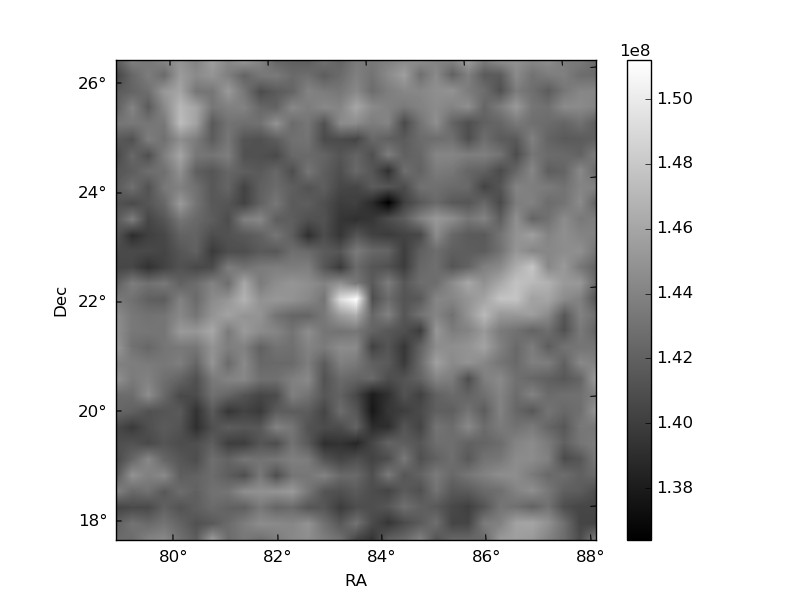

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

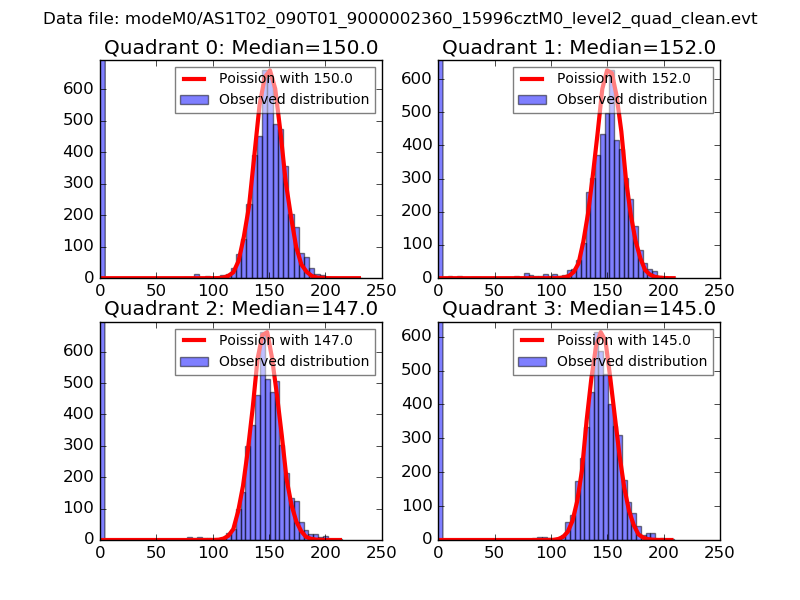

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

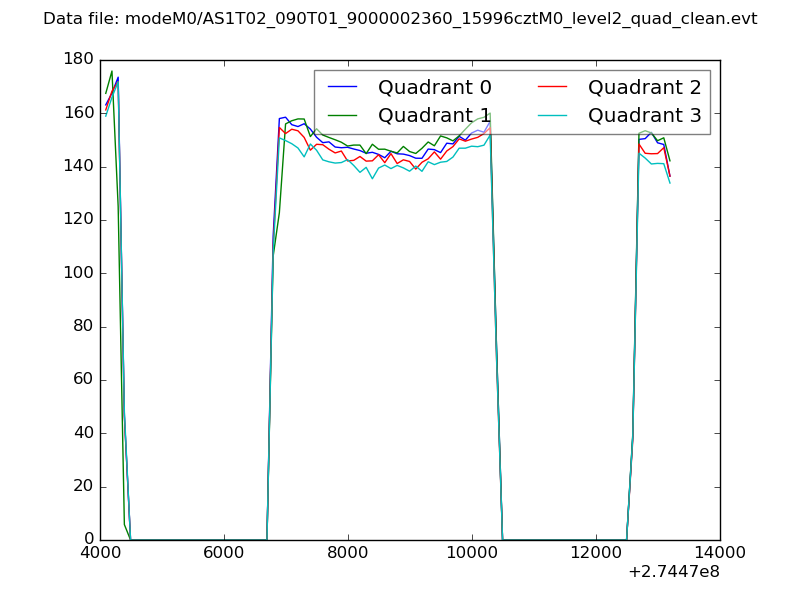

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

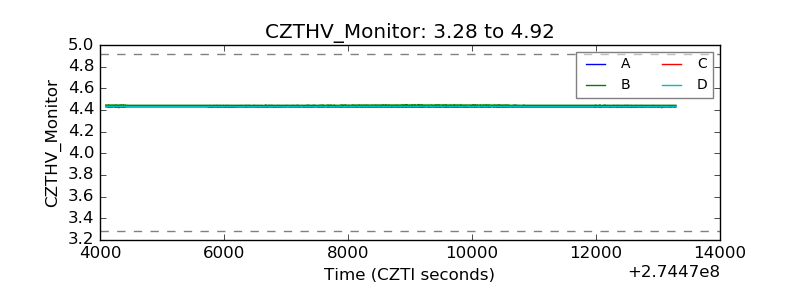

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

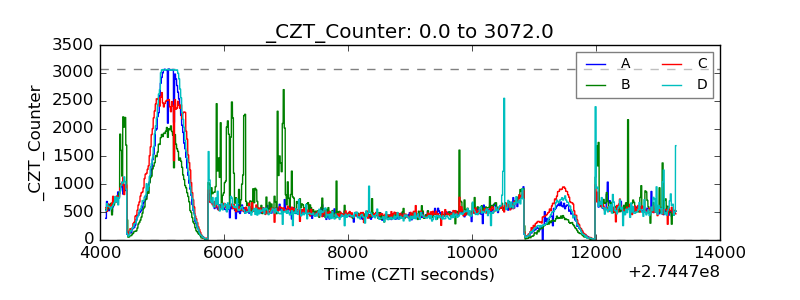

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

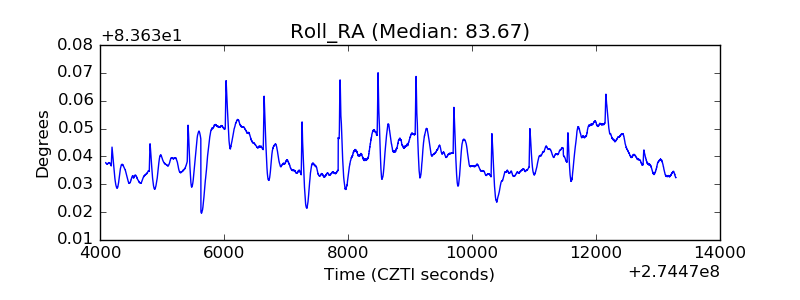

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
