| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_090T01_9000002360_16008cztM0_level2.evt | modeM0/AS1T02_090T01_9000002360_16008cztM0_level2_quad_clean.evt |
| Size (bytes) | 508,412,160 | 70,208,640 |
| Size | 484.9 MB | 67.0 MB |
| Events in quadrant A | 3,559,256 | 430,602 |
| Events in quadrant B | 3,811,998 | 434,210 |
| Events in quadrant C | 3,661,293 | 418,155 |
| Events in quadrant D | 3,942,957 | 408,755 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14497 | 2 |
| B | 0 | 15295 | 1 |
| C | 0 | 15035 | 1 |
| D | 0 | 15739 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6213 | 106 | 1.706100% |
| B | 6213 | 172 | 2.768389% |
| C | 6213 | 132 | 2.124577% |
| D | 6213 | 177 | 2.848865% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7544 | 6214 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7544 | 6214 | 58 | 58 | 0.77% | 0.93% |  |
| C | 7544 | 6214 | 7 | 7 | 0.09% | 0.11% |  |
| D | 7544 | 6214 | 105 | 105 | 1.39% | 1.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 157 | 85134 | 473.77 | 882 | 868 | 177.9 |
| A | 14 | 235 | 74539 | 414.2 | 882 | 868 | 177.9 |
| A | 0 | 226 | 7939 | 39.75 | 882 | 868 | 177.9 |
| B | 7 | 220 | 132335 | 811.48 | 876 | 860 | 162.0 |
| B | 5 | 65 | 104704 | 640.93 | 876 | 860 | 162.0 |
| B | 4 | 216 | 38049 | 229.53 | 876 | 860 | 162.0 |
| C | 3 | 233 | 214733 | 1095.31 | 849 | 859 | 195.3 |
| C | 14 | 238 | 132185 | 672.56 | 849 | 859 | 195.3 |
| C | 13 | 61 | 6284 | 27.78 | 849 | 859 | 195.3 |
| D | 12 | 218 | 613685 | 2937.67 | 862 | 838 | 208.6 |
| D | 2 | 152 | 27442 | 127.53 | 862 | 838 | 208.6 |
| D | 2 | 234 | 24933 | 115.5 | 862 | 838 | 208.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

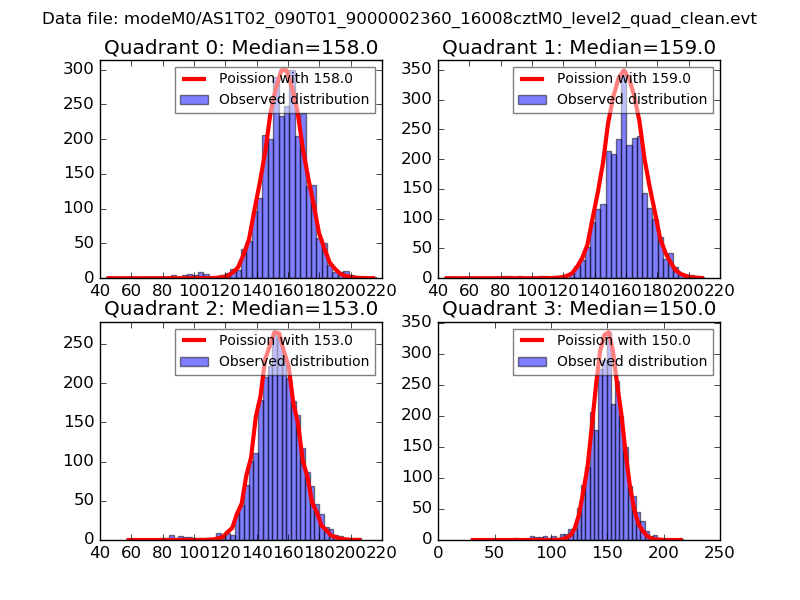

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

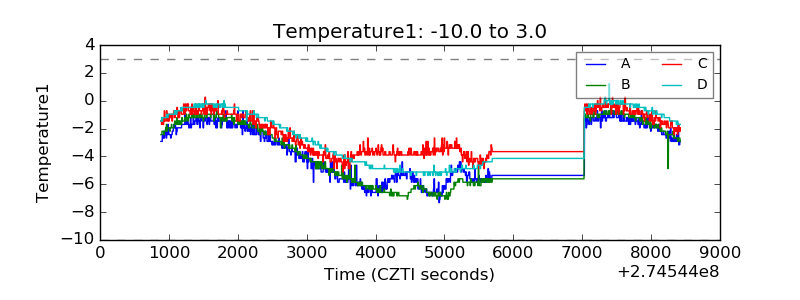

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

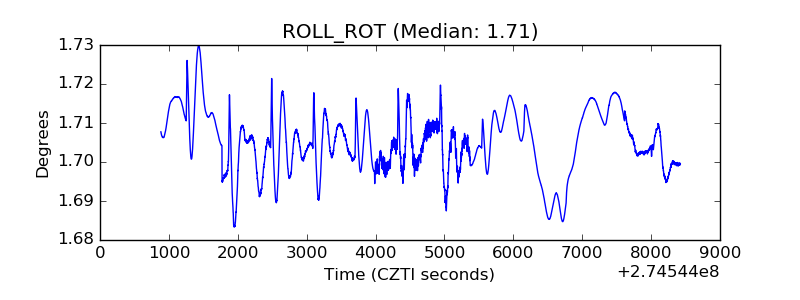

| _ROLL_ROT |  |

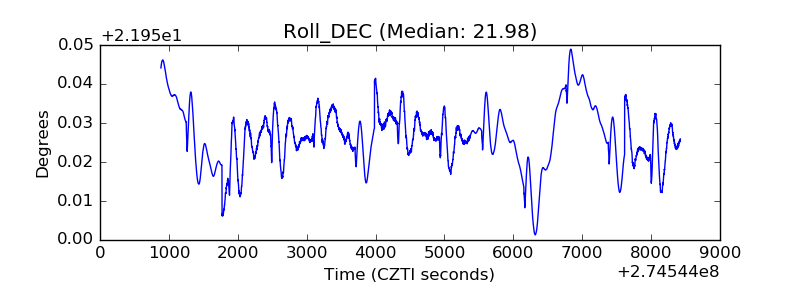

| _Roll_DEC |  |
| _Roll_RA |  |

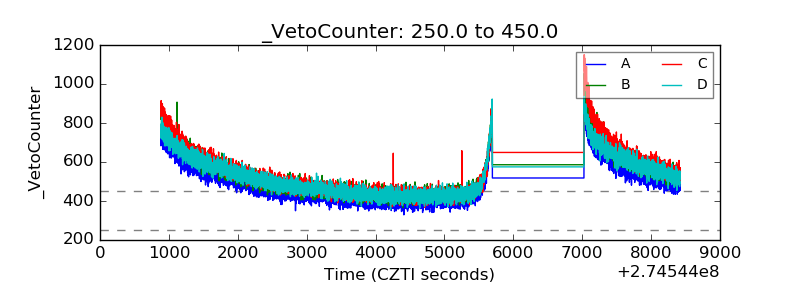

| Veto Counter |  |
