| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_090T01_9000002364_16013cztM0_level2.evt | modeM0/AS1T02_090T01_9000002364_16013cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,711,360 | 104,440,320 |
| Size | 472.7 MB | 99.6 MB |
| Events in quadrant A | 3,550,043 | 677,762 |
| Events in quadrant B | 3,703,347 | 683,652 |
| Events in quadrant C | 3,718,821 | 659,421 |
| Events in quadrant D | 3,555,824 | 645,187 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15073 | 2 |
| B | 0 | 15512 | 2 |
| C | 0 | 15306 | 2 |
| D | 0 | 15342 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7141 | 62 | 0.868226% |
| B | 7141 | 101 | 1.414368% |
| C | 7141 | 107 | 1.498390% |
| D | 7141 | 96 | 1.344350% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7627 | 7143 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7627 | 7143 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7627 | 7143 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7627 | 7143 | 32 | 32 | 0.42% | 0.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 157 | 28186 | 147.92 | 901 | 884 | 184.6 |
| A | 15 | 174 | 23737 | 123.82 | 901 | 884 | 184.6 |
| A | 3 | 80 | 14116 | 71.69 | 901 | 884 | 184.6 |
| B | 7 | 220 | 30568 | 171.2 | 908 | 888 | 173.4 |
| B | 10 | 245 | 23722 | 131.71 | 908 | 888 | 173.4 |
| B | 12 | 111 | 19275 | 106.06 | 908 | 888 | 173.4 |
| C | 3 | 233 | 141737 | 686.45 | 871 | 880 | 205.2 |
| C | 14 | 238 | 133518 | 646.4 | 871 | 880 | 205.2 |
| C | 0 | 207 | 25448 | 119.73 | 871 | 880 | 205.2 |
| D | 12 | 218 | 92183 | 424.35 | 876 | 853 | 215.2 |
| D | 2 | 152 | 52168 | 238.42 | 876 | 853 | 215.2 |
| D | 10 | 70 | 40517 | 184.29 | 876 | 853 | 215.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

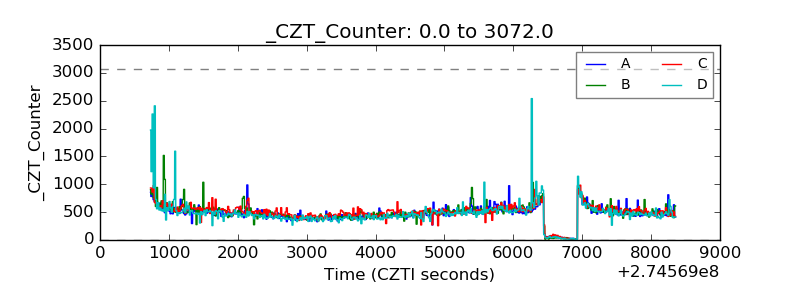

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

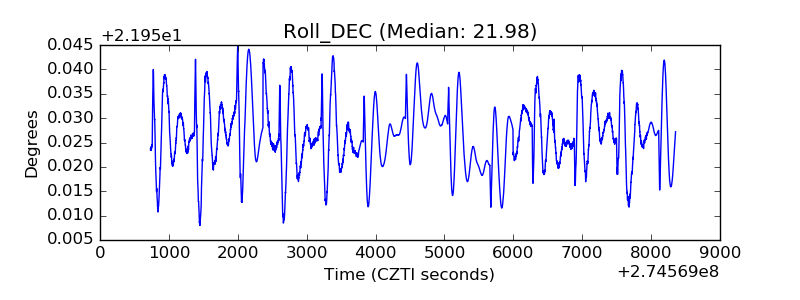

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
